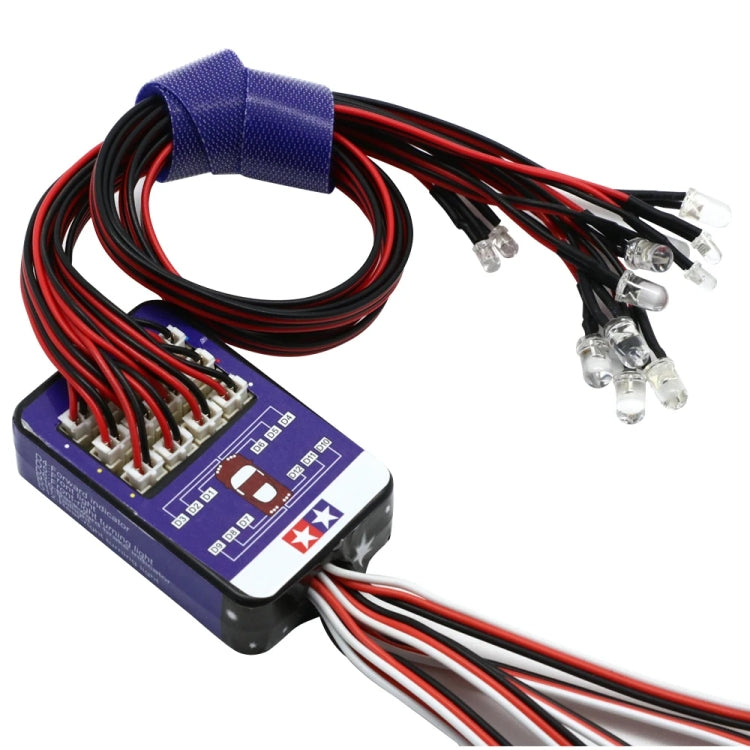

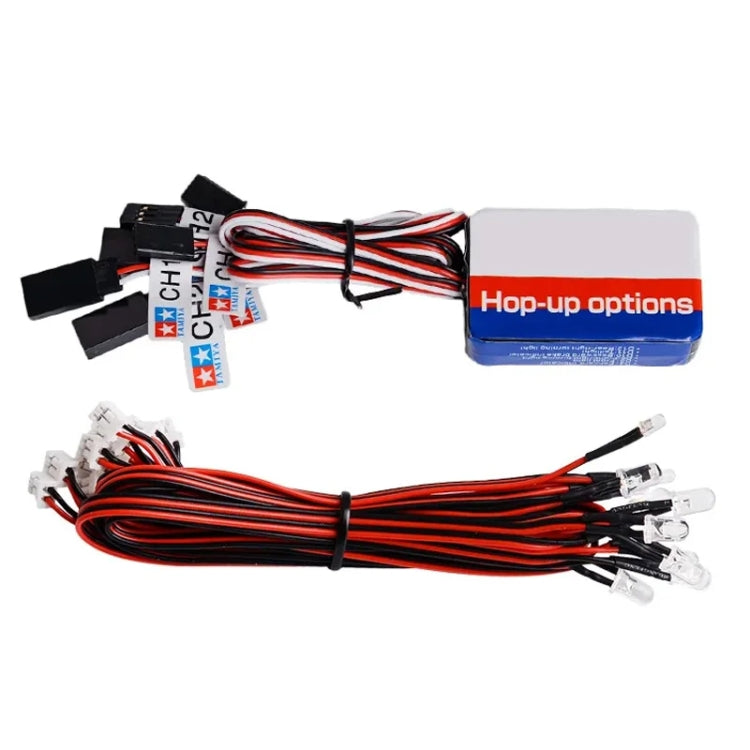

12 LED Lighting Kit Steering Brake for 1/10 Scale Models RC Car

This 12 LED lighting system kit is suitable for 1/10 RC cars. It has four colors of lights including white headlights, blue taillights, red brake lights and yellow turn signals. With improved circuit board, it can support high V receiver and normal receiver. And a group of lights can be controlled through the transmitter.

Feature:
1. 12 LED lights
2. Simulated car lights
3. Easy to use
4. Far flash and super bright
5. Improved circuit board design, HOSI saves power

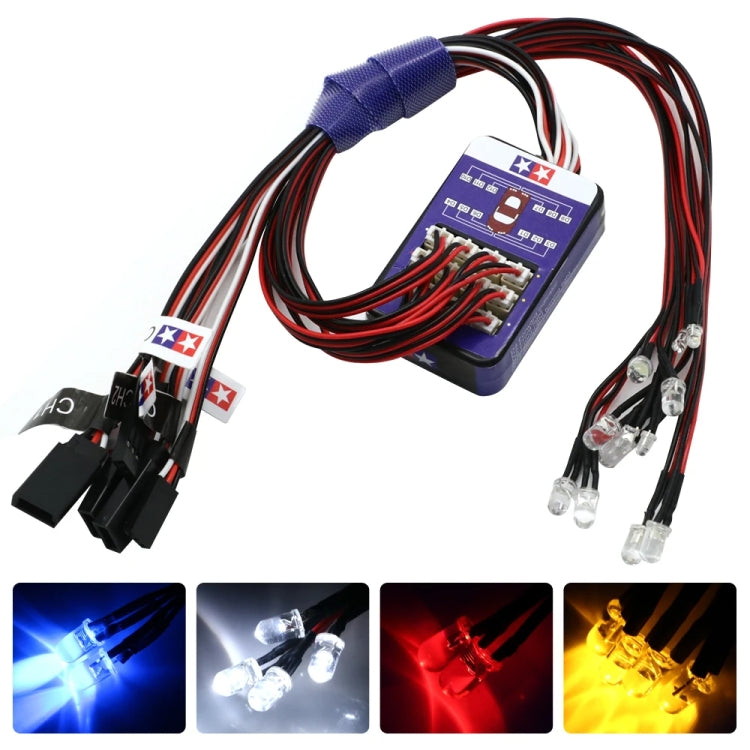

6. The headlights are white, the taillights are blue, the brake lights are red, and the turn signals are yellow.
7. Suitable for 1/10 remote control car

Specification:
Name: 12 LED Lighting System Kit
material: plastic
Number of LED bulbs: 12
Working current: 100mA
Input voltage: 4.8V-6.0V

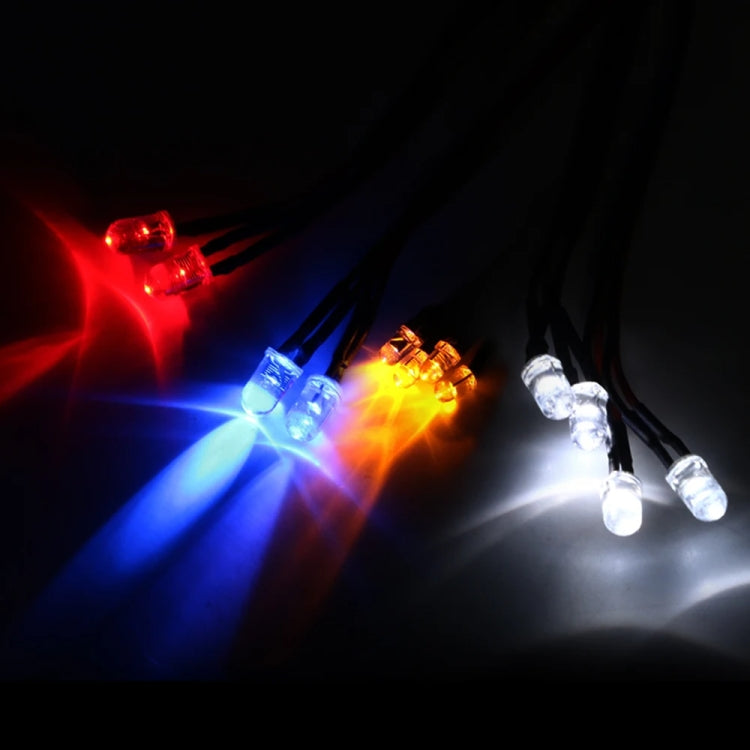

Light color: white, red, yellow, blue

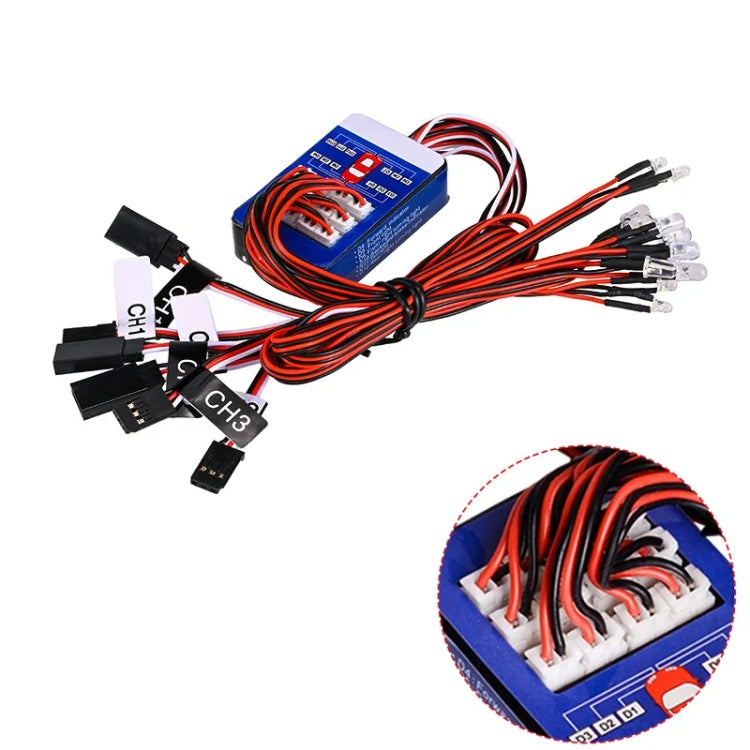

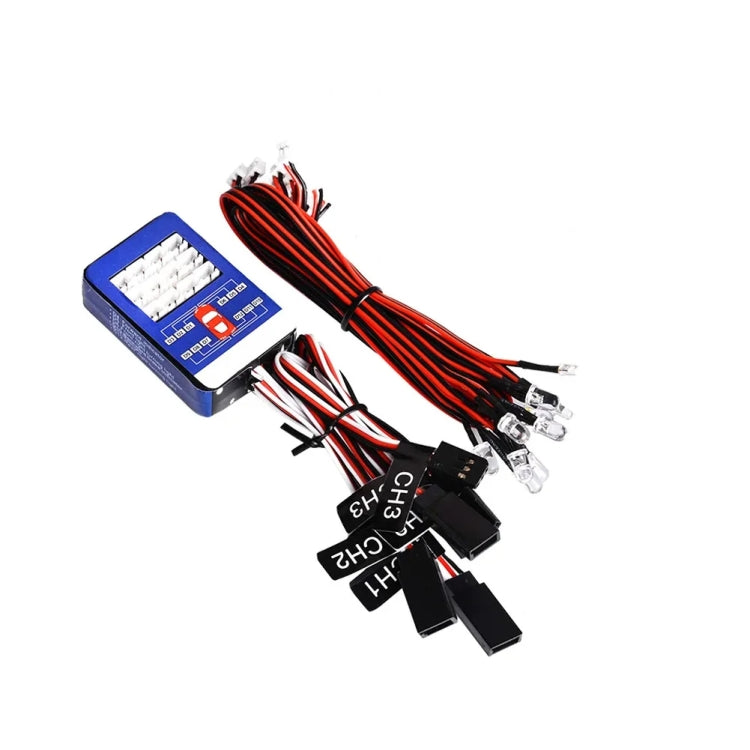

Connection method:
--CH1-Servo
--CH2 - Speed controller
--CH3 - receiver
Applicable to: 1/10 remote control car

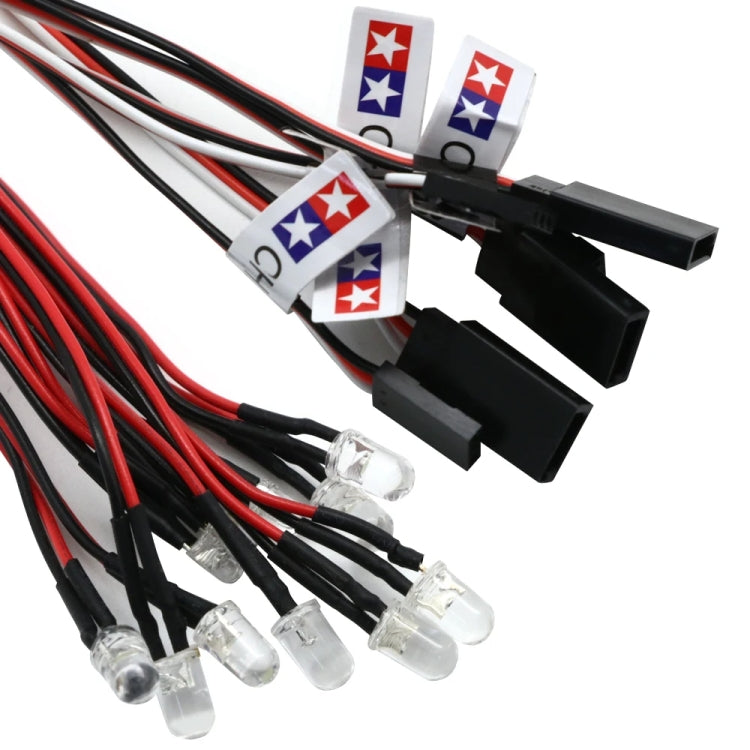

LED wire length: about 300mm
Board size: 53 x 33 x 15mm
Weight: 57.2 grams

Light description:
--Headlight: 4 white LED lights
Connect the lighting system to CH3 on the receiver: the transmitter can independently control one set of lights, and the other set of lights will turn on when the car accelerates; without CH3 connected to the receiver: one set of lights will stay on, and the other set of lights will turn on when the car accelerates.
--Turn signal: 4 yellow LED lights
As the remote changes direction, the lights flash in sync.
--Tail lights: 2 blue LED lights, 2 red LED lights
The blue light is always on. When the car accelerates or brakes, the blue light turns off. The red light will only come on when braking.

Installation method:
CH2 transmitter:
Connect the plugs of the servo and ESC to CH1 and CH2 of the lighting system, and then connect CH1 and CH2 to the receiver.
CH3 transmitter:
Connect the plugs of the servo and ESC to CH1 and CH2 of the lighting system, and then connect CH1, CH2 and CH3 to the receiver.
