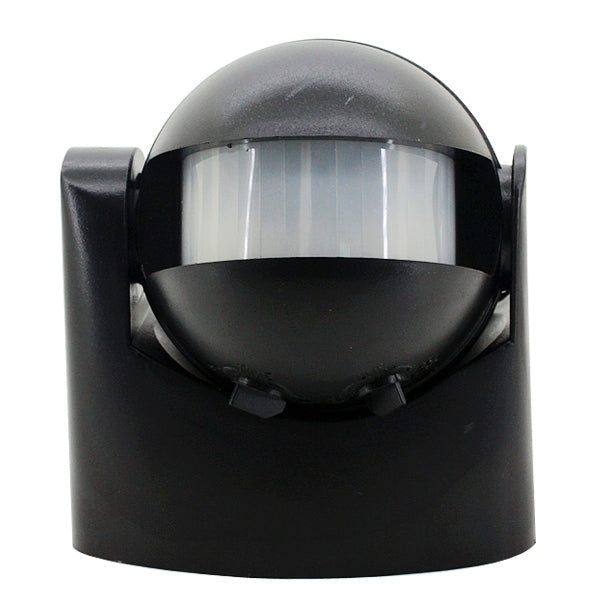

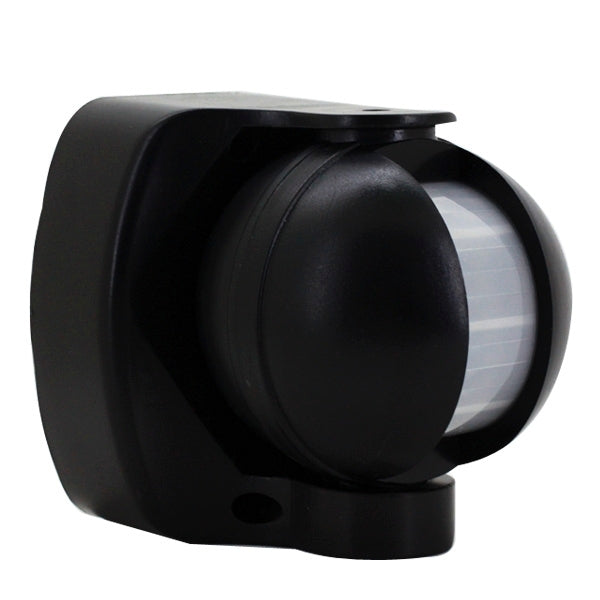

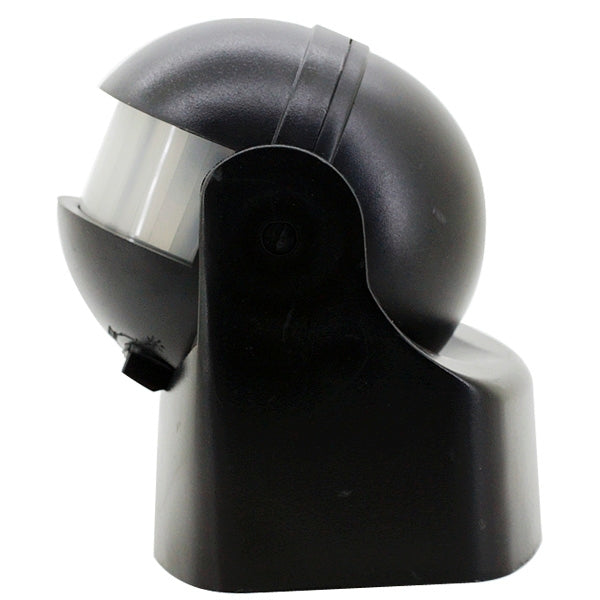

About the product1. This product is a new type of energy-saving lighting switch
2. Adopt high sensitivity detector, integrate circuit and SMT
3. It gathers automatic, convenient, safe, energy-saving and practical functions
4. It has wide detection range, consist of up and down, left and right service field
5. It can identify day and night automatically
6. It has the function of power and detection indication
7.Adopt the most advanced infrared human induction and optical technology
8. Easy to install
Notes1. The sensor is designed for optimum performance when mounted 2.5 meters above ground level
2. Avoid being close to trees or shrubs, which may cause false triggering during wet windy weather
3. Avoid being close to heat sources, which may cause false triggering.
4. Avoid mounting at strong electromagnetic disturbance, which may cause false triggering
Specification:
|
General
|
| Detection Angle |
180 degree |
| Detection Distance |
12m max. |
| Ambient Light |
3-2000LUX(adjustable) |
| Rated Load |
1200W (Incandescent Lamp), 300W (Energy Saving Lamp) |
| Power Consumption |
0.45W (Work), 0.1W (Static) |
| Installation Height |
1.8m-2.5m |
| Working Temperature |
-20-+40 Celsius Degree |
| Working Humidity |
< 93 percent RH |
|
|
Package Weight
|
| One Package Weight |
0.21kgs / 0.46lb
|
| One Package Size |
10cm * 9.5cm * 9cm / 3.94inch * 3.74inch * 3.54inch
|
| Carton Weight |
10.10kgs / 22.27lb
|
| Carton Size |
55cm * 30cm * 30cm / 21.65inch * 11.81inch * 11.81inch
|
| Loading Container |
20GP: 538 cartons * 50 pcs = 26900 pcs
40HQ: 1250 cartons * 50 pcs = 62500 pcs
|
|
