1. Input voltage: DC4~12V
2. Output voltage: DC2.5~8V
3. Output power: 5W (do not use it with overload)

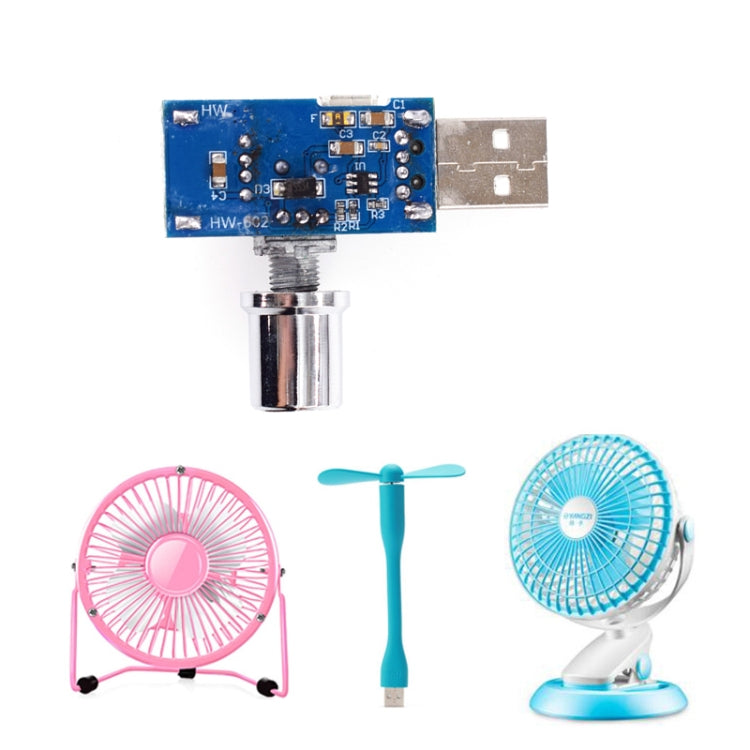

4. Function description: suitable for common 5.0V USB fans on the market
5. How to use: Plug the male head of the governor into a mobile phone charger, power bank, computer USB, etc., and then insert the fan plug into the female head of the governor to use
6. Adjustment method: knob adjustment (clockwise increase, counterclockwise decrease)
7. Features: strong wind and weak wind can be adjusted at will, fan stepless speed regulation, wide voltage input compatible with multi-speed power supply.

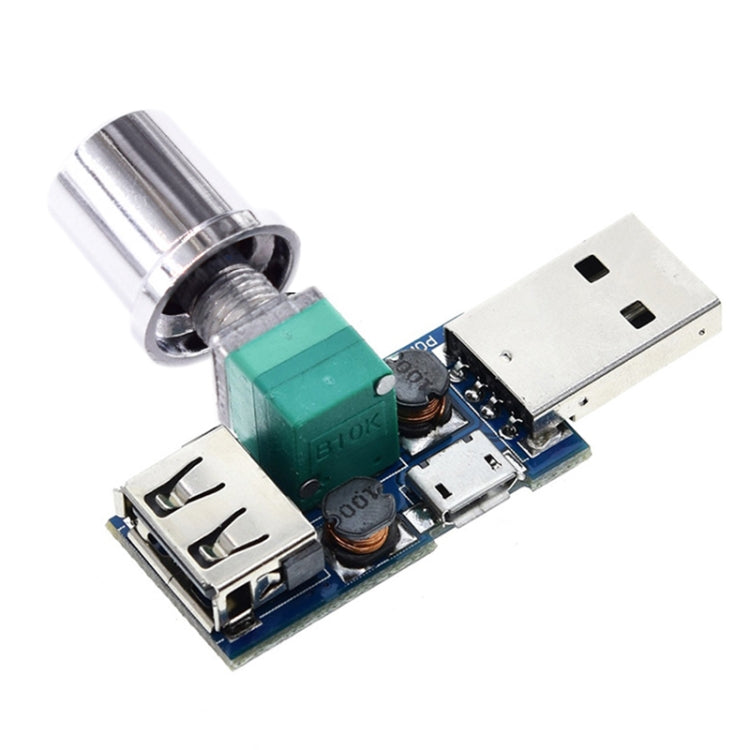

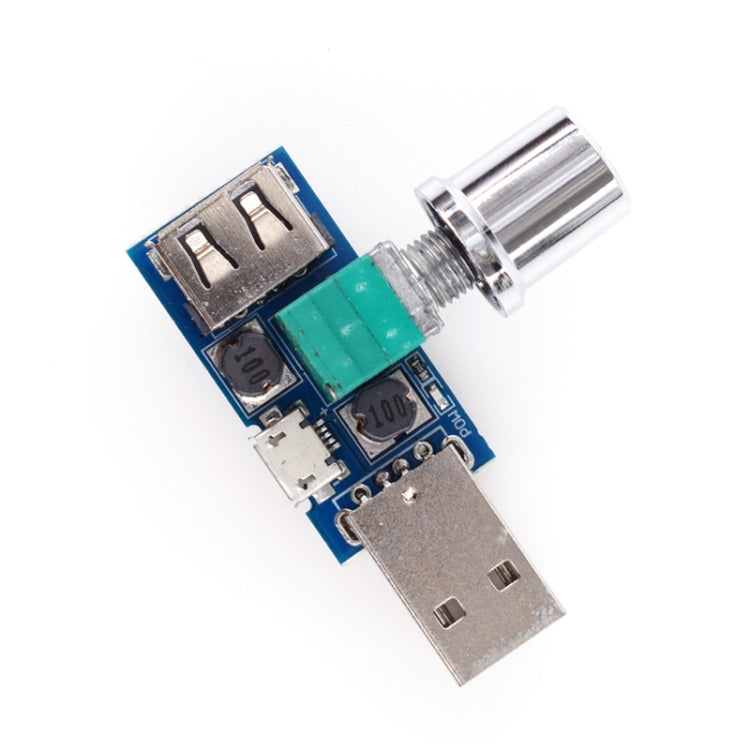

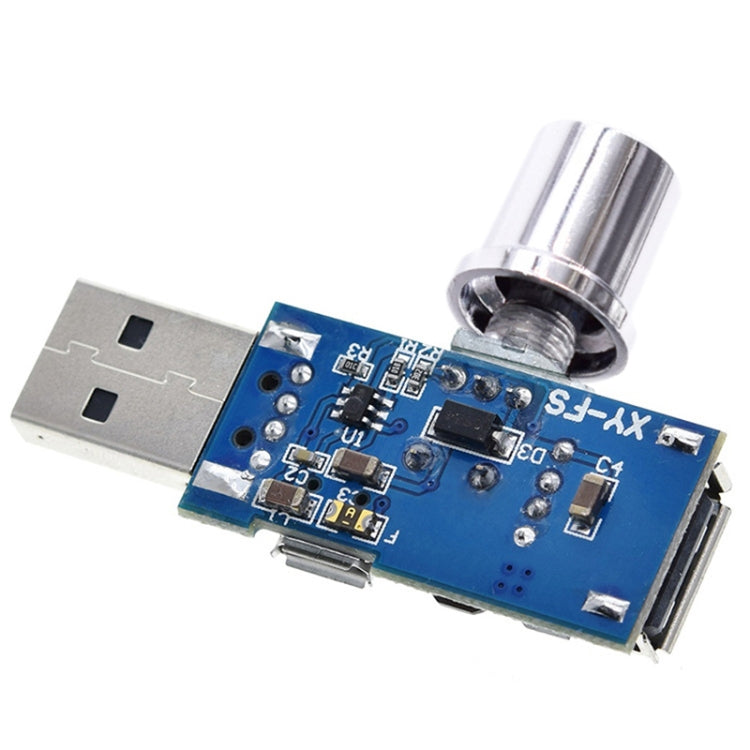

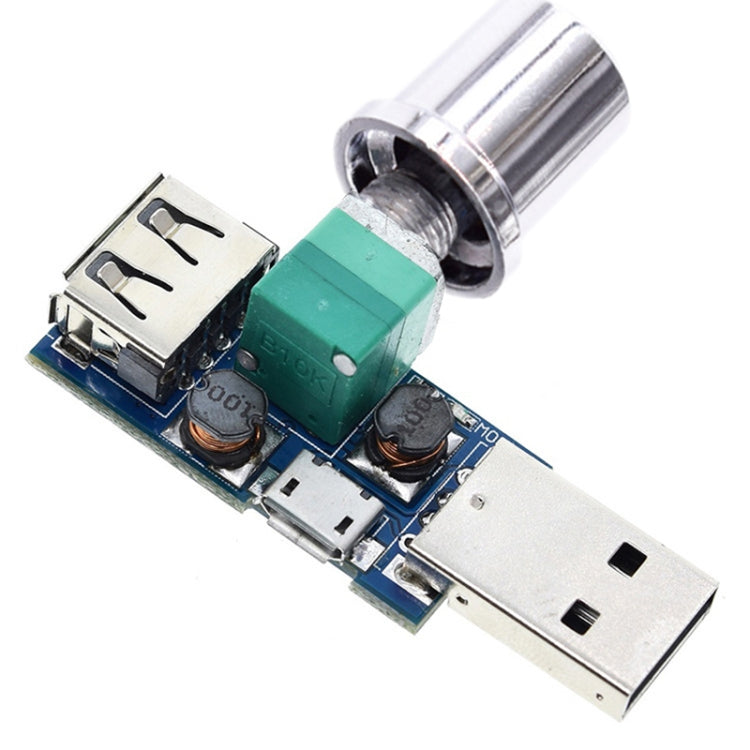

8. The module is a speed-regulating fan module designed according to the principle of high-frequency switching power supply. The essence is to control the speed of the fan by adjusting the output voltage.
9. Matters needing attention: When used to adjust the fan in two gears, please set the fan to the first gear, otherwise the speed may not be adjusted.
10. Size: 50x18mm
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
10cm * 6cm * 3cm / 3.94inch * 2.36inch * 1.18inch
|
| Carton Weight |
10.00kgs / 22.05lb
|
| Carton Size |
42cm * 32cm * 32cm / 16.54inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 620 cartons * 300 pcs = 186000 pcs
40HQ: 1439 cartons * 300 pcs = 431700 pcs
|
|
