1. Working voltage: 3.7~24VDC
2. Bluetooth version: 5.0
3. Transmission distance: 15 meters (visible without obstruction)
4. Signal to noise ratio: greater than or equal to 90dB
5. Distortion: less than or equal to -70dB
6. Number of channels: dual channel (stereo)
7. Audio interface: 3.5mm audio interface
8. Module protection mechanism: Power reverse connection protection

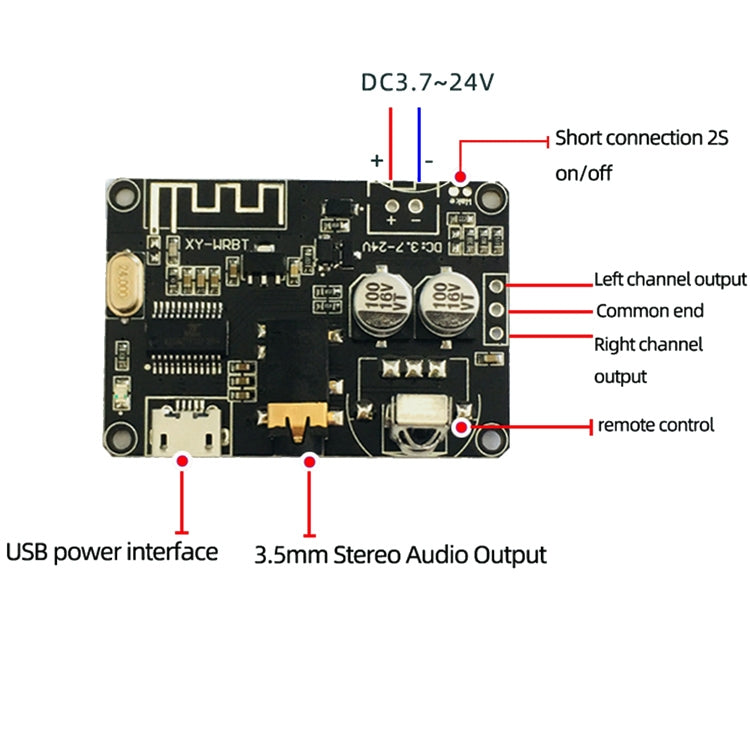

9. Interface description:
- Power supply can use Micro-USB mobile phone charger, 3.7-4.2V lithium battery, 3.7-24V DC power supply, you can choose one of the three.
- Short the "on/off contact" for 2 seconds to set the decoder board on/off. For battery-powered situations, turning off when not in use will save power and facilitate modification.
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| One Package Size |
10cm * 8cm * 3cm / 3.94inch * 3.15inch * 1.18inch
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
52cm * 36cm * 37cm / 20.47inch * 14.17inch * 14.57inch
|
| Loading Container |
20GP: 385 cartons * 200 pcs = 77000 pcs
40HQ: 893 cartons * 200 pcs = 178600 pcs
|
|
