1. Weight: type A 485g/set, type B 383g/set, type C 256g/set

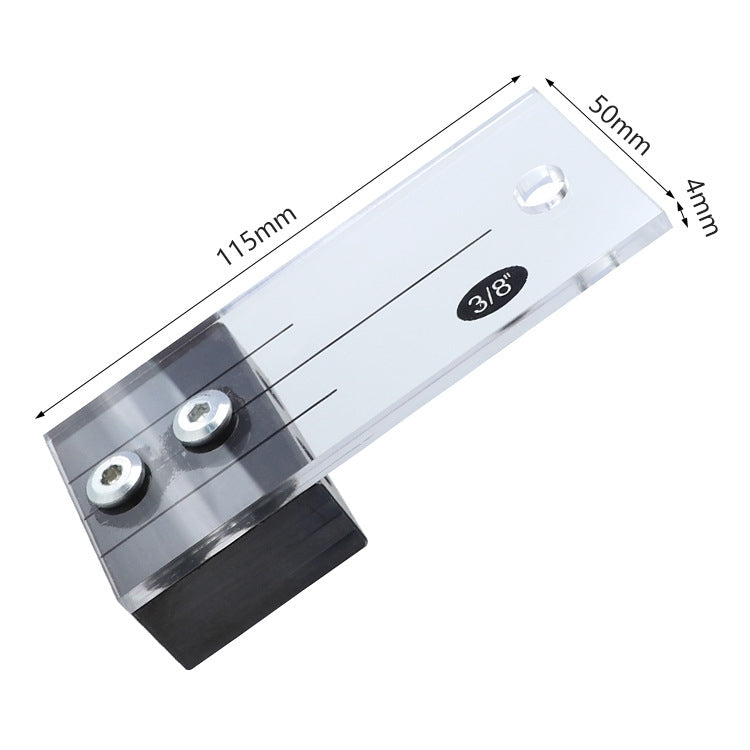

2. Size: 115x50 mm

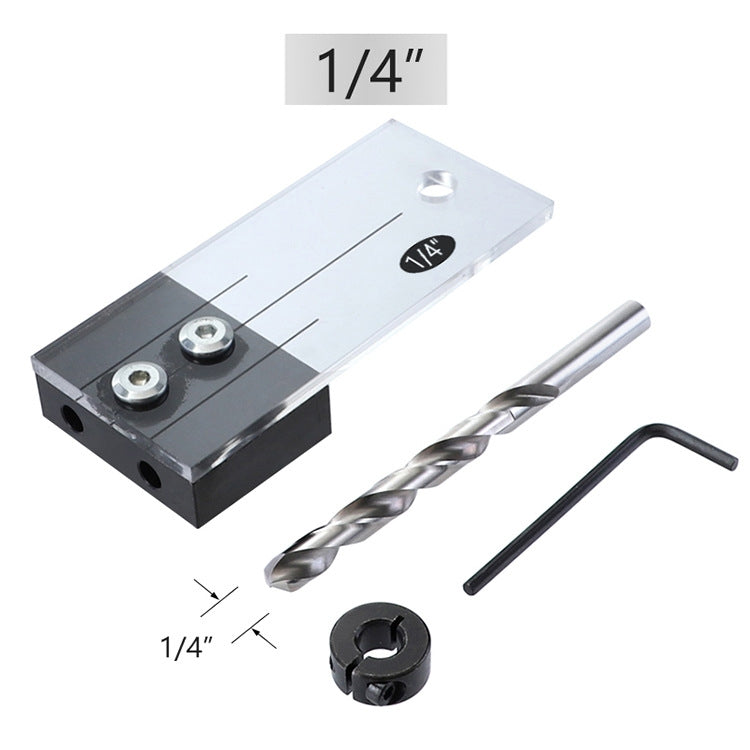

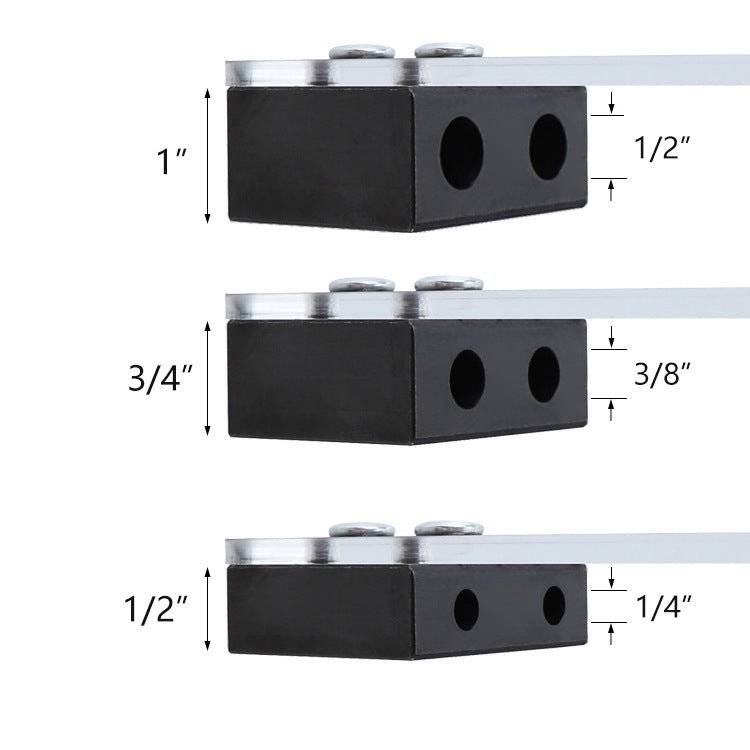

3. Drilling diameter: A 1/2inch, B 3/8inch, C 1/4inch
4. Thickness of transparent baffle: 4 mm
5. Metal thickness: A section 25mm, B section 19mm, C section 13mm
6. Material: acrylic + metal
7. Scope of application: household, DIY woodworking
8. Features: high hardness, durable, the transparent plate of the positioner has a small hole that can be hung on the wall, which is convenient for storage and easy to use

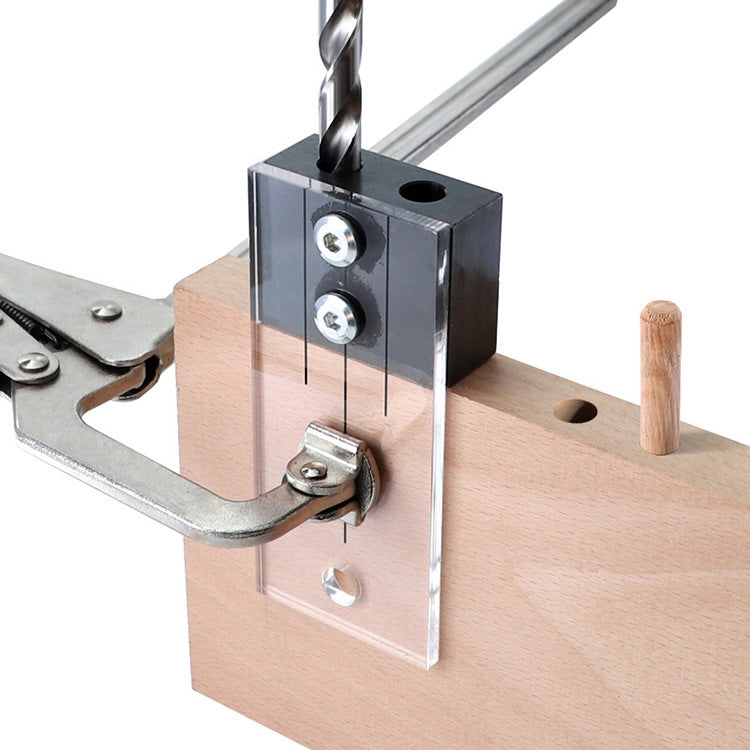

9. How to use: draw a line at the joint of the two boards, align the locator, clamp the locator and the board with the F fixture, then you can accurately locate and quickly drill

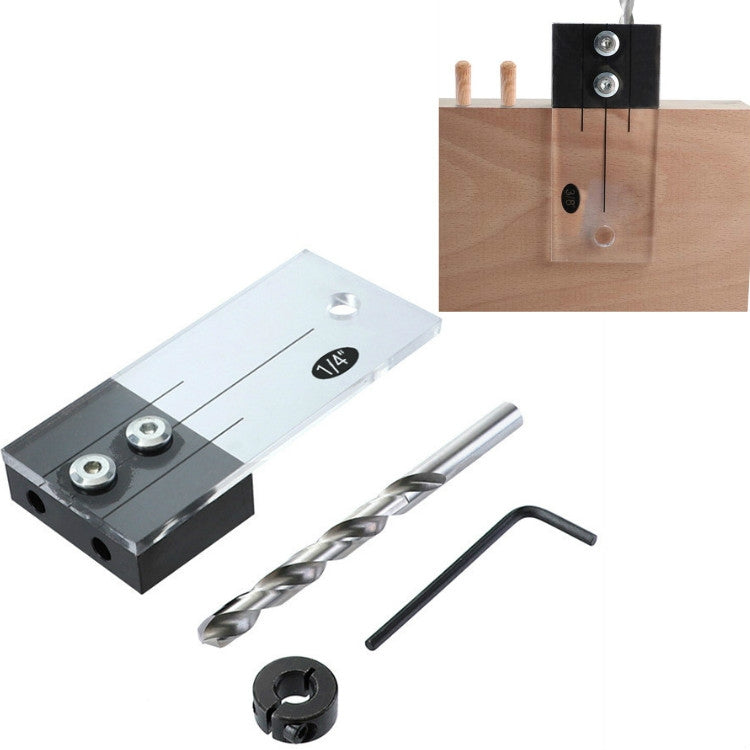

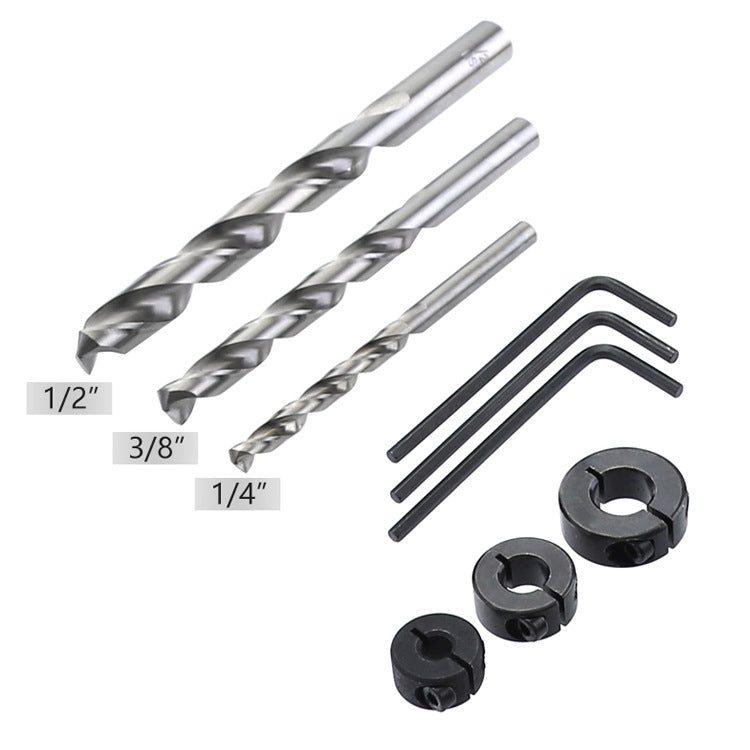

10. One set contains: locator, drill bit, locating ring, small tools
Specification:
|
Package Weight
|
| One Package Weight |
0.30kgs / 0.67lb
|
| One Package Size |
15cm * 6cm * 5cm / 5.91inch * 2.36inch * 1.97inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 98 pcs = 17346 pcs
40HQ: 412 cartons * 98 pcs = 40376 pcs
|
|
