1. Reduces DC-DC switcher supply ripple and helps clean noisy power from a shared battery
2. Reduce the effects of interference radiated through the air and noise conducted via the power wires
3. Help attenuation most of the high-frequency power supply noise and interference
4. Suppress the noise in the power getting to your FPV setup (e.g. your VTX and FPV camera)
5. Both the negative and positive leads are filtered (common mode)
6. Suitable for setups up to 30V and maximum 2A / 3A load
7. Built-in Reverse Polarity protection
8. The very low voltage drop

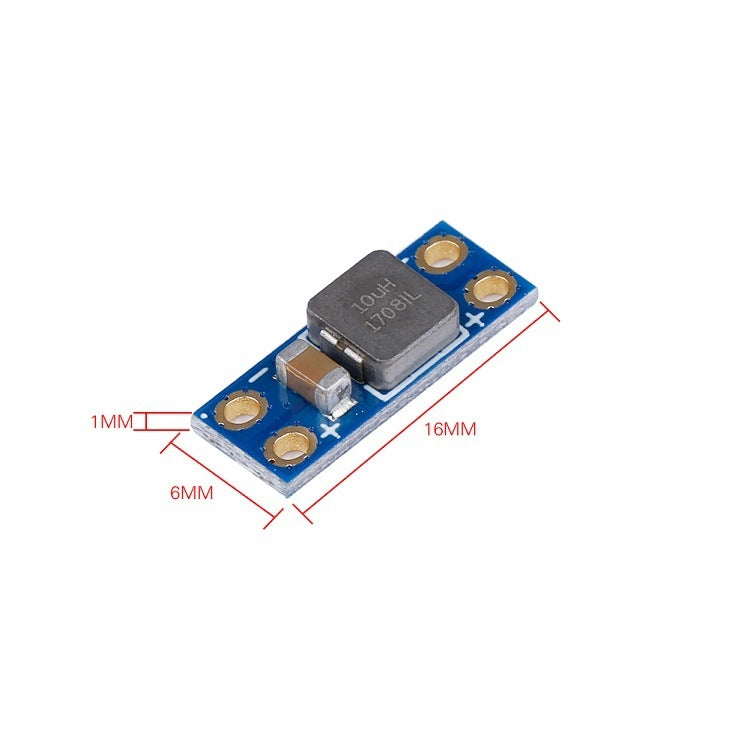

9. Dimension: 16x6x3mm
10.Weight only 0.6g
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.02lb
|
| One Package Size |
8cm * 6cm * 3cm / 3.15inch * 2.36inch * 1.18inch
|
| Carton Weight |
2.80kgs / 6.17lb
|
| Carton Size |
50cm * 50cm * 48cm / 19.69inch * 19.69inch * 18.9inch
|
| Loading Container |
20GP: 222 cartons * 720 pcs = 159840 pcs
40HQ: 515 cartons * 720 pcs = 370800 pcs
|
|
