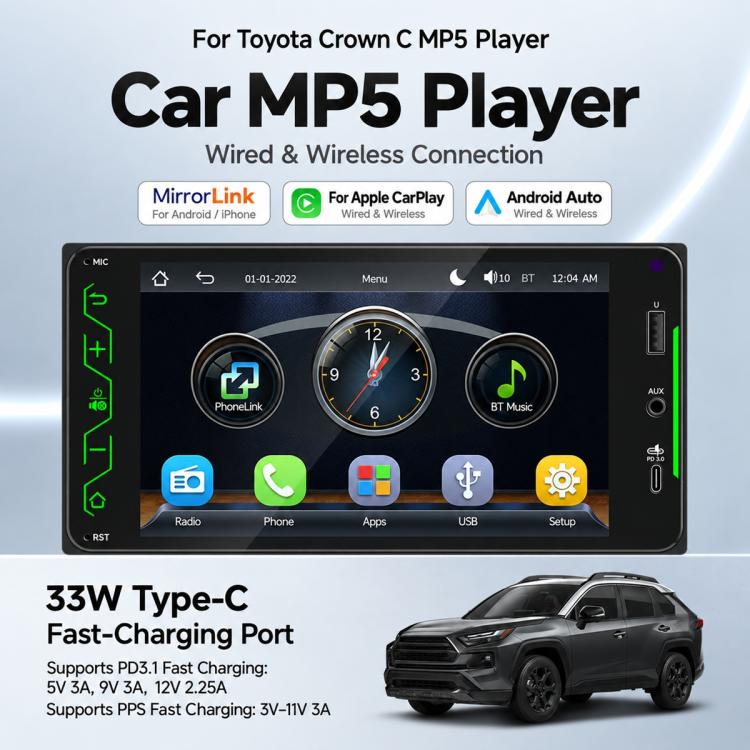

Basic Functions:
1. Radio (FM/AM)

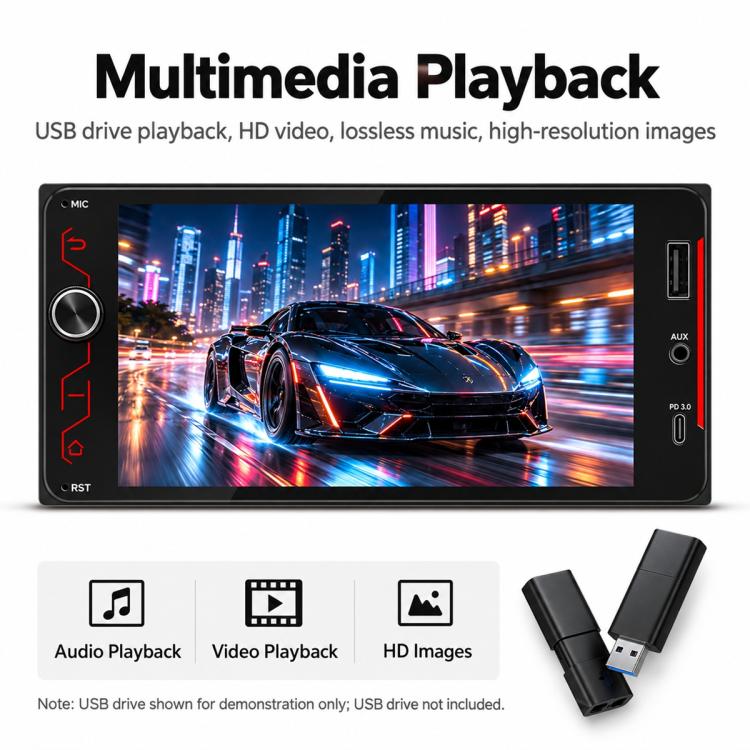

2. USB drive playback (audio/video/images)
3. Video input function
4. Bluetooth function
5. RCA audio output

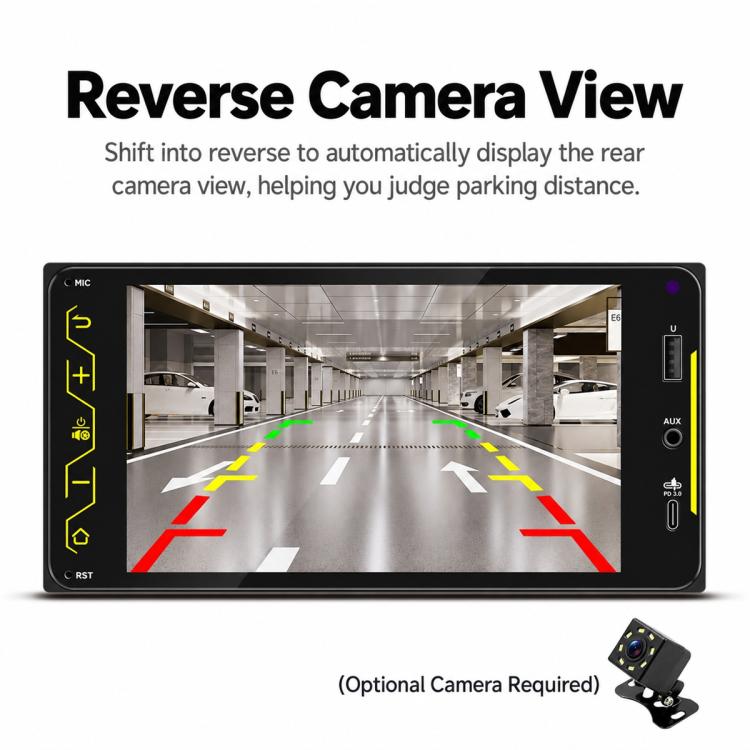

6. Rear-view camera support

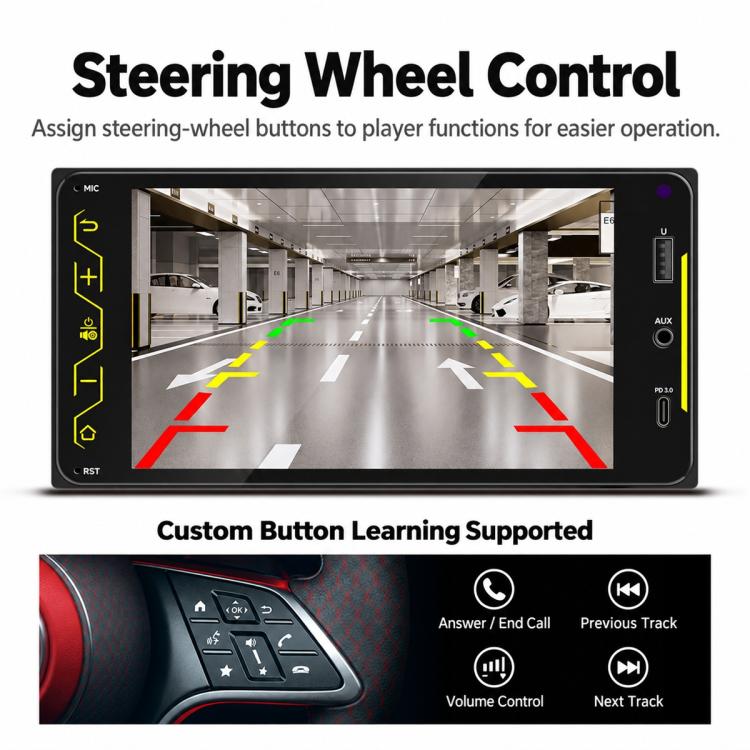

7. Steering wheel control learning function

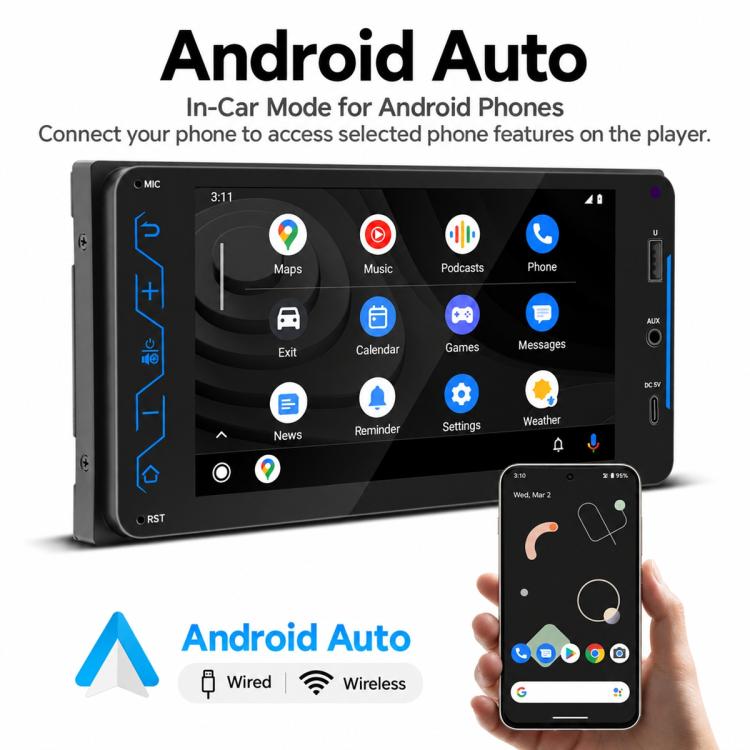

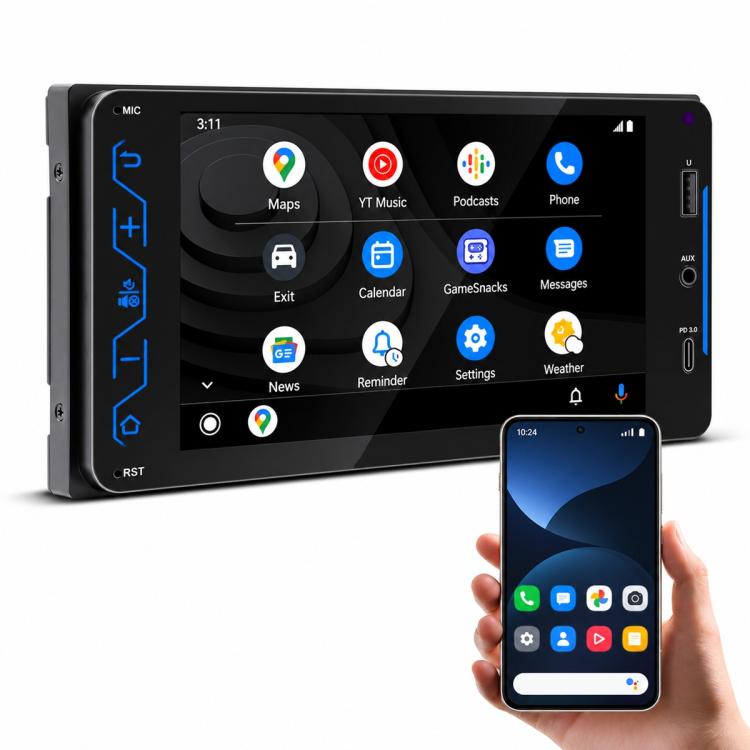

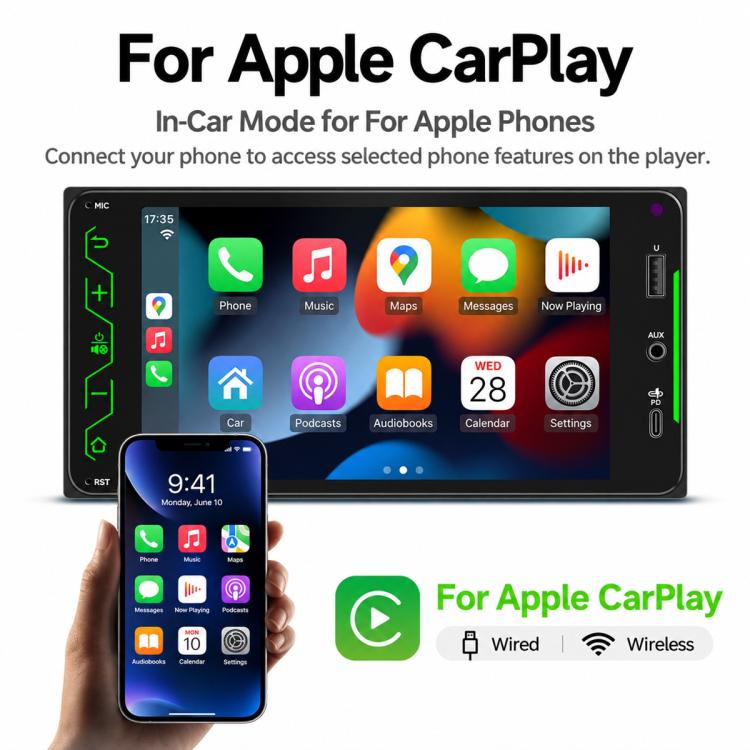

8. Wired & wireless phone connectivity (Android Auto & CarPlay)
9. Multicolor lighting

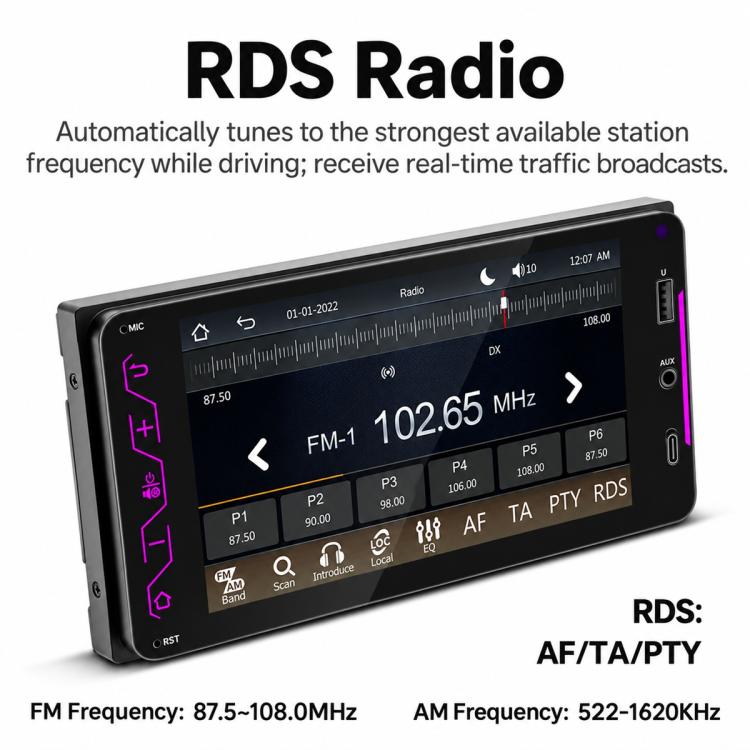

10. RDS function
11. USB 2.1A charging

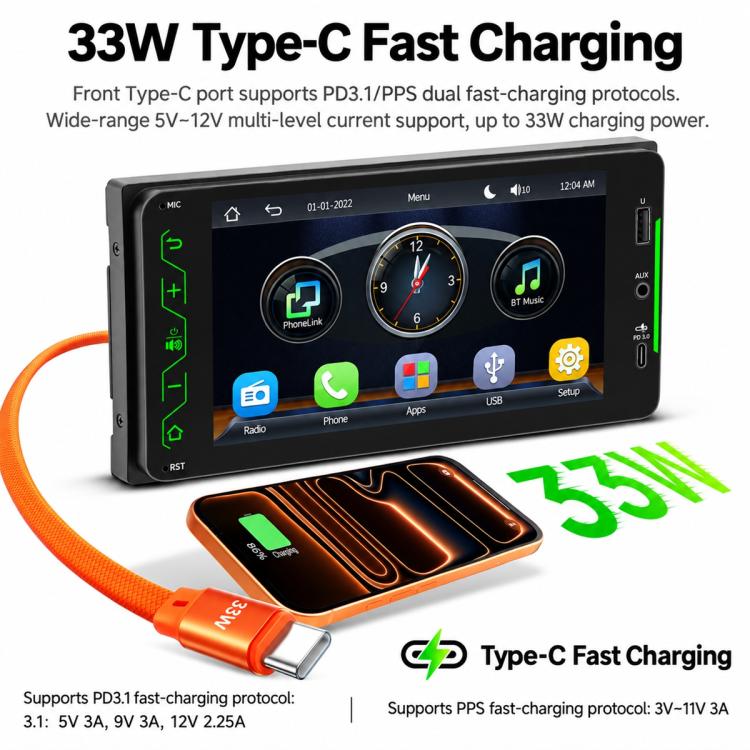

12. Type-C fast charging (supports PD3.1 and PPS); PD3.1: 5V 3A, 9V 3A, 12V 2.25A; PPS: 3V–11V 3A
13. Subwoofer output
Specifications:
1. System: Allwinner Melis
2. Software Platform: F133
3. FM: 87.5-108.0 MHz; AM: 522-1620 KHz (full band, supports RDS)
4. Output Power: 60W x 4
5. Operating Voltage: 12-14.4V
6. Operating Temperature: -10 to 60°C

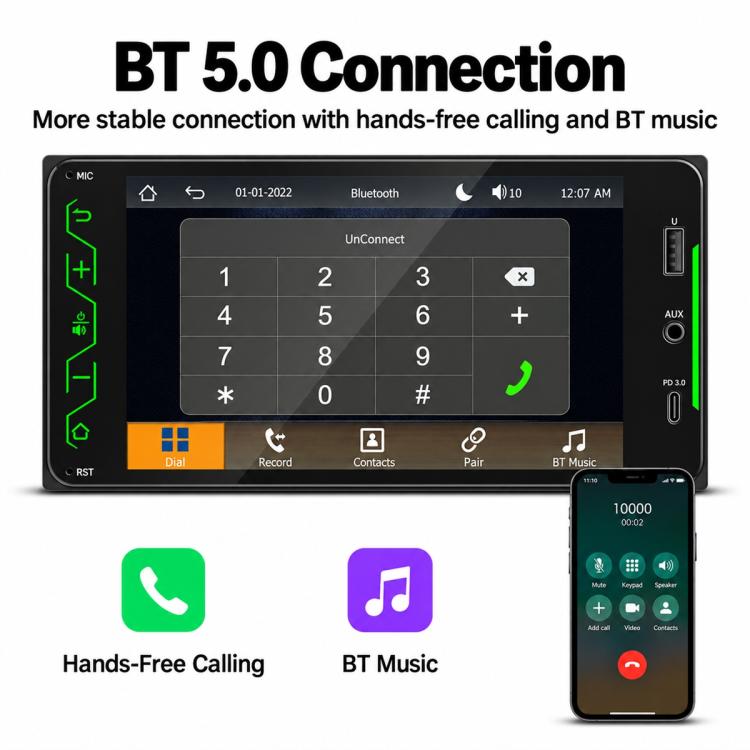

7. Bluetooth Version: 5.0 (SWL-BT)
8. WiFi Frequency: 2.4G/5G

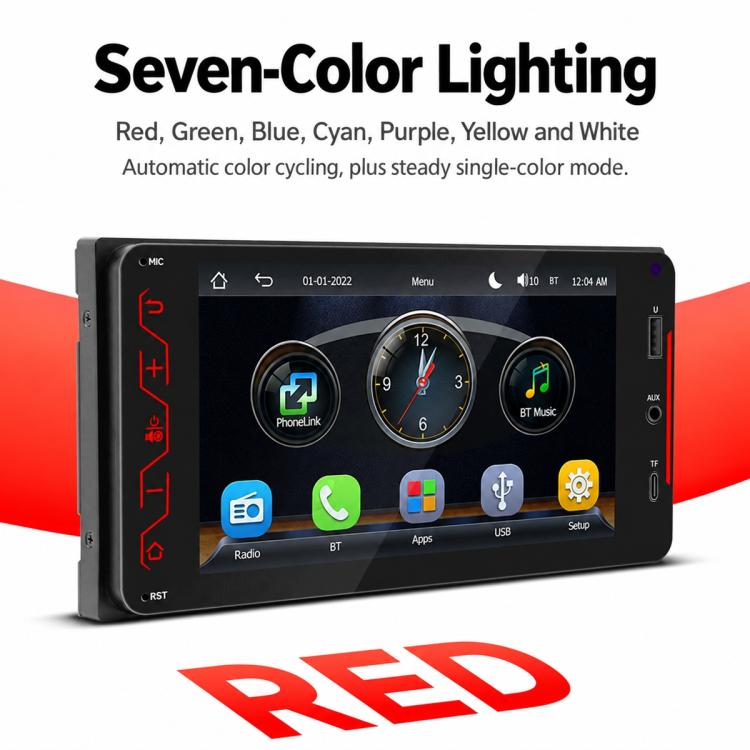

9. Panel Lighting: Multicolor
10. Screen Size: 7-inch IPS; Resolution: 1024x600
11. Depth: 47mm
12. Faceplate Dimensions: 103x204mm

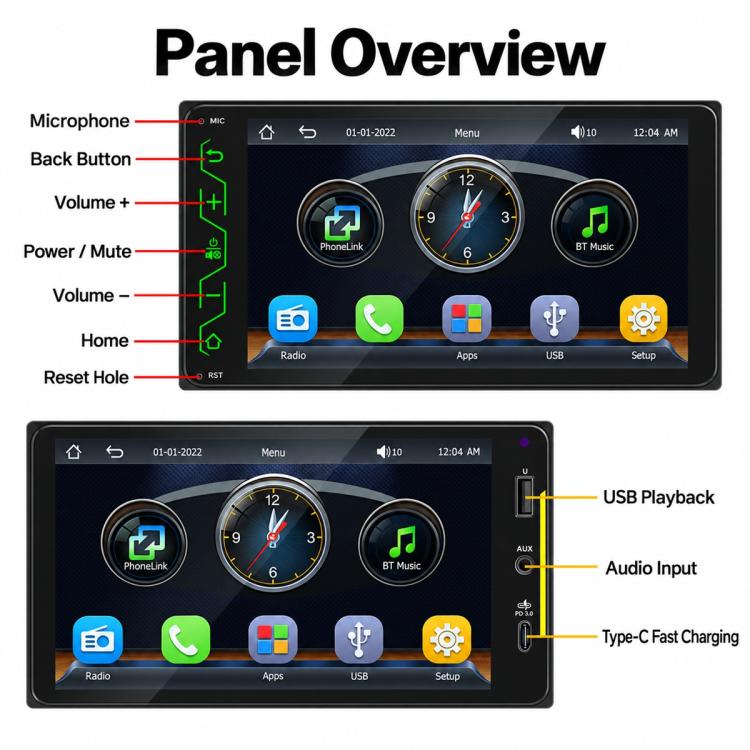

13. USB Ports: Front USB 2.0 + Rear USB 2.0 + Rear 2.1A Charging Port + Reserved Test Port
14. Reset Button: Supported

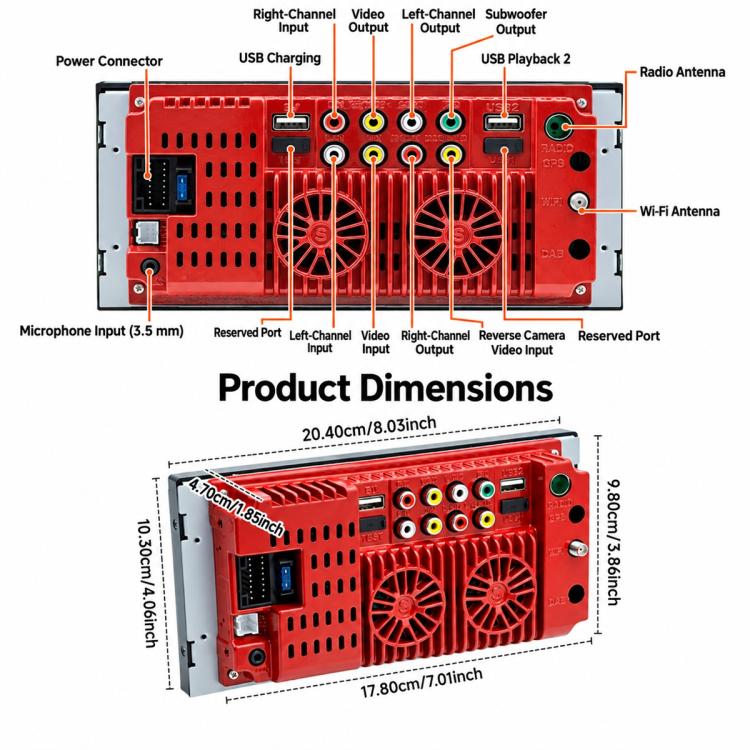

15. RCA Outputs: Left/Right Audio, Video, Subwoofer
16. RCA Inputs: Left/Right Audio, Video, Reverse Camera Video
17. AUX Inputs: Front Audio Input + Rear Microphone (3.5mm)
18. Audio Formats: MP3/AAC/APE/OGG/M4A/RA/WAV
19. Video Formats: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
20. Image Formats: JPEG/PNG/BMP/GIF/TIFF
21. Languages: English, Chinese, French, German, Arabic, Italian, Japanese, Portuguese, Russian, Spanish, Hebrew, Polish, Turkish, Czech, Korean, Greek, Dutch
22. Type-C Port: Front-facing Type-C charging (fast charging); output voltage 5–12V; supports PD3.1 and PPS. PD3.1: 5V 3A, 9V 3A, 12V 2.25A; PPS: 3–11V 3A
Specification:
|
Package Weight
|
| One Package Weight |
1.04kgs / 2.30lb
|
| One Package Size |
31cm * 19cm * 10cm / 12.2inch * 7.48inch * 3.94inch
|
| Carton Weight |
13.68kgs / 30.16lb
|
| Carton Size |
64cm * 40cm * 33cm / 25.2inch * 15.75inch * 12.99inch
|
| Loading Container |
20GP: 315 cartons * 12 pcs = 3780 pcs
40HQ: 732 cartons * 12 pcs = 8784 pcs
|
|
