Alarm:No
-
Resolution :800TVL
-

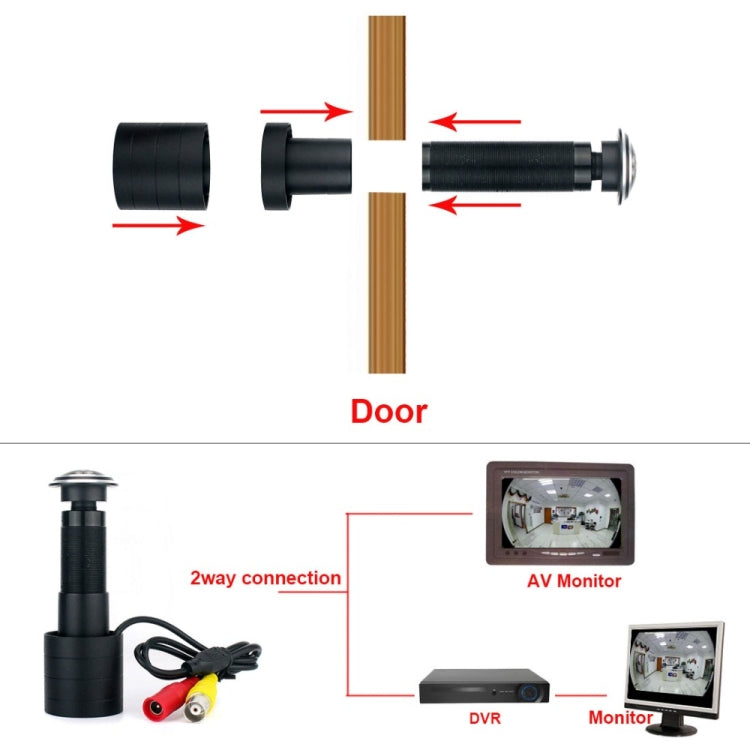

signal:CVBS, (support to monitor Ditectly)
-
Power Supply:DC 12V
-
Video Output:BNC
-
Model:SMT-DVC800

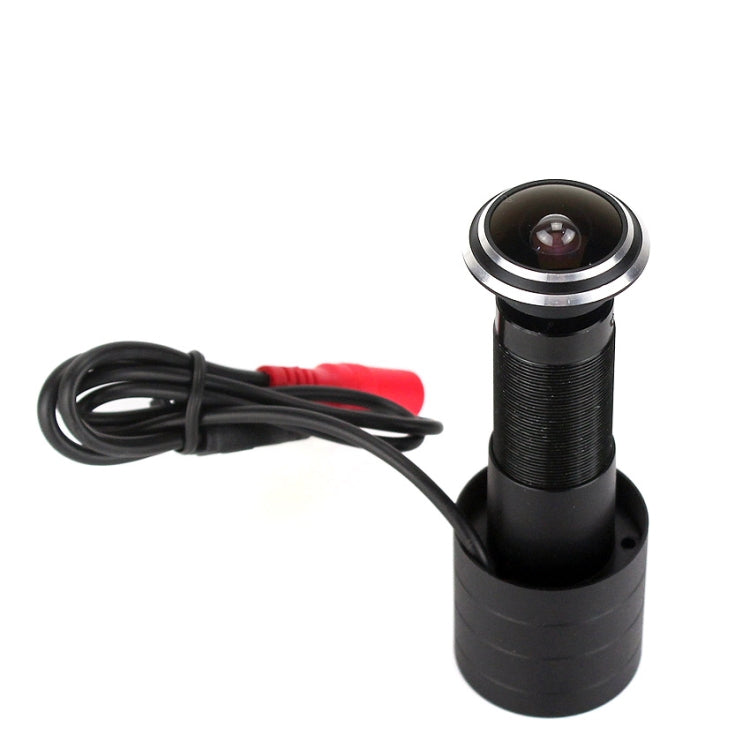

The total length 30mm-85mm adjustable
At the bottom of the thickest part of the 35mm
Horizontal resolution 800 TV Lines,
No amount of infrared light (without IR)
Scanning frequency PAL: 15.625 kHz / 50 KHz
Scanning System 2: 1lnterlace, 2: 1 interlace
Minimum illumination 0.5 Lux
Internal Synchronization Internal / DC12V
Signal / noise ratio greater than 48dB Better than
Auto Auto Electronic Shutter 1/50 ~ 1 / 100,000 sec.
Video Output 1 Vp-p, 75 composite signal
Power supply 12V DC ( 10%)
2.1mm lens configuration
View Angle About 120degree
Power Consumption 800mA / DC12V
Specification:
|
Package Weight
|
| One Package Weight |
0.14kgs / 0.32lb
|
| One Package Size |
17cm * 15cm * 5cm / 6.69inch * 5.91inch * 1.97inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
30cm * 50cm * 50cm / 11.81inch * 19.69inch * 19.69inch
|
| Loading Container |
20GP: 355 cartons * 97 pcs = 34435 pcs
40HQ: 825 cartons * 97 pcs = 80025 pcs
|
|
