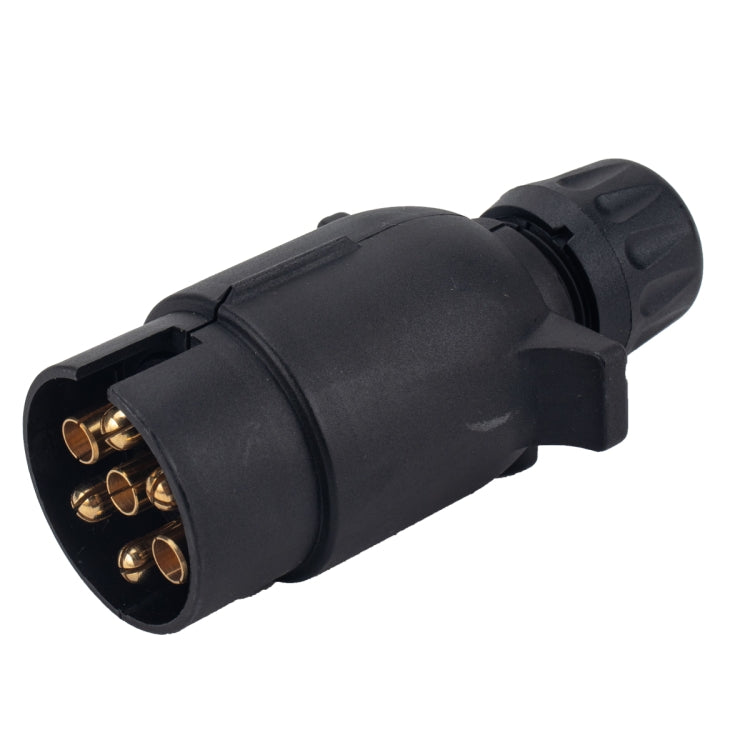

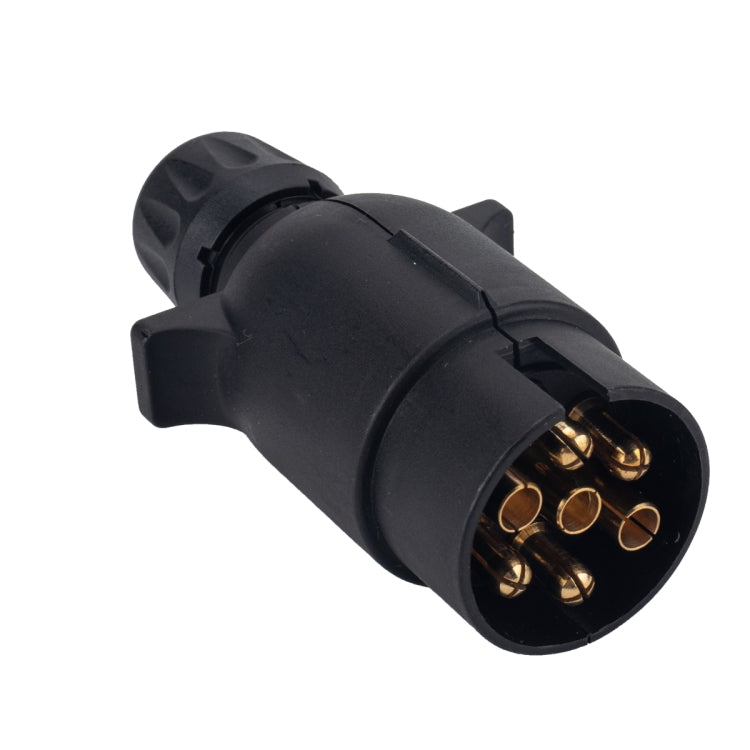

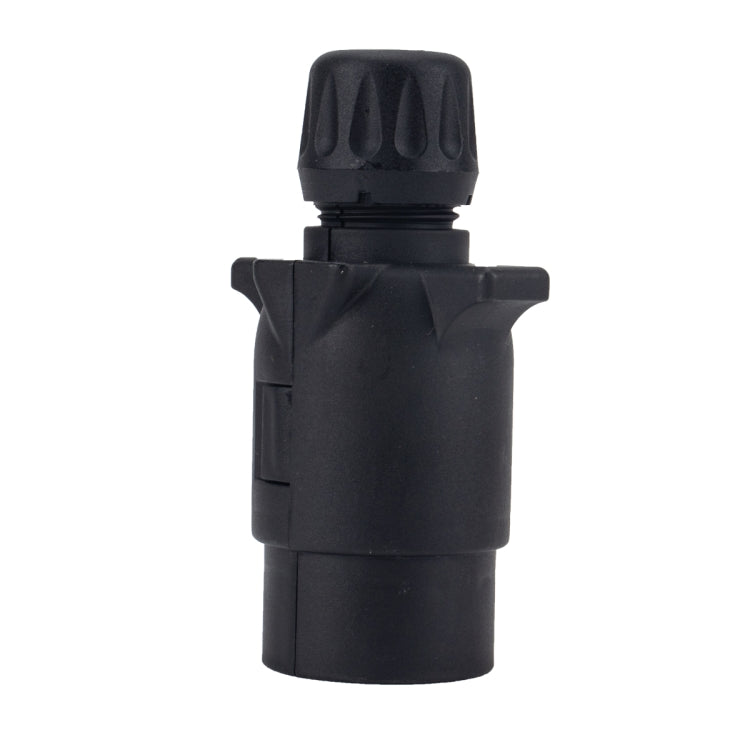

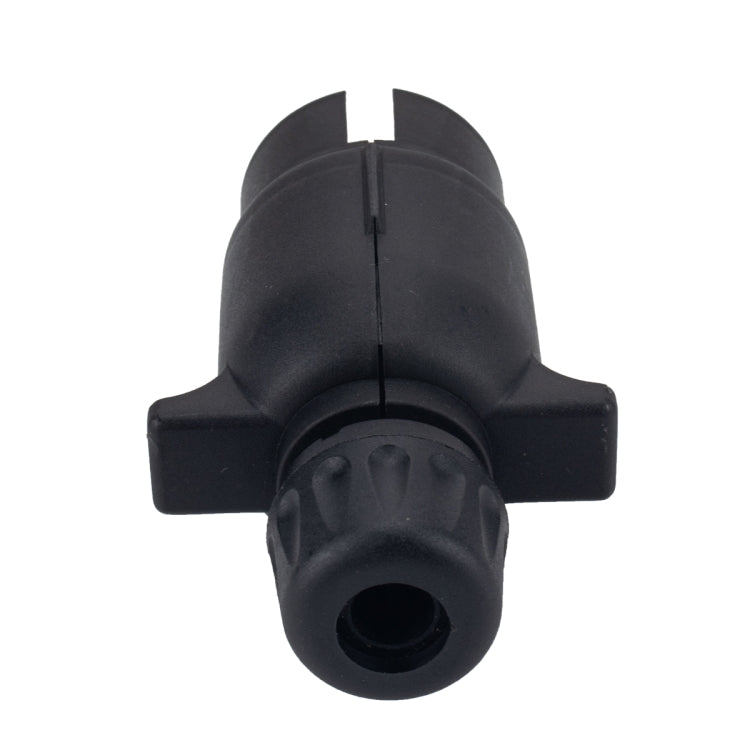

1. Function: connect truck and power supply, suitable for trailer signal light display
2. Installation position: between the conductive tractor and the towed vehicle
3. Scope of application: trailers, trucks, trucks

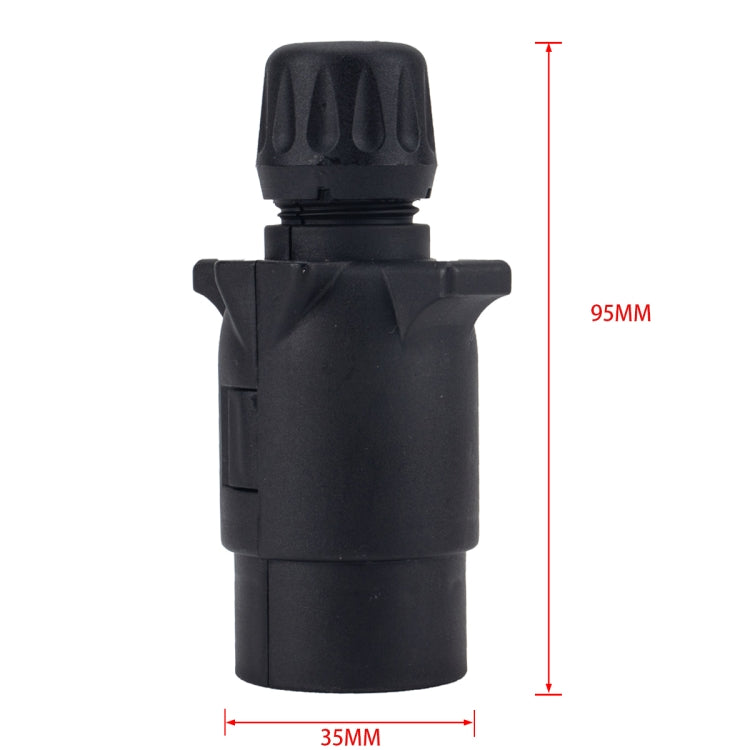

4. Parameters:
Material: ABS+copper
Voltage: 12v
Product power: 2w
Waterproof rating: IP67
Number of needles: 7
5. Instructions for use:
PIN 1-yellow line (left direction indicator)
PIN 2-blue line (rear fog lamp)
PIN 3-white wire (grounded)
PIN 4-green wire (direction indicator)
PIN 5-brown wire (right tail light and license plate light)
PIN 6-red wire (brake light)
PIN 7-black wire (left tail light and license plate light)
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.14lb
|
| One Package Size |
10cm * 6cm * 4cm / 3.94inch * 2.36inch * 1.57inch
|
| Carton Weight |
9.90kgs / 21.83lb
|
| Carton Size |
38cm * 32cm * 28cm / 14.96inch * 12.6inch * 11.02inch
|
| Loading Container |
20GP: 783 cartons * 140 pcs = 109620 pcs
40HQ: 1818 cartons * 140 pcs = 254520 pcs
|
|
