AI Dual Dash Cam Front 1080P Rear 720P With ADAS & DMS Driver Fatigue Warning GPS+4G Version

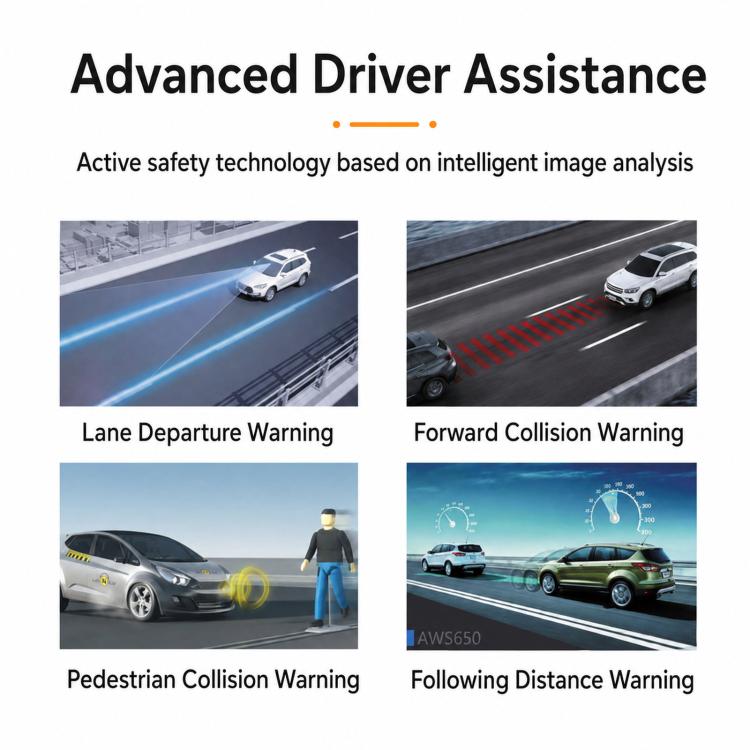

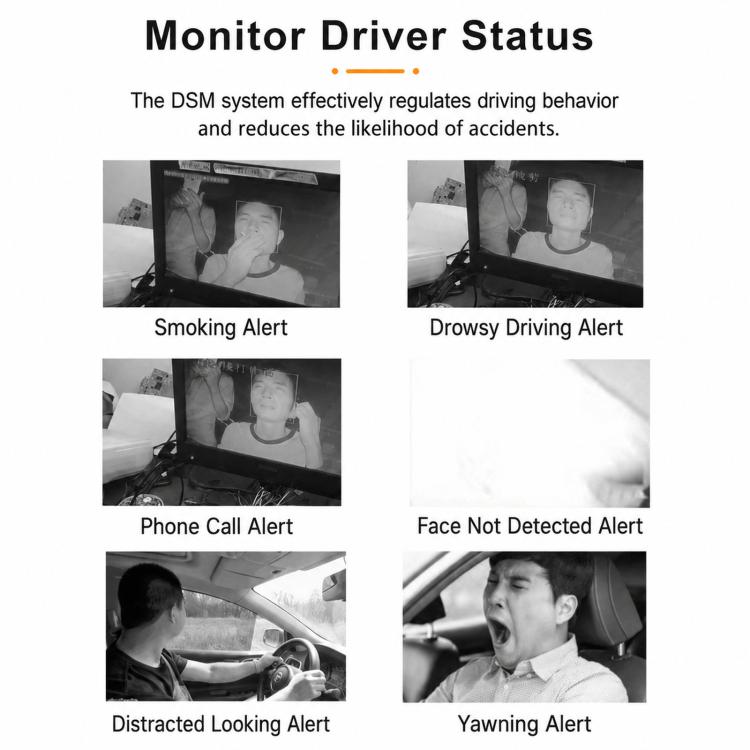

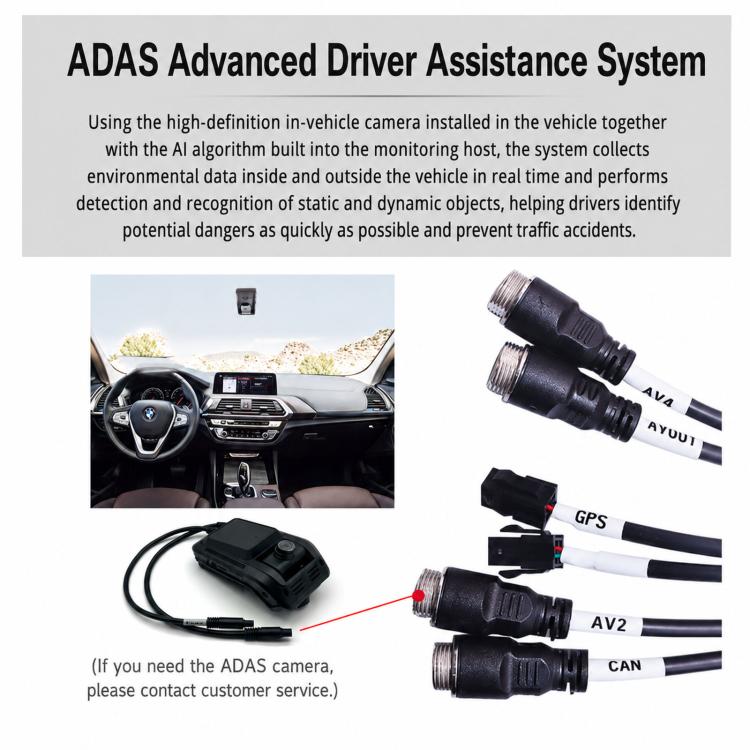

1. Features advanced AI algorithms combining ADAS (Lane Departure, Forward Collision, Pedestrian Warning) and DMS Driver Monitoring (Detects fatigue, yawning, smoking, calling, and distraction). The system issues real-time voice alerts to prevent potential road accidents.
2. Front camera captures crisp 1080P HD footage with a 95-degree wide lens, while the external 720P rear camera with infrared night vision covers a 150-degree broad view. Supports dual-channel synchronous audio and video recording for all-around protection.
3. Choose from 5 functional configurations ranging from Standalone Local Recording to Full-Featured GPS + 4G LTE + WiFi Models. Higher configurations allow real-time GPS tracking, 4G remote app live streaming, two-way audio, and instant cloud alerts.
4. Designed with adaptive 9V-36V wide voltage input with built-in overload, short-circuit, and reverse connection protections. Perfect for sedan cars, SUVs, trucks, buses, taxis, RVs, and commercial fleet management.

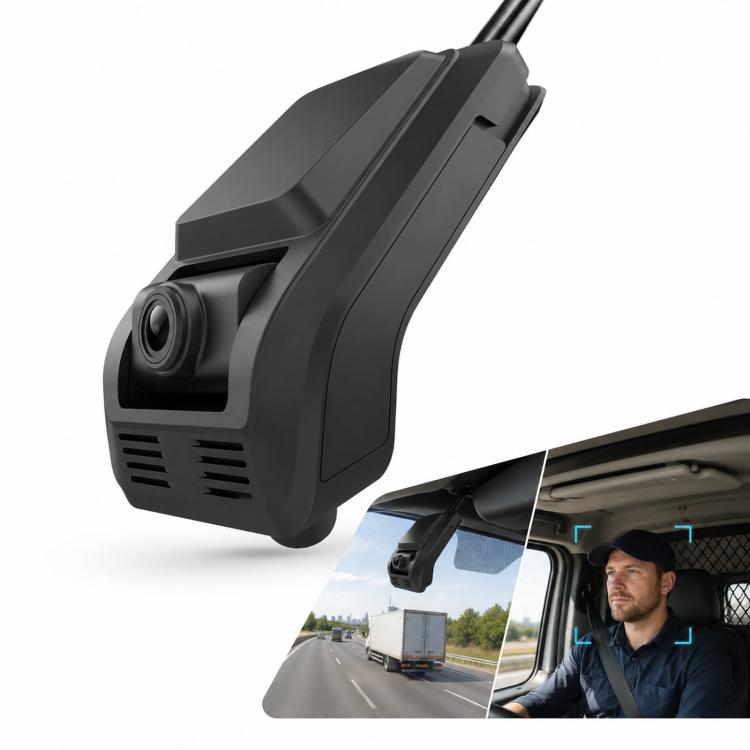

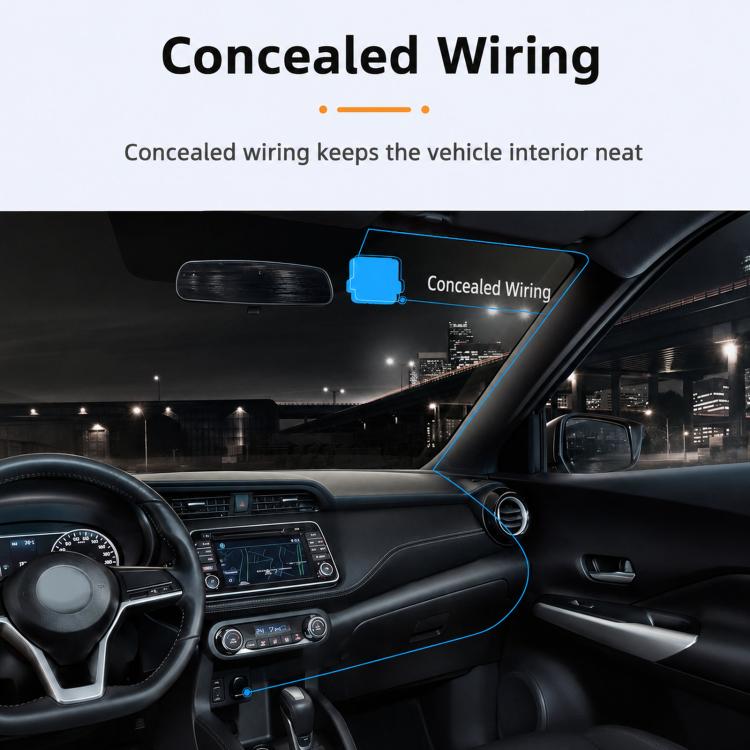

5. Compact 120x77x55mm main body mounts seamlessly behind the rearview mirror for clean, hidden wiring. Supports TF/MicroSD cards up to 256GB with loop recording, G-sensor emergency locking, and low-power sleep mode. (Not included card)

Specifications:
System:
--Languages: Chinese/English
--Operating System: Linux
--Interface: Graphical menu (OSD menu) with character overlay; CVBS output not included by default
--GUI: Operated via mobile app

Processor:
--CPU: ARM Cortex-A7 1.0GHz
--Memory: Built-in 2Gb DDR
--Flash: 2Gb

Video and Recording System:
Video Input:
1. Resolution: Front 1080P, Rear 720P | Supports one external 720P AHD camera
Front: 2MP sensor, 95° FOV, F4.3 focal length, WDR support; Rear: 1MP sensor, 150° FOV, F2.8 focal length, IR night vision
2. Video Standard: PAL / NTSC
3. Video Compression: H.264
4. Preview: Single-channel or 4-channel split-screen preview; supports manual/event-triggered full-screen display
5. Recording Resolution: Selectable 1080P, 720P, or D1; total encoding capacity 1080P @ 60fps
6. Recording Quality: Levels 1–8 (Level 1 = highest, Level 8 = lowest)
7. Recording Frame Rate
? PAL: 100 fps, CCIR 625 lines, 50 fields;
? NTSC: 120 fps, CCIR 525 lines, 60 fields;
? CIF: 256Kbps ~ 1.5Mbps (selectable quality levels)
? HD1: 600Kbps ~ 2.5Mbps (selectable quality levels)
? D1: 800Kbps ~ 3Mbps (selectable quality levels)
? 720P: 1Mbps ~ 4Mbps (selectable quality levels)
? 1080P: 1 Mbps–8 Mbps; selectable image quality levels
8. Recording modes: Automatic recording by default; supports ignition-triggered recording, alarm-triggered recording, etc.

Audio:
1. Audio input: 1 channel; built-in microphone
2. Audio output: 1 channel; built-in power amplifier and speaker
3. Compression format: G.711A
4. Recording method: Synchronized audio and video recording

I/O Input: 2 digital inputs (switch inputs)
Expansion interface: 1 RS232 port; supports connection to card readers, fuel level sensors, etc.
Wireless transmission:
? Built-in 4G wireless transmission (TDD-LTE, FDD-LTE)
? Wi-Fi: 802.11b/g/n wireless communication module
GPS Positioning: Supports GPS / BeiDou (BD)
Sensor: Built-in 3-axis accelerometer

Storage:
Hard drive: Not supported
TF card: Supports up to 256 GB
Upgrade method: Supports TF card upgrade and FTP remote automatic upgrade
Storage format: Proprietary raw disk storage format
USB: Not supported
SIM card slot: 1 SIM card slot

Power Supply and Consumption:
Power management: Adaptive wide-range power input; includes protection against overload, undervoltage, short circuit, and reverse polarity; supports scheduled power on/off and delayed shutdown.
Input voltage: DC +9V to +36V
Output voltage: +12V at 1A, +5V at 1A
Power consumption: <5W during normal operation (excluding peripherals)

Security Management:
Password access: Two-level management (user password and administrator password)

Platform Integration:
? JT/T808-2011, JT/T808-2019
? JT/T1076-2016, JT/T1078-2016
? TTX proprietary protocol; GB28181 and RTMP optional

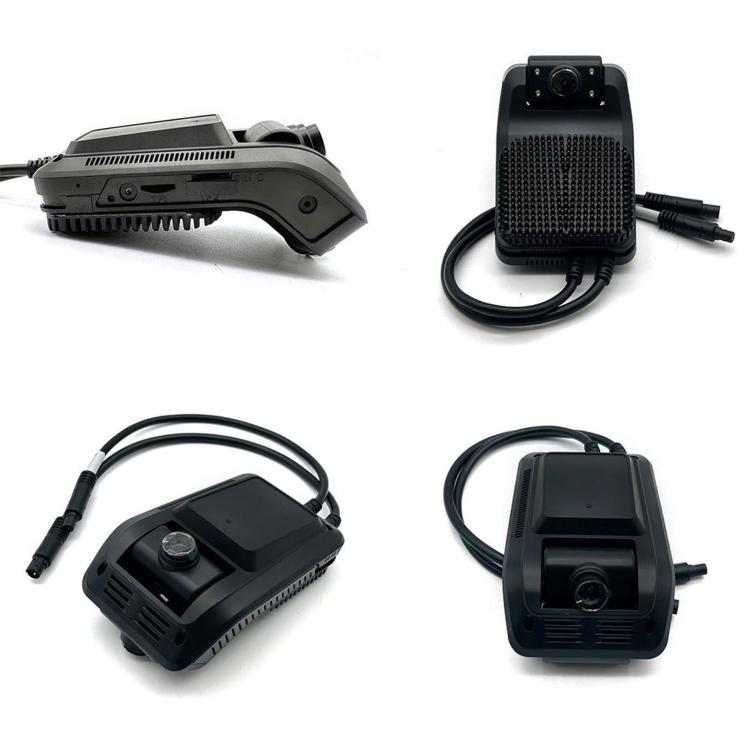

Dimensions: 120mm x 77mm x 55mm
Net weight: 240g
