1. Material: PCB

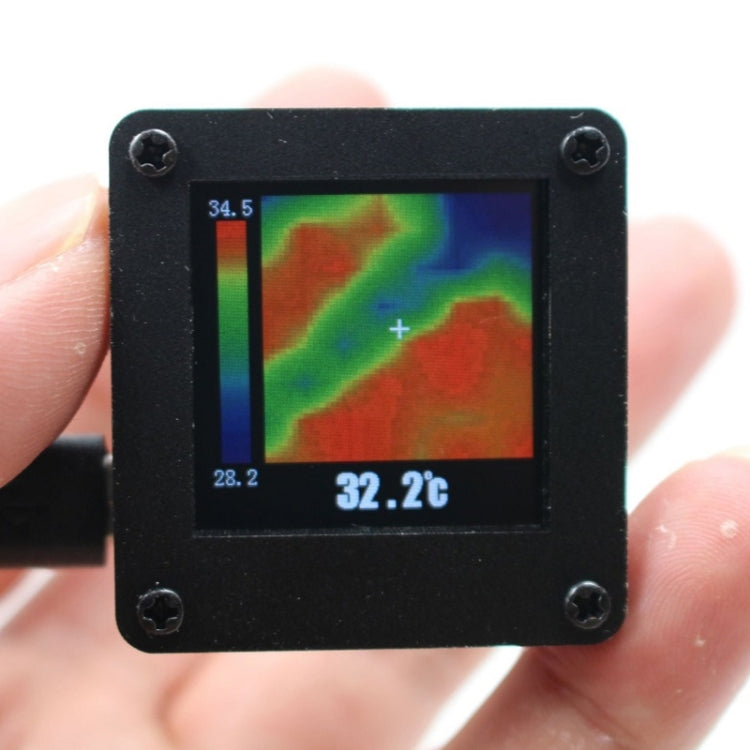

2. The module can be directly powered by USB 5V to generate infrared images

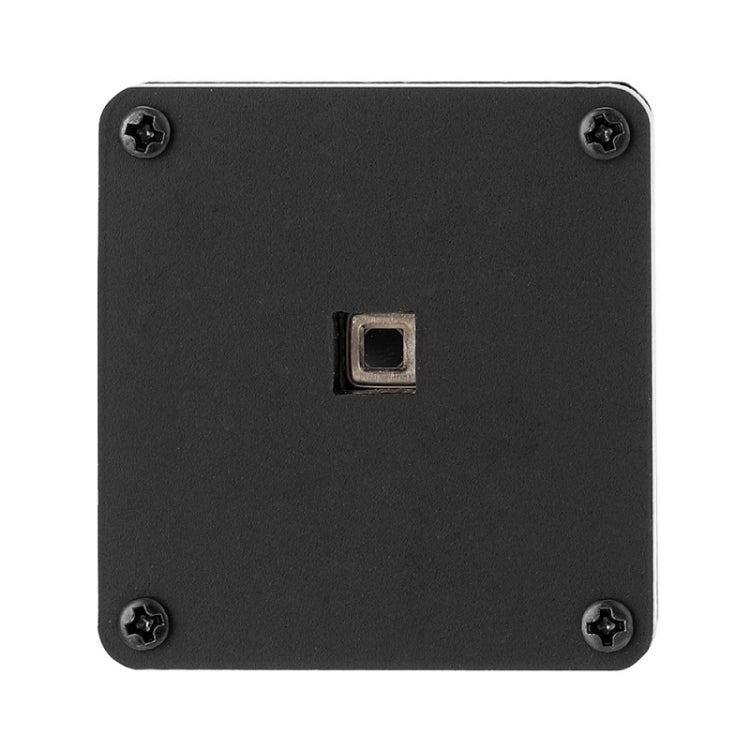

3. Use the amg8833 infrared heat sensor
4. The resolution is 8x8
5. Sensing distance: 7 meters
6. Can be used to check electronic products
7. Portable and compact, high performance, easy to use
8. High Performance High Gain: Typical 2.5 Typical 4.5 degrees Fahrenheit
9. High Performance Low Gain: Typical 3.0 Typical 5.4 degrees Fahrenheit
10. Human sensing distance: 7 meters or less (reference value) 22,966 feet
11. Measuring temperature: 0-80 degrees Celsius
12. Viewing angle: typical 60 degrees
13. Current Consumption: 4.5ma typical (normal mode); 0.2m typical (sleep mode); 0.8m typical (sleep mode)
14. Setup time: typical 50ms (time to enable communication after installation); typical 15s (time to stabilize output after installation)
15. Number of pixels: 64 (vertical array 8x horizontal 8)
16. External interface: 1 cc (quick mode)
17. Frame rate: typically 10 frames/second or 1 frame/second
18. Operation Mode: Normal, Sleep, Standby (10s or 60s flash)
19. Output mode: temperature output
20. Calculation method: no moving average or double moving average
21. Temperature output resolution: 0.25 degrees Celsius/32.45 degrees Fahrenheit
22. Number of sensor addresses: 2 (1 address c slave address)
23. Output thermistor temperature range: -20 80 80 80 80 (-4 176 degrees Fahrenheit)
24. Thermistor output resolution: 0.0625 degrees Fahrenheit / 32.1125 degrees Fahrenheit Item
25. Dimensions: 38x36x17mm
26. Weight: 17 grams
Specification:
|
Package Weight
|
| One Package Weight |
0.02kgs / 0.05lb
|
| One Package Size |
9cm * 8cm * 2cm / 3.54inch * 3.15inch * 0.79inch
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
30cm * 50cm * 36.7cm / 11.81inch * 19.69inch * 14.45inch
|
| Loading Container |
20GP: 484 cartons * 500 pcs = 242000 pcs
40HQ: 1124 cartons * 500 pcs = 562000 pcs
|
|
