1. It is a thermostat designed to on / off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature to achieve the aim of comfort and saving energy.

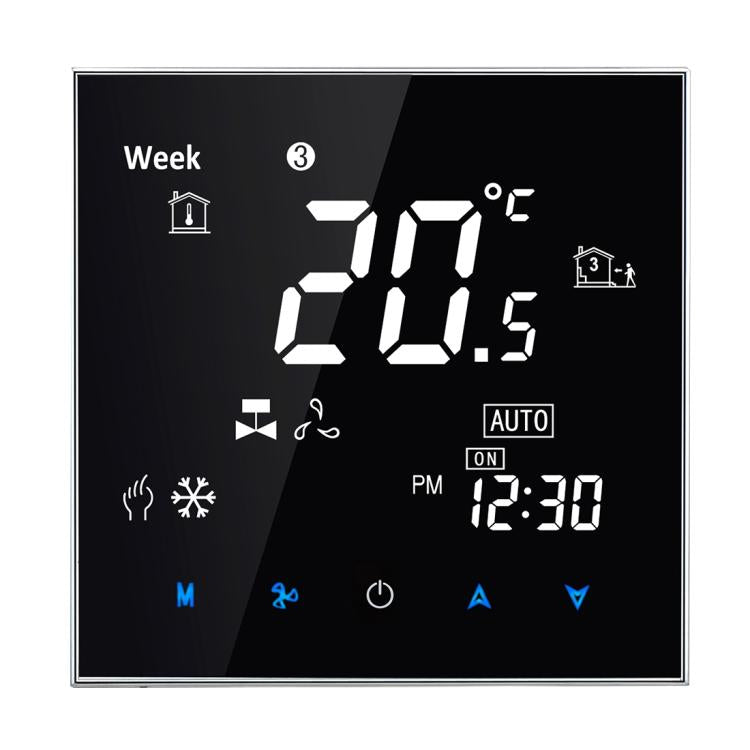

2. Large LCD display with negative black backlight, easy to read, even in the dark.
3. Modern design similar as a cellphone.
4. Beautiful frame CHROME creates elegant life.
5. Acrylic lens to avoid the finger scratch.
6. Touch Button makes simple operation.
7. Four periods program schedules maximize comfort and economy.
8. One-touch temperature control overrides program schedule at any time.
9. Precise comfort control keeps temperature within 0.5 Celsius Degree of the level you set.
10. Data memory when power is off.
11. Easy installation, suitable for 86mm hidden box and European 60mm round box.
Specification:
|
General
|
| Material |
Plastic, ABS, PC |
| Indoor Temperature Range |
5-35 Degree Celsius |
| Temperature Accuracy |
+-0.5 Degree Celsius |
| Operating Temperature |
0 - 45 Degree Celsius |
| Storage Temperature |
-5 - 55 Degree Celsius |
| Power Supply |
220V AC 50-60Hz |
| Current |
5A for fan and 3A for value |
|
|
Package Include
|
| Package Contents |

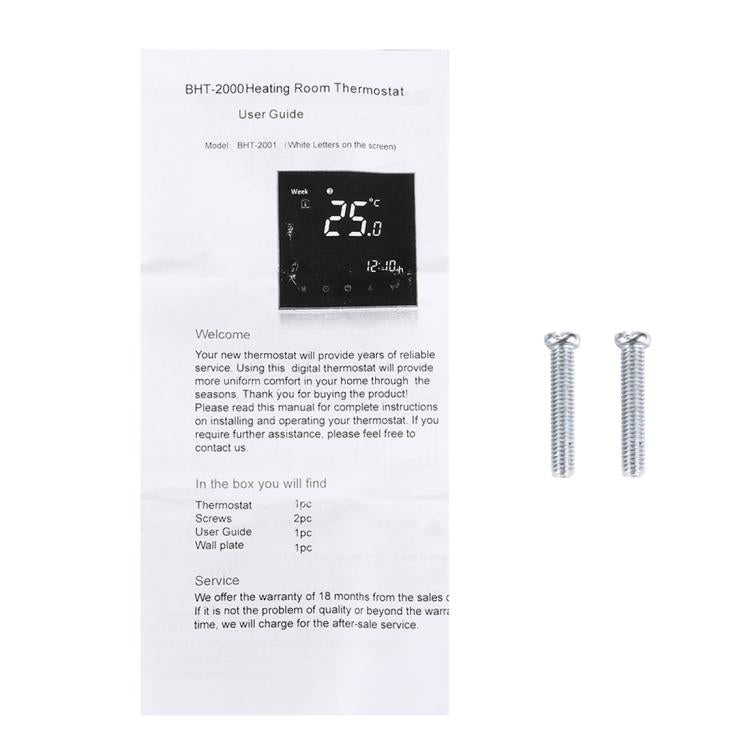

1 x User Manual
1 x Thermostat
1 x Screw Set |
|
|
Package Weight
|
| One Package Weight |
0.25kgs / 0.54lb
|
| One Package Size |
11cm * 9cm * 6cm / 4.33inch * 3.54inch * 2.36inch
|
| Carton Weight |
25.00kgs / 55.12lb
|
| Carton Size |
46cm * 47cm * 32cm / 18.11inch * 18.5inch * 12.6inch
|
| Loading Container |
20GP: 385 cartons * 100 pcs = 38500 pcs
40HQ: 894 cartons * 100 pcs = 89400 pcs
|
|
