General parameters
1. Frequency range: 400-470MHZ
2. Working voltage: 3.7V lithium battery Antenna impedance: 50Ω
3. Storage channels: 16 Volume: 115.5*56.8*34.5mm
4. Frequency stability: ±2.5ppm Working mode: same frequency simplex or different frequency simplex
5. Working temperature: -30℃~+60℃ Grounding method: negative
6. Battery: 5800 mA

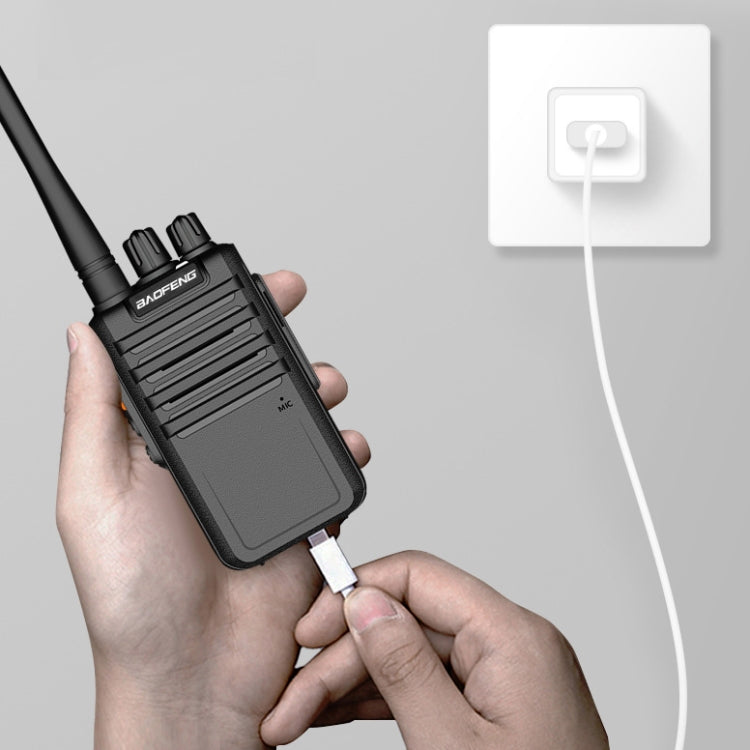

7. USB direct charge
8. Weight: about 355 grams
9. Dimensions: 115.5x56.8x34.5 mm
Launch part
1. RF power: <5W residual wave radiation: ≦-60dB
2. Emission current: ≦1000mA Maximum frequency deviation: ≦±5KHz
3. Modulation method: frequency modulation, pre-emphasis characteristics: 6dB per octave
Receiving part
1. Receiving sensitivity: <0.16uv (12dB SINAD) Squelch sensitivity: <0.2uv
2. Intermodulation anti-interference: ≧60dB Audio distortion: <10%
3. Audio power: ≧380mW Receive current: ≦380mA
Features

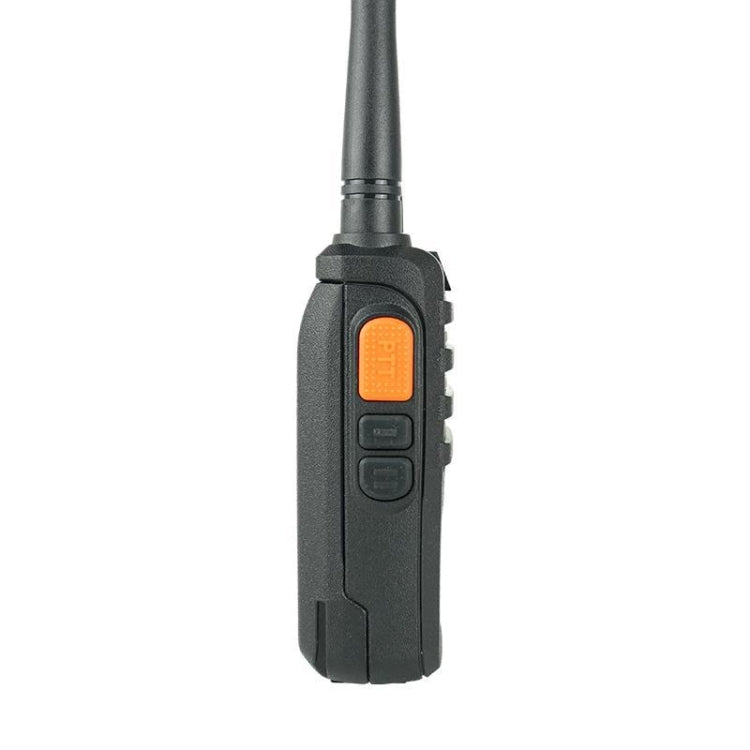

1. Side key function definition
2. Battery voltage prediction
3. Transmission timeout
4. Busy lock
5. Scan switch
6. Squelch level (0-9 level)
7. Voice switch/voice selection
8. Computer Programming
9. Voice-activated emission (VOX)
10. Ending cancellation

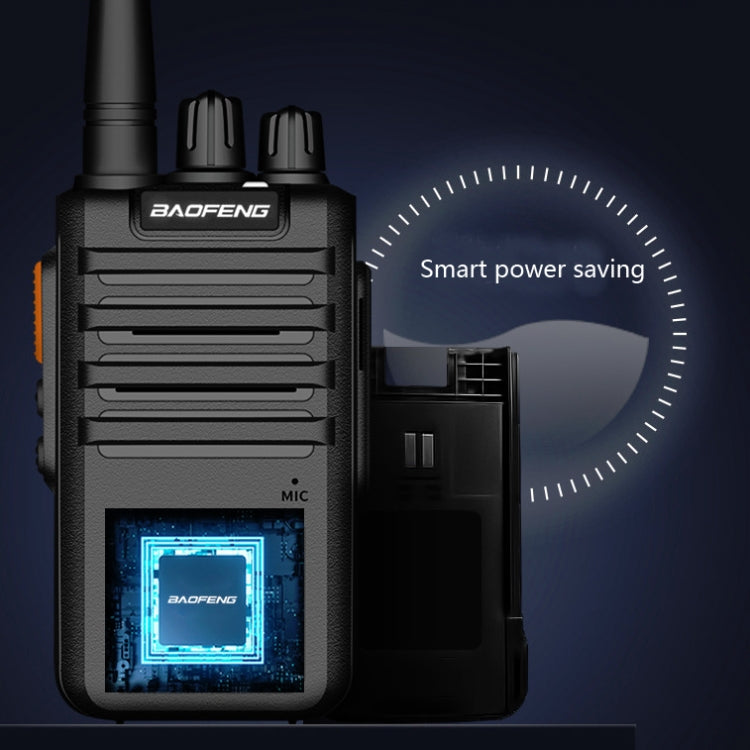

11. Power saving function
12. Sub-audio QT/DQT digital sub-audio
Specification:
|
Package Weight
|
| One Package Weight |
0.37kgs / 0.82lb
|
| One Package Size |
4.5cm * 21.5cm * 17.5cm / 1.77inch * 8.46inch * 6.89inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 80 pcs = 14160 pcs
40HQ: 412 cartons * 80 pcs = 32960 pcs
|
|
