1. Used to measure the thickness of metal pipes, glass, plastics, etc.
2. With self-calibration function to ensure measurement accuracy
3. 1500 data storage
4. IPS full-view color screen display
5. You can set the alarm value and enable the over-value alarm
6. Lithium battery powered, long-lasting battery life

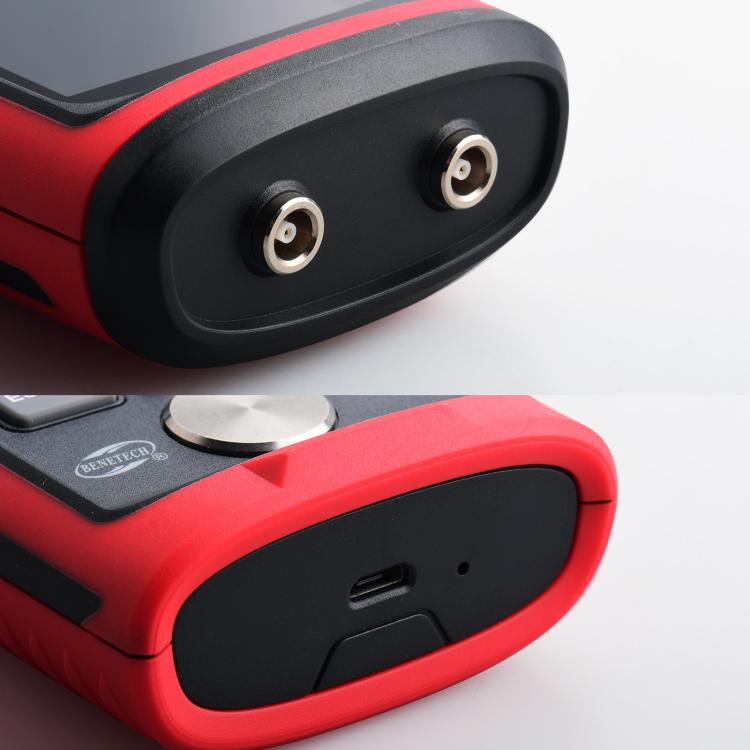

7. Can communicate with PC software via USB
Specifications:
1. Measuring range: 1.0-300mm (steel)
2. Data storage: 1500
3. Working frequency: 5MHz / 2.5MHz
4. Measurement error: +/-(0.5%H+0.05)mm
5. Measurement resolution: 0.01mm (1.00-99.99mm) / 0.1mm (100-300mm)
6. Pipe measurement lower limit: diameter 20 x 3mm (steel)
7. Sound velocity adjustment range: 1000-9999m/s
8. Battery: 3.7V 1000mAh Li-ion battery
9. USB charging: 5V 1A
10. Dimensions: 150.6x65.3x35mm
11. Weight: 158g

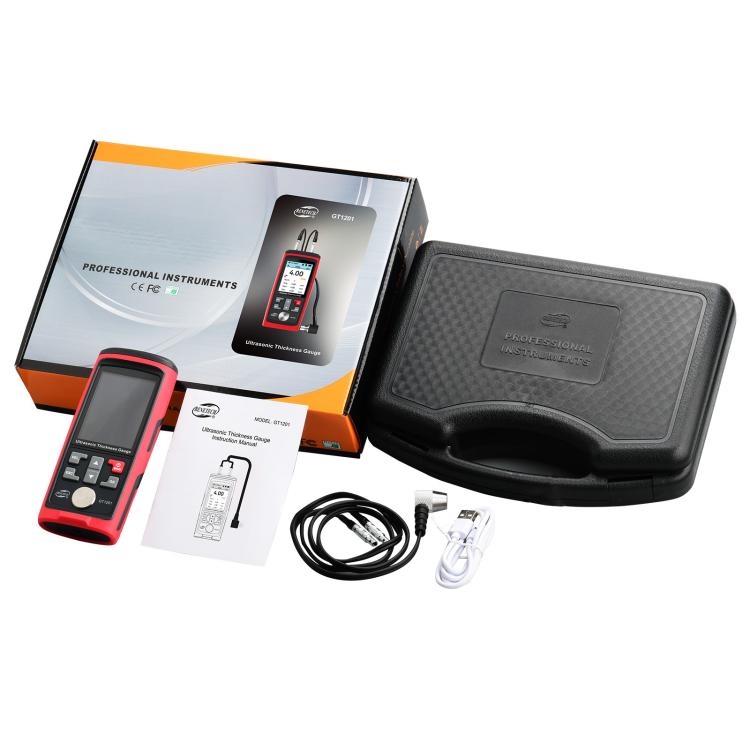

Package Contents:

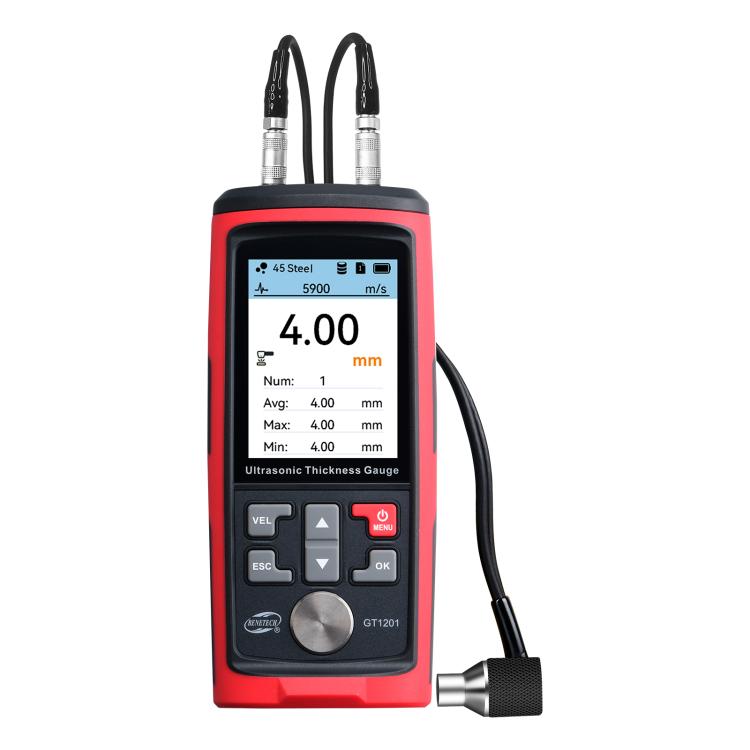

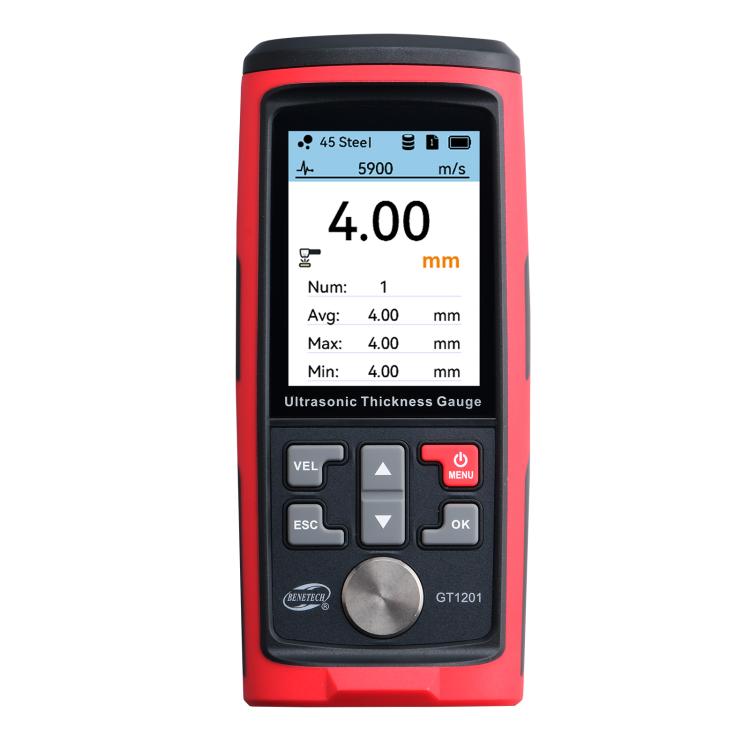

1 x Ultrasonic Thickness Gauge
1 x Probe
1 x Portable Tool Box
1 x User Manual
Specification:
|
Package Weight
|
| One Package Weight |
0.87kgs / 1.93lb
|
| One Package Size |
29cm * 23cm * 8cm / 11.42inch * 9.06inch * 3.15inch
|
| Carton Weight |
17.60kgs / 38.80lb
|
| Carton Size |
68cm * 46cm * 31cm / 26.77inch * 18.11inch * 12.2inch
|
| Loading Container |
20GP: 275 cartons * 20 pcs = 5500 pcs
40HQ: 638 cartons * 20 pcs = 12760 pcs
|
|
