1. Measurement range: 0-1800μm/70.8mil
2. Resolution: Less than 100μm
3. Measurement error: Approximately 50μm
4. Minimum diameter of magnetic metal substrate: 12mm
5. Minimum thickness of magnetic metal substrate: 0.5mm
6. Minimum radius of curvature of convex magnetic substrate: 2mm
7. Minimum radius of curvature of concave magnetic substrate: 11mm
8. Minimum diameter of non-magnetic metal substrate: 50mm
9. Minimum thickness of non-magnetic metal substrate: 0.5mm

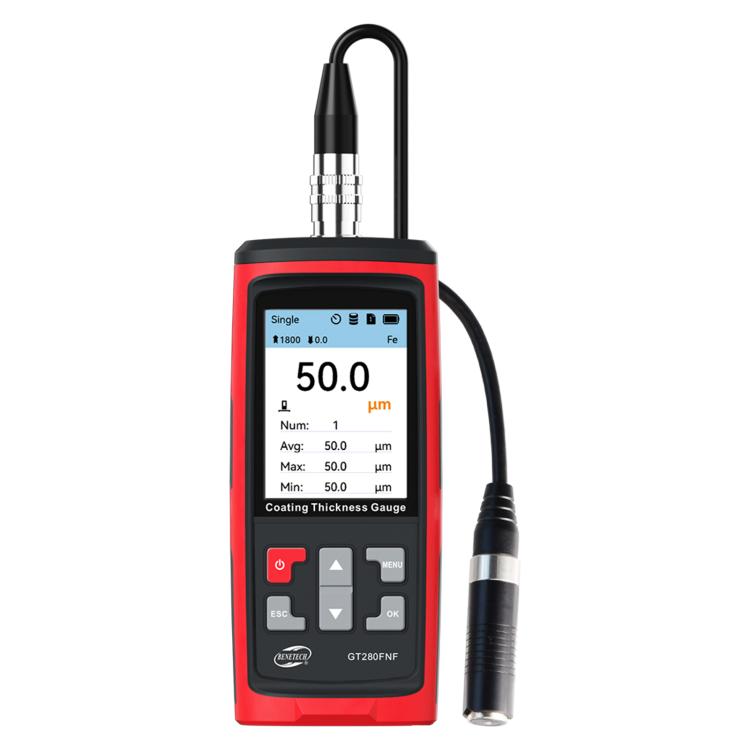

10. Menu-driven operation and high-definition color screen display
11. Measurement of non-magnetic coating thickness on magnetic metal substrates and on non-metallic coating thickness on non-magnetic metal substrates
12. Supports both single and continuous measurement modes
13. Supports both basic and zero-point calibration functions
14. Unit selection (μm or mil), automatic storage function, and automatic power-off selection function

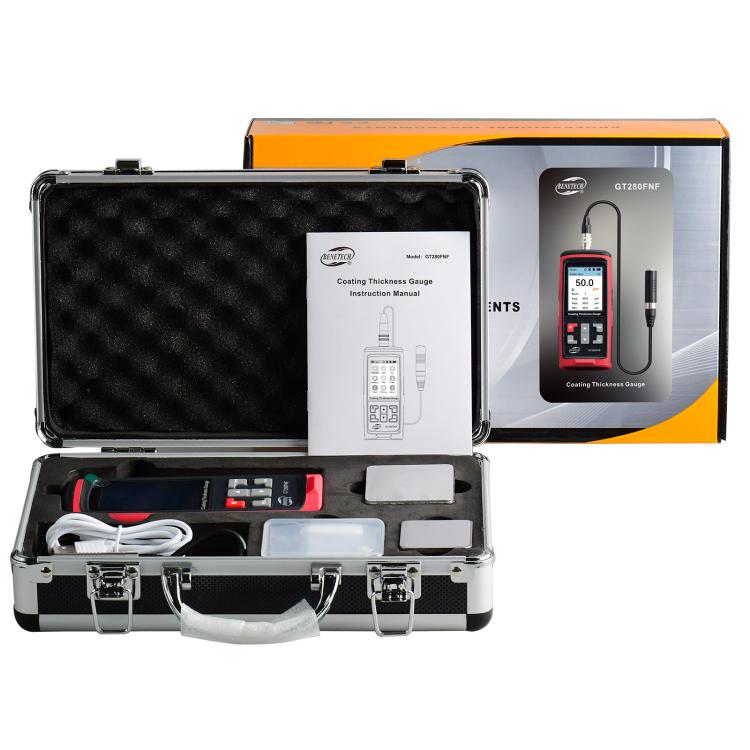

Specification:
|
Package Weight
|
| One Package Weight |
1.01kgs / 2.24lb
|
| One Package Size |
29cm * 19cm * 9cm / 11.42inch * 7.48inch * 3.54inch
|
| Carton Weight |
16.15kgs / 35.60lb
|
| Carton Size |
59cm * 47cm * 31cm / 23.23inch * 18.5inch * 12.2inch
|
| Loading Container |
20GP: 310 cartons * 15 pcs = 4650 pcs
40HQ: 720 cartons * 15 pcs = 10800 pcs
|
|
