Solder EquipmentFeatures:
1. 2 in 1 digital display lead-free soldering station hot air
2. Temperature control 100-480 Degree Celsius
3. Brushless blower and soft airflow
4. Suitable for unsoldering multiple components, such as SOIC, CHIP, QFP, PLCC and BGA, etc
5. Applicable for shrinking, heating, depainting, defrosting, preheating and rubber soldering, etc.
Specification:

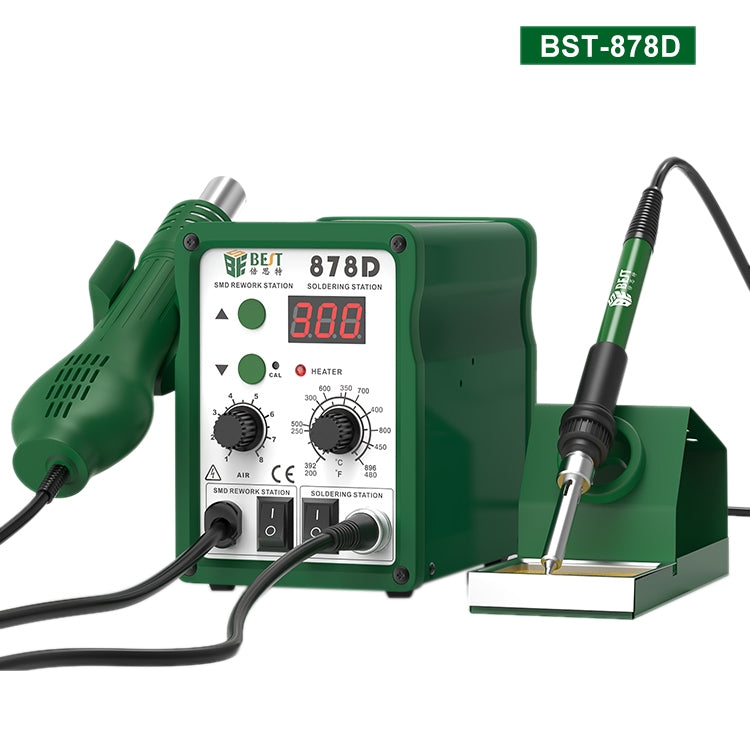

1. Model: 878D
2. Rated Voltage: AC110V/220V 50Hz/60Hz
3. Power consumption: 700W/40W
4. Air type: Brushless blower/soft airflow
5. Temperature range: 100-480 Degree Celsius
6. Airflow volume: 120L/min(max)
7. Gas type: Air type Brushless blower

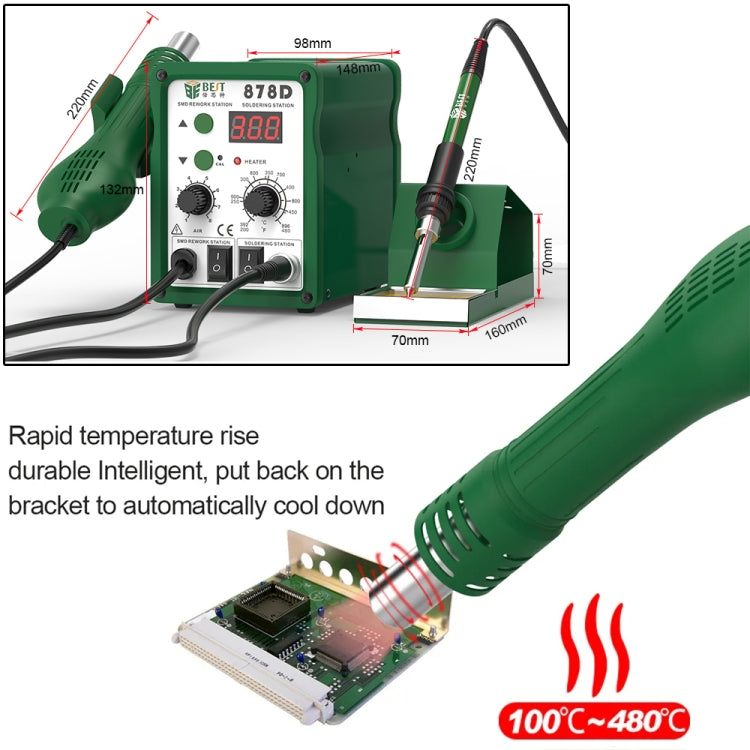

8. Size: 26 x 16.5 x 15cm
9. Nozzle Specifications: Diameters of 5mm 8mm 10mm
10. Heating wire: High-power heating wire
Package includes:
1 x Soldering Station
1 x Power cable
1 x Soldering iron frame
1 x Soldering iron
1 x Nozzles
Specification:
|
General
|
| Voltage |
AC 220V+/-10% 50Hz |
| Working Temperature |
0 Degree Celsius ~+40 Degree Celsius Relative humidity＜80％ |
| Storage Temperature |
-20~80 Degree Celsius Relative humidity<80% |
| Temperature Range |
100 ~ 480 Degree Celsius |
| Temperature Stability |
+/-2 Degree Celsius (Static state) |
| Gas Type |
Import brushless fan / soft airflow |
| Setting Mode |
Buttons to adjust |
| Temperature Lock Mode |
Digital |
| Nozzle Specifications |
Diameters 5mm & 8mm & 10mm |
| Heating Wire |
High-power heating wire |
|
|

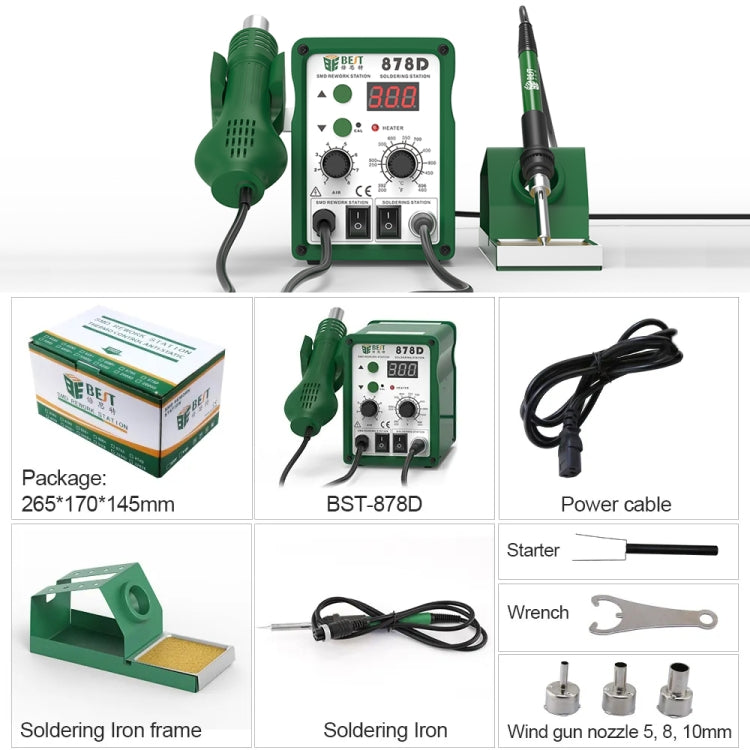

Package Include
|
| Package Contents |
1 x User Manual
3 x Nozzles
1 x IC Pulling device
1 x Open helper
1 x Hot Air Gun
1 x Solder Station
1 x Soldering Iron |
|
|
Package Weight
|
| One Package Weight |
3.01kgs / 6.64lb
|
| One Package Size |
26cm * 16.5cm * 14.8cm / 10.24inch * 6.5inch * 5.83inch
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
35cm * 28cm * 32cm / 13.78inch * 11.02inch * 12.6inch
|
| Loading Container |
20GP: 850 cartons * 4 pcs = 3400 pcs
40HQ: 1974 cartons * 4 pcs = 7896 pcs
|
|
