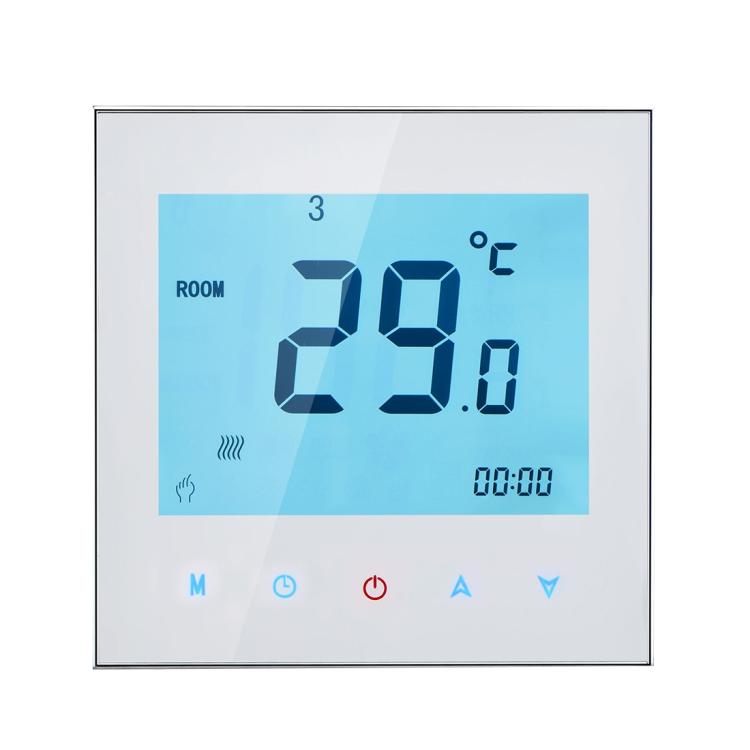

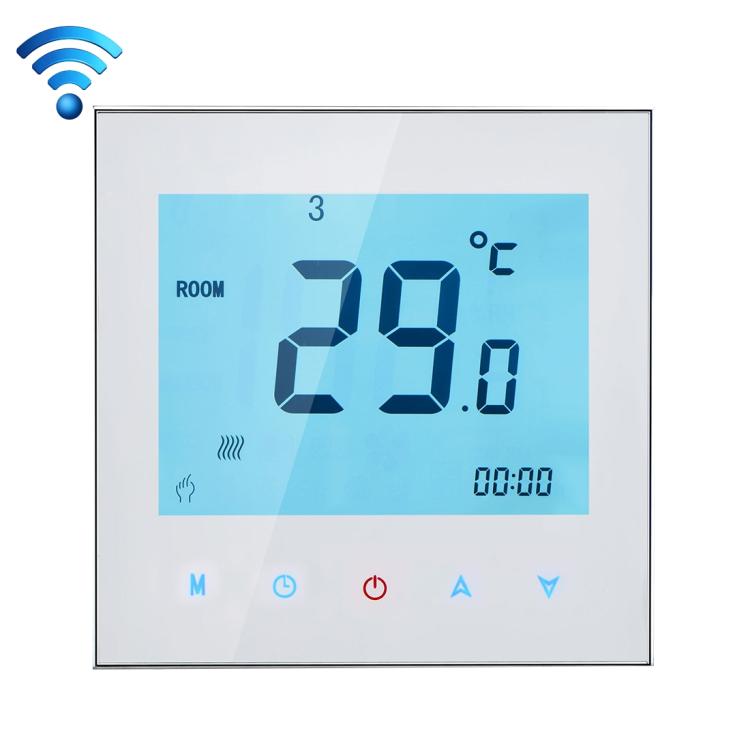

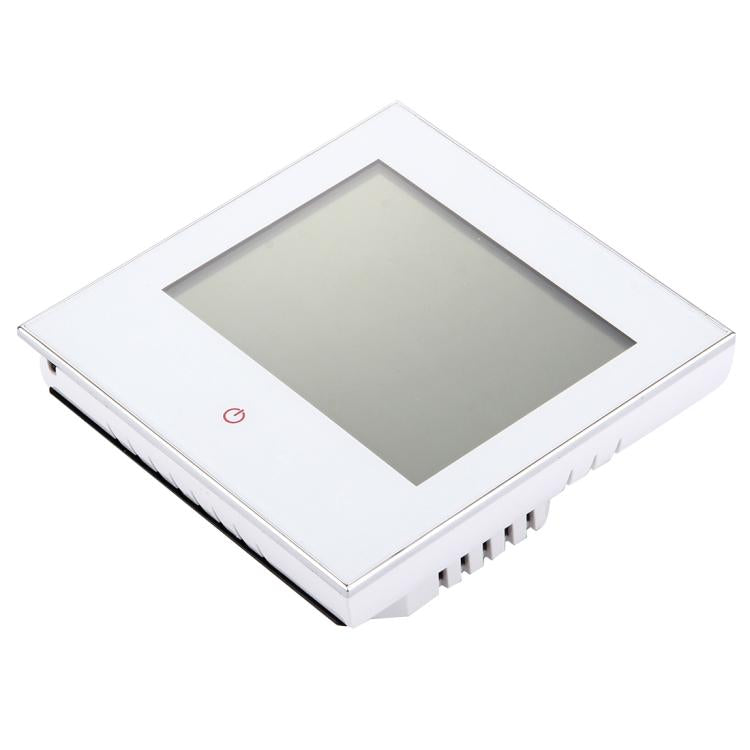

About The ProductThe BHT-1000 range has been developed to control electric underfloor, water heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties
Appearance Features1. White or blue backlight will show you a nice world
2. 65.9*48.6 mm display area helps to protect your eyes
3. Glass or acrylic lens is for your selection
4. Touch buttons to make simple operation
5. Amazing Silver Frame opens your modern life
6. The visible thickness above the wall is only 13 mm
7. Interlock to connect gives you easy installation
8. 86mm hidden box and European 60mm round box is suitable
9. White, black or gold housing creates your colorful life
Function Features1. Powerful functions are available such as modbus/WiFi etc.
2. 0.5 degree C Accuracy keeps temperature within the level you set
3. Data memory when power is off
4. 5+2 six periods programmable maximize comfort and economy
5. Create thermostat group to centralized control
6. Integrated with Amazon Echo, Google Home, Tmall Genie, IFTTT
7. All setting languages synchronize your time zone, address and language
8. No limit to add rooms and support Smart Scene
Specification:
|
General
|
| Indoor Temperature Range |
5-99 Degree Celsius |
| Temperature Accuracy |
+-0.5 Degree Celsius |
| Operating Temperature |
0 - 45 Degree Celsius |
| Storage Temperature |
-5 - 45 Degree Celsius |
| Power Supply |
95~240V AC, 50~60HZ |
| Current |
16A (electric heating) |
| Cable Length |
2.5m (External sensor) |
|
|

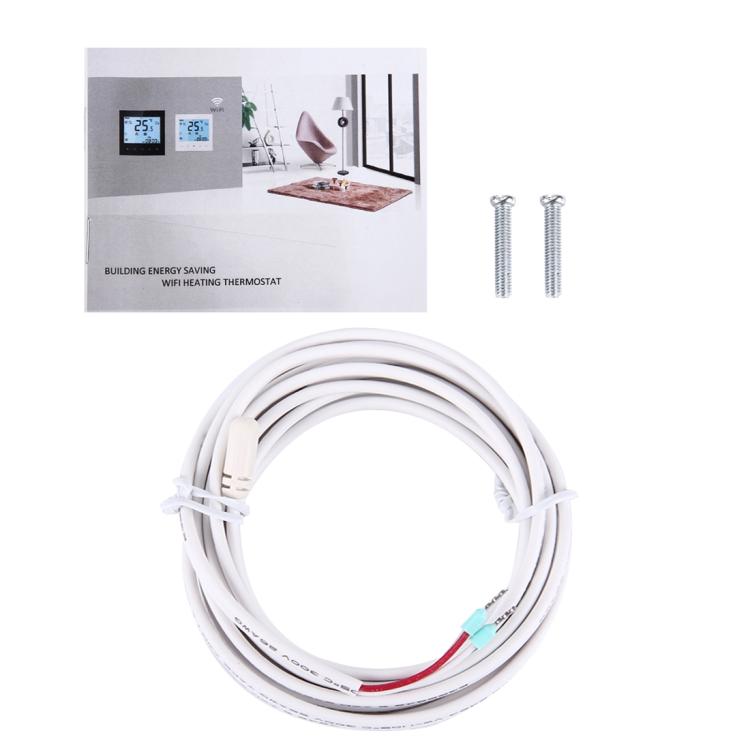

Package Include
|
| Package Contents |
1 x User Manual
1 x Sensor Cable
1 x Thermostat
1 x Screw Set |
|
|

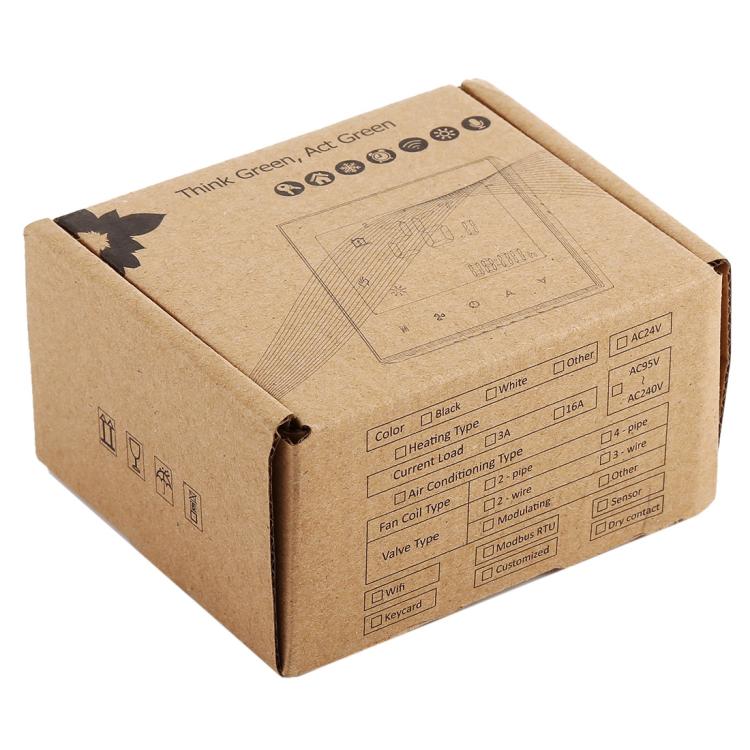

Package Weight
|
| One Package Weight |
0.30kgs / 0.65lb
|
| One Package Size |
11cm * 9cm * 6cm / 4.33inch * 3.54inch * 2.36inch
|
| Carton Weight |
25.00kgs / 55.12lb
|
| Carton Size |
46cm * 47cm * 32cm / 18.11inch * 18.5inch * 12.6inch
|
| Loading Container |
20GP: 385 cartons * 100 pcs = 38500 pcs
40HQ: 894 cartons * 100 pcs = 89400 pcs
|
|
