1. Interface: HDMI+RJ45+DC5V
2. Case: metal
3. Extension distance: 60m
4. Resolution: 1920 x 1080P@60Hz
5. Power supply: DC-5V x 2
6. Function: EDID switch button

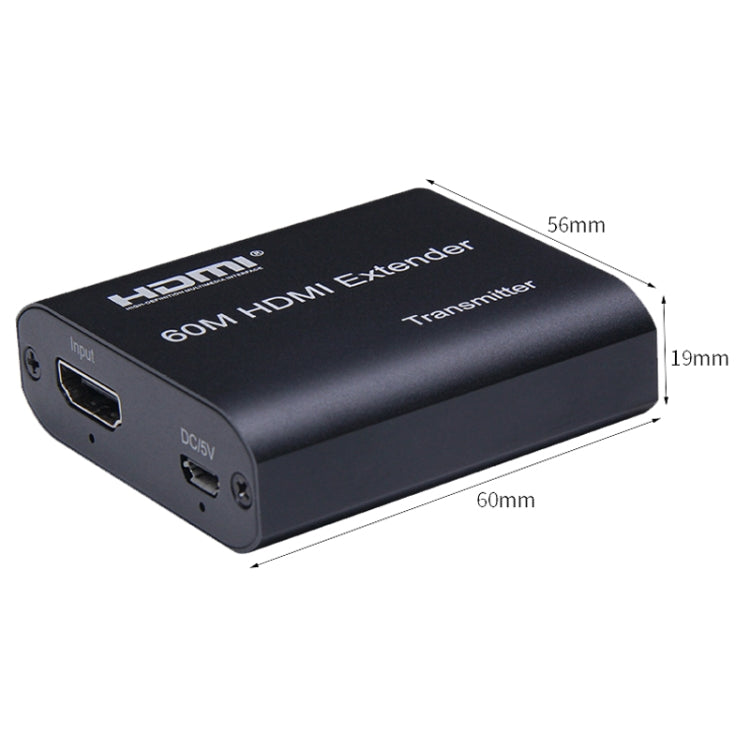

7. Size: 6 x 5.6 x 1.9cm
8. Weight: about 49g
Features:
1. 1080P @ 60Hz ultra-clear picture quality, more distinct color levels, making the picture delicate, three-dimensional image

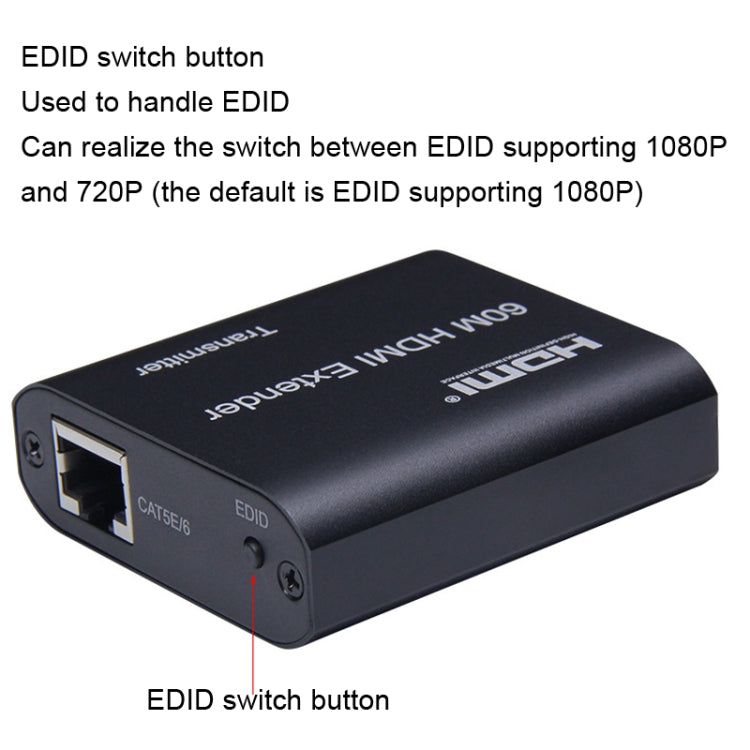

2. EDID switch button, used to handle EDID, you can achieve support for 1080P and 720P EDID switch (the default boot is to support 1080P EDID)
3. Metal shell, low temperature, more stable performance, high security, good heat dissipation performance
4. HD smart chip, through the six types of oxygen-free copper network cable, transmission HDMI audio and video signal performance is stable, smooth transmission without lag
5. Signal source input, can be connected to DVDs, laptops, set-top boxes, game consoles, and computers and other devices
6. Network cable transmitter using standard EIA/TIA-568B wiring method, the wiring order are: white orange / orange / white green / blue / white blue / green / white brown / brown
Specification:
|
Package Weight
|
| One Package Weight |
0.20kgs / 0.45lb
|
| One Package Size |
10cm * 6cm * 4cm / 3.94inch * 2.36inch * 1.57inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
52cm * 31cm * 21cm / 20.47inch * 12.2inch * 8.27inch
|
| Loading Container |
20GP: 787 cartons * 146 pcs = 114902 pcs
40HQ: 1828 cartons * 146 pcs = 266888 pcs
|
|
