1. Projection parameters:
Display technology: LCD
Intrinsic resolution: 1280x720P
Screen ratio: 16:9
Average brightness and uniformity: 170LM 65%
White field color temperature: 11000K
Working noise: 42DB
Contrast: 1000:1
Lens type: F135
Throw ratio: 1.35
Projection size: 50~300 inches
Projection distance: 1.65~9 M
Focus mode: manual

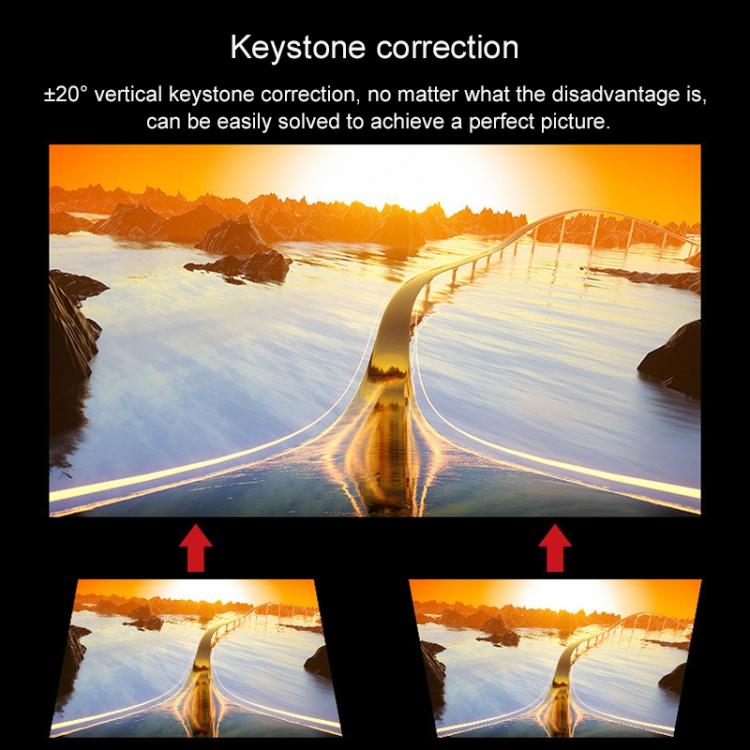

Keystone correction: manual
2. Interface parameters:

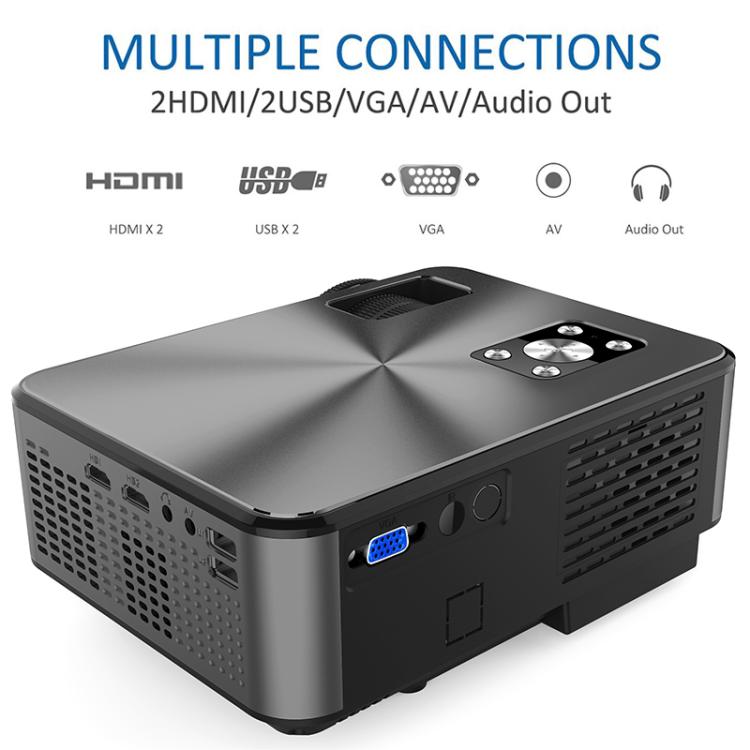

Mainboard interface: AV/headphone/HDMIx2/USBx2/VGA
Remote control type: infrared
Remote control distance and angle: 7 meters/45 degrees
3. Light source:
Type: LED
Light source brightness: 5000 LM
Light source life: 50000
4. System parameters
Main chip: MST V56
WiFi: 2.4G (RK3036)
Supported video formats: MPEG1/MPEG2/H.263/H.264/AVS/VC1/MJPEG/RV30/RV40/HEVC
Supported audio formats: MPEG1/MPEG2/LPCM/MP3
Supported image formats: JEPG/PNG/BMP
Multi-screen interaction: Android wireless same screen, iOS wired/wireless same screen, support screen projection
5. Specifications:
Working power consumption: 75W+/-5W
Standby power consumption: 2W
Working voltage: 100V-240V
6. Packing list: projector, power cord, AV cable, remote control, manual, foot screws
7. Menu language: English, French, Spanish, German, Italian, Russian, Japanese, Korean, Vietnamese, Chinese, etc.
8. Dimensions: 222mm x 165mm x 87mm
Specification:
|
Package Weight
|
| One Package Weight |
2.03kgs / 4.48lb
|
| One Package Size |
30.5cm * 12.7cm * 20.5cm / 12.01inch * 5inch * 8.07inch
|
| Carton Weight |
15.20kgs / 33.51lb
|
| Carton Size |
53cm * 43cm * 32cm / 20.87inch * 16.93inch * 12.6inch
|
| Loading Container |
20GP: 365 cartons * 8 pcs = 2920 pcs
40HQ: 848 cartons * 8 pcs = 6784 pcs
|
|
