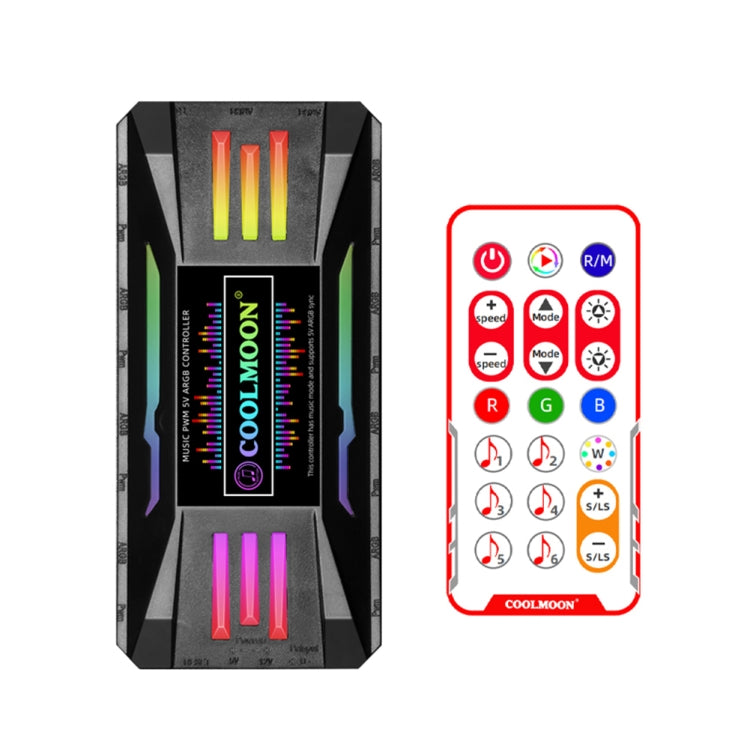

1. Four-in-one controller: equipped with four core functions: music induction rhythm, PWM intelligent temperature control, 5V ARGB Shenguang synchronization, and wireless remote control
2. 3-in-1 controller: equipped with four core functions: PWM intelligent temperature control, 5V ARGB Shenguang synchronization, and wireless remote control

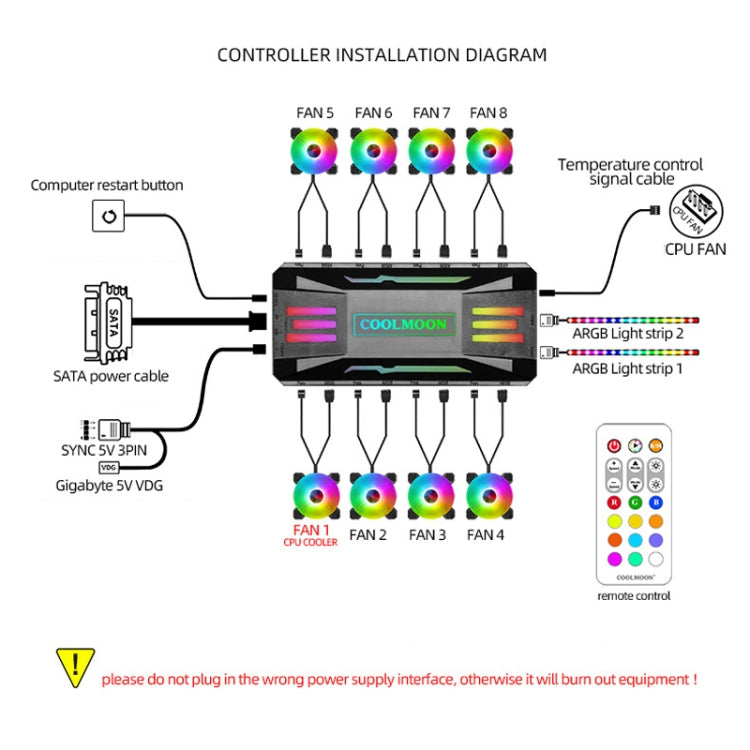

3. Universal standard 4-pin temperature control interface and 5V3-pin ARGB interface, strong compatibility

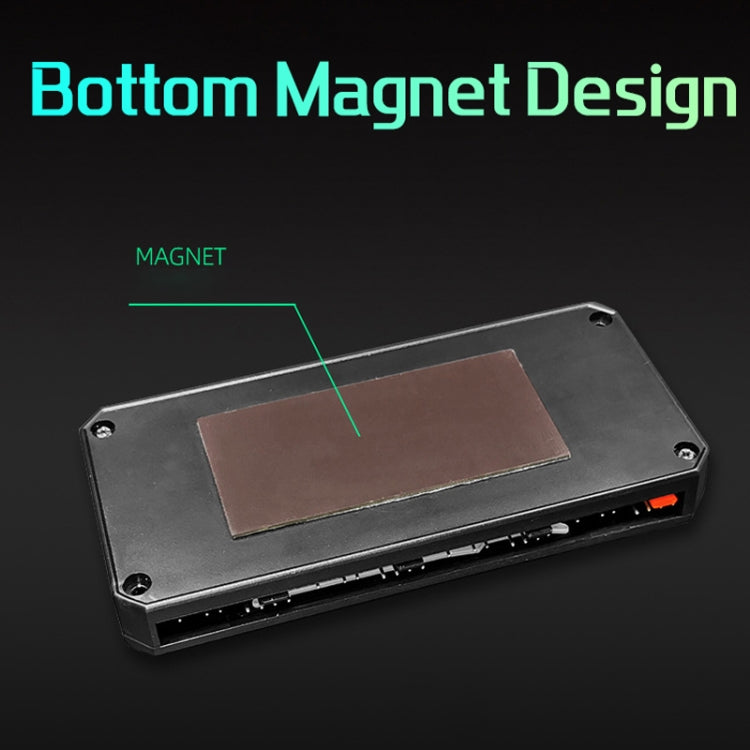

4. Multi-interface design, strong magnetic attraction, more convenient for expansion and installation

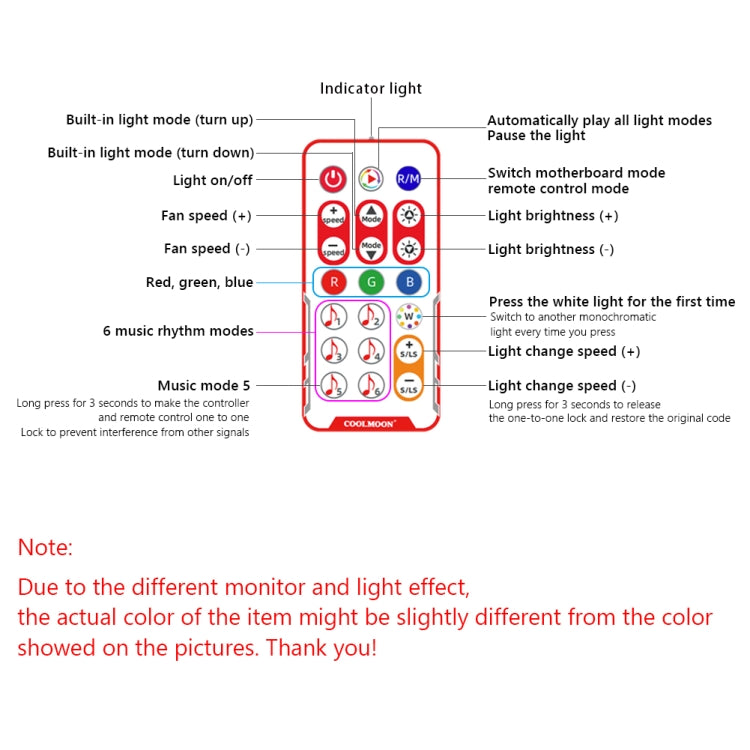

5. Wireless remote control, refuse to be restrained. The controller can be placed in the case and can be remotely controlled through the case. RF frequency: 433.92MHz
6. Controller size: 118 (L) x55 (W) x 24 (H) mm
7. Rated voltage: 12V (fan motor) + 5V (lamp beads)
8. Current: (not more than) 10A
9. Power: (not more than) 60W

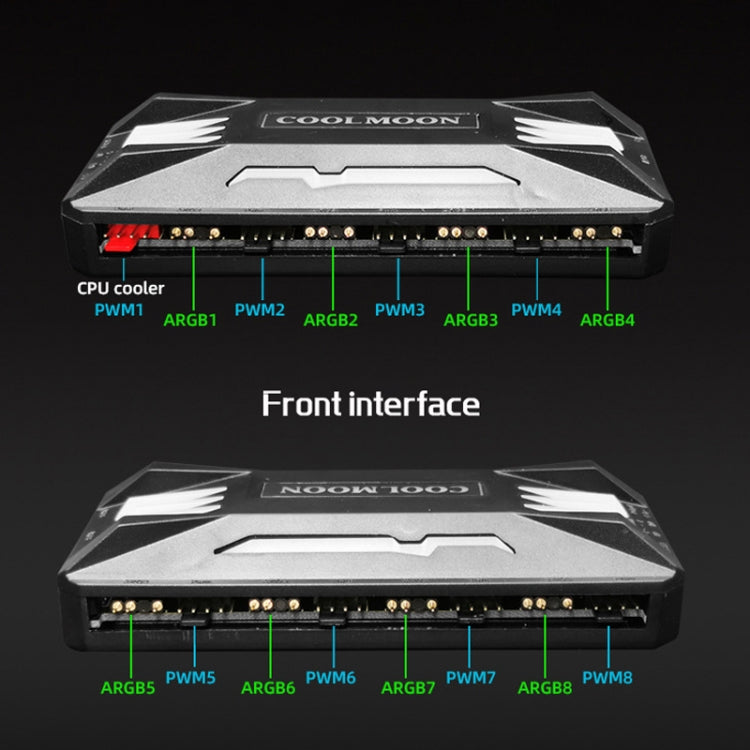

10. Number of interfaces: 8 PWM interfaces (4PIN), 10 ARGB interfaces (3PIN)
11. Built-in CR2025 button battery in the remote control
Parts List:
Controller x 1
Remote control x 1
SATA power cable x 1
Motherboard sync cable x 1
PWM temperature control signal line x 1
Instruction manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.20kgs / 0.45lb
|
| One Package Size |
18cm * 15cm * 10cm / 7.09inch * 5.91inch * 3.94inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 146 pcs = 25842 pcs
40HQ: 412 cartons * 146 pcs = 60152 pcs
|
|
