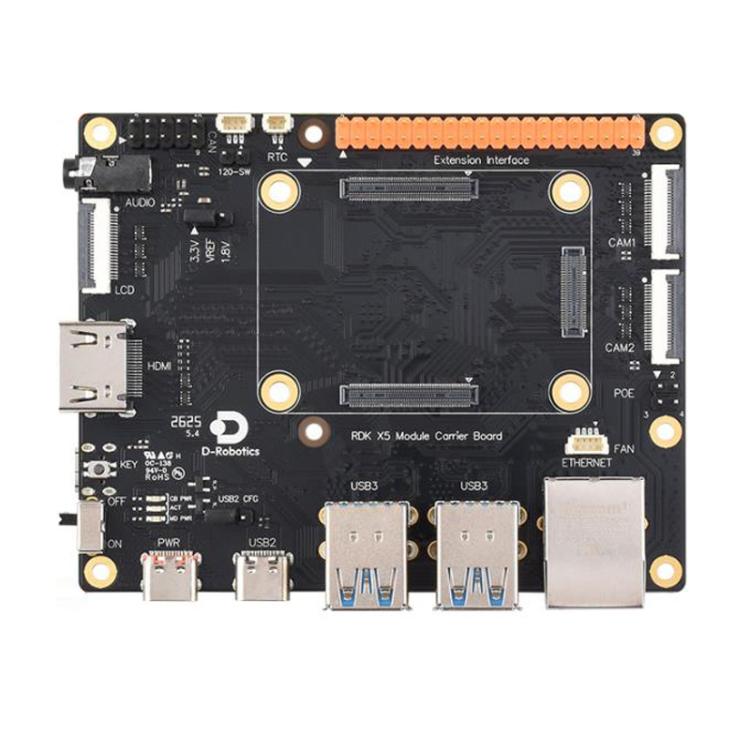

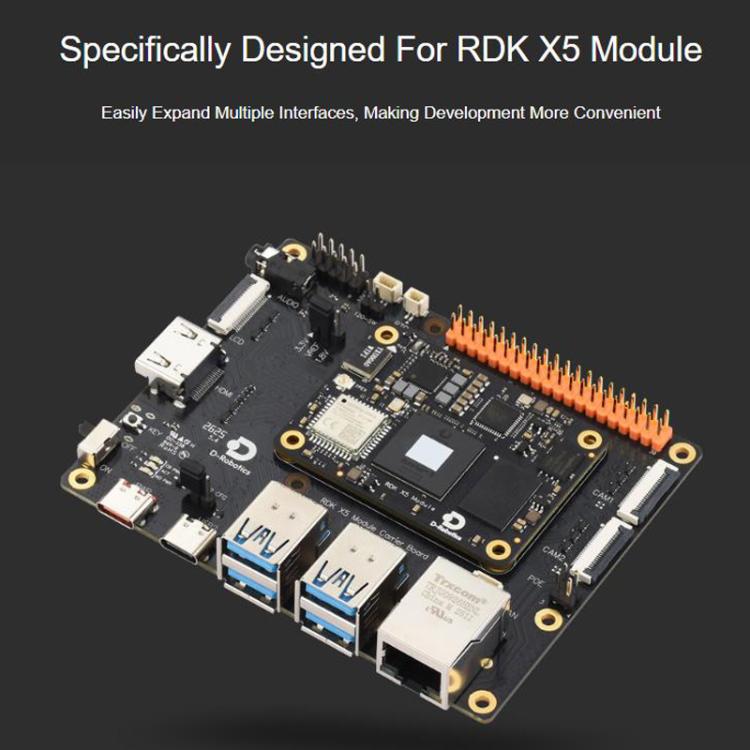

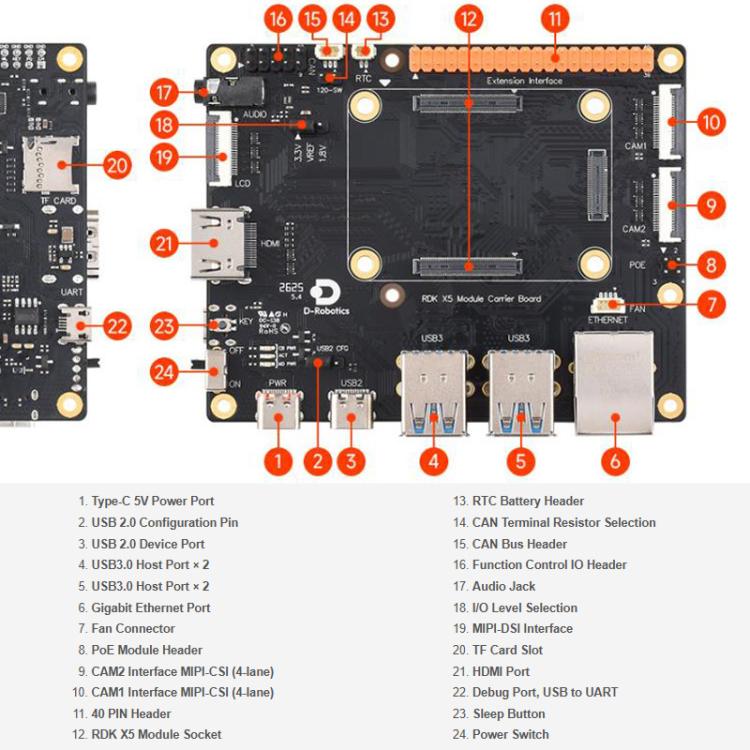

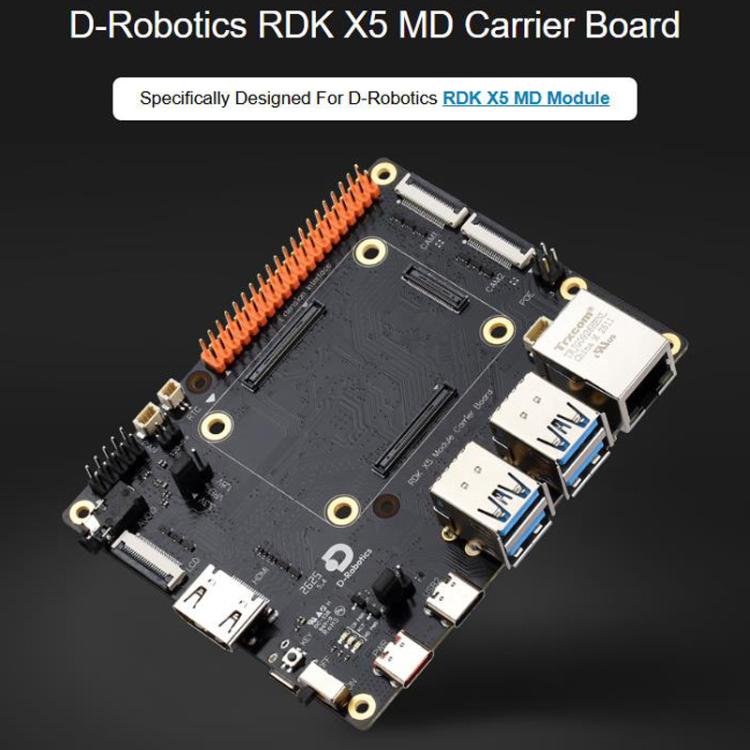

1. Core board socket: compatible with all versions of RDK X5 MD
2. Ethernet: Gigabit Ethernet RJ45 port
3. USB: USB 3.0 host ports x 4; Micro USB 2.0 Device port x 1; Micro USB 2.0 (serial debug port)
4. Connectors: 40-pin GPIO interface; 10-pin function control I/O

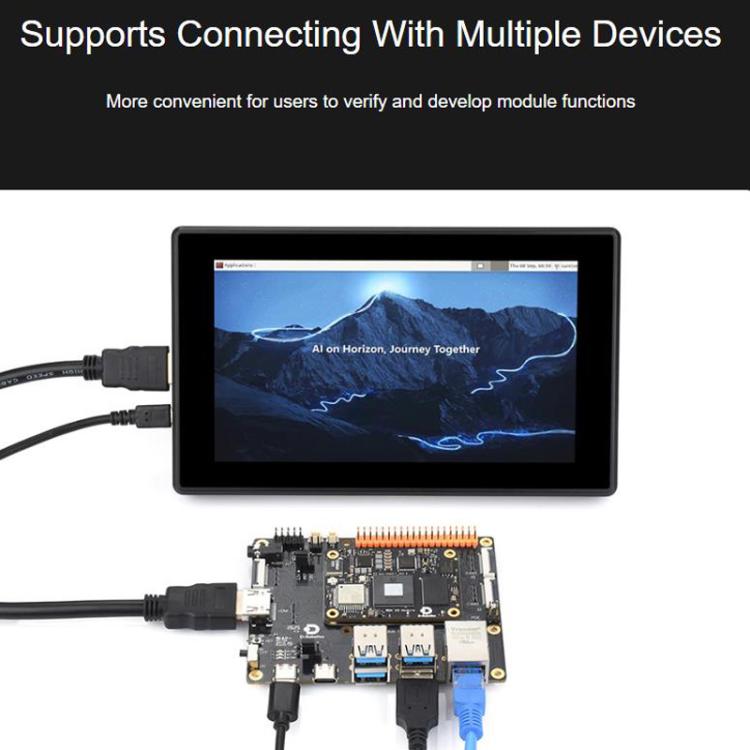

5. Display: MIPI-DSI interface (15-pin 1.0mm FPC connector); HDMI interface x 1
6. Camera: MIPI-CSI (4-lane) interface x 2
7. Real-time clock: battery-backed interface
8. Storage: on-board Micro SD card slot (for RDK X5 MD versions without eMMC)
9. Fan Interface: speed-adjustable, speed-measurable, 12V
10. Other resources: CAN interface, power switch, PoE interface, etc.
11. Power input: 5V 5A

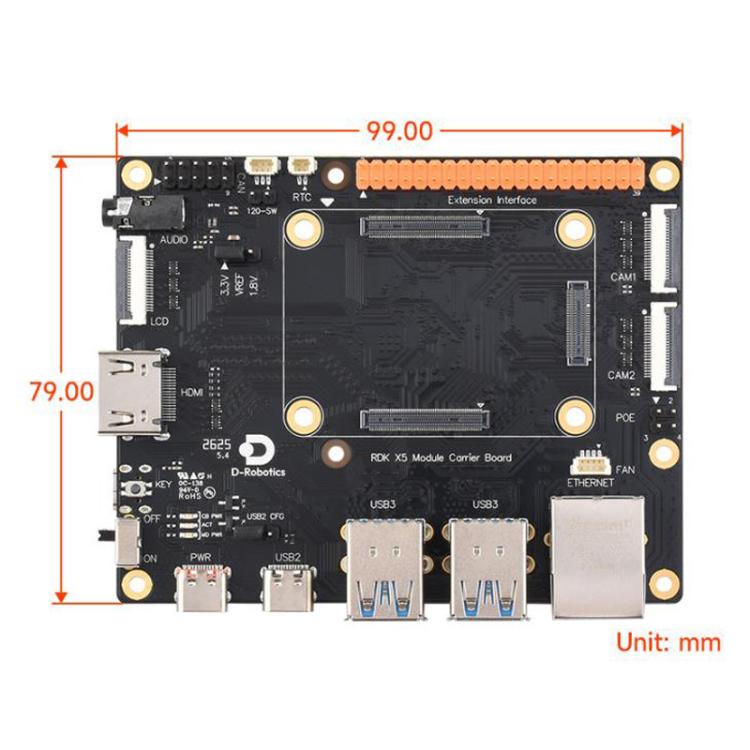

12. Size: about 9.9 x 7.9cm
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.14lb
|
| One Package Size |
12cm * 10cm * 3cm / 4.72inch * 3.94inch * 1.18inch
|
| Carton Weight |
10.00kgs / 22.05lb
|
| Carton Size |
52cm * 38cm * 32cm / 20.47inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 421 cartons * 144 pcs = 60624 pcs
40HQ: 979 cartons * 144 pcs = 140976 pcs
|
|
