1. Using high and low frequency pulse technology, one-key repair, activate the battery.

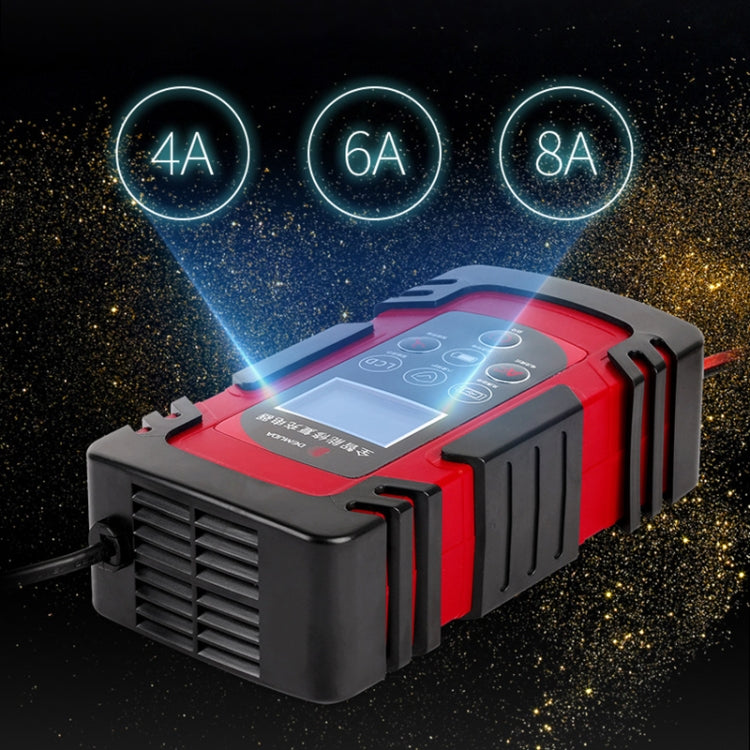

2. Three-speed current selection: fast and slow charging: 4A/6A/8A

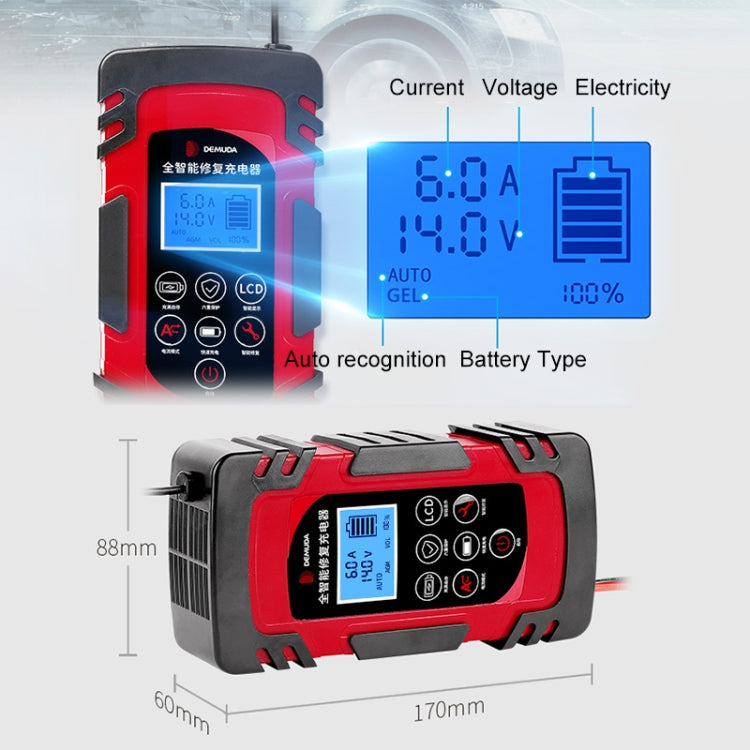

3. Intelligent digital display, intelligent detection: it can display voltage, current, and charging process during charging, allowing you to detect the battery charging status in real time.
4. Smart chip, full of automatic stop. Three-stage charging: constant current mode + constant voltage mode + floating charge mode.
5. Six protections make it safer to use: overcharge/low voltage/overvoltage/reverse connection/short circuit/temperature protection.
6. Parameters:
Dimensions: 170 x 88 x 60mm
Net weight: 0.45kg
Input voltage: AC110V-220V +/- 20V
Output voltage: DC14.8V / 29.6V +/-0.3A
Output current: 12V (4A-6A-8A) / 24V(4A)
Frequency: 50Hz / 60Hz
Battery type: 4AH-100AH lead-acid battery (rechargeable lithium battery is prohibited)
Input line length: 100cm
Output line length: 60cm
Peak power: AC-100W
Efficiency: 85%
Specification:
|
Package Weight
|
| One Package Weight |
0.63kgs / 1.39lb
|
| One Package Size |
23cm * 16cm * 10cm / 9.06inch * 6.3inch * 3.94inch
|
| Carton Weight |
19.00kgs / 41.89lb
|
| Carton Size |
52cm * 48cm * 42cm / 20.47inch * 18.9inch * 16.54inch
|
| Loading Container |
20GP: 254 cartons * 28 pcs = 7112 pcs
40HQ: 590 cartons * 28 pcs = 16520 pcs
|
|
