Parameter
1. Main material: iron frame
2. Rated power: 500W
3. Rated rpm: 588.4 rpm
4. Battery: 48V 26Ah
5. Single cell capacity: 2600mAh
6. Max load: 120kg
7. Max speed: 45km/h
8. Middle speed mileage: not more than 100km???65kg load???
9. Charging time: 8-9 hours
10. Climbing slope: not more than 18 degrees
11. Braking system: front and rear disc brake & e-brake, 7-10m braking distance
12. Waterproof grade: IP54

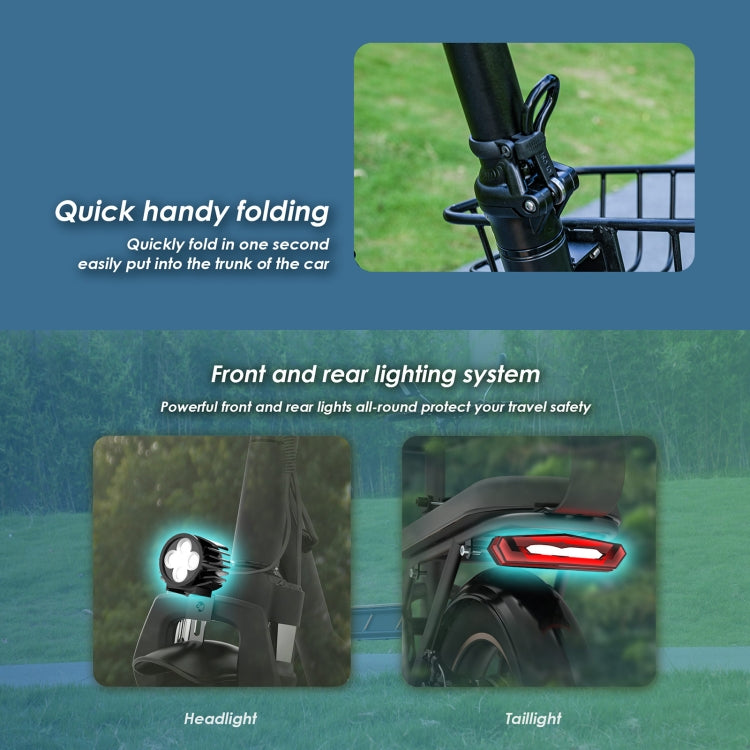

13. LED headlights: 6W
14. Tires: 14x2.125-inch tubeless type
15. Charging adapter: input 100-240V 50/60Hz, output 54.6V 3A Max

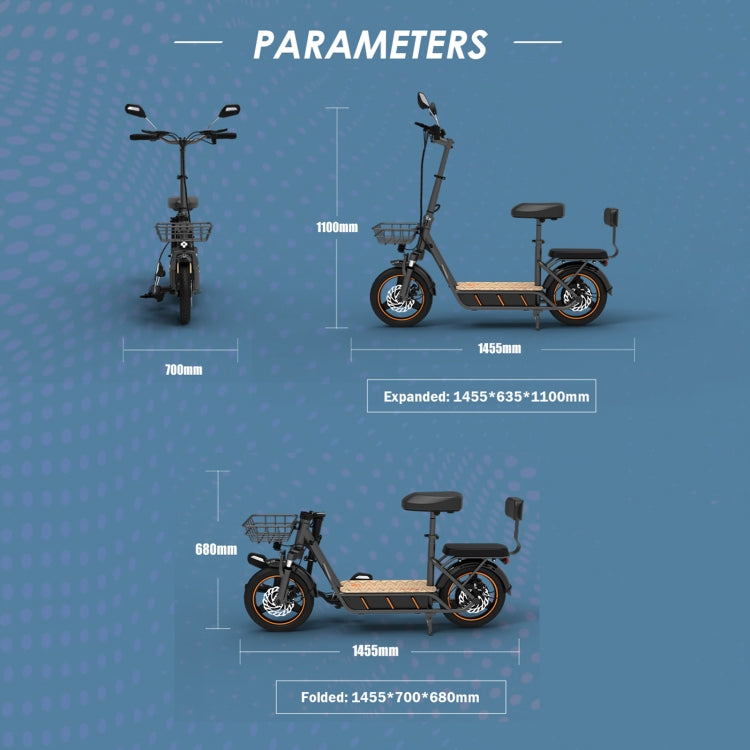

16. Expend size: 145.5x63.5x110cm
17. Folding size: 145.5x70x68cm
18. Pedal size: 42x22.5cm
19. Chassis height: 13cm
20. Product N.W: about 32.5kg
Packaging list:
1 x Electric scooter
1 x User manual
1 x Charger
1 x Rear seat back
1 x Front basket
1 x Headlight
1 x Quick release shaft
1 x Seat
1 x Seat tube
1 x Wrench
2 x Hexagon socket
2 x Rearview mirror
Specification:
|
General
|
| Certificate |
CE
, MSDS
, ROHS
, EMC
, LVD
|
|
|
Package Weight
|
| One Package Weight |
36.50kgs / 80.48lb
|
| One Package Size |
120cm * 25cm * 60cm / 47.24inch * 9.84inch * 23.62inch
|
| Carton Weight |
37.00kgs / 81.57lb
|
| Carton Size |
120cm * 25cm * 60cm / 47.24inch * 9.84inch * 23.62inch
|
| Loading Container |
20GP: 148 cartons * 1 pcs = 148 pcs
40HQ: 343 cartons * 1 pcs = 343 pcs
|
|
