1. 4G Precise Positioning: Equipped with 4G chip algorithm for second-speed positioning, faster and more accurate.
2. Multi-Mode Positioning: Multi-mode positioning technology breaks through positioning errors for more precise tracking.
3. Strong Magnetic Adsorption, Easy Installation: Built-in powerful magnet adheres to various metal surfaces, no wiring needed, ready to use.
4. Real-Time Tracking, Full Status Control: Sensitive tracking to check vehicle location and status anytime, anywhere.
5. Electronic Fence, Instant Beyond Alert: Set a safe area via APP; instant alarm when the vehicle leaves the zone for timely recovery.

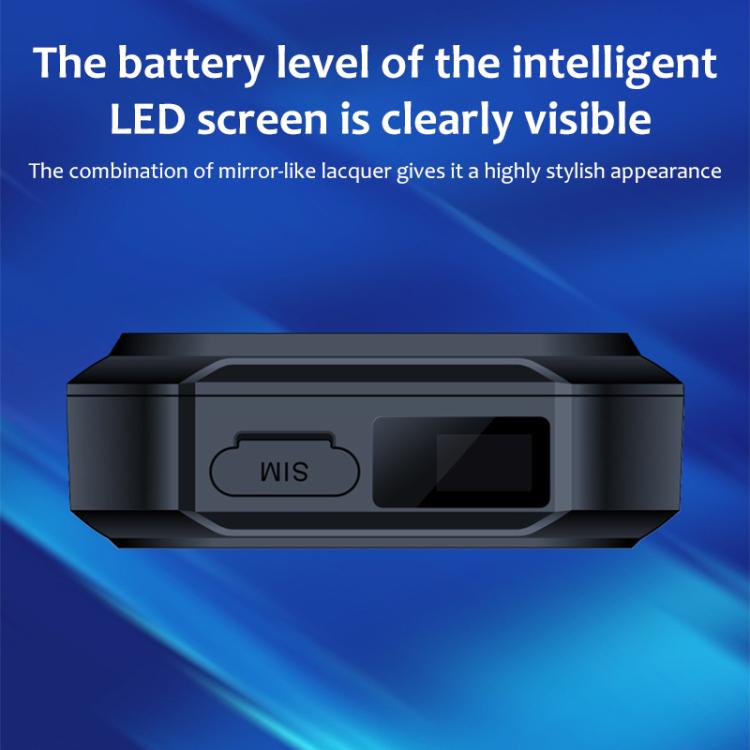

6. Smart LED Display, Stylish Appearance: LED screen clearly shows battery level; mirror-like lacquer finish for a sleek, high-end look.
Parameter Specifications
1. Chip: ASR3603S
2. Storage: 128M + 196M
3. Positioning: High-sensitivity Ceramic Antenna
4. Battery: 5000mAh
5. Key Features: 4G full network connectivity, low power consumption, GPS+BD+WiFi+LBS multi-mode positioning, voice monitoring, light sensor anti-dismantling, IPX6 waterproof, strong magnetic adsorption
6. Display: 0.42-inch OLED Screen
7. Dimensions: 117x64.5x23mm
8. Net Weight: 220g
Network Frequencies
EU Version
2G: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
FDD: B1/B2/B3/B5/B7/B8/B20
TDD: B38/B39/B40/B41
US Version
2G: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
FDD: B1/B2/B3/B4/B5/B7/B12/B17/B28A
Specification:
|
Package Weight
|
| One Package Weight |
0.37kgs / 0.82lb
|
| One Package Size |
17cm * 12cm * 5cm / 6.69inch * 4.72inch * 1.97inch
|
| Carton Weight |
11.90kgs / 26.23lb
|
| Carton Size |
38cm * 36cm * 25cm / 14.96inch * 14.17inch * 9.84inch
|
| Loading Container |
20GP: 779 cartons * 30 pcs = 23370 pcs
40HQ: 1810 cartons * 30 pcs = 54300 pcs
|
|
