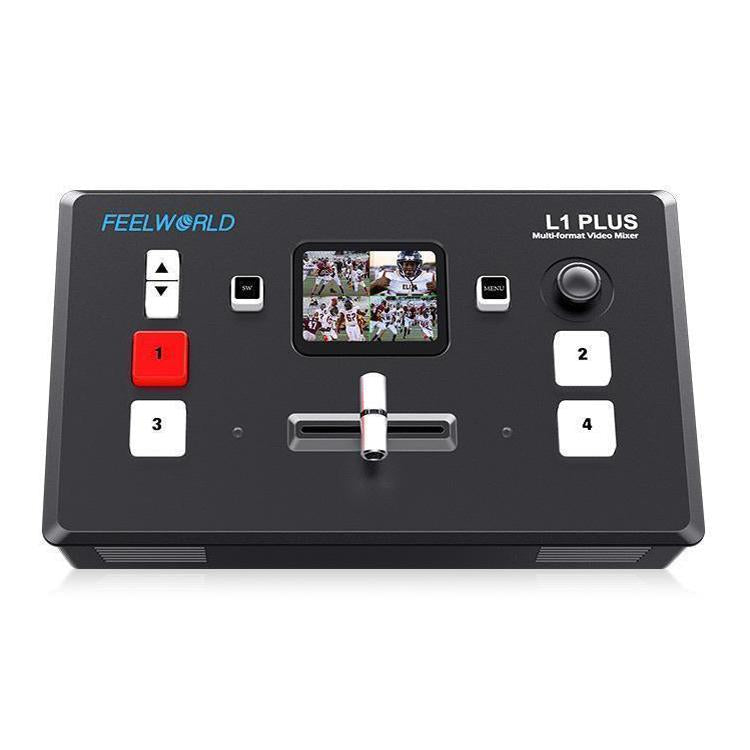

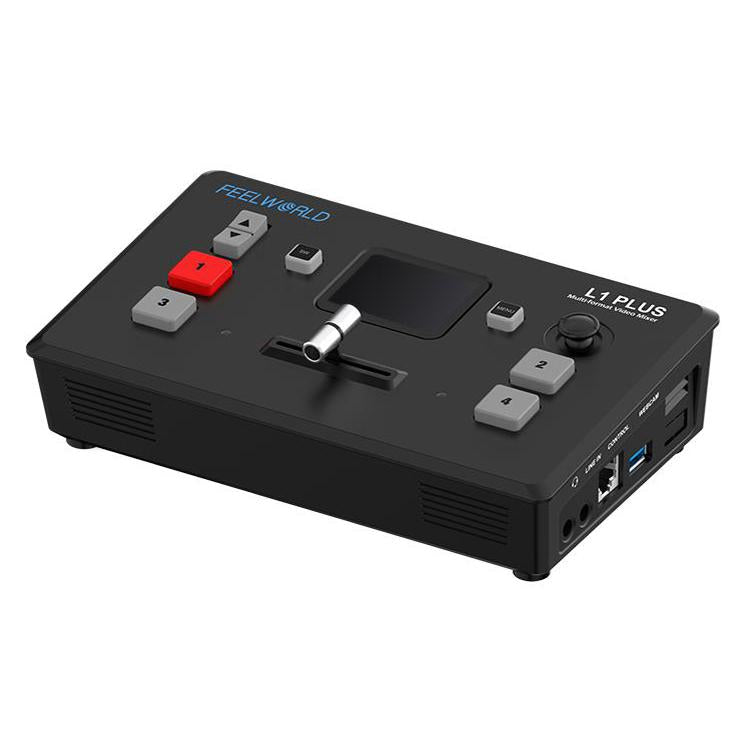

FEELWORLD L1 PLUS Multi-camera Video Mixer Switcher Touch Screen PTZ Control USB3.0 Fast Streaming Switcher (US Plug)

Features
1. Compact and lightweight, easy to carry
2. Iconized touch operation, fast to learn

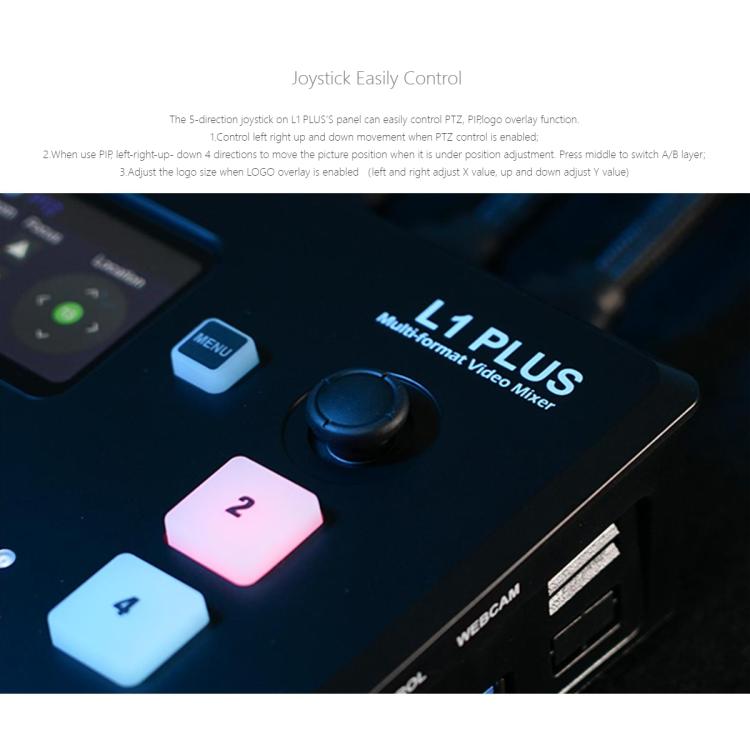

3. Joystick easy to control PTZ movement, PIP position and Logo Overlay size
4. Up to 4K at 60 signal inputs

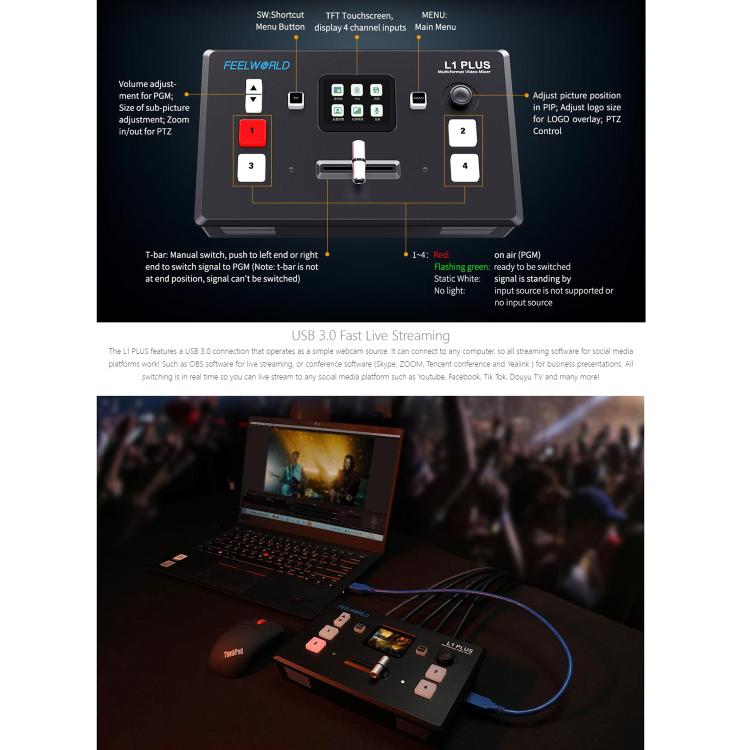

5. USB 3.0 fast to live streaming
6. Support blend function

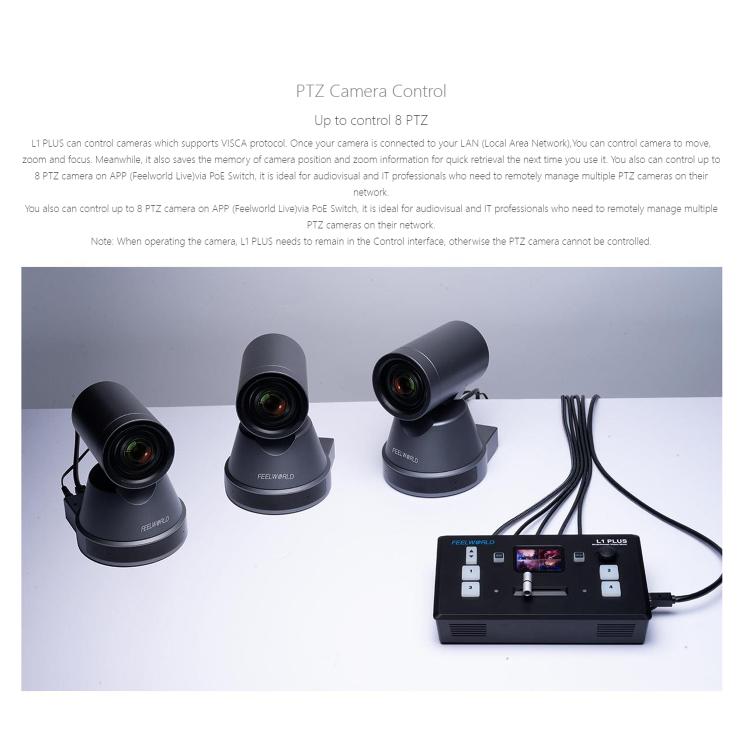

7. PTZ camera control (Up to 8 cameras)
8. Chroma key + LOGO overlay,creating an exciting studio
9. T-Bar easily switch the transition effects and signal sources

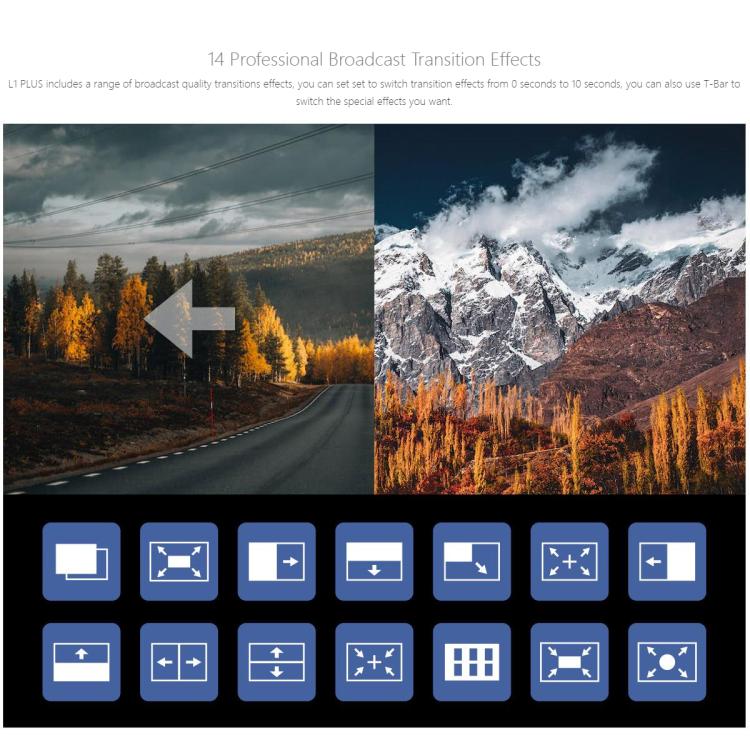

10. 14 transition effects and 8PIP modes, the live picture more vivid
11. Embedded & Insert Audio with Sync
12. Mix audio from multiple inputs

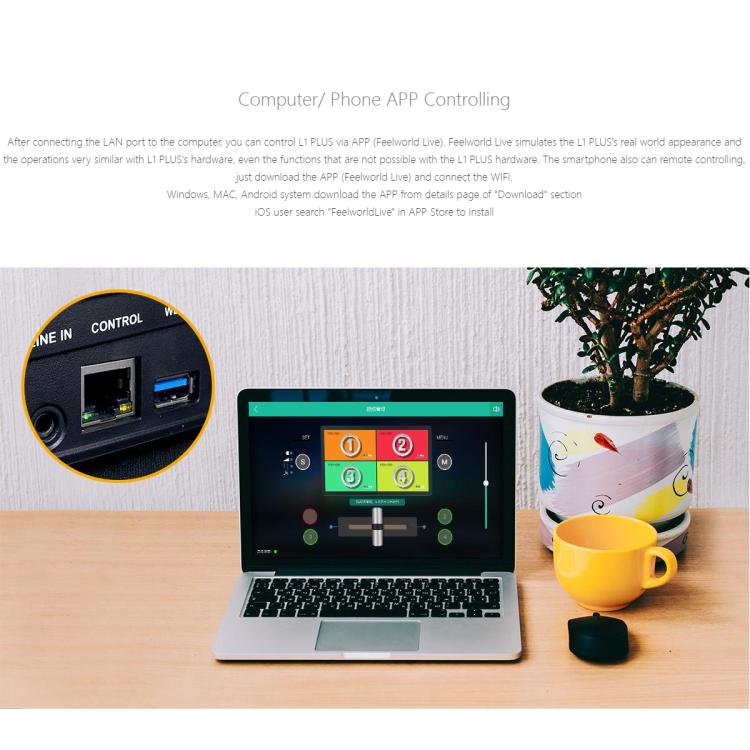

13. Remote control via PC/smartphone APP

Specifications
1. Model: L1 PLUS
2. Screen Size: 2.0 Touch screen
3. Backlight: LED

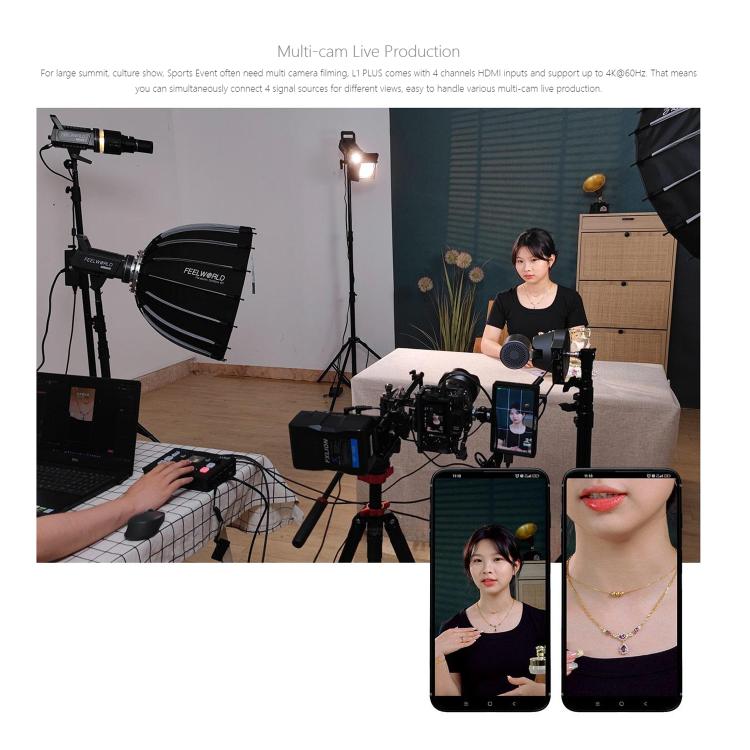

4. Input: 4 x HDMI-A: HDMI 2.0

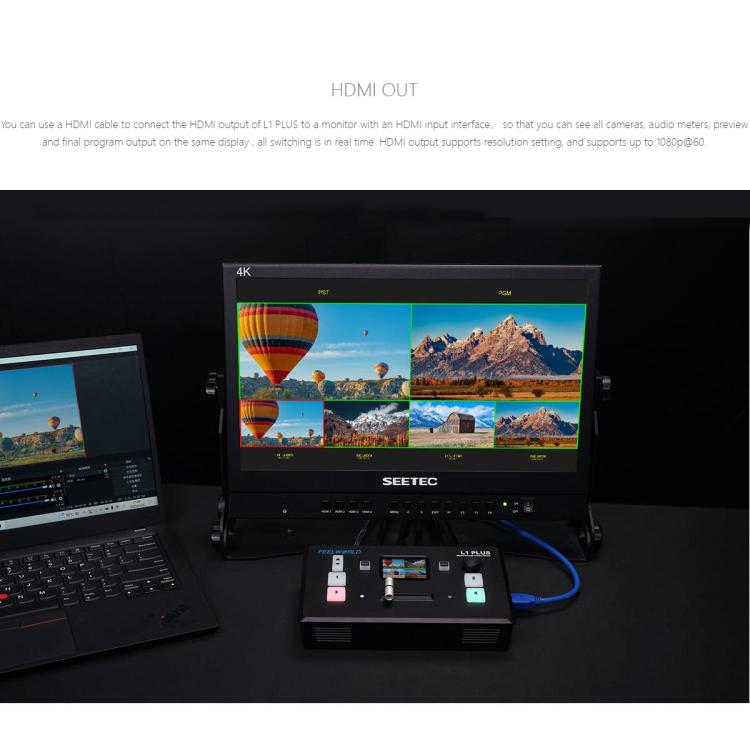

5. Output: 1 x HDMI-A: HDMI 1.3, 1 x USB Type-A: USB 3.0

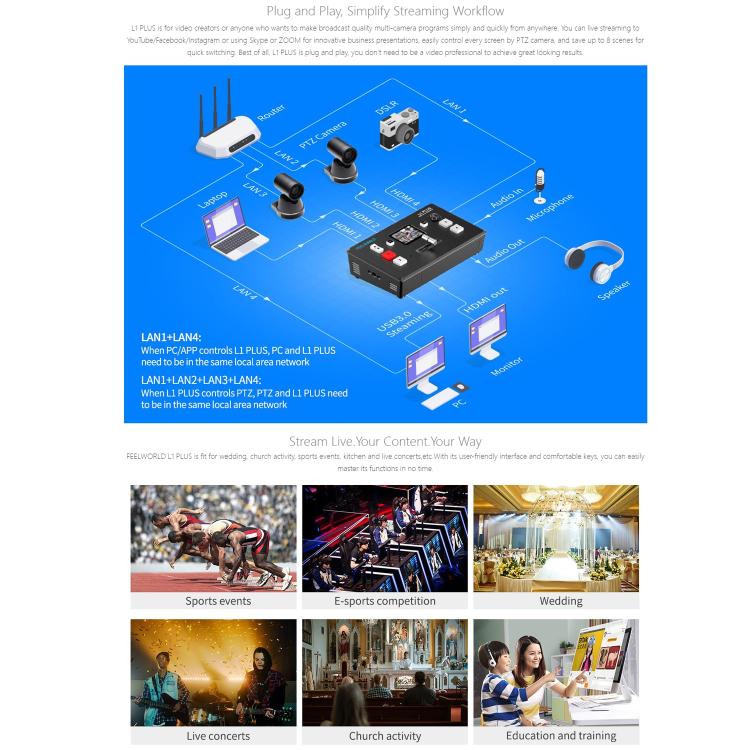

6. Communication: 1 x RJ45: LAN (suitable for CAT6 cable)

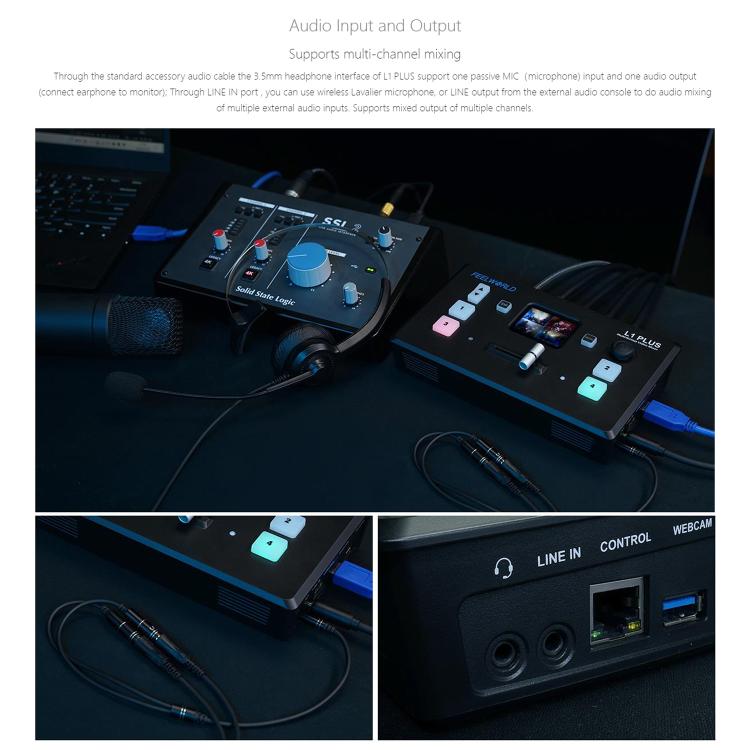

7. Audio: Audio In: 2 x 3.5mm Stereo Jack; Audio Out: 1x 3.5mm Stereo Jack
8. Input Voltage: PD 12V /1.5A
9. Power: 20W
10. Working Temperature: 0 degree C - 50 degree C
11. Humidity: 10%~85%
12. Unit Size: 194(L) x 109.6(W) x 47.8(H)mm
13. Unit Weight: 468g

Input Solution
HDMI
1. SMPTE 720p at 50/60, 1080i at 50/60, 1080p at 23/24/30/50/60, 2160p at 60
2. VESA 1366 x 768 at 60, 1440X900 at 60, 1600 x 1200 at 60, 1680 x 1050 at 60, 1920 x 1080 at 60, 1920 x 1200 at 60, 3840 x 2160 at 60, 4096 x 2160 at 60

Output Solution:
HDMI
1. SMPTE 720p at 50/60, 1080p at 24/25/30/50/60
2. VESA 1024 x 768 at 60, 1280 x 720 at 50/60, 1280 x 768 at 60, 1280 x 1024 at 60, 1360 x 768 at 60|1920 x 1080 at 24/25/30/50/60
3. USB: 1024 x 768 at 60, 1280 x 720 at 50/60, 1280 x 1024 at 60, 1360 x 768 at 60, 1920 x 1080 at 24/25/30/50/60

Note: Please refer connected computer for applicable resolution support

Supported Protocol
VISCA: PTZ

Format
1. Video Format: HDMI 2.0, HDCP 2.2
2. Streaming Format: ITU-T H.265, ISO/IEC 23008-2
3. Audio Format: LPCM/2ch/24bit/16bit/48kHZ)

Latency
Latency: Less than 4 frames

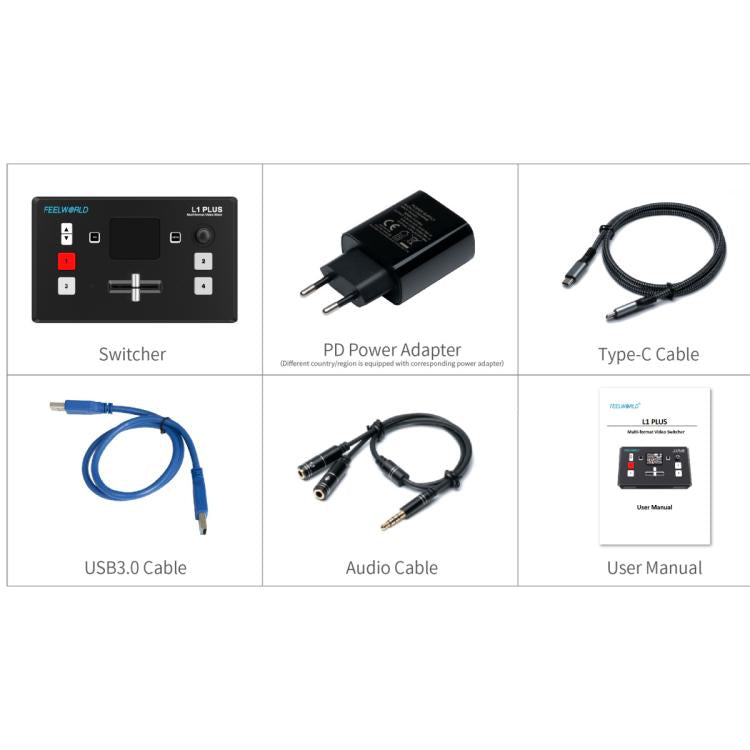

Package List
1. Video Switcher x 1
2. PD Power Adapter x 1
3. Type-C Cable x 1
4. Audio Cable x 1
5. USB3.0 Cable x 1
6. User Manual x 1
