Features:
1. The second generation version of electric vehicle side charger.

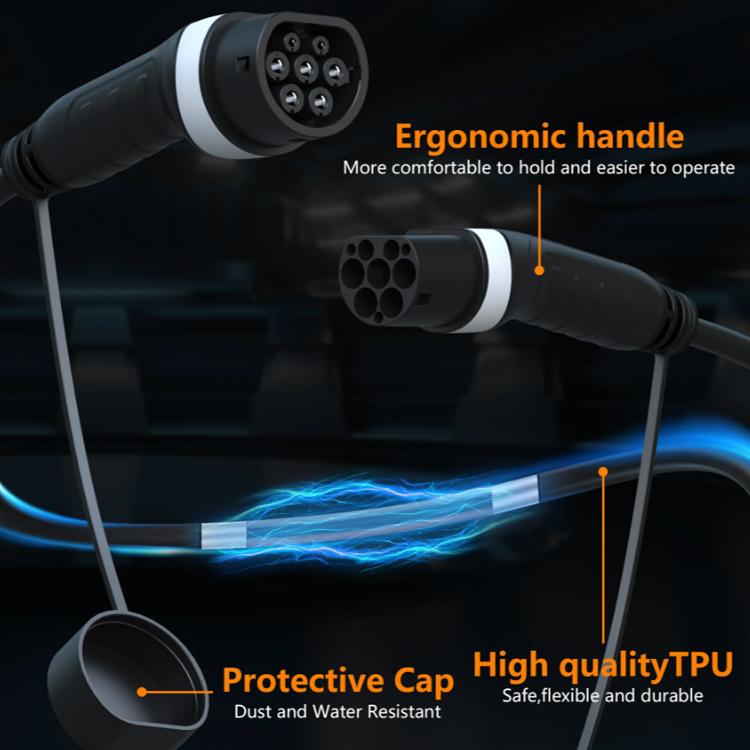

2. All-in-one EV charger, the charger body has no screws, and the handle is made of TPU soft material, which is more beautiful and practical.

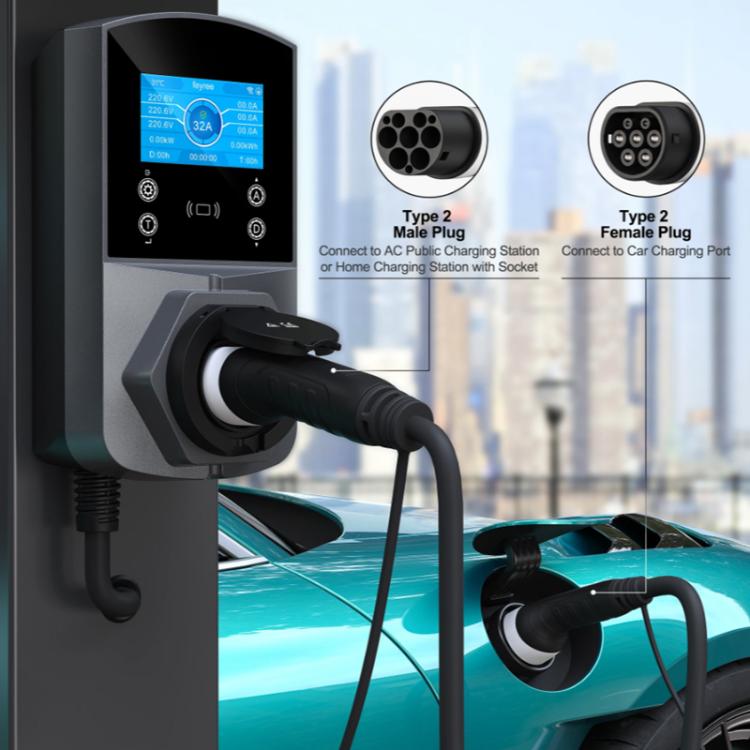

3. The rear plug is designed according to the IEC62196-Sheet2-IIe standard.

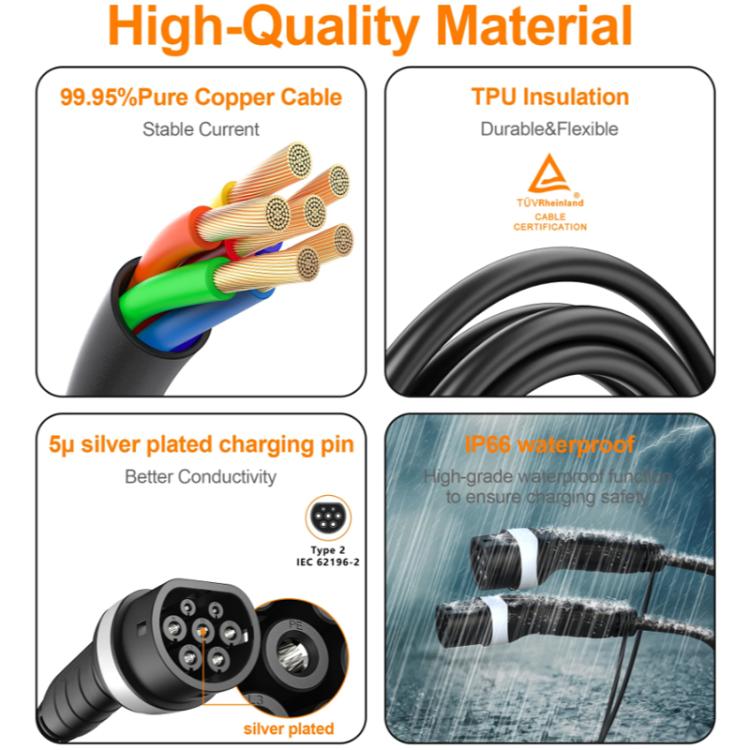

4. Charging plug: Silver-plated special reed structure for temperature monitoring.
5. Cables: Our cables are comfortable to touch and more resistant to abrasion and high temperature.
6. Plug and play, no installation required, the cable length is 5m, easy to carry and charge.
7. Both sides of the connection are equipped with dustproof and waterproof covers, which are not afraid of rain and easy to use.
Parameters:
1. Material: flame retardant PC
2. Sheath material: PVC material
3. Rated current: 16A / 32A
4. Voltage: 250V / 480V
5. Power: 4kW/8kW/11kW/22kW
6. Mechanical life: plugging and unplugging about 10,000 times
7. External impact: can withstand 1m drop and 2 tons of vehicle rolling
8. Wire core material: copper
9. Pin material: copper alloy + silver plating
10. House fire rating: UL94V-0
11. Protection level: IP65
12. Working temperature: -30 degrees Celsius - +55 degrees Celsius
Specification:
|
Package Weight
|
| One Package Weight |
2.32kgs / 5.11lb
|
| One Package Size |
35cm * 31cm * 8cm / 13.78inch * 12.2inch * 3.15inch
|
| Carton Weight |
24.00kgs / 52.91lb
|
| Carton Size |
72cm * 33cm * 42cm / 28.35inch * 12.99inch * 16.54inch
|
| Loading Container |
20GP: 267 cartons * 10 pcs = 2670 pcs
40HQ: 620 cartons * 10 pcs = 6200 pcs
|
|
