1. PoE test (auto identification): standard and non-standard, end-connector/middle-connector/8-pin power supply, auto-identification, power supply method, power rating
2. Length test: 20M +/- 1.6M, 20M - 2.4M, >100M +/- 3.2M
3. Receiver: cable finding function, wire sequence comparison, non-contact voltage detection function, headphone function, low voltage indicator, flashlight function
4. Built-in battery: 1500mAh lithium battery

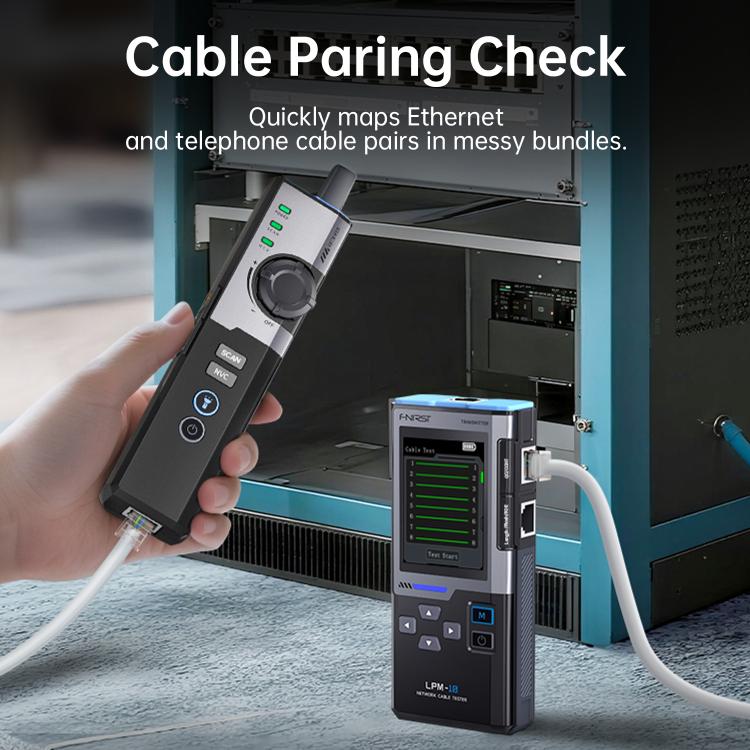

5. Network cable test: wire sequence comparison, continuity and fault test, fault indication
6. Cable finding: cable finding test/interference-resistant finding test
7. Port flashing (auto identification): full-duplex, half-duplex, auto-negotiation, non-auto-negotiation
8. Network cable speed: 10M/100M/1000M duplex mode (full-duplex/half-duplex)

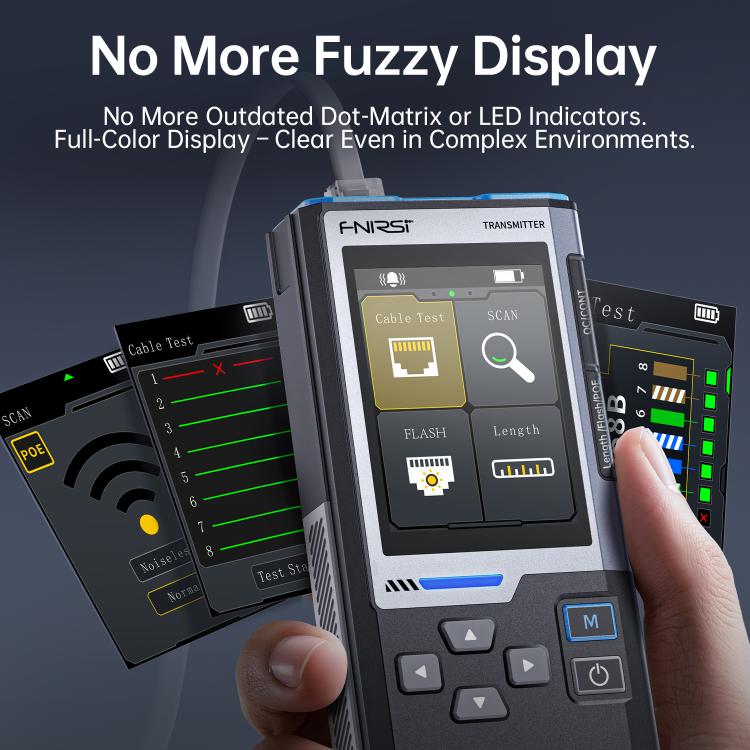

9. 2.4-inch TFT high-definition color screen, eliminating blurry images and misjudgments, saying goodbye to broken code screens and indicator lights, full-color screen clear display, easy to read even in complex environments.

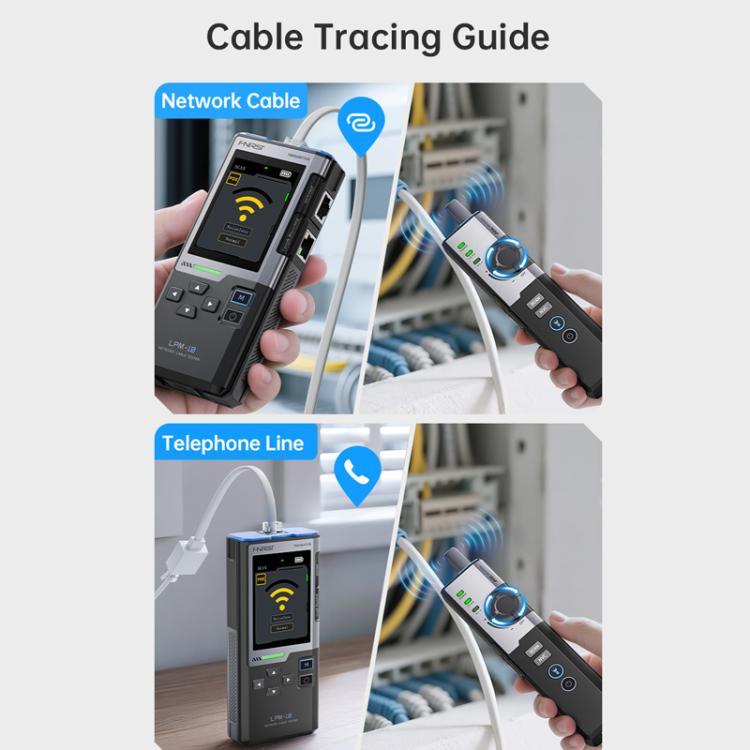

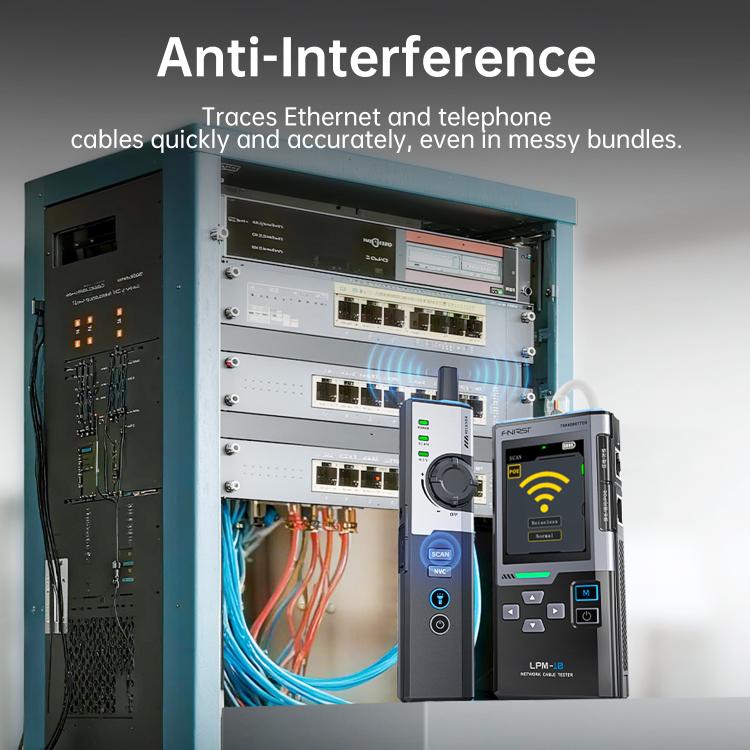

11. Supports network cables and telephone lines, accurately locating the target cable in a jumble of cables.

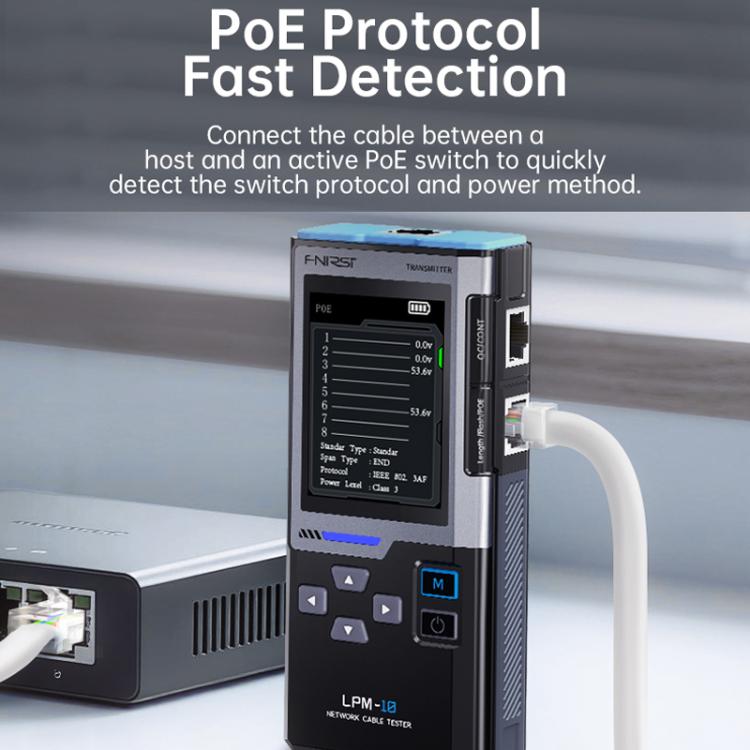

12. Connect one end of the network cable to the hosts PoE interface, and the other end to a working PoE switch for testing, quickly identifying the switch protocol, power supply method, etc.

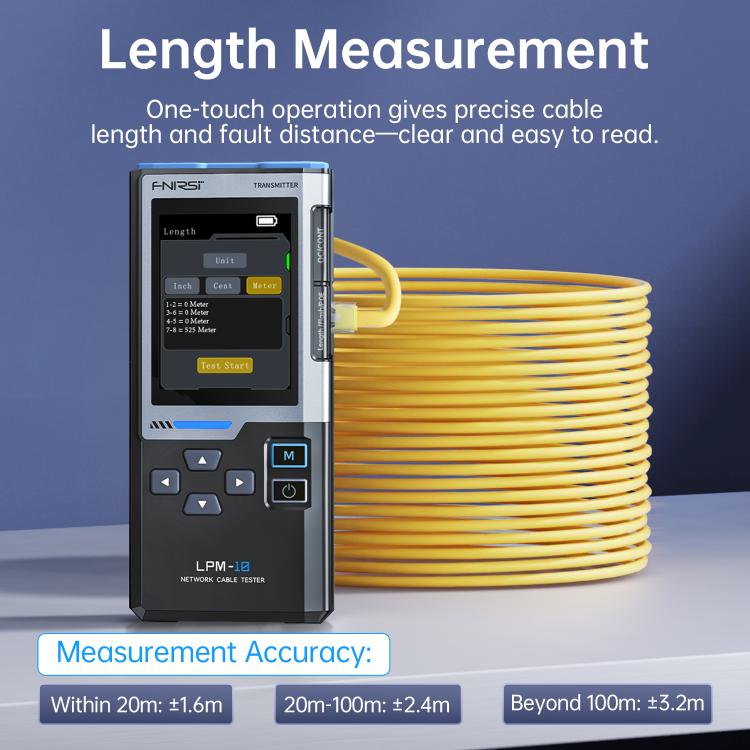

13. Length measurement with a single touch yields the result.

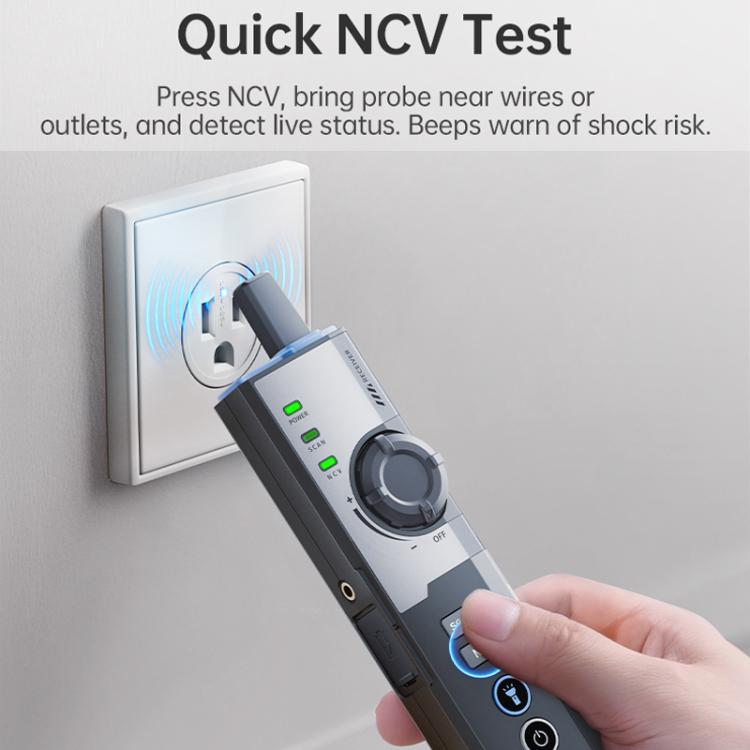

14. NCV non-contact sensing, safe detection, accurate identification, one-click detection of the live status of wires/sockets, effectively reducing the risk of electric shock.

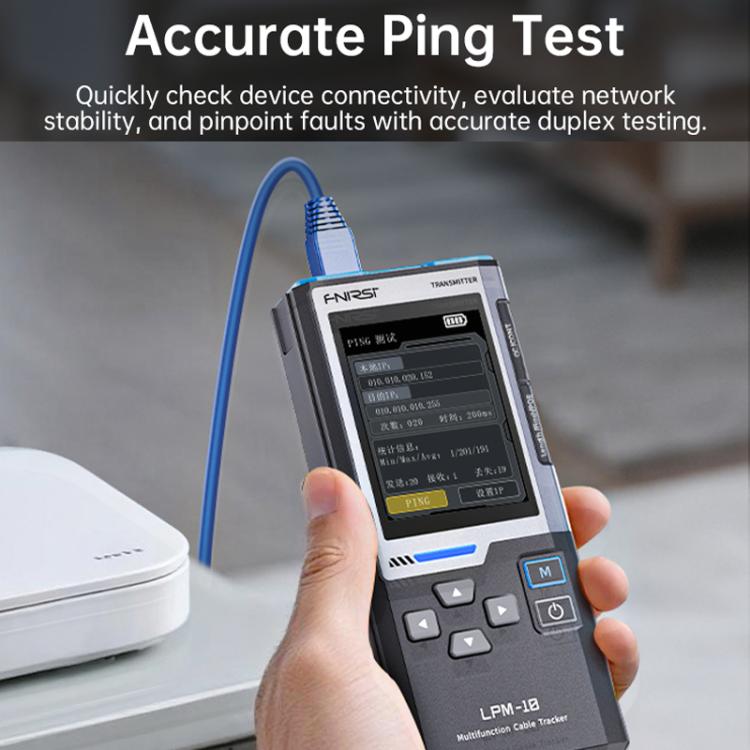

15. This function can be used to test network connectivity between devices, assess network quality, and locate faults.

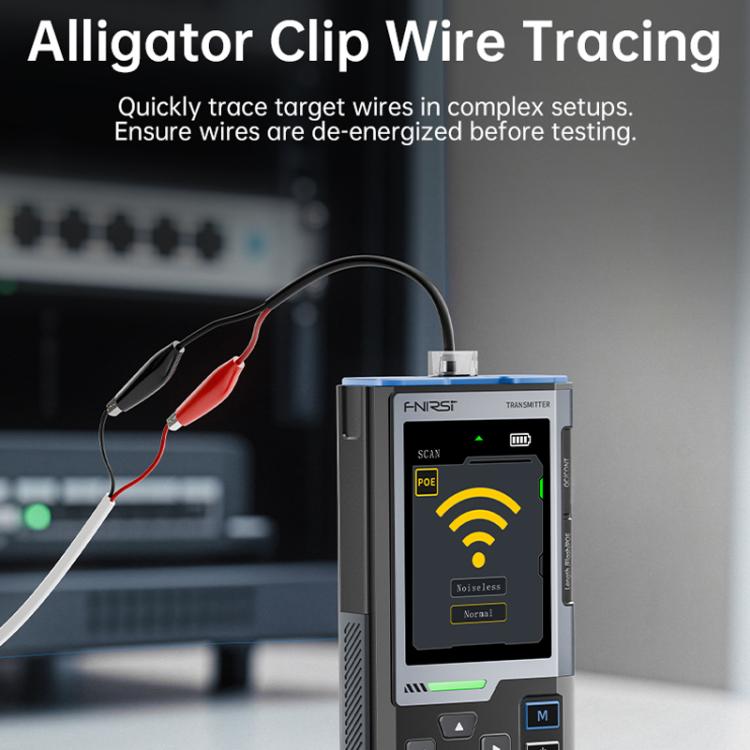

16. Alligator clip cable finder, quickly finding the target cable from complex cables; note that the wire must not be live.
17. Dimensions: 15.2 x 6.8 x 3.1 cm
18. Weight: 0.184 g

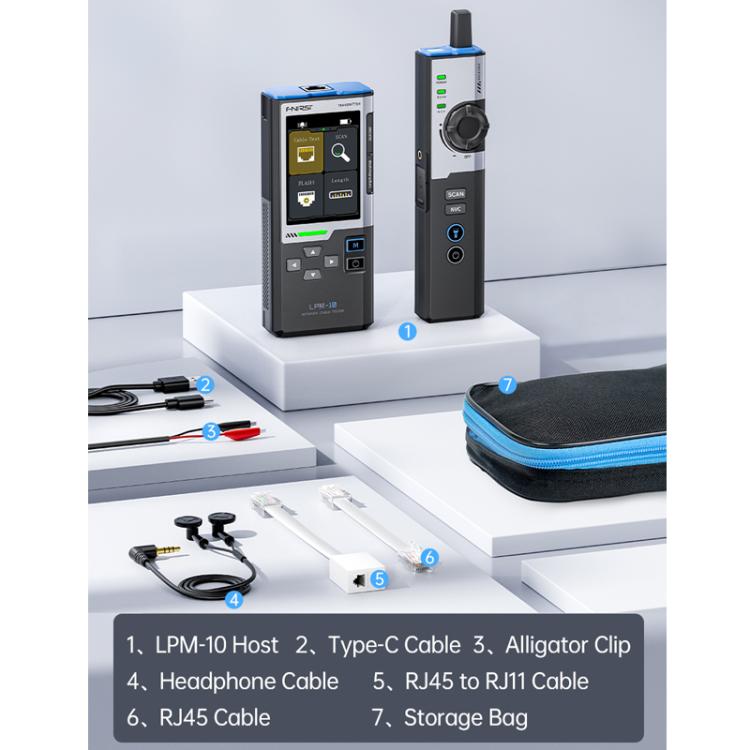

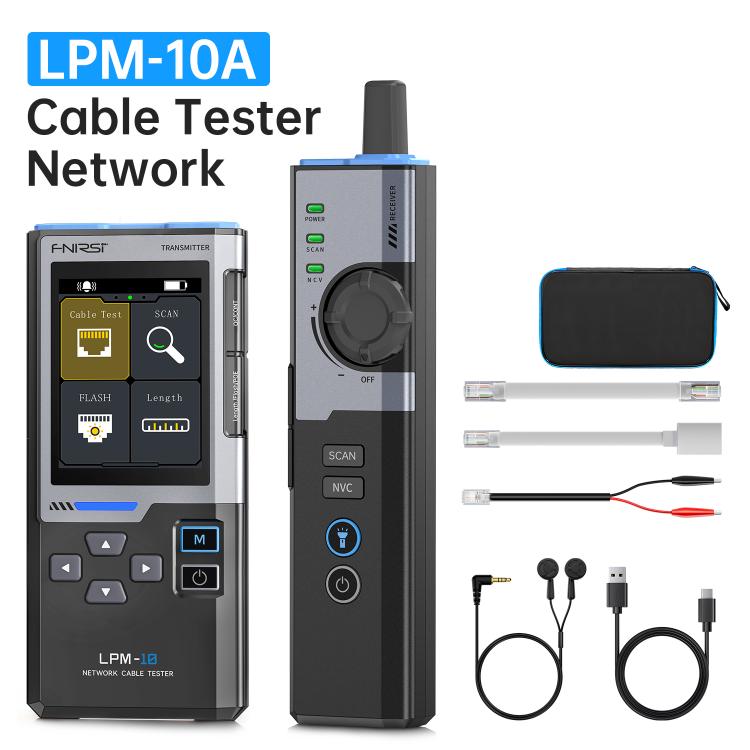

Package list:
- LPM-10 cable finder
- Type-C charging cable
- Alligator clips
- Headphone cable
- RJ45 to RJ11
- RJ45 connector
- Storage bag
- Network cable instruction manual
Specification:
|
Package Weight
|
| One Package Weight |
0.50kgs / 1.10lb
|
| One Package Size |
24cm * 14cm * 5cm / 9.45inch * 5.51inch * 1.97inch
|
| Carton Weight |
21.30kgs / 46.96lb
|
| Carton Size |
55cm * 49cm * 30cm / 21.65inch * 19.29inch * 11.81inch
|
| Loading Container |
20GP: 329 cartons * 40 pcs = 13160 pcs
40HQ: 765 cartons * 40 pcs = 30600 pcs
|
|
