1. The Color Screen Battery Hub is suitable for DJI Mini 2 SE / Mini 2 / Mini SE / Mini 4K, and supports Mini 2 / SE batteries (not compatible with Mavic Mini). It can charge 3 batteries.

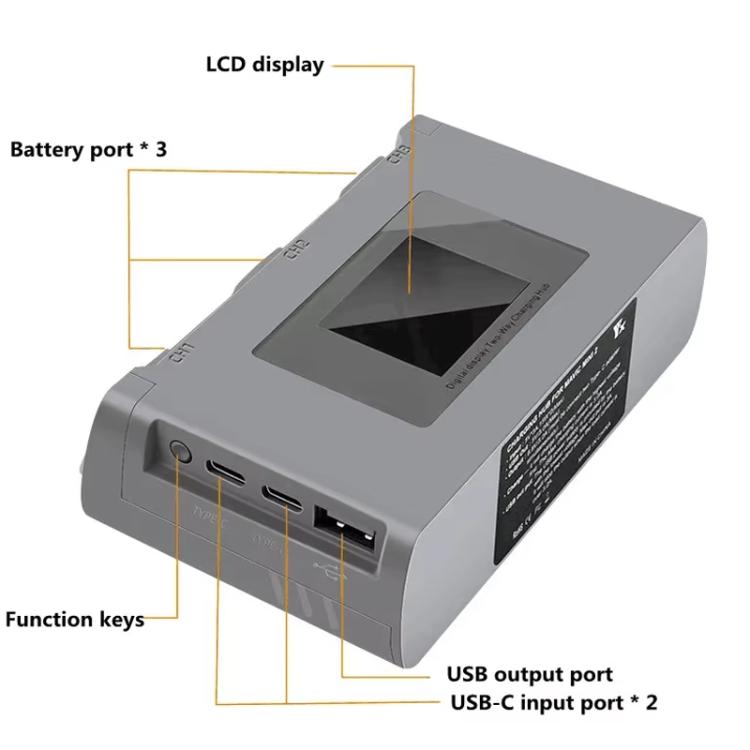

2. Features dual USB-C input ports; fully charging 3 batteries takes only 150 minutes.

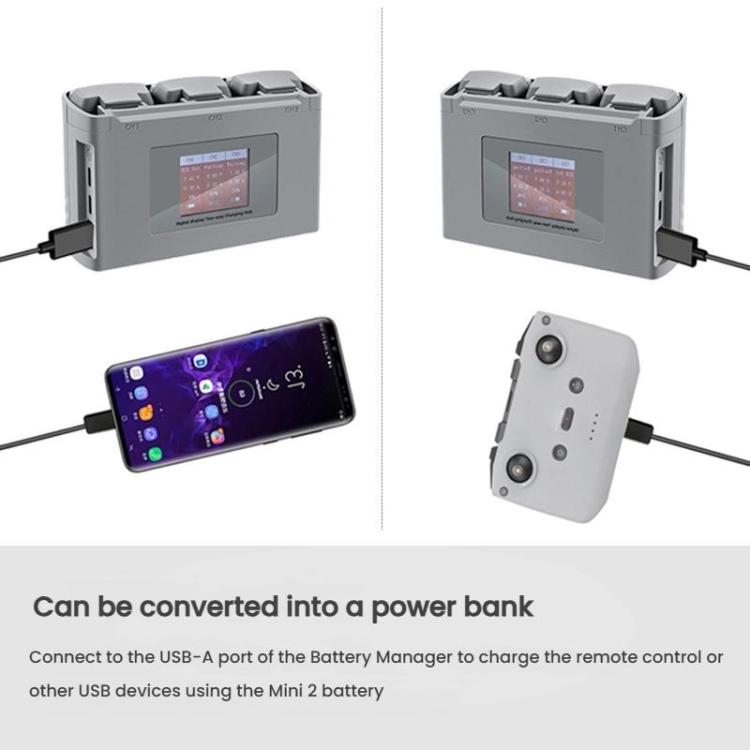

3. After inserting a Mini 2 battery, it can also function as a portable power bank, featuring a USB port outputting 5V 2A.

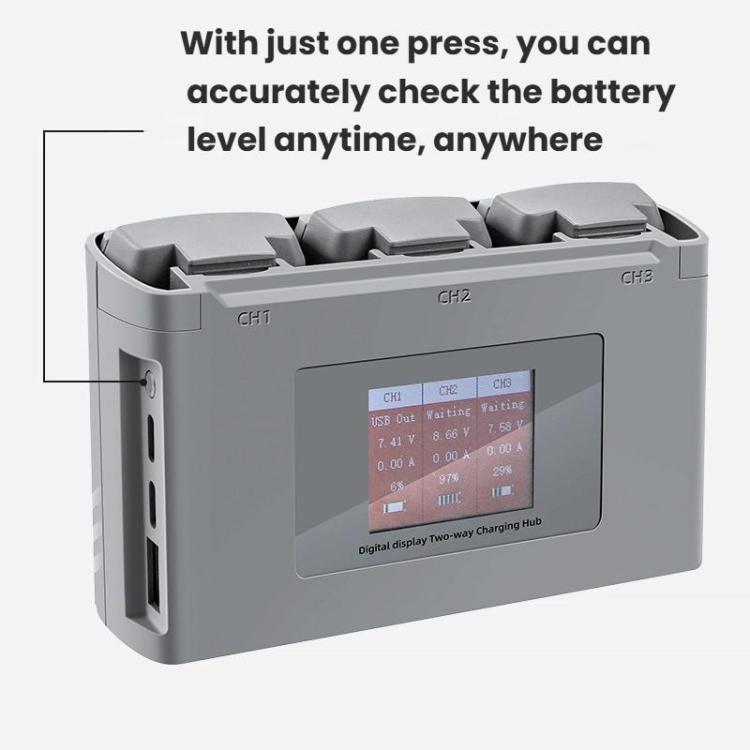

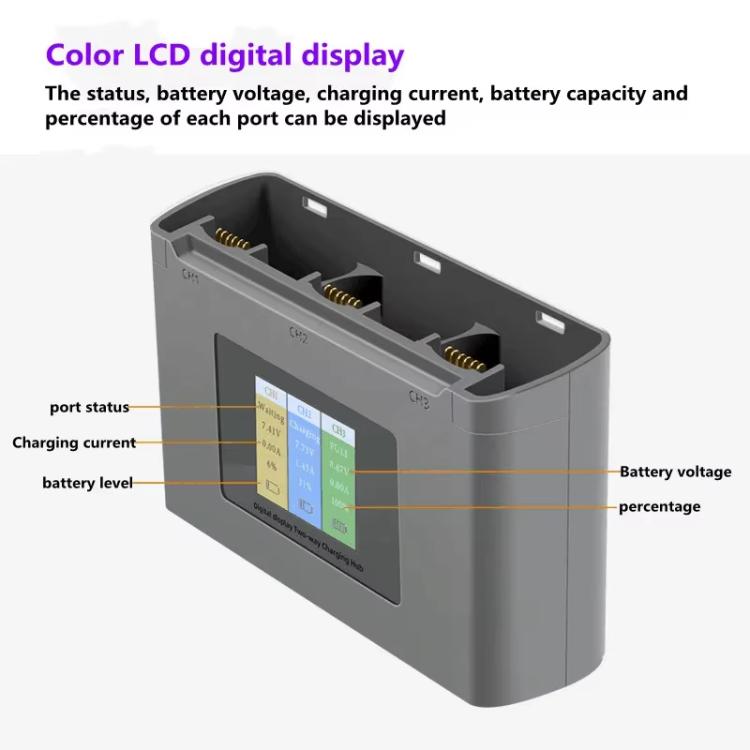

4. Equipped with a color LCD digital display showing the status of each port, battery voltage, charging current, battery level, and percentage.

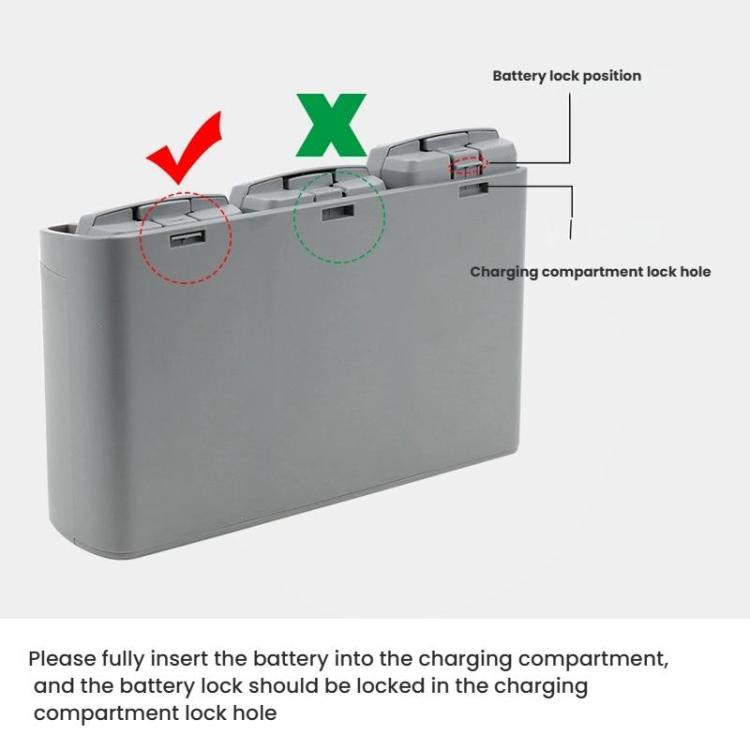

5. Note: New or long-unused batteries must first be activated in the drone before they can be recognized by this Battery Hub.
Parameters:
1. Charging Temperature:0-40 degrees Celsius
2. Input: 5V/3A 15W x 2 (MAX)
3. Output: 8.8V/3A(MAX)
4. USB Output: 5V/2A(MAX)
5. Product Net Weight: 132.6g (including 2 Type-C cables)
6. Charging Time:
-- Simultaneously connect 2 Type-C charging cables supporting 5V/3A or QC3.0 input: Approx. 150 minutes to fully charge 3 batteries (approx. 50 minutes per battery).
-- Connect 1 Type-C charging cable supporting 5V/3A or QC3.0 input: Approx. 240 minutes to fully charge 3 batteries (approx. 80 minutes per battery).
7. Product Dimensions: 12.5 x 3.5 x 7.4 cm

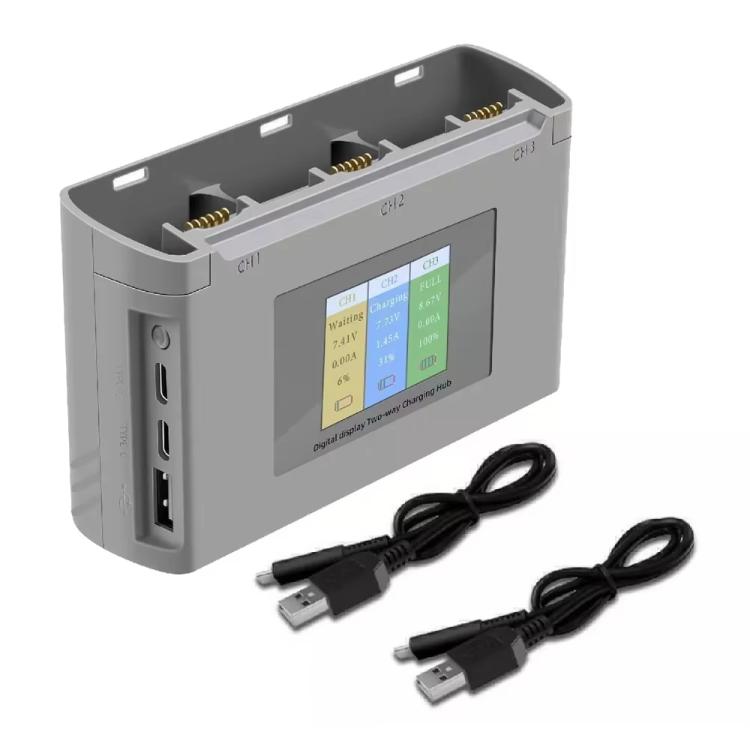

Product List:

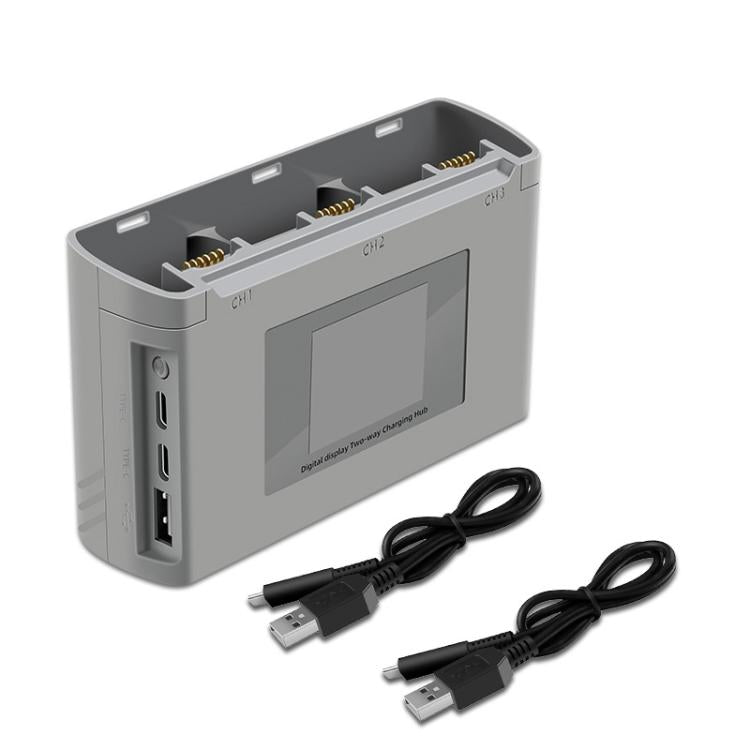

- Battery Hub x 1
- Type-C Charging Cable x 2 (USB output cable not included)
Specification:
General
|
Compatible with |
DJI:
Mini 2 SE / Mini 4K
|
|
Package Weight
|
One Package Weight |
0.16kgs / 0.35lb
|
One Package Size |
15cm * 10cm * 7cm / 5.91inch * 3.94inch * 2.76inch
|
Carton Weight |
12.30kgs / 27.12lb
|
Carton Size |
41cm * 34cm * 32cm / 16.14inch * 13.39inch * 12.6inch
|
Loading Container |
20GP: 597 cartons * 72 pcs = 42984 pcs
40HQ: 1387 cartons * 72 pcs = 99864 pcs
|
|
