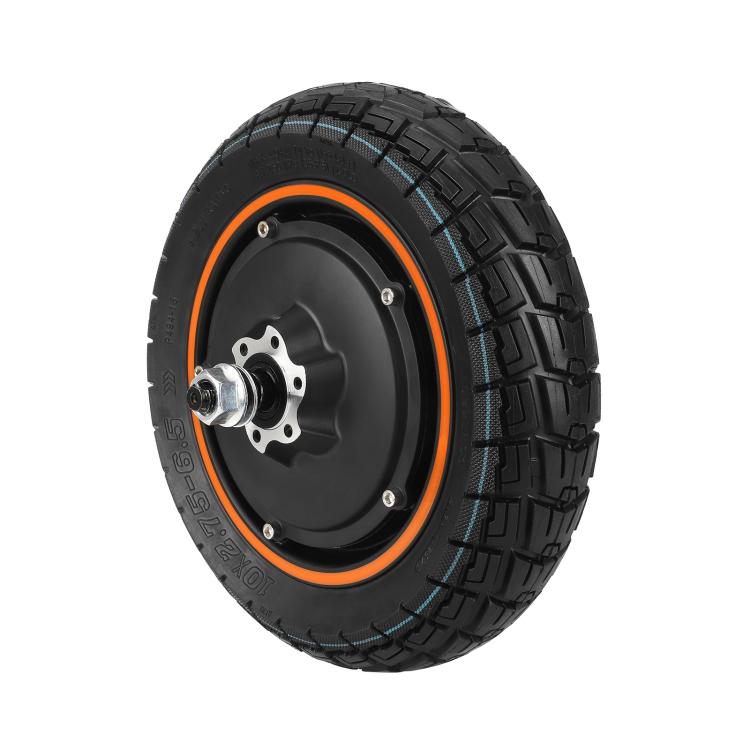

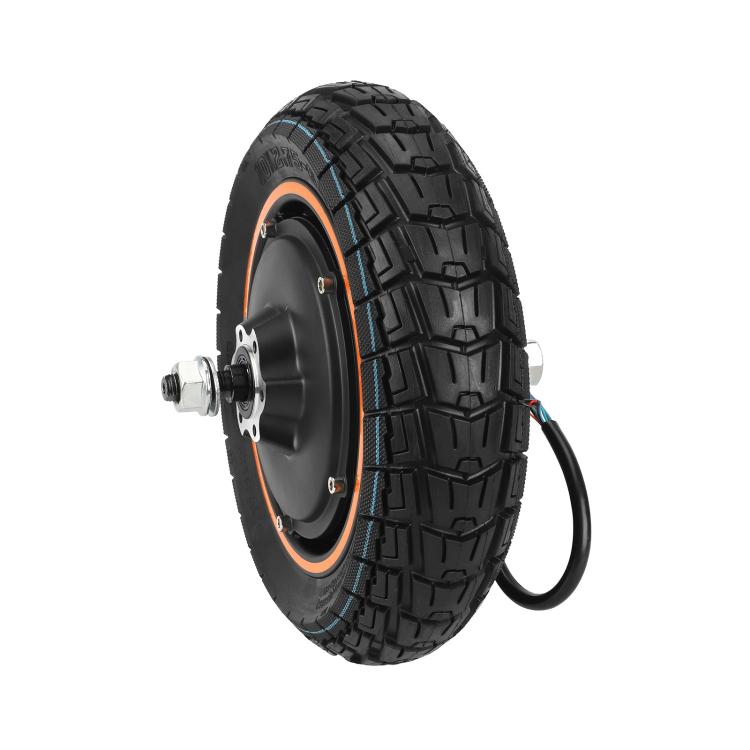

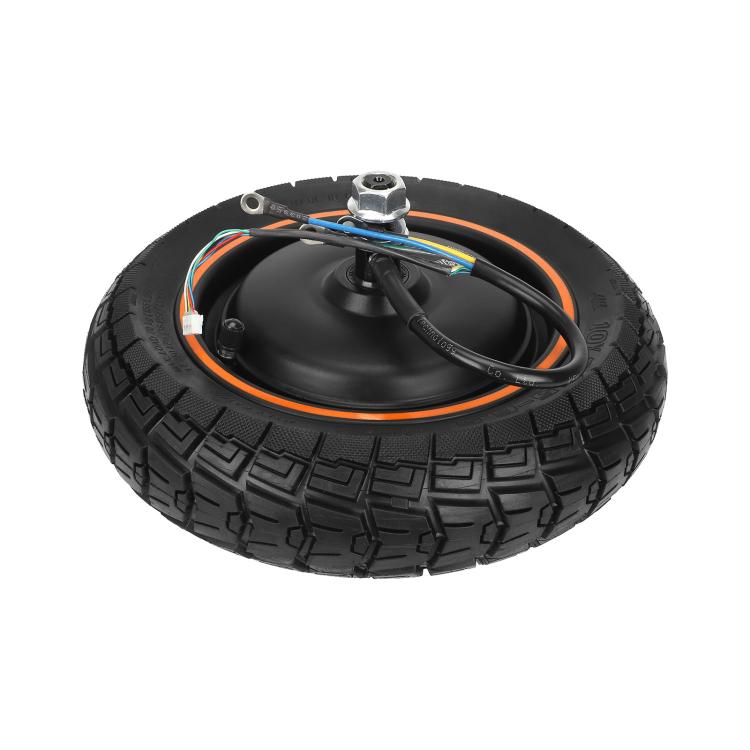

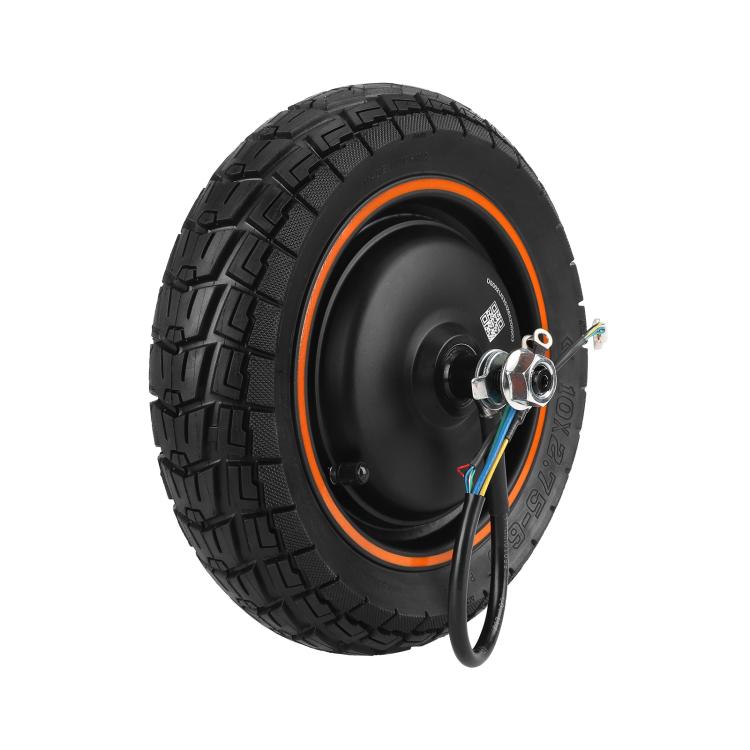

1. Designed specifically as a direct replacement rear hub motor wheel assembly compatible with KuKirin G3 electric scooters, restoring full driving power and smooth acceleration.
2. Features a heavy-duty 10x2.75-6.5 off-road tread tubeless tire pre-mounted on the motor hub, offering enhanced traction, puncture resistance, and wear resistance for smooth riding.

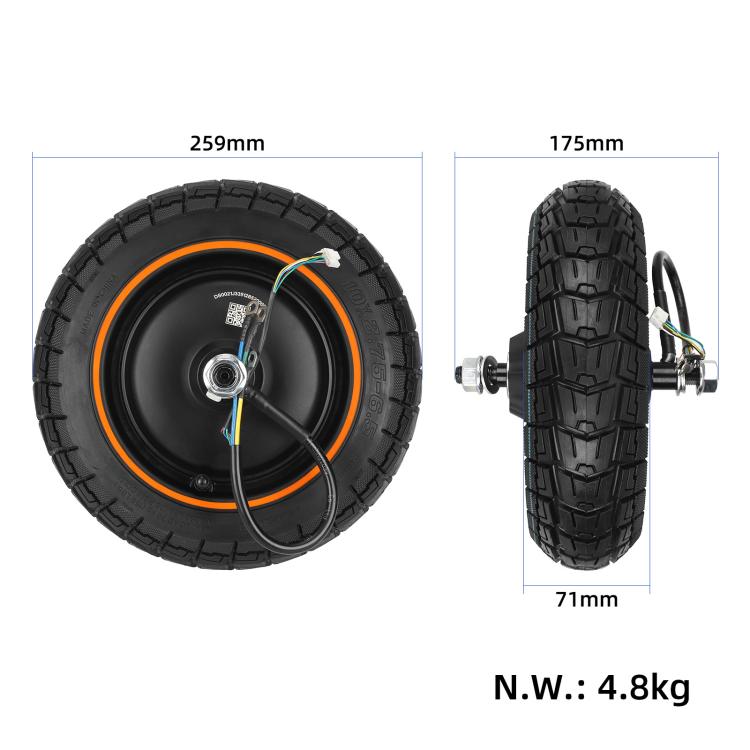

3. Constructed with a high-strength aluminum alloy hub structure with a distinctive orange trim ring. Weighing 4.80 kg (10.58 lbs) with a 175mm total axle length to deliver steady torque.

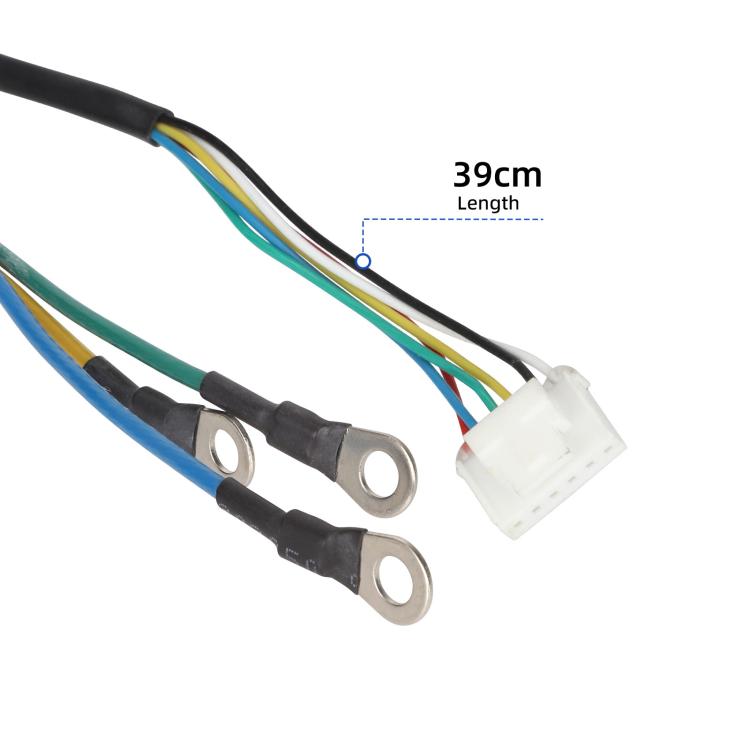

4. Features a 6-bolt disc brake mounting flange and a 39 cm (15.35 in) integrated wiring harness with standard phase ring terminals and a white hall sensor connector.
5. Includes 1 x Complete Rear Hub Motor Wheel Assembly with Tubeless Tire. Please confirm your scooter model, total axle length (175mm), and cable terminal setup before ordering.
Specification:
|
Package Weight
|
| One Package Weight |
5.30kgs / 11.69lb
|
| One Package Size |
30cm * 30cm * 20cm / 11.81inch * 11.81inch * 7.87inch
|
| Carton Weight |
21.80kgs / 48.06lb
|
| Carton Size |
62cm * 32cm * 42cm / 24.41inch * 12.6inch * 16.54inch
|
| Loading Container |
20GP: 320 cartons * 4 pcs = 1280 pcs
40HQ: 742 cartons * 4 pcs = 2968 pcs
|
|
