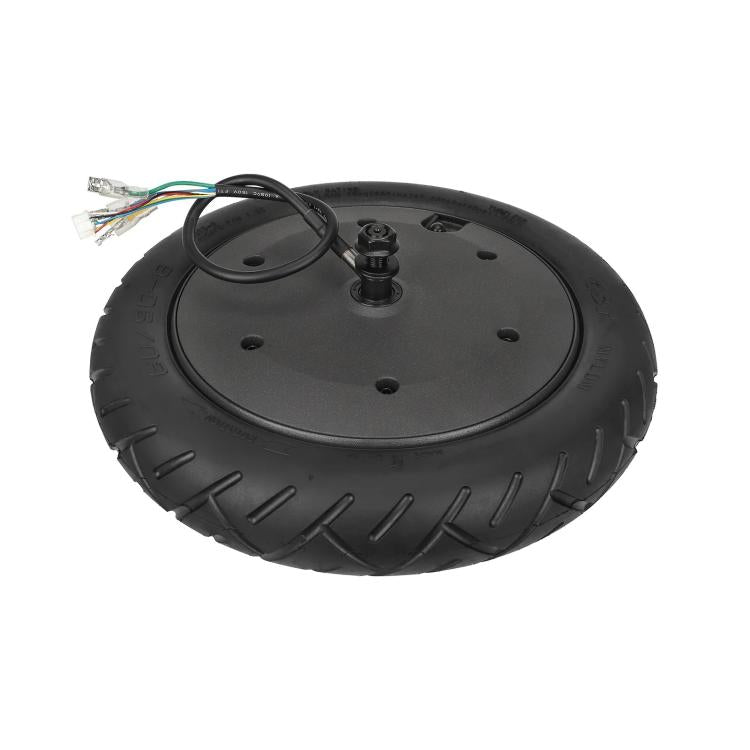

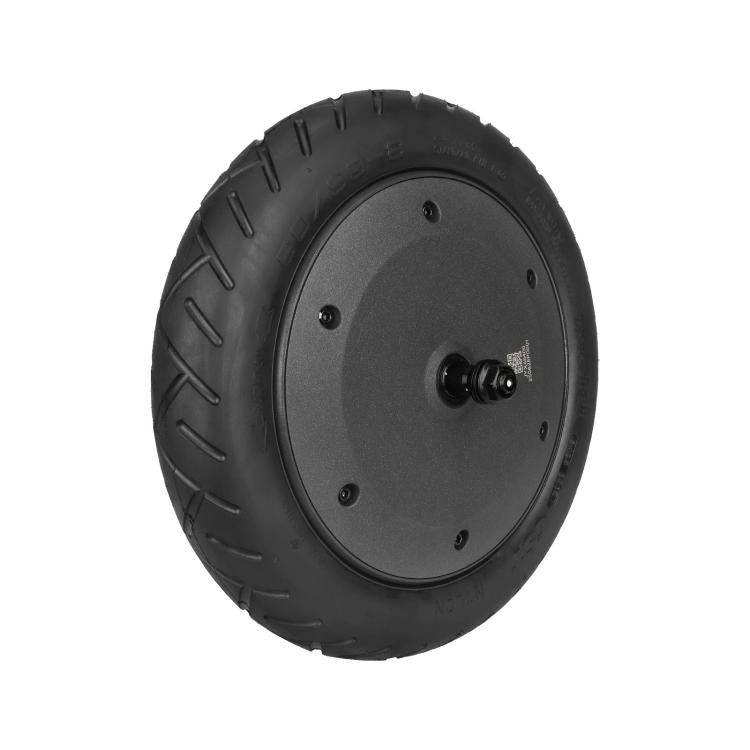

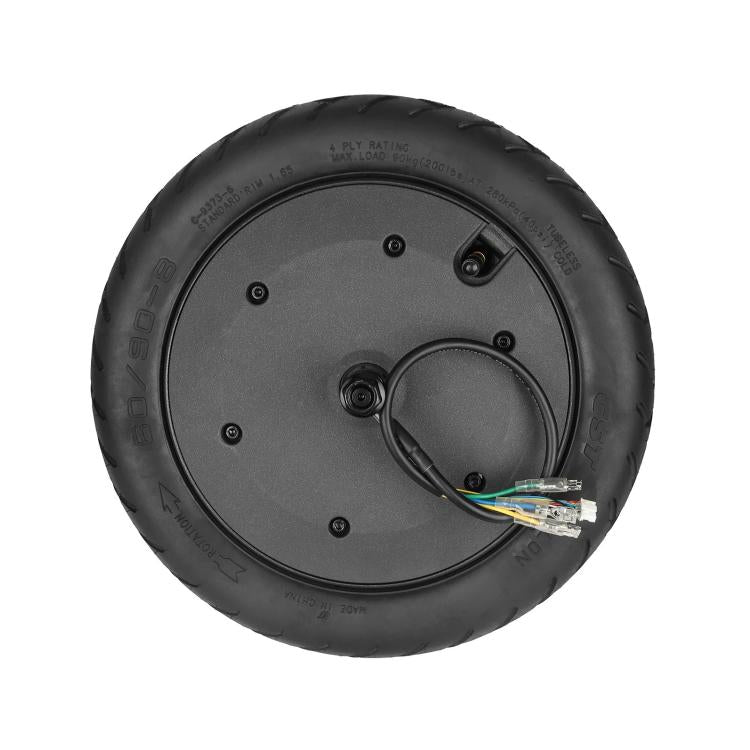

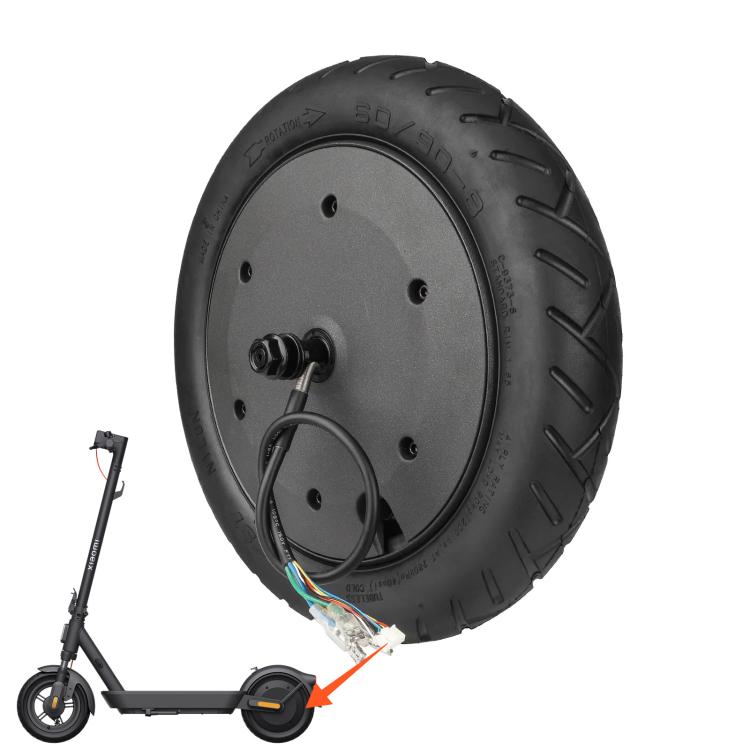

1. A replacement rear-drive brushless motor assembly designed specifically for the Xiaomi Electric Scooter 5 Plus, quickly restoring the vehicle's powerful acceleration and hill-climbing capabilities.
2. The hub motor comes pre-installed with a CST 60/90-8 tubeless tire; puncture-resistant, durable, and offering excellent grip, it ensures a smooth and comfortable ride.

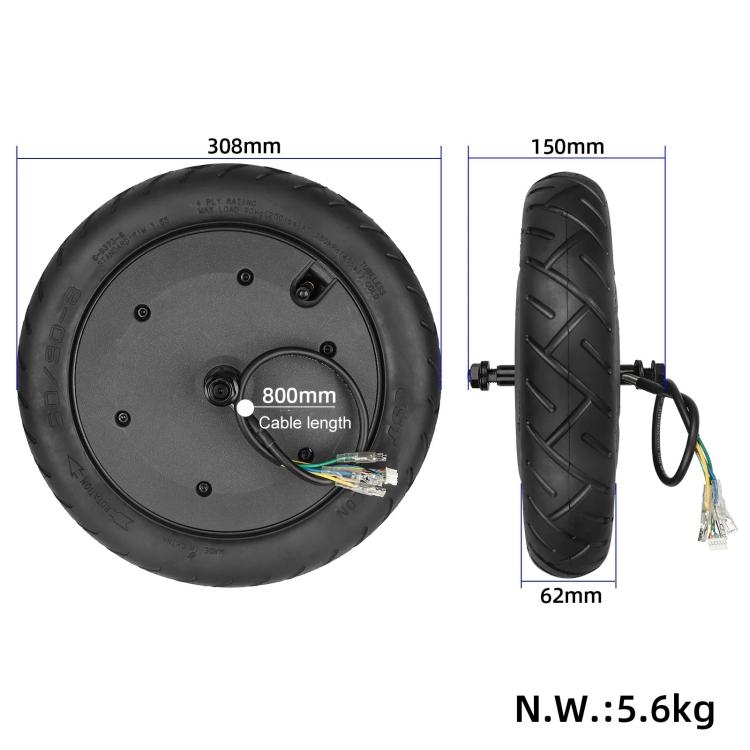

3. Built with a 308mm (12.13 in) total wheel outer diameter, 62mm (2.44 in) tread width, and a 150mm (5.91 in) total axle length. Constructed with high-strength alloy hub weighing 5.60 kg (12.35 lbs) for ultimate riding stability.

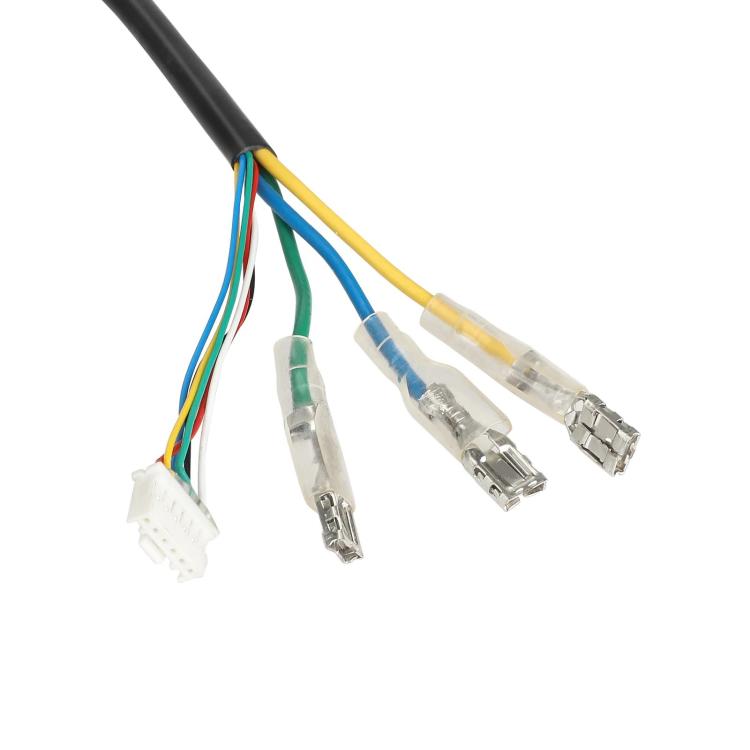

4. Features an upgraded 800mm (31.50 in / 80cm) extra-long power cable for hassle-free frame routing. Includes 3 color-coded phase wire spade terminals with clear protective sleeves and a standard hall sensor connector.
5. Please carefully verify your scooter model (5 Plus), overall wheel diameter (308mm), and axle length (150mm) before purchasing to ensure a perfect specification match.
Specification:
|
Package Weight
|
| One Package Weight |
6.20kgs / 13.68lb
|
| One Package Size |
34cm * 34cm * 20cm / 13.39inch * 13.39inch * 7.87inch
|
| Carton Weight |
19.80kgs / 43.65lb
|
| Carton Size |
60cm * 36cm * 36cm / 23.62inch * 14.17inch * 14.17inch
|
| Loading Container |
20GP: 342 cartons * 3 pcs = 1026 pcs
40HQ: 796 cartons * 3 pcs = 2388 pcs
|
|
