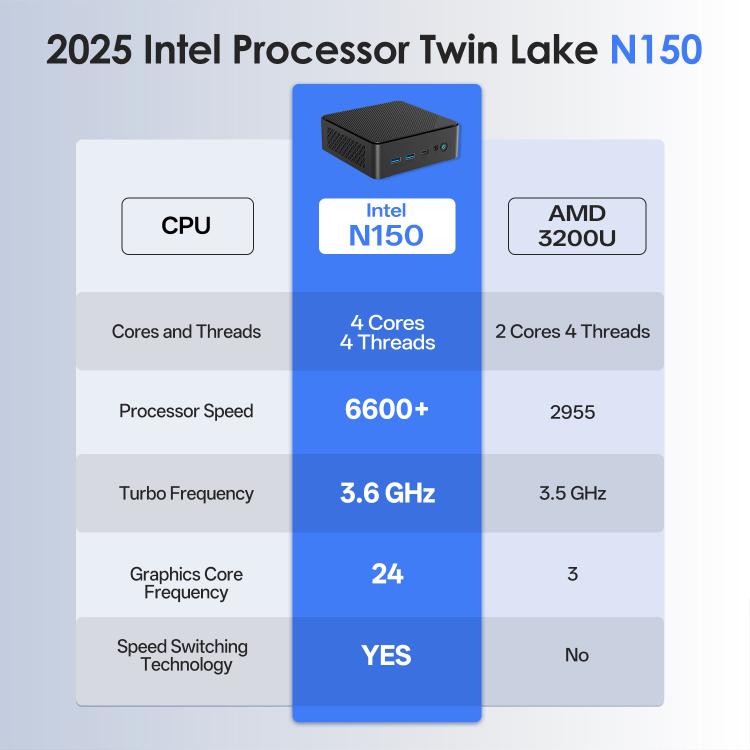

1. CPU: Intel ADL-N N150 4-core 4-threads 6M Cache, up to 3.60 GHz
2. GPU: Intel UHD Graphics Gen12

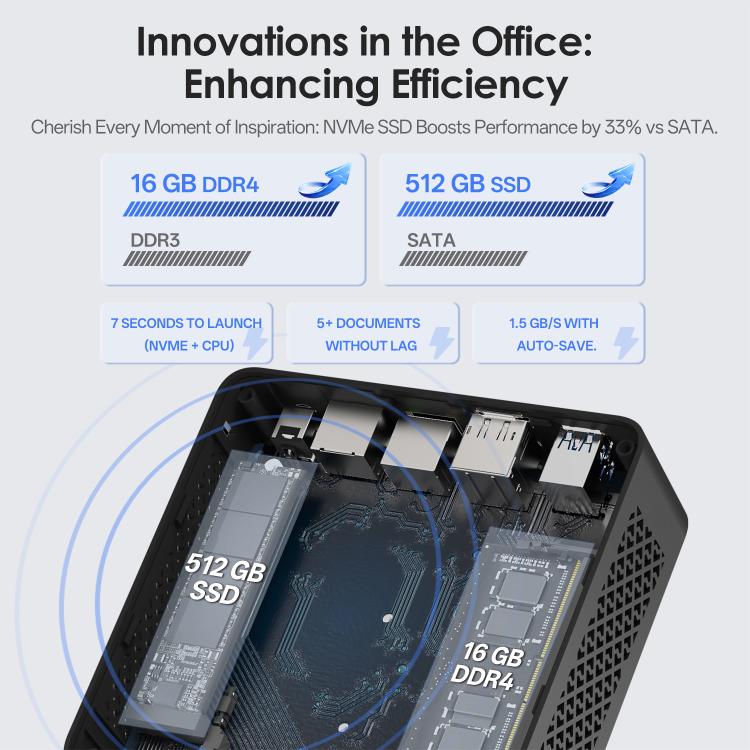

3. RAM: 8GB / 16GB SO-DIMM DDR4
4. ROM: 256GB / 512GB SSD SATA
5. Wireless LAN: WIFI IEEE802.11b/g/n/ac, 2.4G+5.G, BT5.0

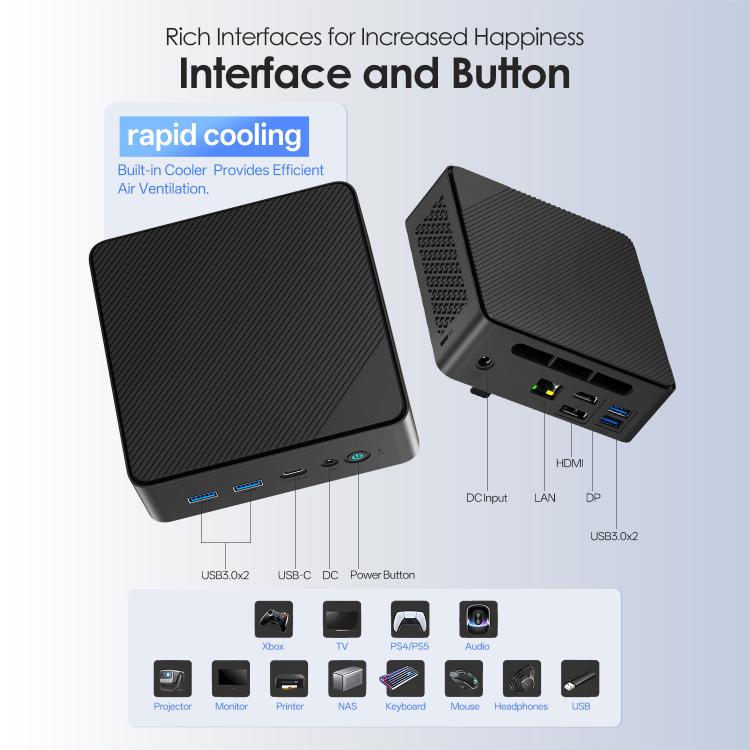

6. Interface: DC port x 1, USB3.0 x 4, 1000M RJ45 x 1, HDMI x 1, DisplayPort x 1, Audio Jack (HP&MIC) x 1, Type-C 2.0 x 1
7. Internal connector: M.2 SATA SSD 2280 x 1
8. RTC button: 1
9. Power LED: 1
10. Power button: 1
11. Compatible OS: support Windows, Ubuntu, CentOS, LINUX
12. Input: AC100-240V, 50/60Hz
13. Output: 12V/2.5A 30W
14. Work environment: -10 to 45 degree Celsius, 30% to 90% Humidity
15. Storage environment: -20 to 60 degree Celsius, 10% to 90% Humidity
16. Dimension: 128x128x46mm
17. Weight: 384g
18. Package list:
Mini PC x 1
Wall-Mounted bracket x 1
80cm HDMI cable x 1
Adapter x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.95kgs / 2.09lb
|
| One Package Size |
25cm * 17cm * 8cm / 9.84inch * 6.69inch * 3.15inch
|
| Carton Weight |
14.00kgs / 30.86lb
|
| Carton Size |
51cm * 40cm * 25cm / 20.08inch * 15.75inch * 9.84inch
|
| Loading Container |
20GP: 522 cartons * 15 pcs = 7830 pcs
40HQ: 1213 cartons * 15 pcs = 18195 pcs
|
|
