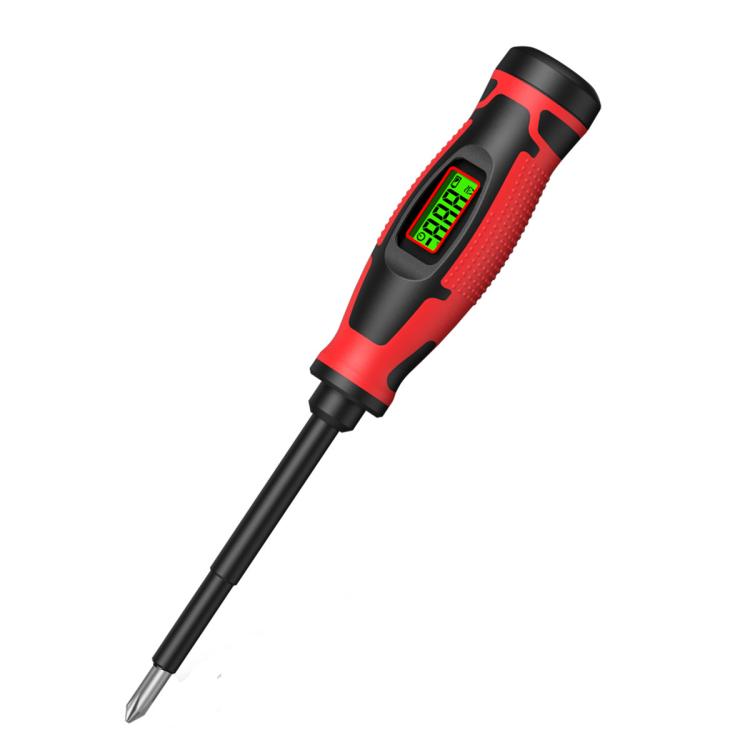

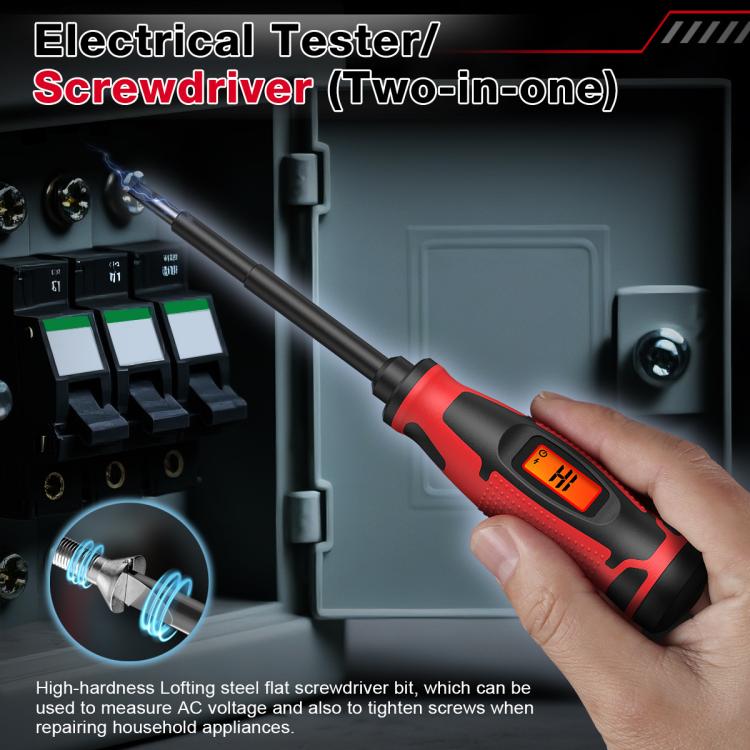

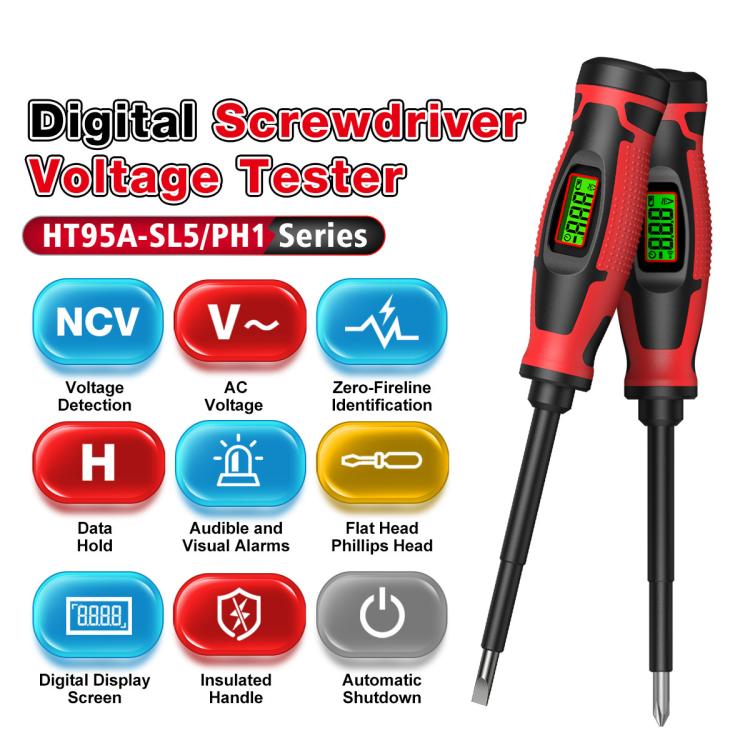

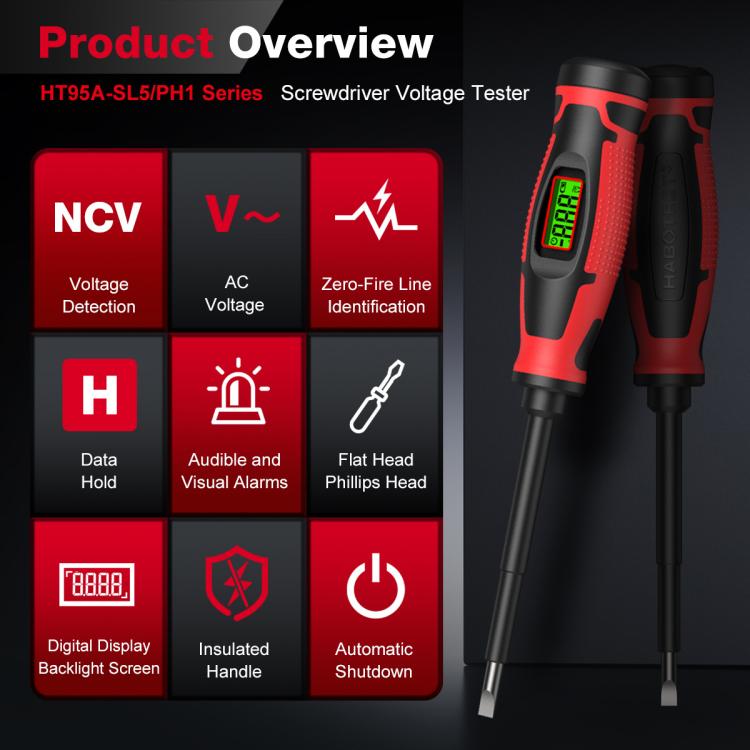

1. Combines a high-hardness Lovan alloy steel screwdriver bit with a smart digital AC voltage tester. Built for ultimate durability and wear resistance, allowing you to quickly tighten or loosen screws on circuit breakers, outlets, and home appliances while performing electrical safety testing.
2. Powered by an upgraded responsive smart chip, this tester measures AC voltage from 6V up to 390V (50/60Hz). The high-definition LCD screen automatically lights up Green for normal status (--U) and Red with an audible buzzer alarm (HI) when high voltage is detected.
3. Insert the probe into sockets to instantly identify neutral lines and live lines. Trace along insulated wires in NCV mode to locate broken wires—the signal disappears immediately once passing the circuit breakpoint.
4. Features a protective insulated sleeve over the shaft to prevent short-circuit accidents in crowded electrical boxes. Even when batteries are completely depleted, touching a live conductor will still trigger an emergency high-voltage warning icon on screen.

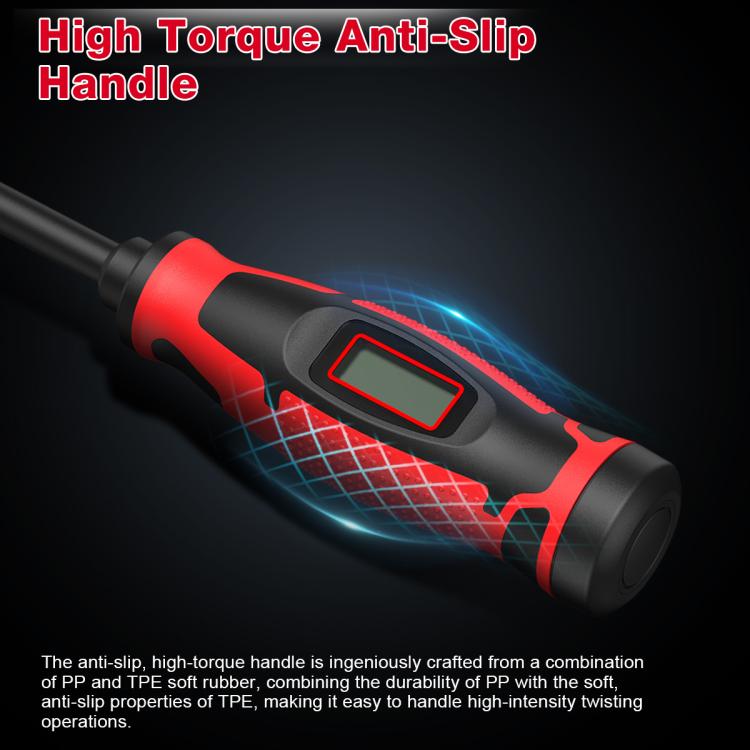

5. Crafted with non-slip PP+TPE soft rubber secondary injection molding, weighing only 70g for effortless pocket carry. Automatically powers down after 5 minutes of inactivity to conserve battery life, with a 10-second anti-accidental touch protection feature.
Parameters:
1. Shell Material: PP + TPE dual-color injection overmolding
2. Bit Material: High-hardness alloy steel

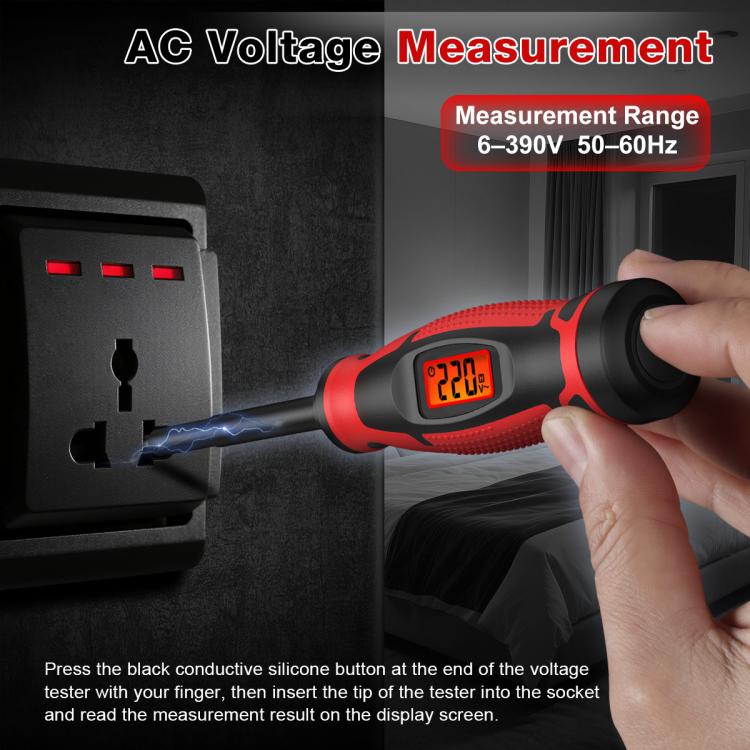

3. AC Voltage Detection: Detection range: 6V - 390V, 50/60Hz
4. Measurement Accuracy: 6V - 390V: +/-(5%+5)

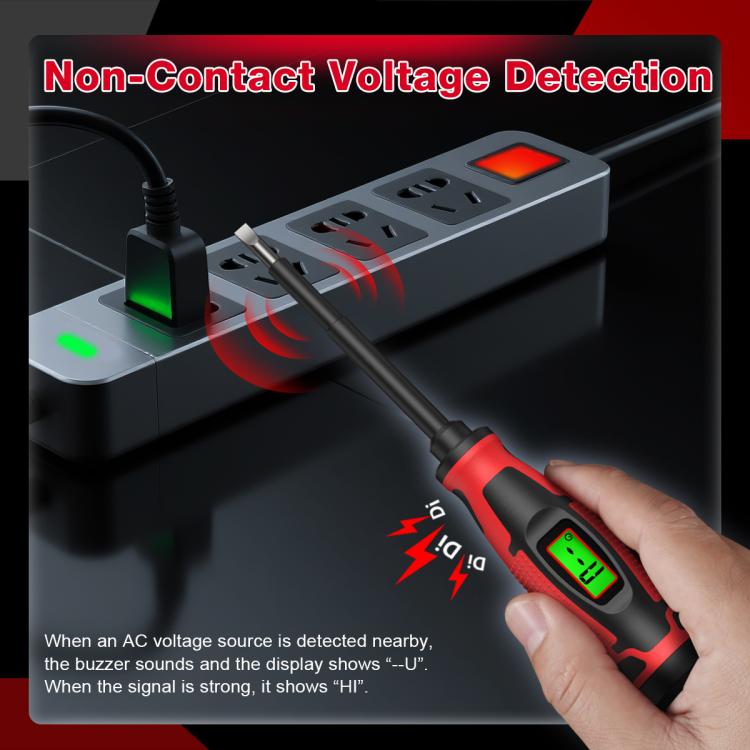

5. NCV Non-Contact Sensing: Safely senses AC voltage through air without touching wires or live exposed conductors

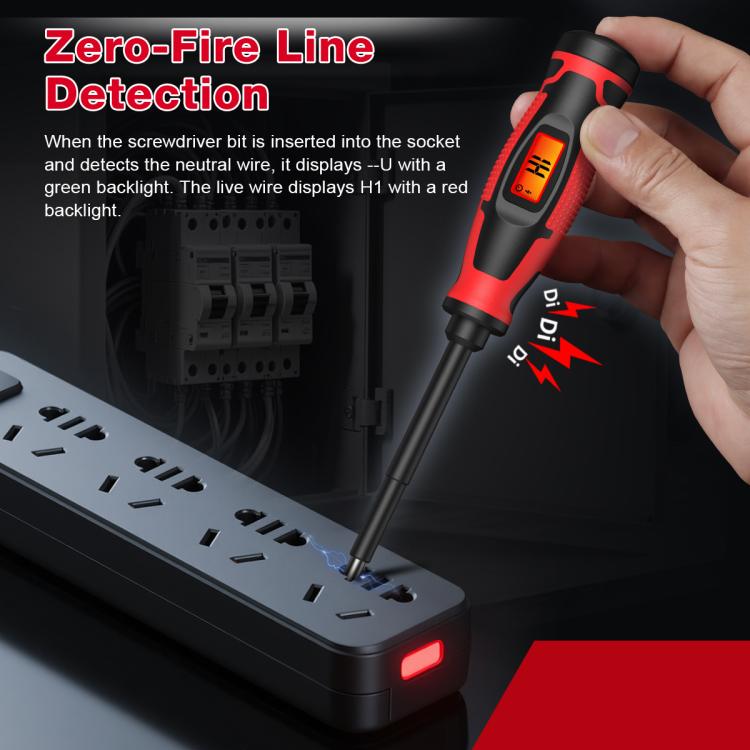

6. Live / Neutral Wire Identification: Socket measurement: Neutral wire displays --U (green backlight); Live wire displays HI (red backlight + buzzer alarm)

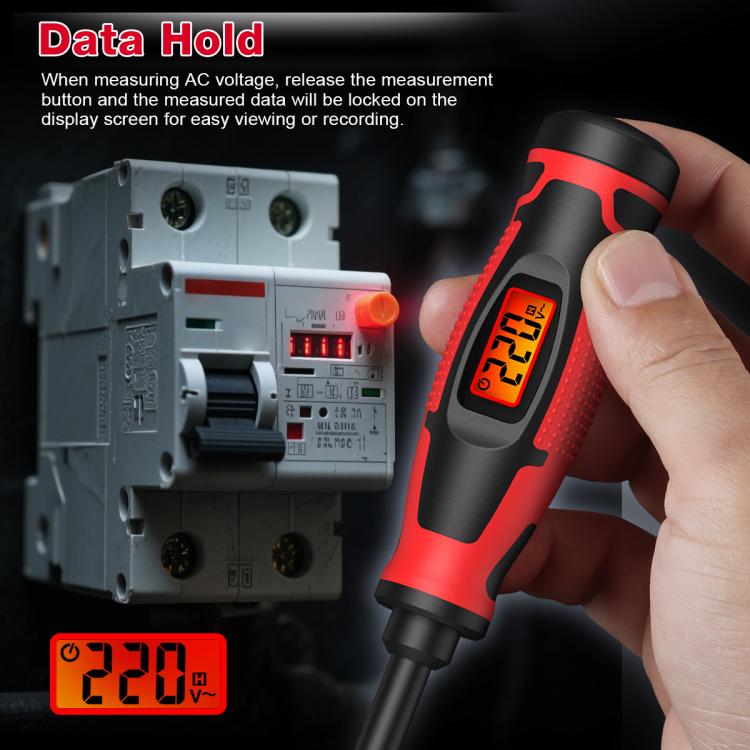

7. Data Hold: Automatically locks display reading after releasing button following AC voltage measurement for easy viewing and recording

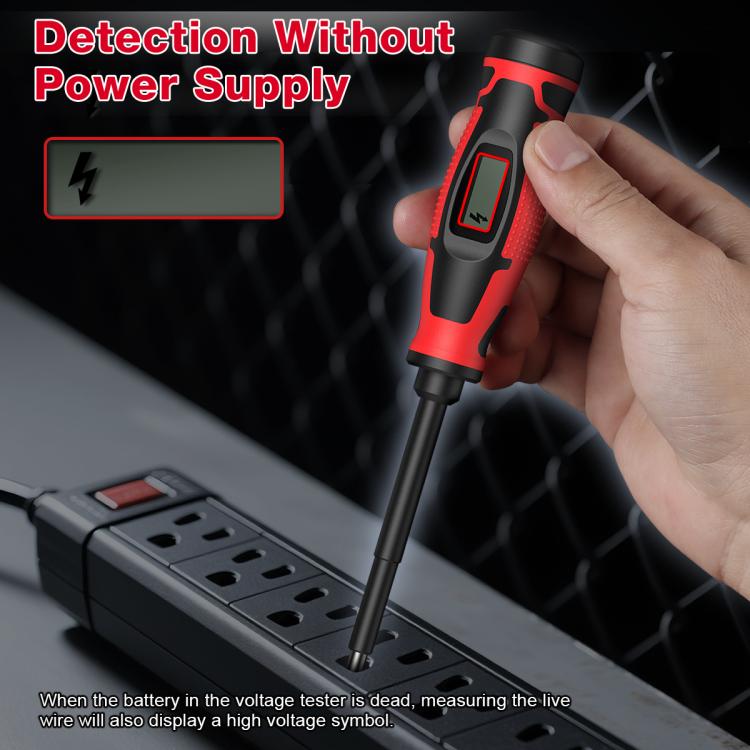

8. No-Power Testing / Emergency Power-Off Sensing: Displays high-voltage warning icon on screen when touching live wire, even with depleted batteries
9. Anti-Mistouch Power Off: Pressing and holding power button for about 10 seconds is recognized as accidental activation and powers off; press and hold again to power on

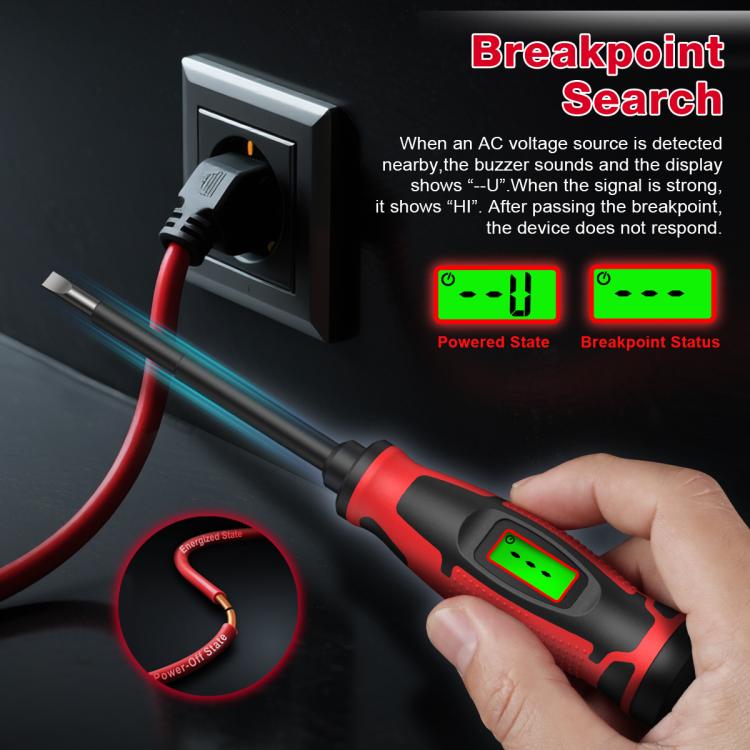

10. Breakpoint Finding: Senses along live wire, displaying --U at close range and HI where signal is strong; signal disappears after passing breakpoint

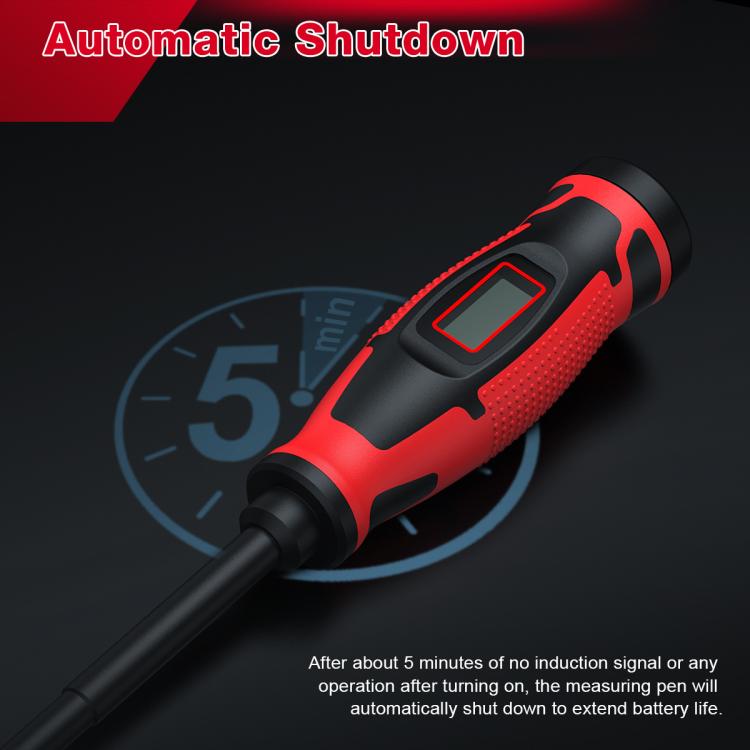

11. Auto Power-Off: Automatically turns off after 5 minutes of no signal detection or operation to extend battery life

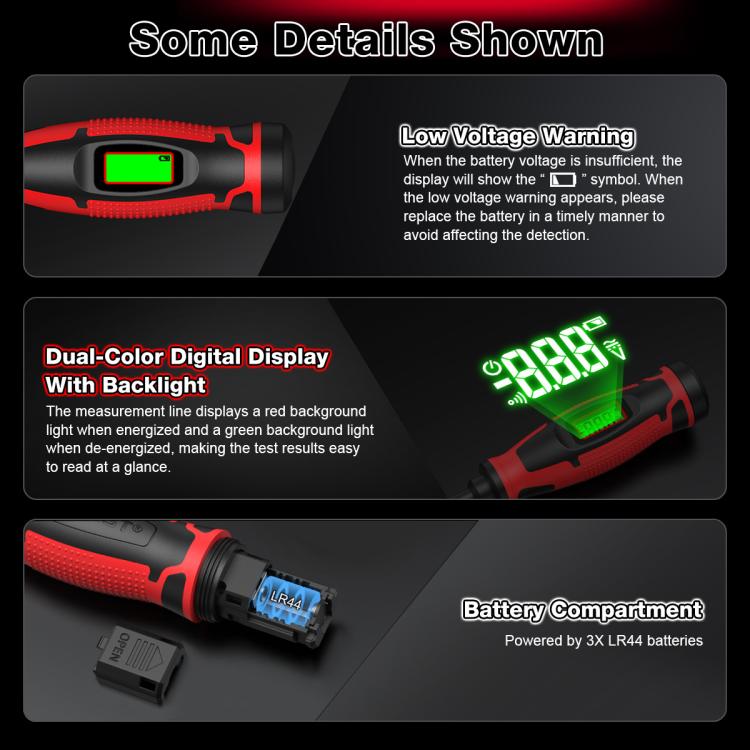

12. Low Battery Indicator: Low battery icon appears on screen to prompt timely battery replacement
13. Display: HD LCD dual-color backlit display (Green normal / Red warning)
14. Alarm Method: Red backlight turns on + buzzer audible alarm (Di Di Di)
15. Operating Temperature: 0 to 40 deg C
16. Operating Humidity: Less than or equal to 95% RH
17. Operating Altitude: Less than or equal to 2000 meters
18. Power Supply: 3 x 1.5V LR44 button cell batteries

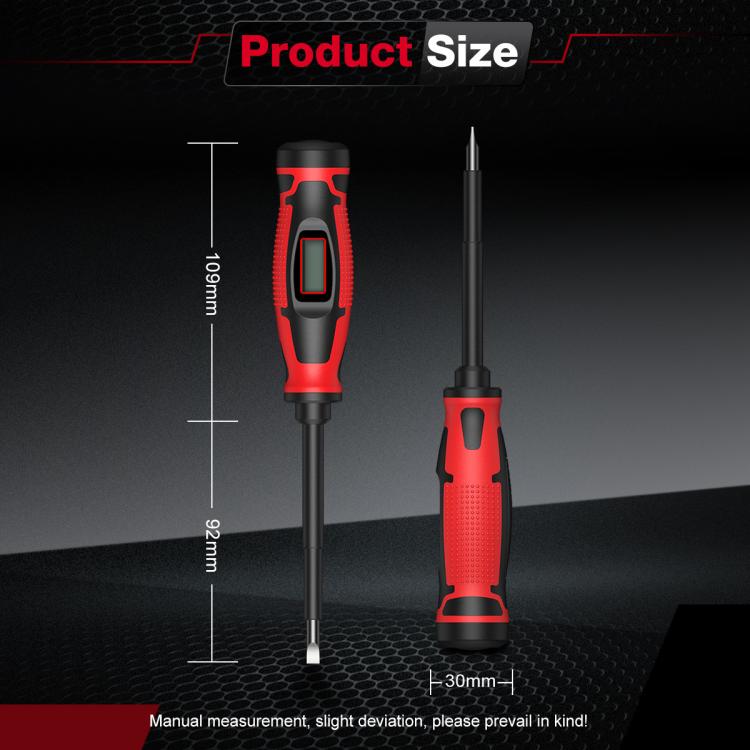

19. Product Dimensions: Overall length: 201 mm, shaft length: 92 mm, handle length: 109 mm, handle diameter: 30 mm
Specification:
|
Package Weight
|
| One Package Weight |
0.09kgs / 0.21lb
|
| One Package Size |
23cm * 7cm * 6cm / 9.06inch * 2.76inch * 2.36inch
|
| Carton Weight |
19.50kgs / 42.99lb
|
| Carton Size |
46cm * 43cm * 35cm / 18.11inch * 16.93inch * 13.78inch
|
| Loading Container |
20GP: 385 cartons * 200 pcs = 77000 pcs
40HQ: 894 cartons * 200 pcs = 178800 pcs
|
|
