1. HDCP version: HDCP 2.2
2. Input/output resolution: 1080p/60fps, 4K/30fps, 4K/60fps
3. Deep color mode: 4K/60fps-YUV444-8 bit, 4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
4. HDMI maximum bandwidth: 600MHz
5. HDMI maximum baud rate: 18Gbps
6. Input and output TMDS signal: 0.5-1.5Vp-p(TTL)
7. Input and output DDC signal: 5Vp-p(TTL)
8. DAC sampling frequency: 32-192 KHz
9. DAC bit rate: 16-24 bits
10. RCA analog output (1kHz 0dB): 1V RMS
11. 3.5mm audio port maximum output level: 6.5Vp-p
12. 3.5mm audio port maximum output power: 32 ohms 30mW
13. Signal-to-noise ratio 0dB (CC1R/ARM): ≥ 90dB
14. Distortion: ≤ 0.1%
15. Frequency Response: 20Hz-20kHz
16. HDMI input / output cable distance: ≤ 3m AWG26 HDMI standard cable
17. Maximum operating current: 400mA
18. Power adapter specifications: AC 100V-240V 50/60Hz, DC 5V/1A
19. Operating temperature range: -10 to 55 degrees Celsius
20. Storage temperature range: -20 to 60 degrees Celsius
21. Operating humidity range: 10-90% RH (no condensation)
22. Storage humidity range: 5-95% RH (no condensation)
23. Size: about 10 x 9.5 x 2cm
24. Net Weight: about 117g
Functions:

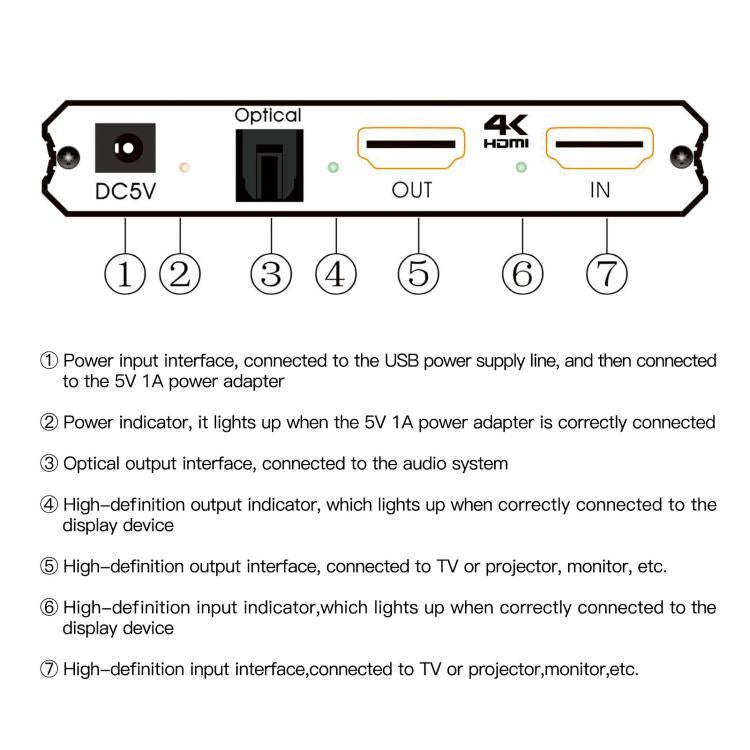

1. Support 1 HDMI input port
2. Support 1 HDMI output port
3. Support 1 optical digital audio output port
4. Support 1 stereo audio output port, connect 600 ohm high impedance headphones
5. Support 1 R/L audio output port
6. Support up to 4K/60fps input resolution
7. Support volume adjustment
8. Supports 3D, HDR and YUV4:4:4.
9. Support HDCP2.2
10. Support AC3, DTS, LPCM and other digital audio formats

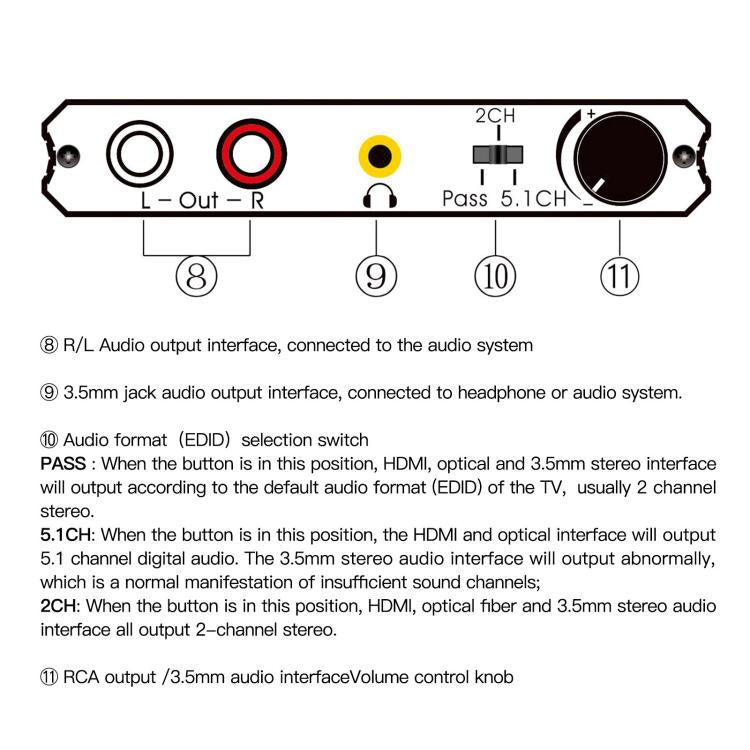

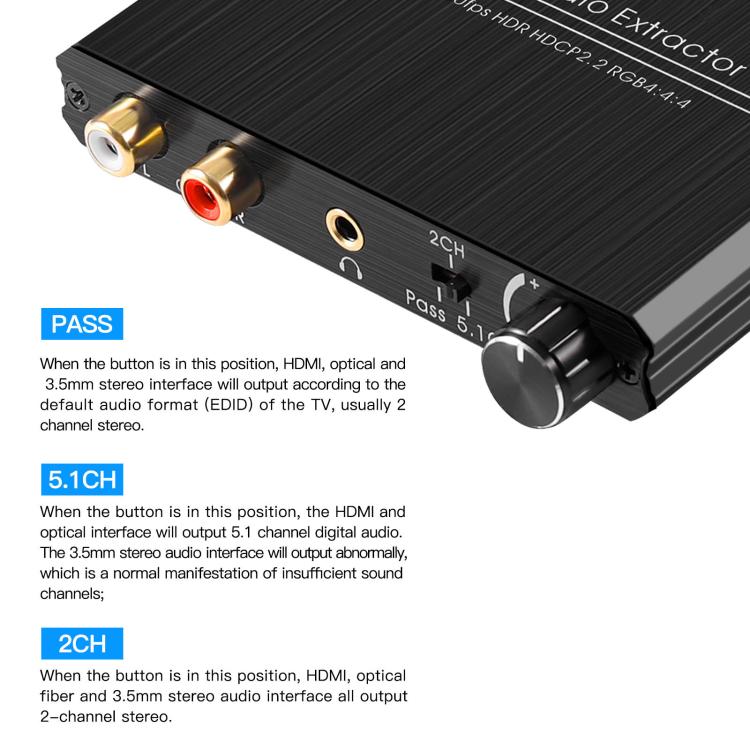

11. Audio output support 3 kinds of EDID selection mode (2CH/5.1CH/PASS)
Features:

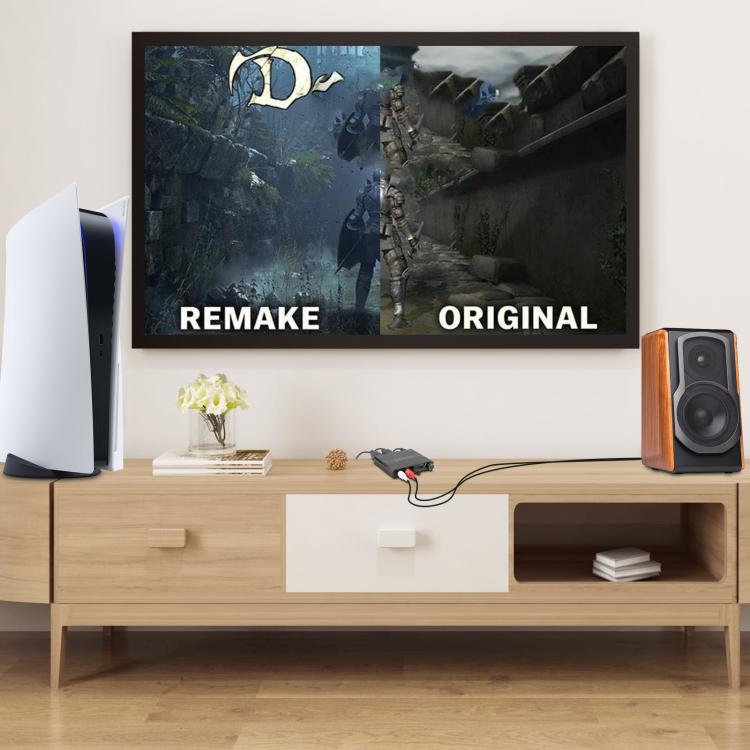

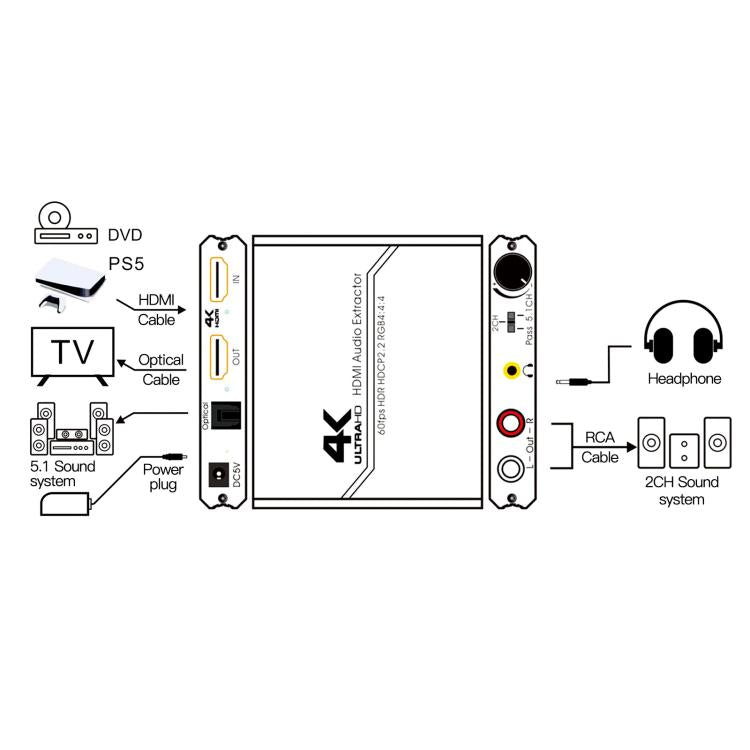

1. Can be connected between audio source devices (DVD players, Blu-ray players, network players, set-top boxes, game consoles, computers, etc.) and display devices (TVs, HD monitors, projectors), can be synchronized to separate an optical fiber signal and a
R/L signal
2. Connect stereo channels to the sound system to obtain high-quality audio signals
3. Support AC-3, DTS, LPCM and other audio formats.
4. Volume knob, can flexibly adjust the analog audio output intensity
5. Lossless signal transmission, simple installation
Packing list:

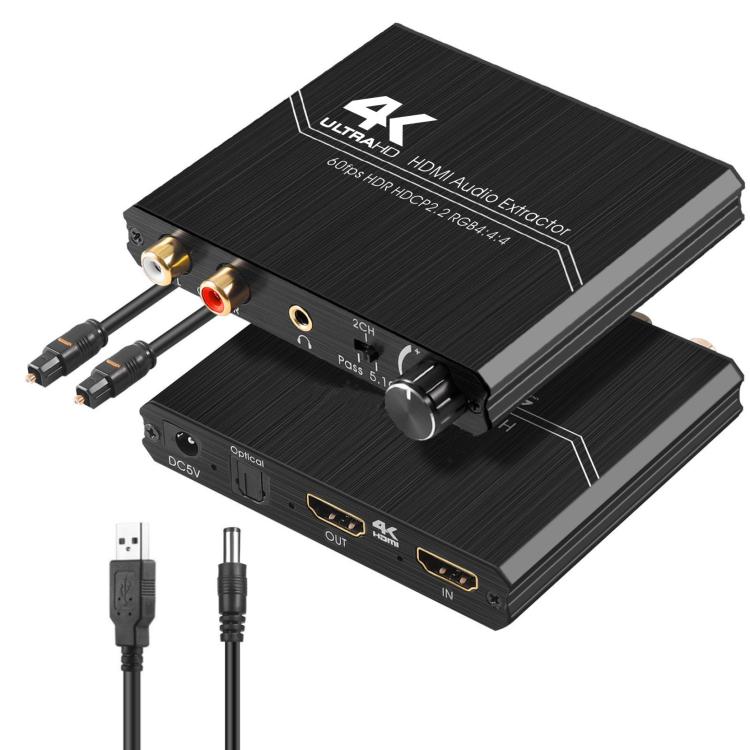

- HDMI audio extractor x 1
- DC5V/1A power adapter x 1
- USB power cable x 1
- User manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.24kgs / 0.54lb
|
| One Package Size |
19cm * 14cm * 7cm / 7.48inch * 5.51inch * 2.76inch
|
| Carton Weight |
15.40kgs / 33.95lb
|
| Carton Size |
47cm * 37cm * 30cm / 18.5inch * 14.57inch * 11.81inch
|
| Loading Container |
20GP: 511 cartons * 60 pcs = 30660 pcs
40HQ: 1186 cartons * 60 pcs = 71160 pcs
|
|
