1. Housing material: ABS plastic
2. Output current: 1.2A continuous (includes a built-in 1.5A resettable fuse)
3. Current measurement: 0–2A range (displays load current)
4. DC jack specifications: 5.5mm / 2.1mm (center positive, outer negative)

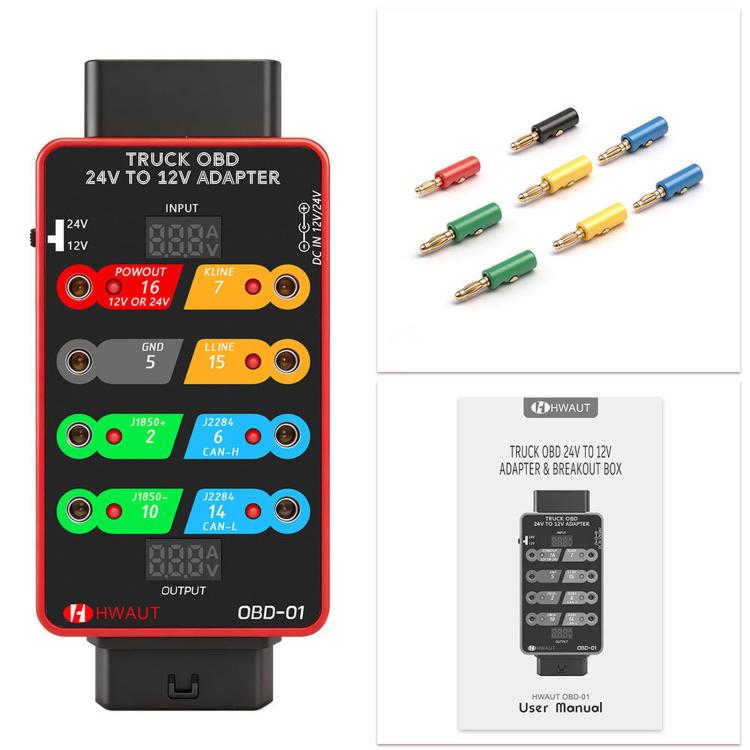

5. Signal breakout: equipped with 8 banana jacks for connection to a multimeter or oscilloscope

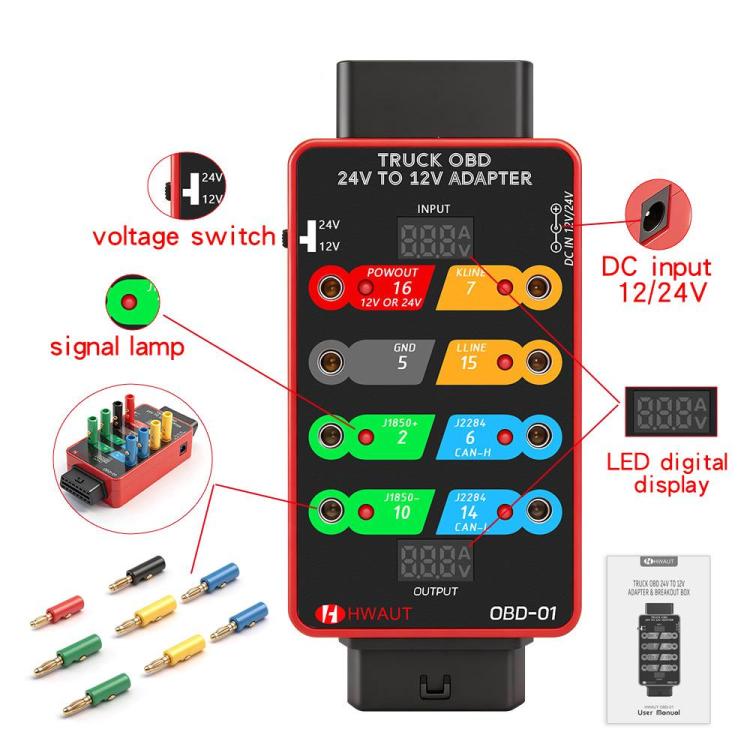

6. Real-time monitoring: dual LED displays show input voltage, output voltage, and current consumption in real time
7. Data pins feature LED status indicators (illuminating when voltage exceeds 2.5V) to show signal activity
8. Supports power supply via a vehicle’s OBD port or an external DC power source

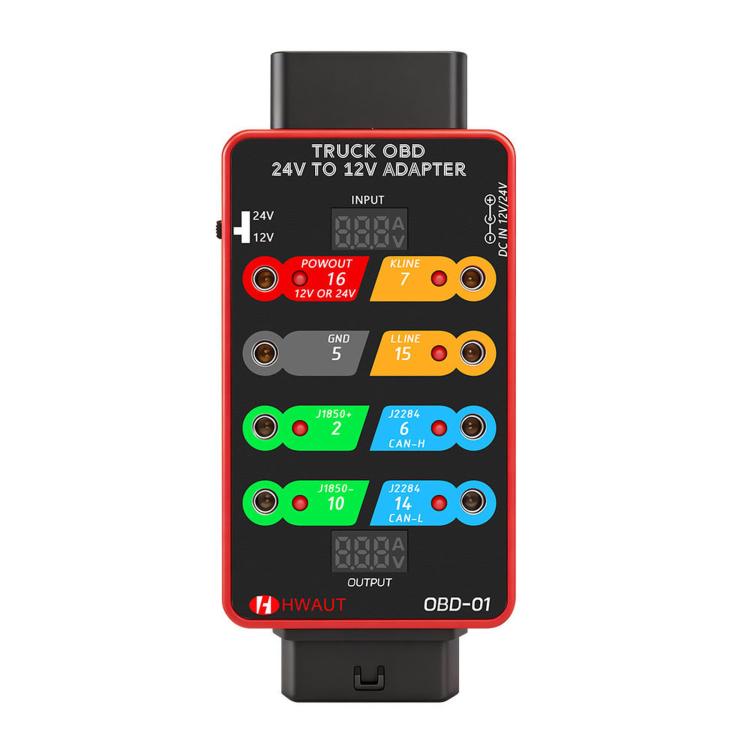

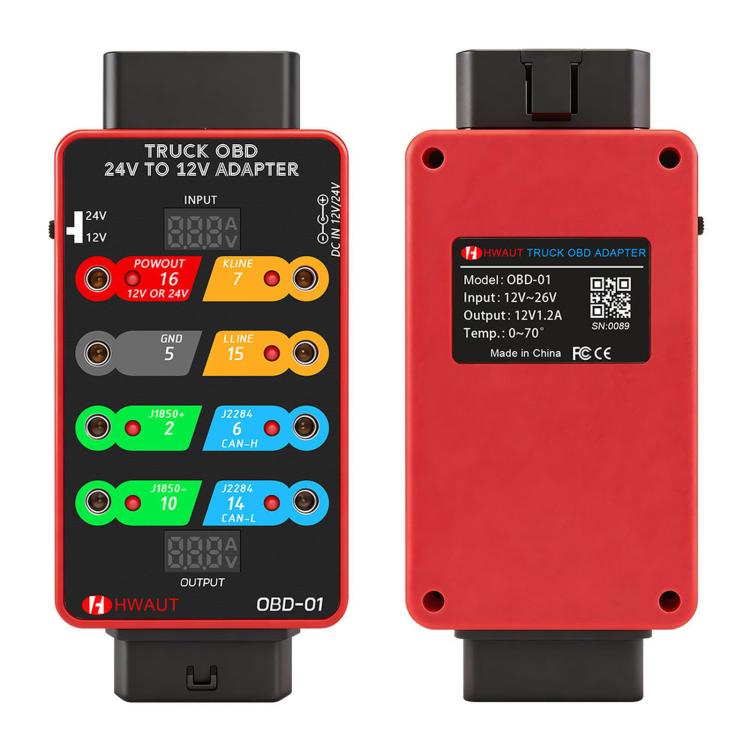

9. A specialized adapter designed for heavy-duty truck diagnostics; its primary function is to convert
10. 24V OBD power to 12V, ensuring that 12V diagnostic tools can be used safely on 24V systems

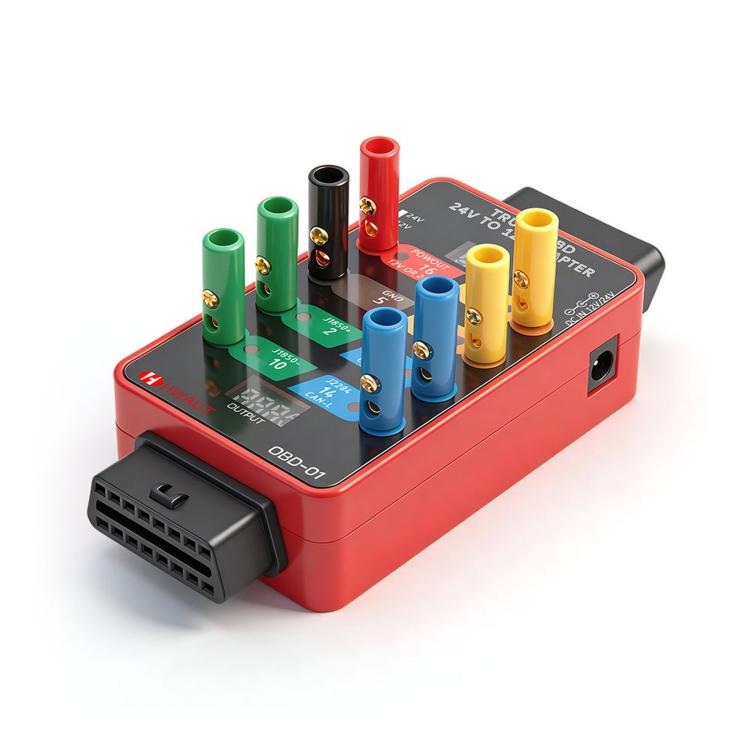

11. Also functions as a "breakout box," providing convenient access to OBD signals via banana jacks for testing and monitoring purposes
Specification:
|
Package Weight
|
| One Package Weight |
0.17kgs / 0.38lb
|
| One Package Size |
18cm * 10cm * 6cm / 7.09inch * 3.94inch * 2.36inch
|
| Carton Weight |
6.20kgs / 13.67lb
|
| Carton Size |
38cm * 32cm * 32cm / 14.96inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 685 cartons * 30 pcs = 20550 pcs
40HQ: 1590 cartons * 30 pcs = 47700 pcs
|
|
