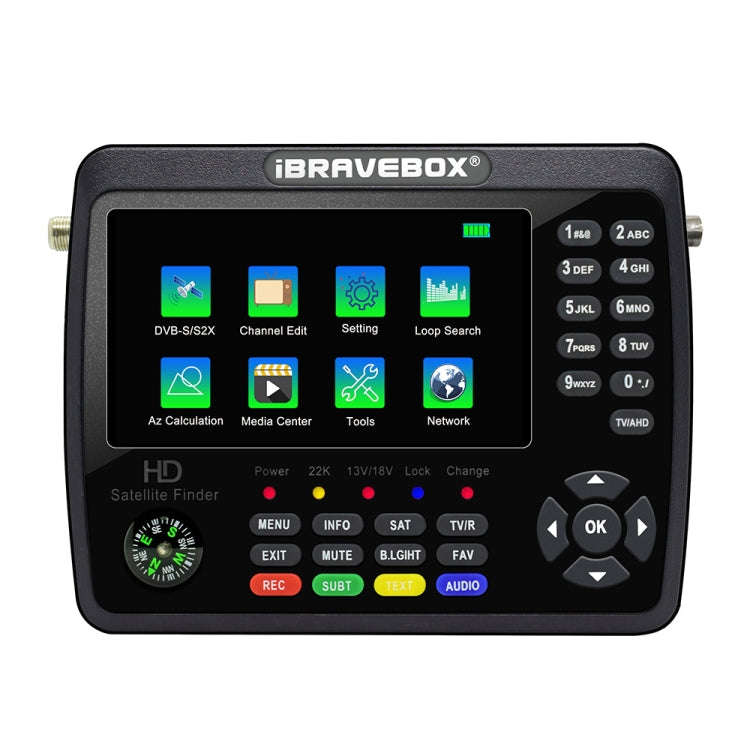

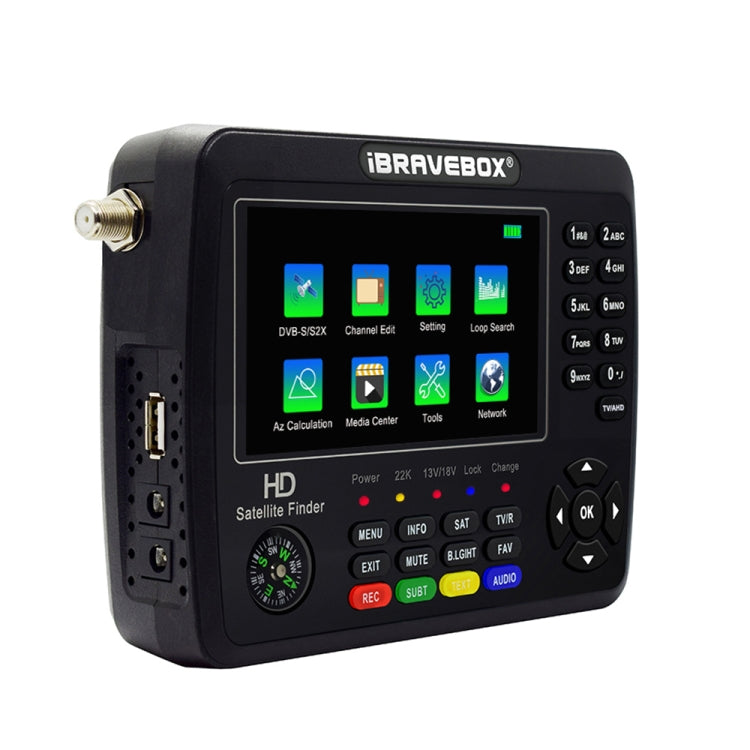

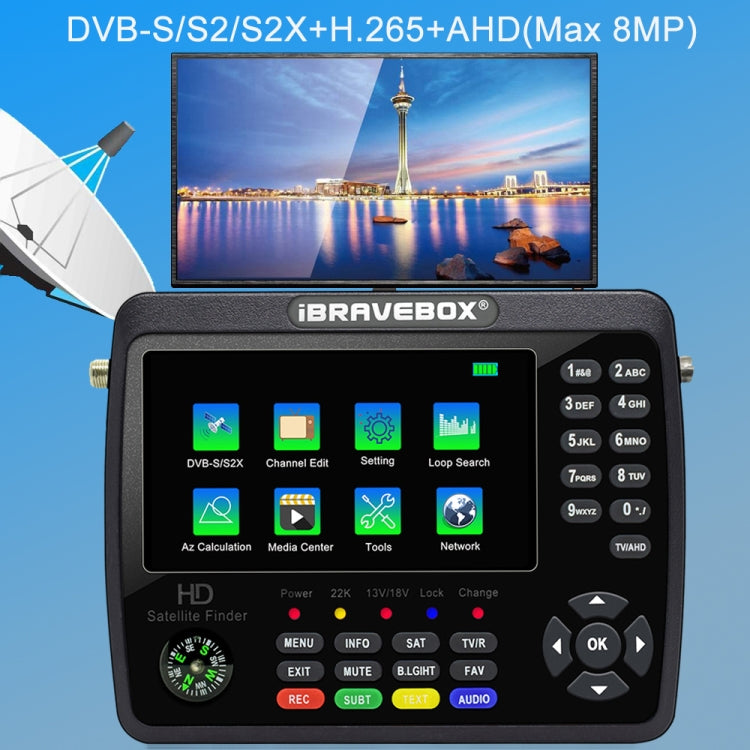

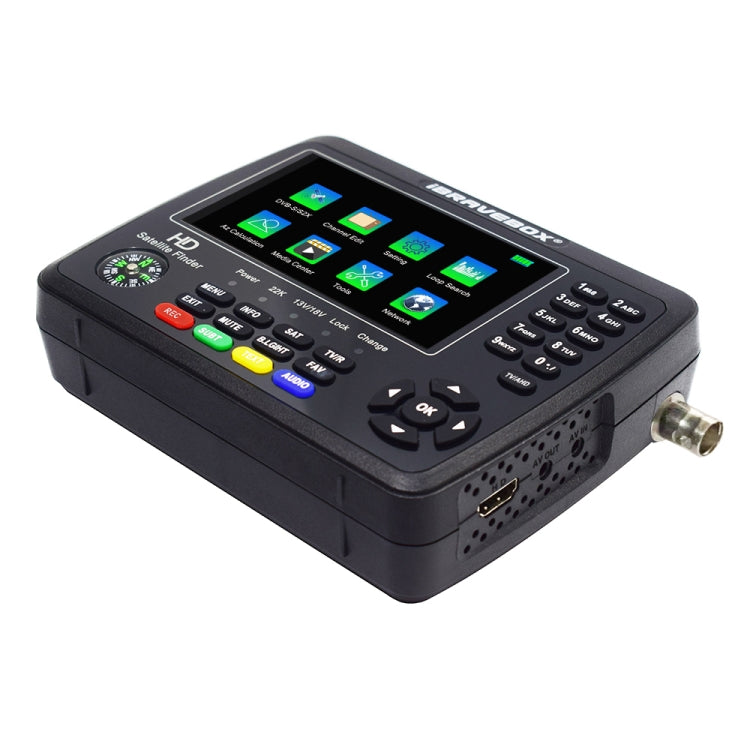

iBRAVEBOX V10 Finder Max+ 4.3 inch Display Digital Satellite Meter Signal Finder, Support DVB-S/S2/S2X AHD, Plug Type:EU Plug(Black)

1. Fully DVB-S/S2/S2X compliant, Live FTA digital picture and sound.

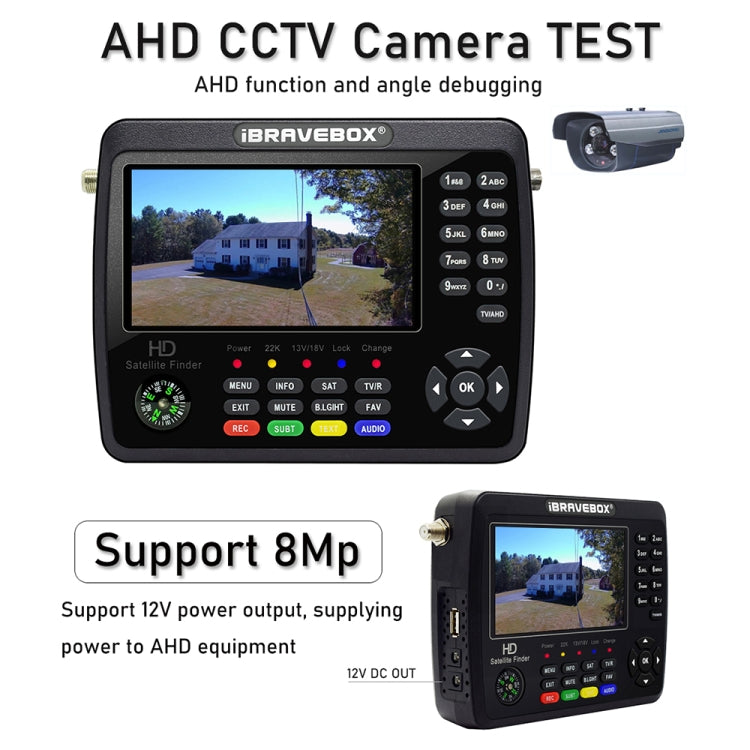

2. Support AHD CCTV Max 8MP
3. Support H.264/H.265(10 Bit) hardware decoding.
4. Digital measuring device for signal strength and quality, supports presetting all satellite information.
5. Support AV in and AV/HDMI out function.

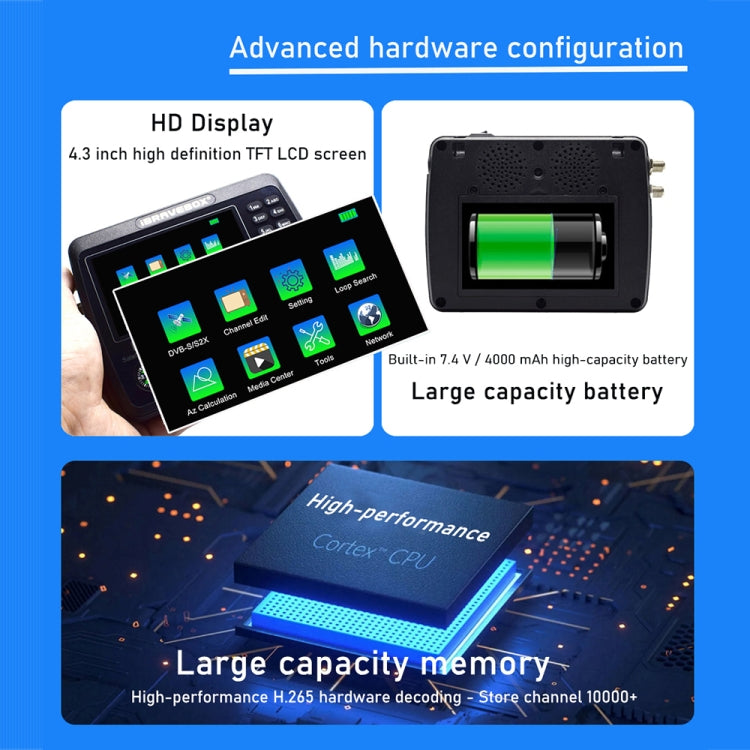

6. 4.3 inch LCD Colour Screen.
7. 4000mAh Lithium-ion battery, normal work up to 4-6 hours.
8. Support 13V/18V/LOCK status panel LED display directly.
9. Support battery power display.

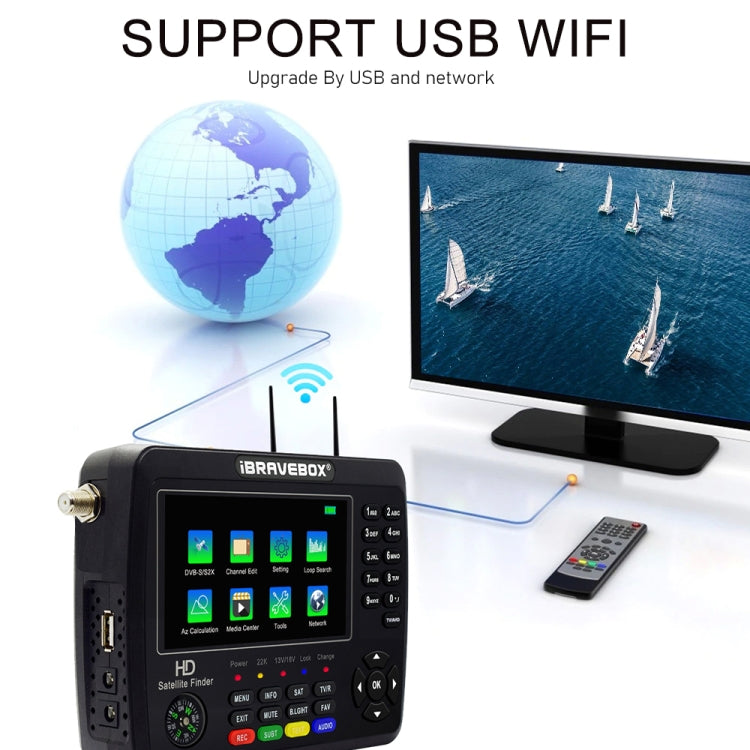

10. Software upgradeable via USB and Wifi network (Wifi for MT7601 chip).

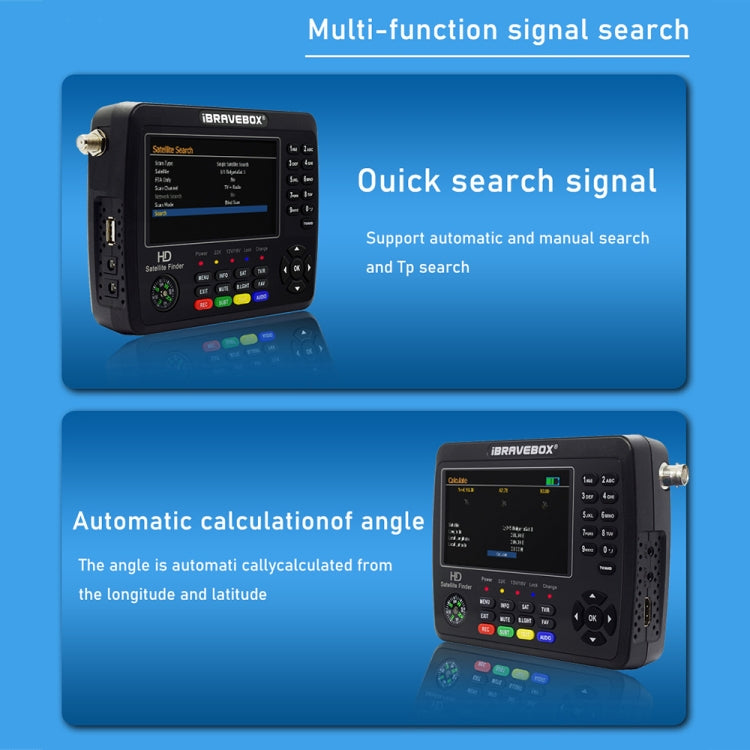

11. Supports scan of Auto, Blind, Manual or NIT, Sound for Locking Signal.
12. Supports DISEQC 1.0/1.1/1.2, unicable, 0/22kHz tone, auto calculate angle of AZ, EL.
13. Support compass function, speaker integrated.
14. Support real-time power display, with low power reminder.
15. LNB short protect.

Main Features:
1. System capabilities: Full HD DVB-S/S2/S2X & H.265 Complian, Fully DVB compliant

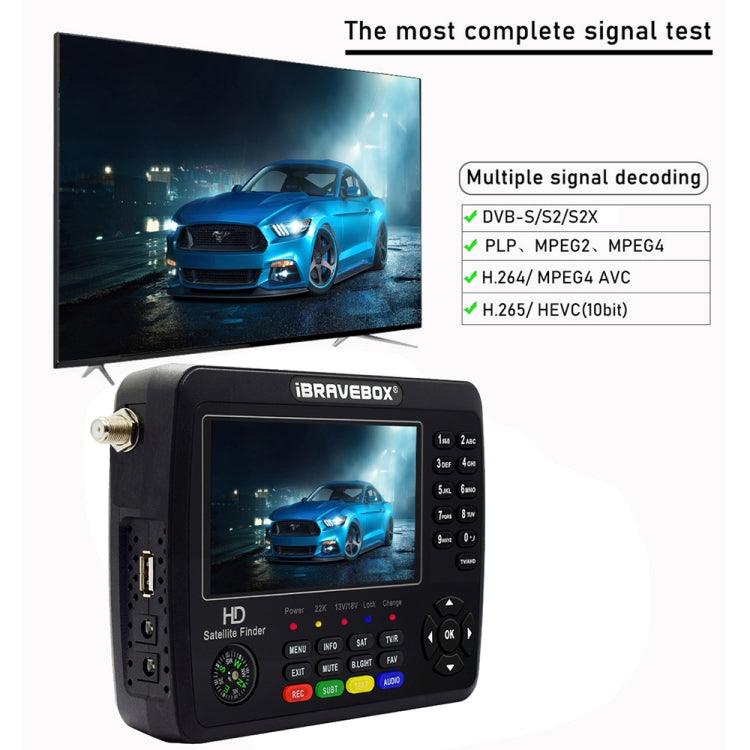

2. Video Decode: AC-3, MPEG-2 MPEG-4 MP HL, H.264 BP MP&HP L4.1, AVS profile L6.1/4.0/2.0
3. PAL/NTSC: Automatic PAL/NTSC conversion
4. Channels Number: 6000 channels TV and Radio programmable
5. Favorites: 8 different favorite groups selection
6. OSD Language: English, German, French, Portuguese, Spanish, Italian, Russian, Turkish, Polish, Arabic, Farsi, Espanol, Deutsch
7. OSD Color: 16-bit OSD with anti-flickering
8. Channel Search: Channel search in automatic, manual and network search
9. Channel Edit: Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort)
10. Easy Menu: Plug and Play installation, with an easy to use Menu System
11. SoftUpgrade: Software upgrade through USB
12. Save Channel: Automatic save for last channel
13. Li-on Battery: 4000mAh
14. Power Supply: DC12V/1500mA (Input 100V-240V, 50/60Hz)
15. Panel display: 4.3 inch LCD Colour Screen
16. Output Interface: HDMI(up to 1080P) output, LNB-IN x 2, DV-OUT, AV-OUT, AV-IN, USB, Power supply

Electric Performance
1. System resource:
Flash Memory: 64MB Serial Flash
DDR3 Memory: 1GB DDR3

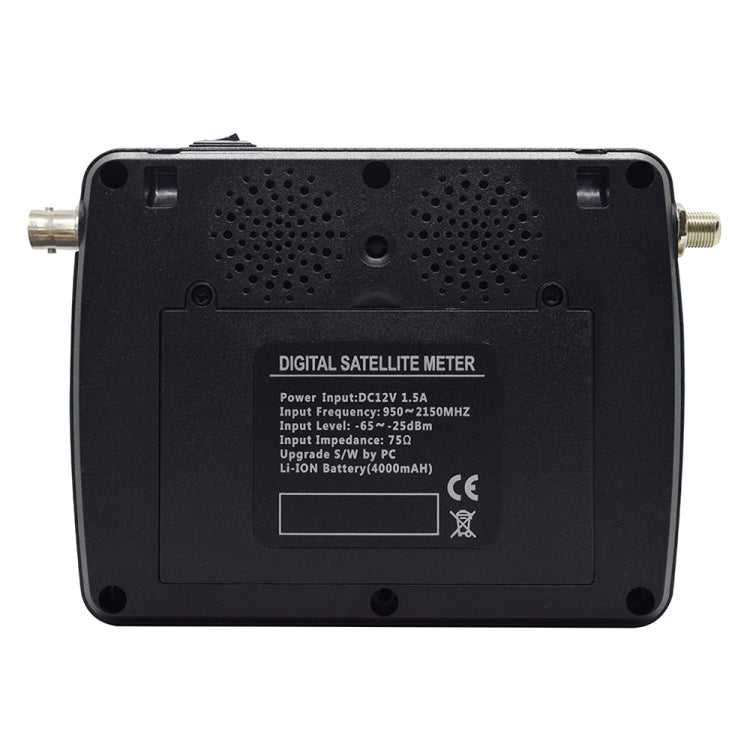

2. LNB/Tuner input:
Connector: F-type male
Frequency range: 950MHz-2150MHz
Input Impedance: 75Ω
Signal lever: -65dBm to -25dBm
Active Ant Power: 13/18V DC 400mA MAX, Overload Protection
LNB switch control: 22KHz
DiSEqC: Ver 1.0/1.1/1.2
3. Demodulator:
Front end: QPSK(S), QPSK, 8PSK, 16APSK, 32APSK(S2)
Modulation range: 2Mbps-45Mbps
SCPC and MCPC Capable: Yes
Spectral inversion: Auto conversion

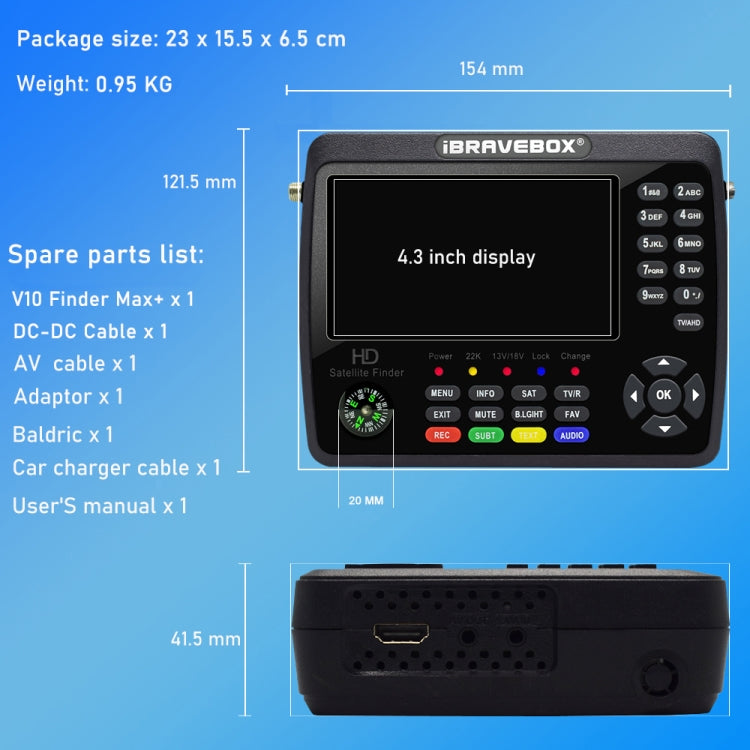

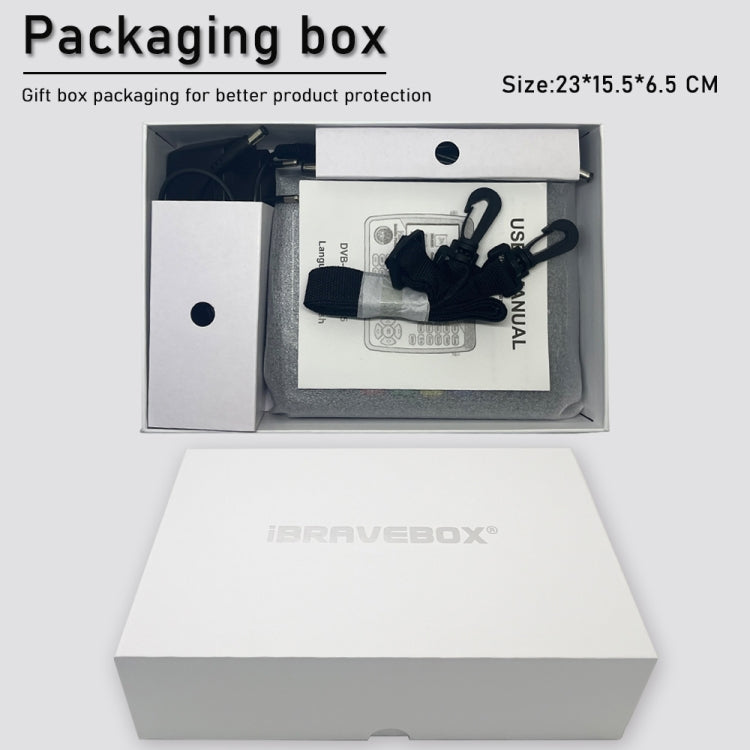

Packing list
Digital satellite meter x 1
User manual x 1
AV cable x 1
Car charger cable x 1
Adaptor x 1
