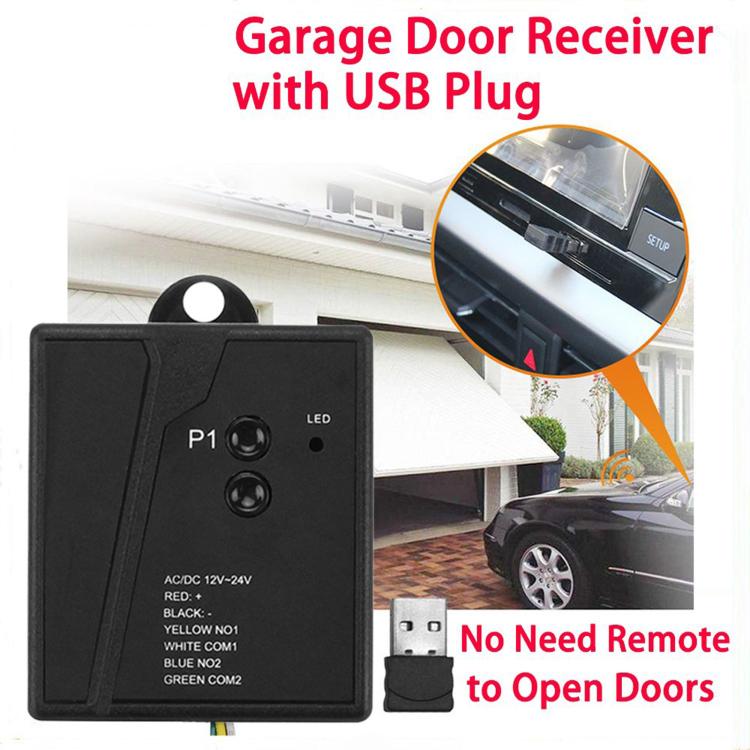

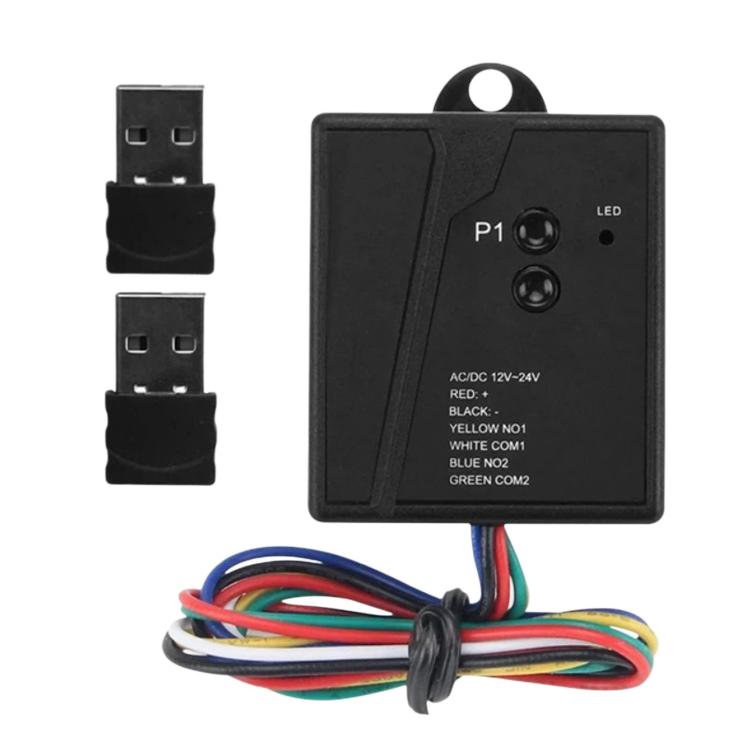

Inductive Universal Vehicle Bluetooth For Electric Doors Smart Access Controller, Spec: 2 x USB

1. Channels: 2 channels
2. Frequency: 2.4G
3. Receiver operating voltage: AC/DC 12-24V
4. Receiver operating current: 18mA ± 2
5. USB plug operating voltage: 5V DC
6. USB plug operating current: 1mA ± 0.5
7. USB plug memory quantity: 340
8. Distance: Insert the USB plug into the car and use 10 meters

Function:

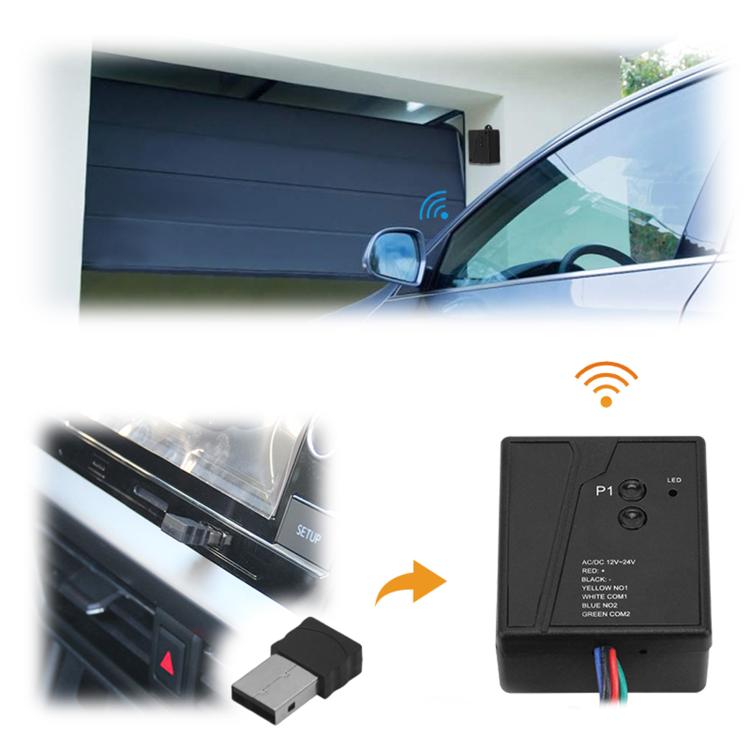

This receiver and USB plug kit can be used for sliding door motors, swimming pool door motors, garage door motors, and telescopic guardrails. Users can install the receiver onto the door motor and match the code of the receiver with that of the USB plug. When a vehicle is inserted into the USB charging port and uses the USB plug, the door will automatically open within a 10-meter range. If the door motor has an automatic closing function, the rear door will automatically close when the vehicle enters.

How to encode the USB label into the receiver
1. Learn the code: press the P1 button once on the receiver. The USB label will power the receiver, and then input the code. If the code appears, the LED light will flash twice. Press the button again to successfully exit the learning mode. If the encoding fails, please re-encode. Each receiver can encode up to 340 USB plugs

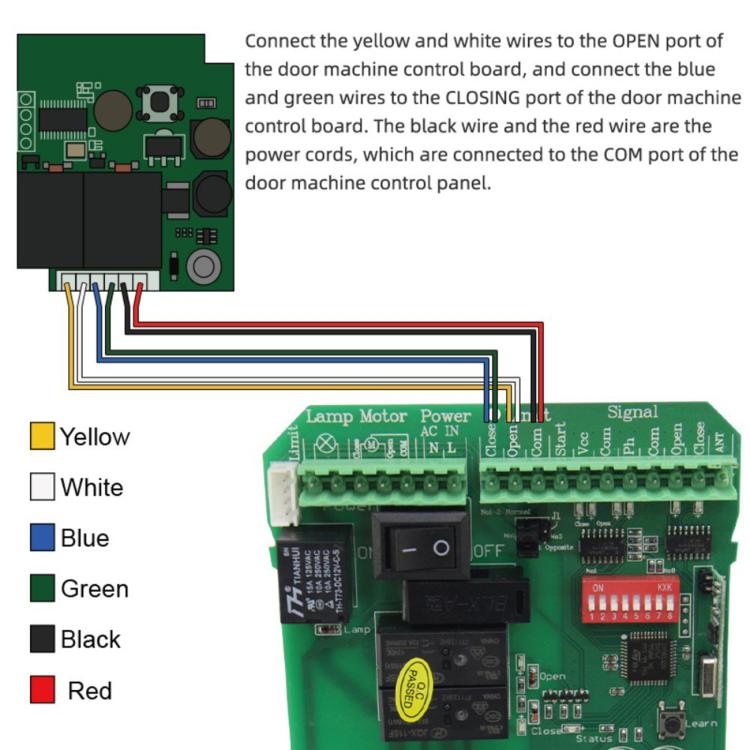

2. Delete the code: hold the P1 button for 5 seconds. After the LED light flashes five times, all codes will be cleared, and then release the button. How to connect the lines and control the yellow and white lines of the first channel. The blue and green lines represent the second channel. When powering the USB plug, the first channel will open, and the door will open accordingly. If the door motor has an automatic closing function, there is no need to use the second channel. If the door motor does not have an automatic closing function, disconnect the USB power supply, and the second channel and the door will automatically close after 10 seconds. In addition, when the vehicle is not within the detection range, the door will also automatically close. Receivers and USB plugs can be used for push-pull door motors, swimming pool door motors, garage doors, and door barriers, etc. Users can install the receiver on the door motor and match the receiver with the USB plug's code. When inserting the USB plug into the charging port during driving, the door will automatically open within 10 meters. If the gate motor has an automatic closing function, the vehicle will automatically close after entering the gate
