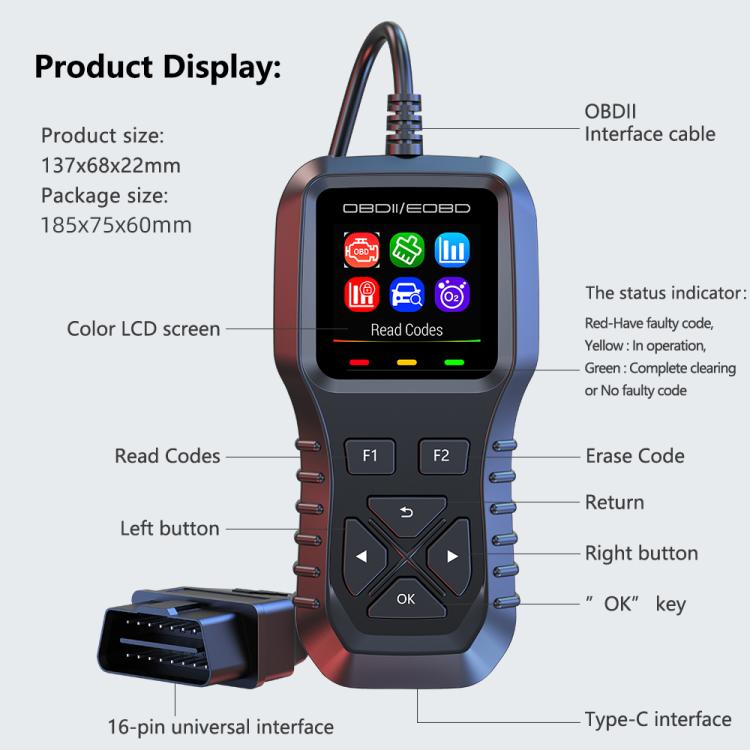

1. One-click Clear: Supports engine fault diagnosis. Press F1 to quickly read the vehicles current faults, and press F2 to clear the engine fault light.
2. Data Stream Reading: View real-time vehicle data for a clear overview of vehicle conditions, ensuring safe travel.
3. Vehicle Information Detection: Supports freeze frame, oxygen sensor test, I/M status, and VIN information. Plug-and-play, fast reading.

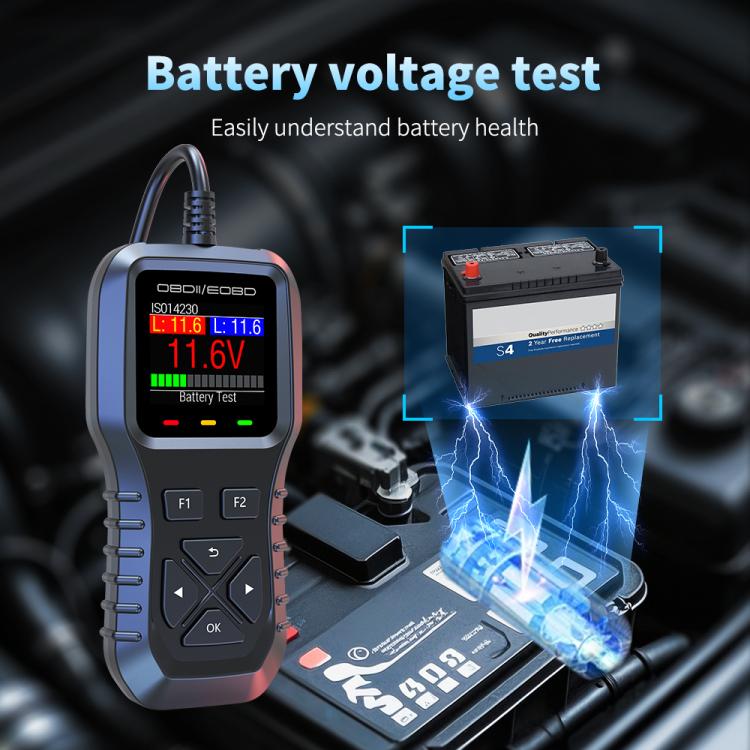

4. Battery Voltage Test: Measure battery voltage to easily understand battery health.

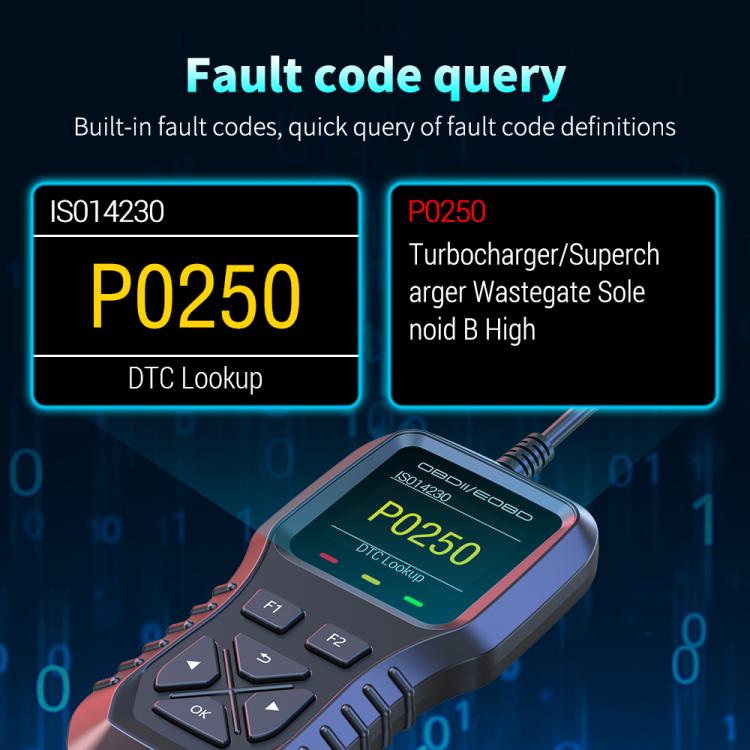

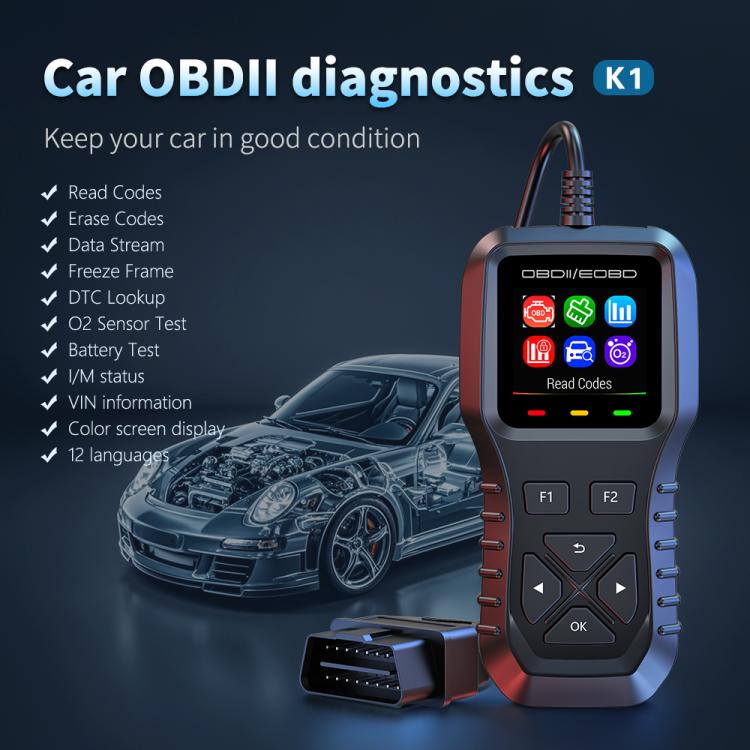

5. Functions: Engine fault diagnosis, engine fault clearing, vehicle data stream, fault freeze frame, fault code query, oxygen sensor test, battery test, I/M status, VIN vehicle information, color display, 12 languages.

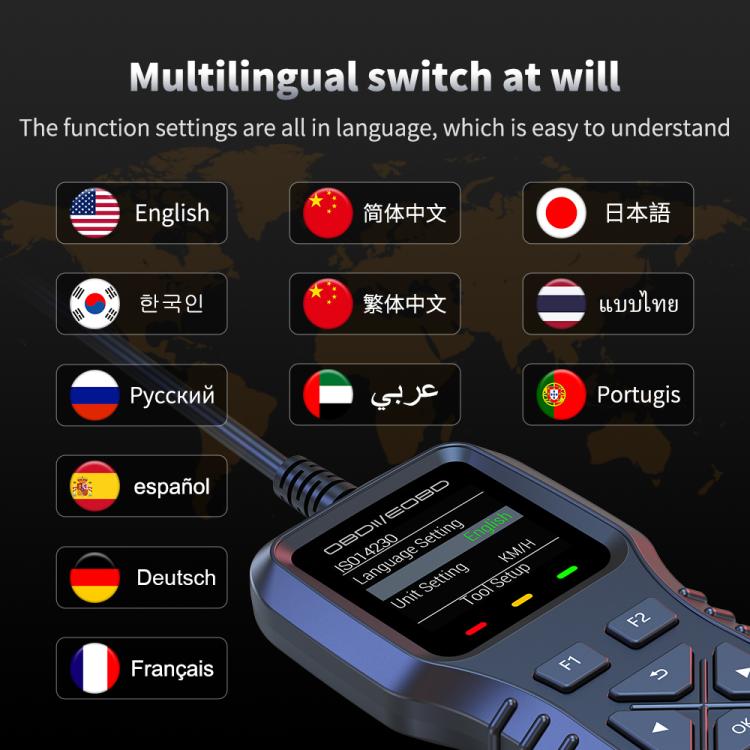

6. Supports 12 language settings: Simplified Chinese, Traditional Chinese, English, Korean, Japanese, German, Russian, Thai, Portuguese, Spanish, Arabic, French.

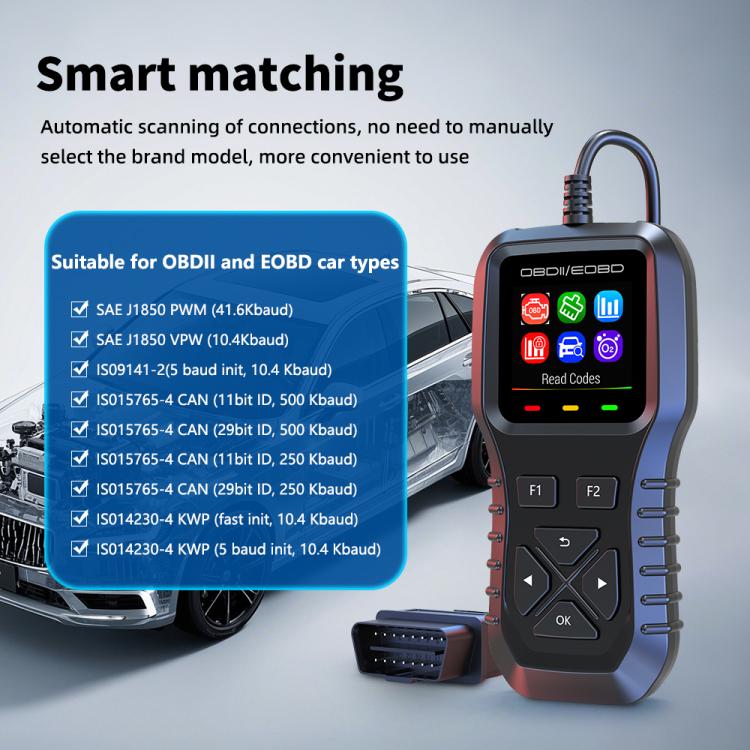

7. OBDII and EOBD-compatible vehicle types:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
IS09141-2 (5 baud init, 10.4 kbaud)
IS015765-4 CAN (11-bit ID, 500 kbaud)
IS015765-4 CAN (29-bit ID, 500 kbaud)
IS015765-4 CAN (11-bit ID, 250 kbaud)
IS015765-4 CAN (29-bit ID, 250 kbaud)
IS014230-4 KWP (fast init, 10.4 kbaud)
IS014230-4 KWP (5 baud init, 10.4 kbaud)
8. Operating voltage: 9-16 V
9. Operating environment: -20 degrees Celsius to 60 degrees Celsius
10. Storage temperature: -20 degrees Celsius to 60 degrees Celsius
11. Product material: ABS

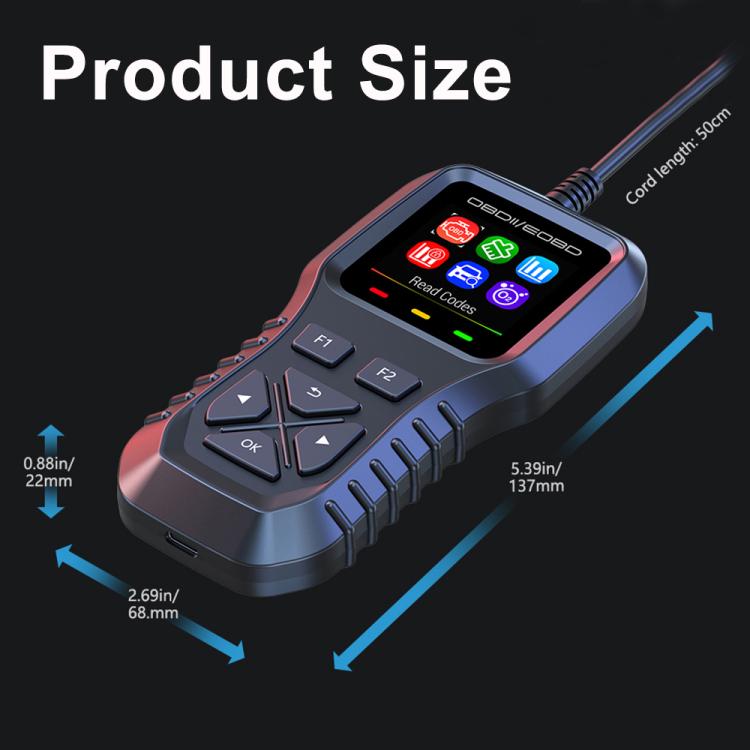

12. Product dimensions: 137 x 68 x 22mm
Specification:
|
Package Weight
|
| One Package Weight |
0.20kgs / 0.45lb
|
| One Package Size |
20cm * 8cm * 8cm / 7.87inch * 3.15inch * 3.15inch
|
| Carton Weight |
17.00kgs / 37.48lb
|
| Carton Size |
60cm * 42cm * 42cm / 23.62inch * 16.54inch * 16.54inch
|
| Loading Container |
20GP: 251 cartons * 86 pcs = 21586 pcs
40HQ: 584 cartons * 86 pcs = 50224 pcs
|
|
