1. Stable operation at 3A at room temperature (test conditions 29°C, humidity 50%), if working for a long time it is recommended to add a heat sink

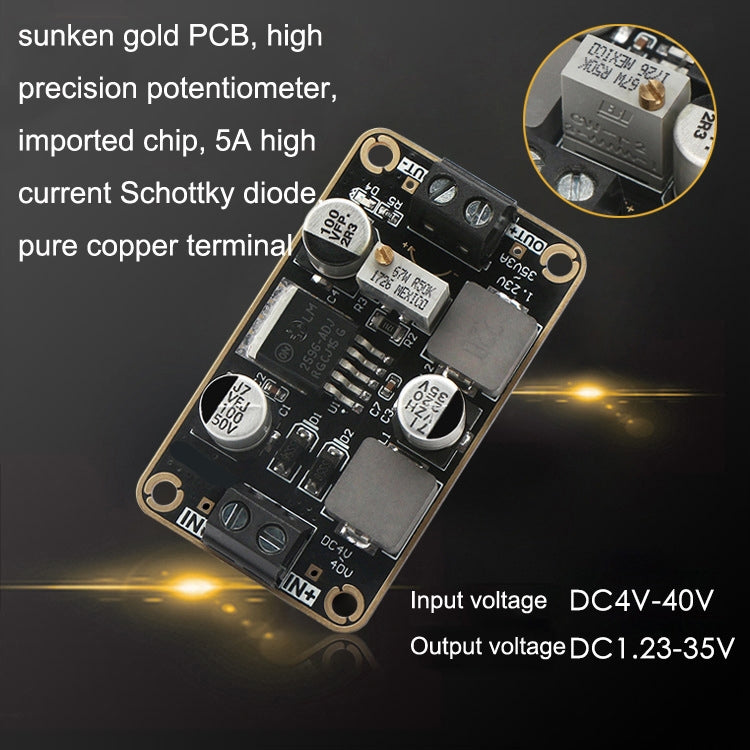

2. High Q high current shielded inductor, low ESR high capacity capacitor, sunken gold PCB

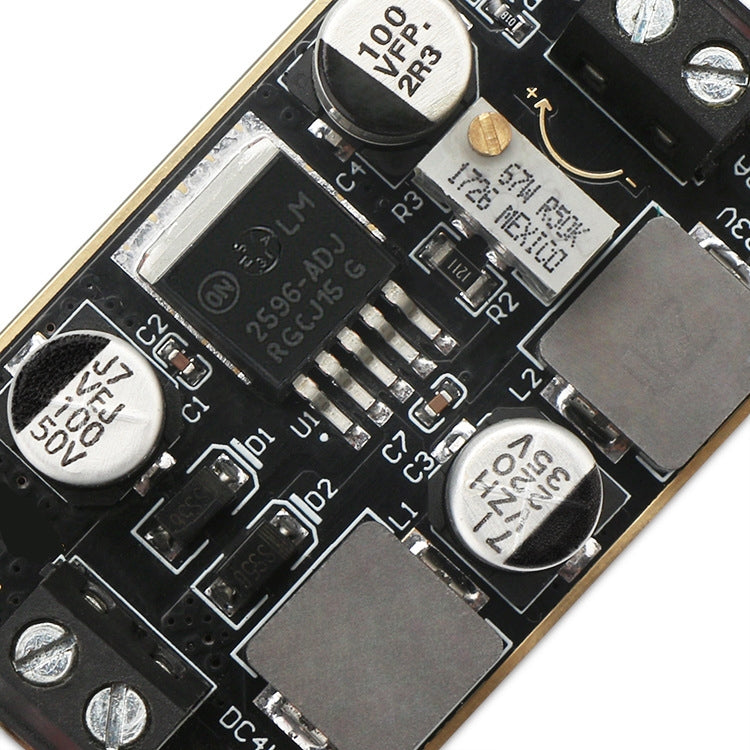

3. High precision potentiometer, imported chip, 5A high current Schottky diode, pure copper terminal
4. Input voltage: DC4-40V
5. Output voltage: DC1.23-35V
6. Output power: 15W
7. Breakdown voltage: over 45V input
8. Start-up voltage: 4V
9. Fault protection: reverse connection, undervoltage, overcurrent, overheat protection
10. Operating temperature: -40 to 85 degrees C
11. Output current: 3A
12. Output ripple: 4mV
13. No-load current: about 7mA

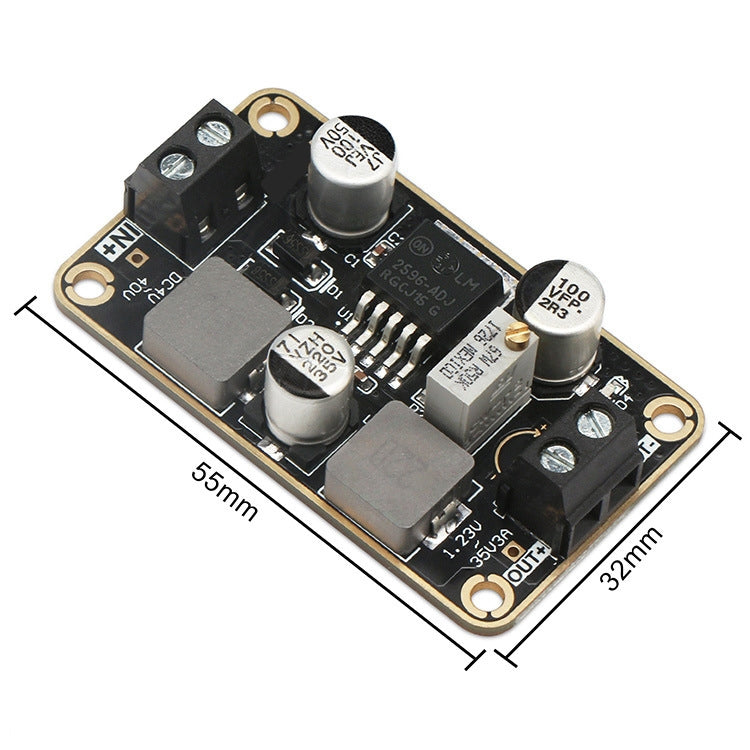

14. External dimensions: 55x32x13mm
15. Net weight: 20g
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| One Package Size |
12cm * 8cm * 4cm / 4.72inch * 3.15inch * 1.57inch
|
| Carton Weight |
27.00kgs / 59.52lb
|
| Carton Size |
50cm * 50cm * 54cm / 19.69inch * 19.69inch * 21.26inch
|
| Loading Container |
20GP: 197 cartons * 500 pcs = 98500 pcs
40HQ: 458 cartons * 500 pcs = 229000 pcs
|
|
