Specification:

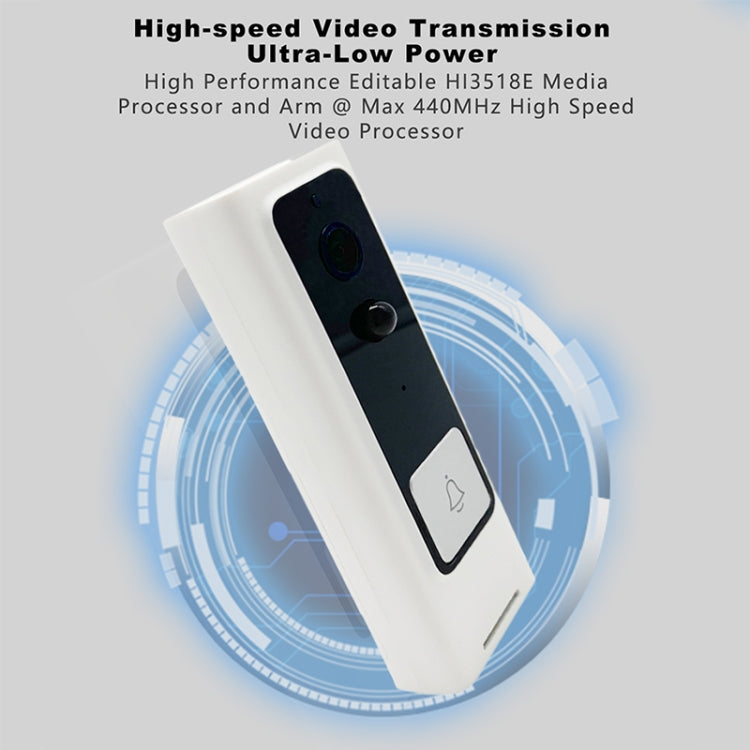

1. The main control chip: Huawei HiSili Hi3518EV200.
2. Lens: Full 3G1P super wide-angle lens.
3. Perspective: 100 degrees horizontal.
4. Video stream: 1280x720/30fps, 640x360/30fps.
5. CMOS performance: support automatic white balance, automatic gain control, automatic backlight compensation, digital wide dynamic.
6. System: Lite OS.
7. Standby time: About 5-10 months (10 wakes per day for PIR, 15S each time).
8. Day and night conversion: Dual filters automatically switch.
9. Infrared distance: 850nm infrared, effective distance 5m.
10. Network configuration mode: One button WIFI configuration + sound wave configuration.
11. Audio coding standards: AAC and G.726.
12. Frequency input / output: -38dB microphone / built-in 1 speaker.
13. Recording mode: Manual remote wake-up recording, PIR alarm recording.
14. WiFi: 2.4GHz.
15. Network protocol: TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P.
16. Passive Human Infrared Detection: Supported.
17. Adaptive Bit Rate: Supported.
18. Two-way intercom: Support full-duplex real-time calls.
19. Sleep time: 30s.
20. Remote Wakeup: Support.
21. PIR wake-up: support high-medium-low sensitivity three wake-ups.
22. Cloud Storage: Optional 7-day loop for permanent free cloud storage.

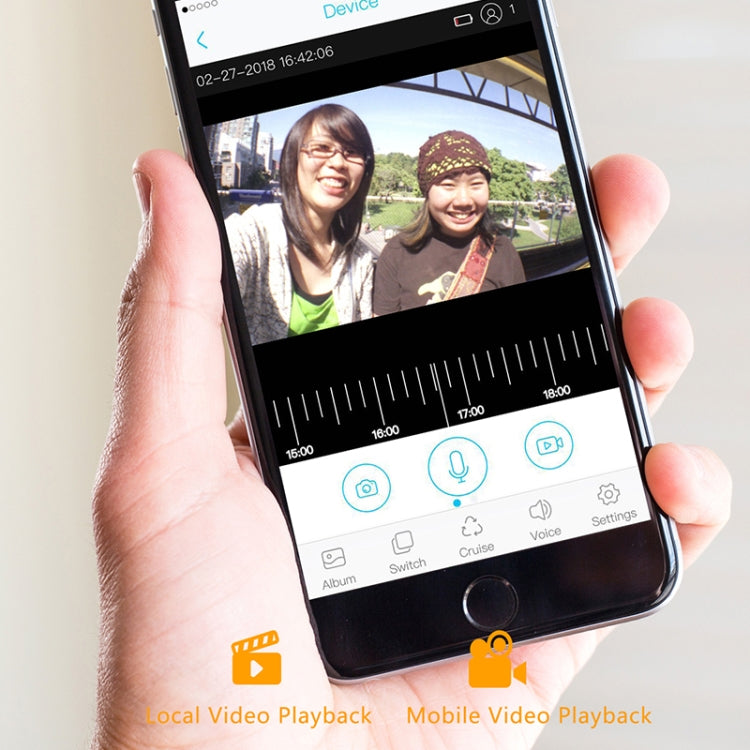

23. Mobile client: Ubell, iOS 10.0, Android 5.0 and above.
24. Operating temperature: -10-50 degrees Celsius.
25. Operating humidity: Less than or equal to 80% RH.
Specification:
|
Package Weight
|
| One Package Weight |
0.21kgs / 0.47lb
|
| One Package Size |
15cm * 8.5cm * 4.7cm / 5.91inch * 3.35inch * 1.85inch
|
| Carton Weight |
10.70kgs / 23.59lb
|
| Carton Size |
32cm * 47cm * 27cm / 12.6inch * 18.5inch * 10.63inch
|
| Loading Container |
20GP: 656 cartons * 50 pcs = 32800 pcs
40HQ: 1524 cartons * 50 pcs = 76200 pcs
|
|
