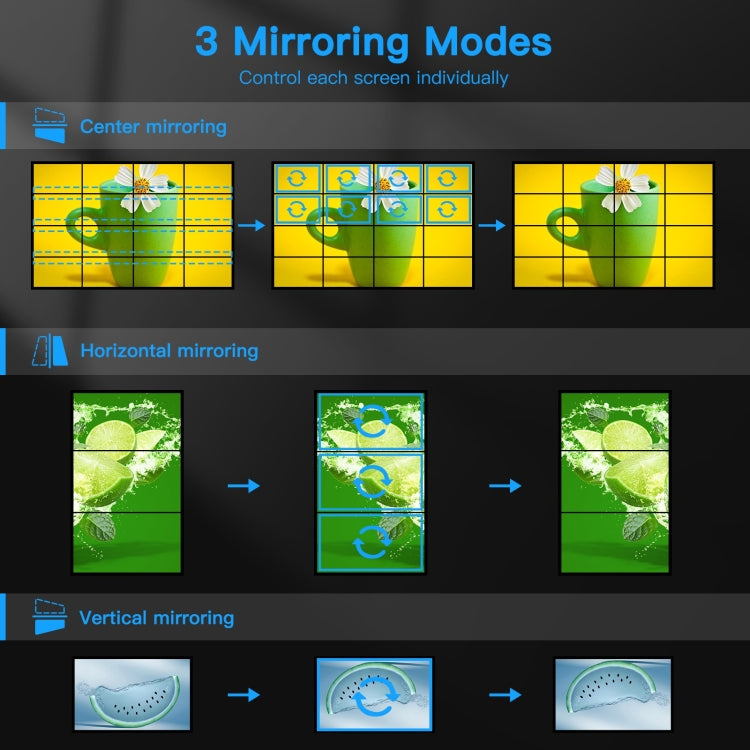

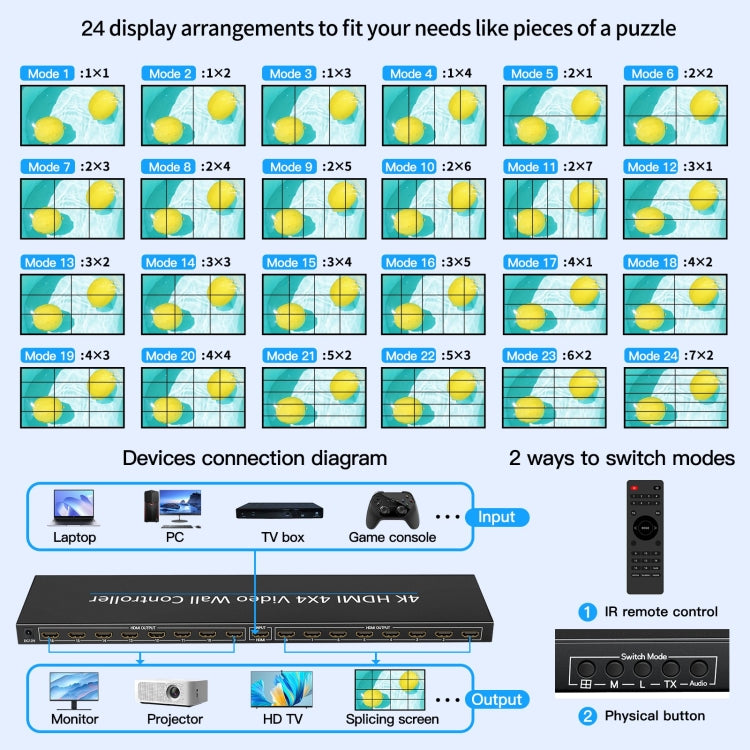

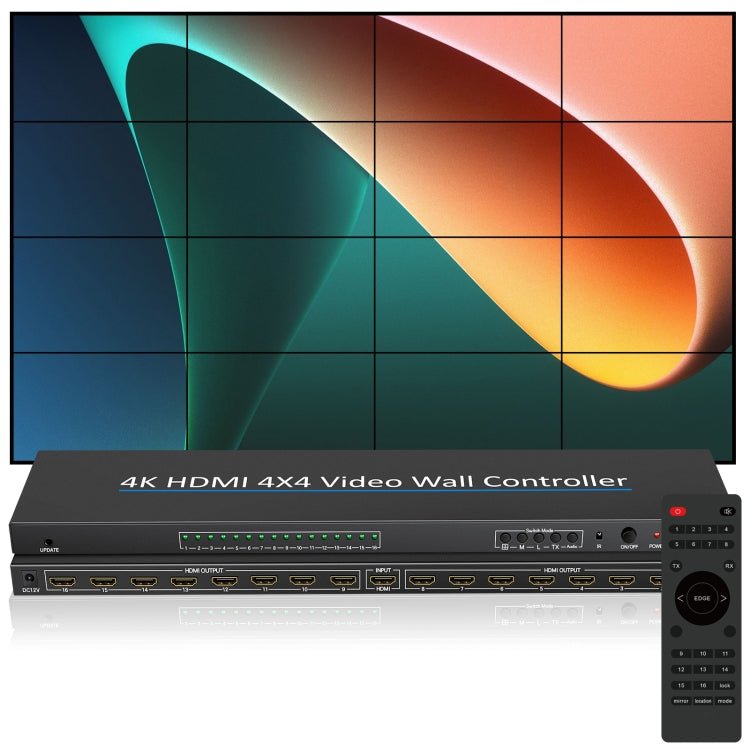

FeaturesThis 4X4 Splicer supports 1 HDMI input and 16 HDMI output. The main function of the Splicer is to divide a full HDMI image into 16 blocks and distribute them to 16 video displays, complete with 16 HDMI HD video display units to form a large dynamic image screen. Supports multiple splicing modes, supports cascading.

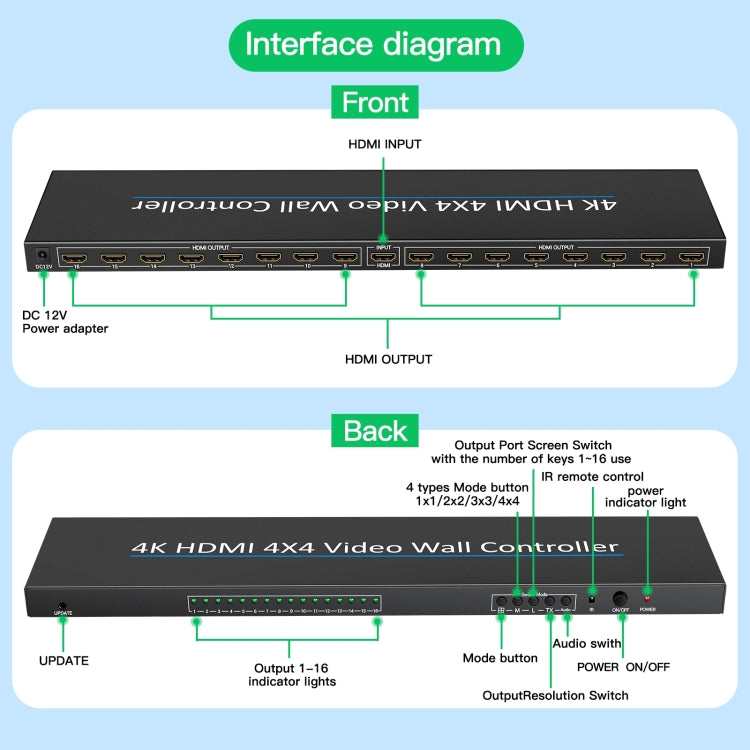

1. 16-way HDMI output
2. 3840x2160P30HZ input and output are compatible multiple splicing support, easy operation, plug and play
3. Support six resolution outputs:1280x720 60Hz,1800x1350 60Hz, 1920x1080 60Hz, 1920x1440 60Hz, 2560x1600 60Hz, 3840x2160 30Hz
Specifications1. Material: Metal

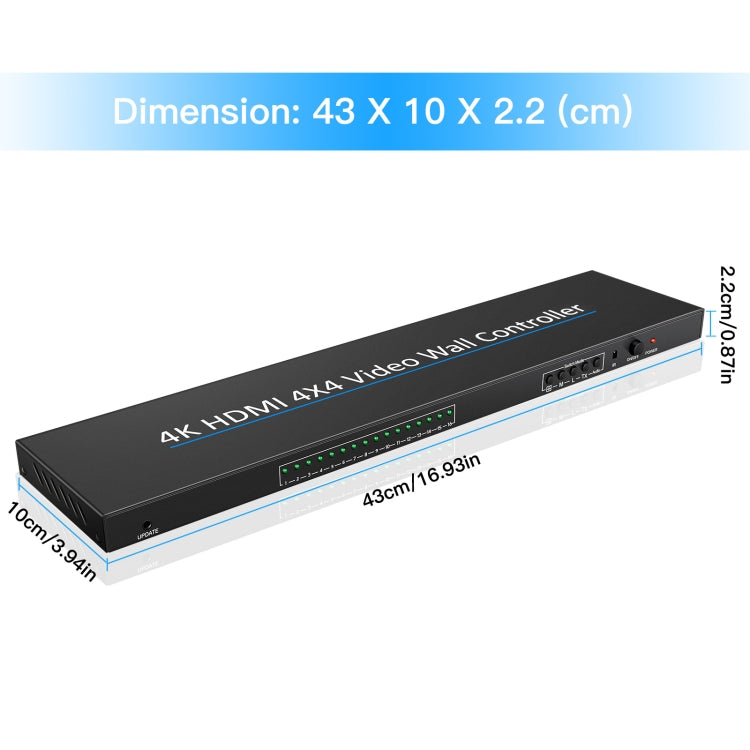

2. Size: 43x10x2.2cm
3. Weight: 1031g
Package List1. Host x 1
2. Power supply x 1

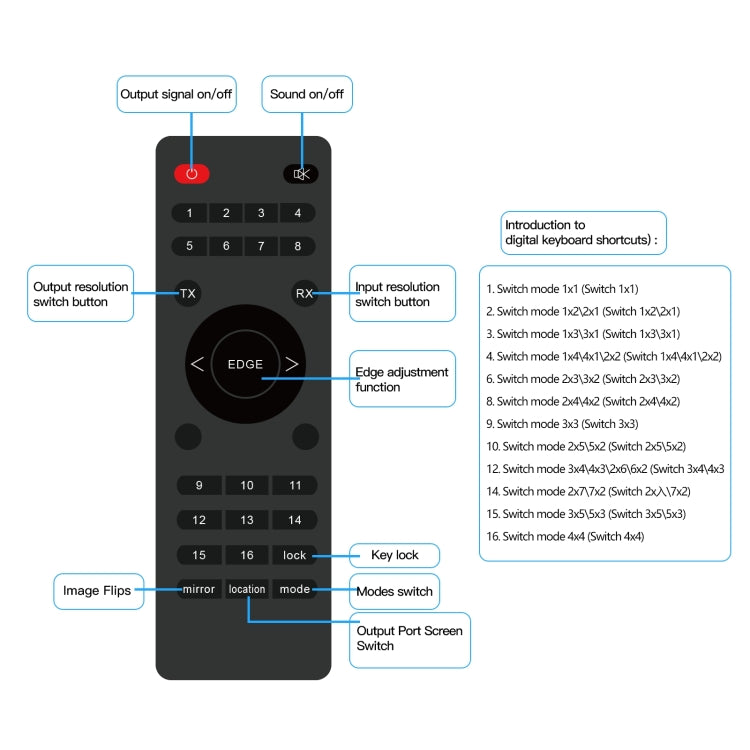

3. Remote control x 1
4. Instruction manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
1.64kgs / 3.61lb
|
| One Package Size |
47cm * 15cm * 8cm / 18.5inch * 5.91inch * 3.15inch
|
| Carton Weight |
13.50kgs / 29.76lb
|
| Carton Size |
47cm * 32cm * 42cm / 18.5inch * 12.6inch * 16.54inch
|
| Loading Container |
20GP: 422 cartons * 10 pcs = 4220 pcs
40HQ: 980 cartons * 10 pcs = 9800 pcs
|
|
