1. Rated current: 40A
2. Rated voltage: 48VDC Maximum
3. Disconnecting capacity: 3000A 48 Vdc

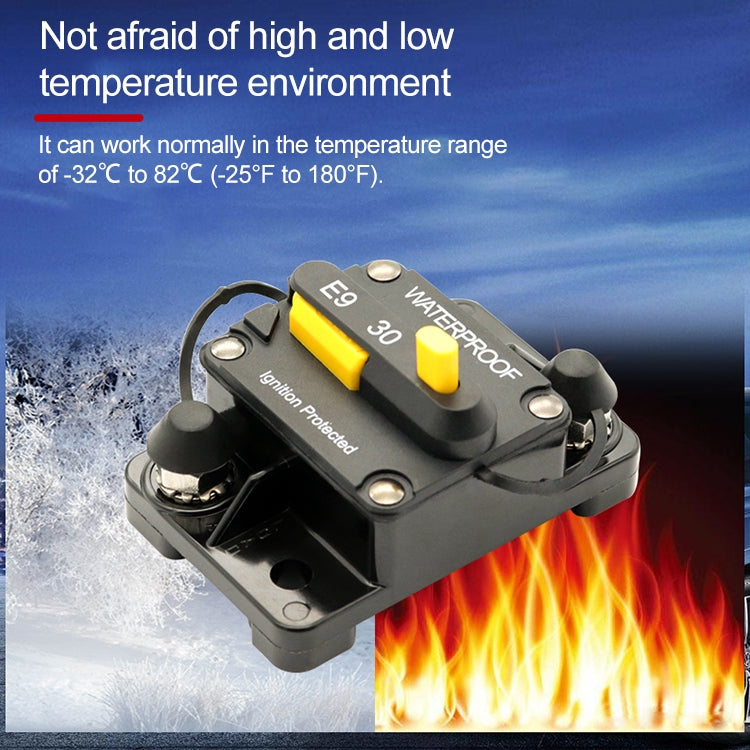

4. Ambient temperature: -32~82 degrees Celsius (-25~180 degrees Fahrenheit)
5. Storage temperature: -34~149 degrees Celsius (-30~300 degrees Fahrenheit)
6. Stud size: 1/4 inch -28
7. Application: Mainly used for electric current overload protection of ships and motor homes.
8. Function: To prevent excessive current and protect electrical appliances.

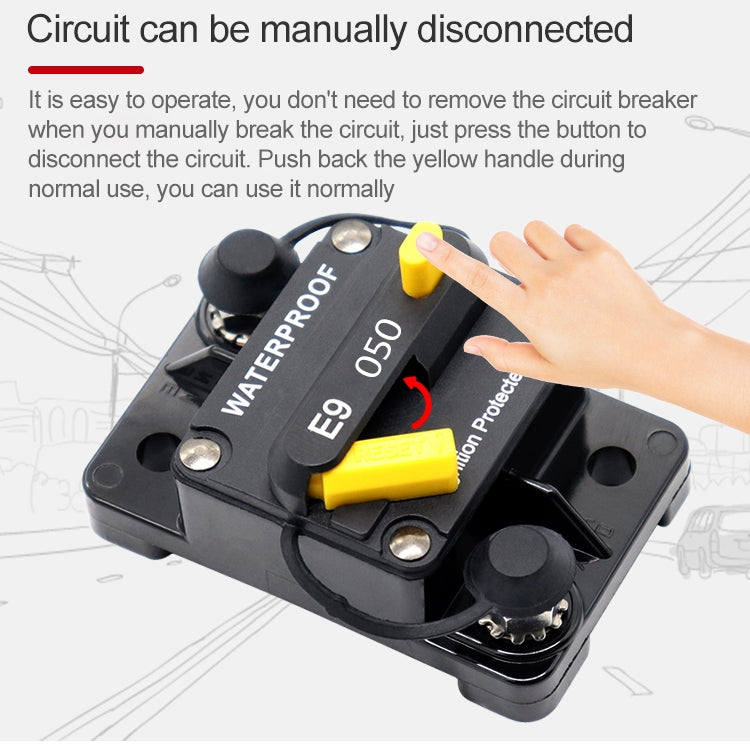

9. Operation method: It is easy to operate. When the circuit is disconnected, you don not need to remove it. You can disconnect it by pressing once. To use it normally, just push the red button on the disconnect back.
Specification:
|
Package Weight
|
| One Package Weight |
0.12kgs / 0.26lb
|
| One Package Size |
10cm * 6cm * 5cm / 3.94inch * 2.36inch * 1.97inch
|
| Carton Weight |
13.00kgs / 28.66lb
|
| Carton Size |
34cm * 32cm * 28cm / 13.39inch * 12.6inch * 11.02inch
|
| Loading Container |
20GP: 875 cartons * 100 pcs = 87500 pcs
40HQ: 2032 cartons * 100 pcs = 203200 pcs
|
|
