1. Voltage measurement range: DC 00.0-99.9V
2. Current measurement range: DC 00.0-20.0A
3. Time measurement range: 0-99h 59min
4. Power measurement range: 0-999.9W-2000W
5. Temperature measurement range: -15-60 degrees Celsius
6. Capacity measurement range: 0-999.99Ah-9999.9Ah
7. Energy measurement range: 0-99999Wh-9999kWh
8. Weight: about 33g

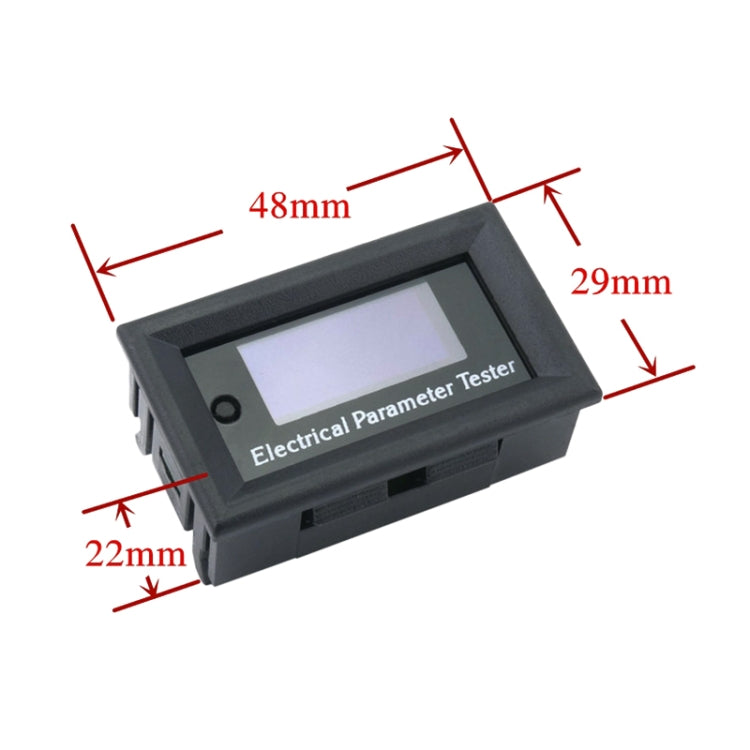

9. Size: about 4.8x2.9x2.2cm

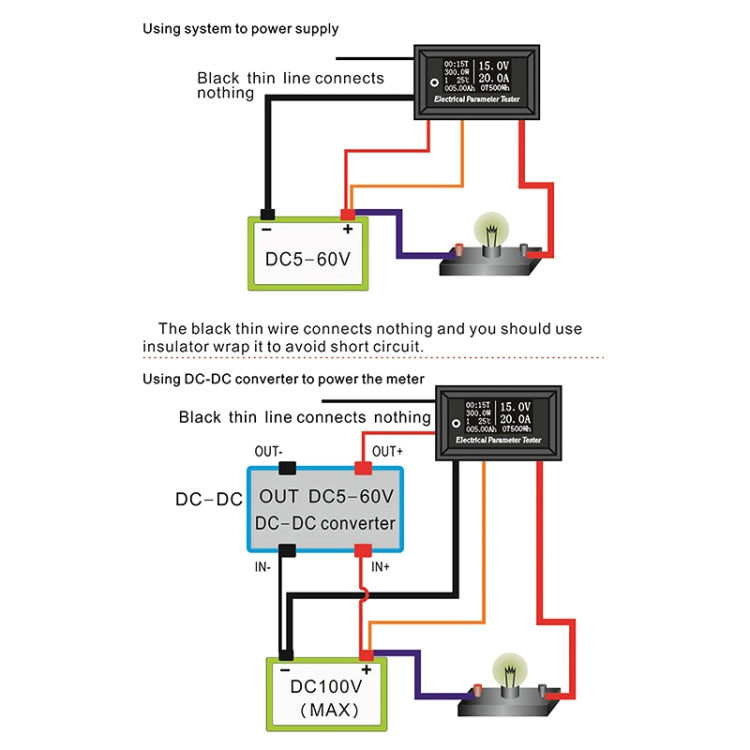

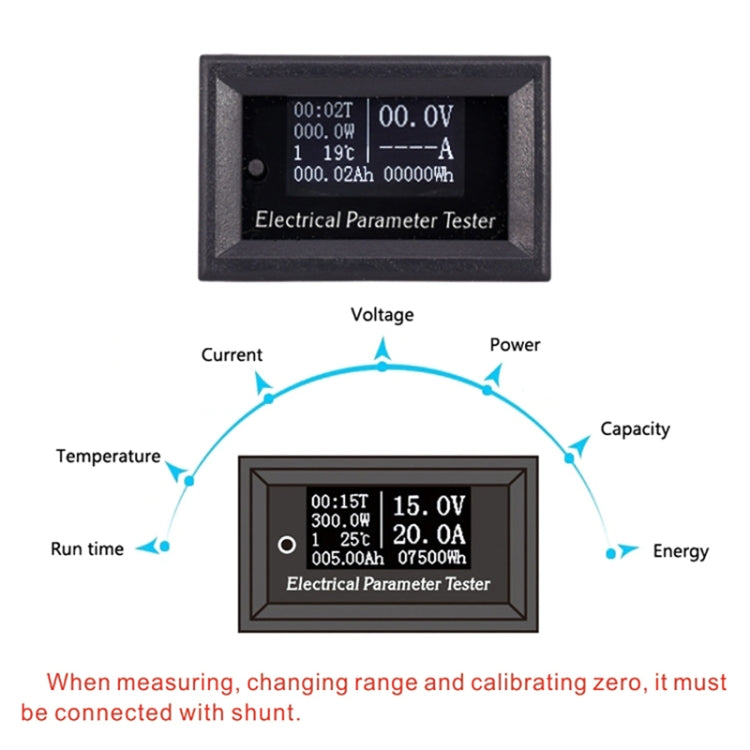

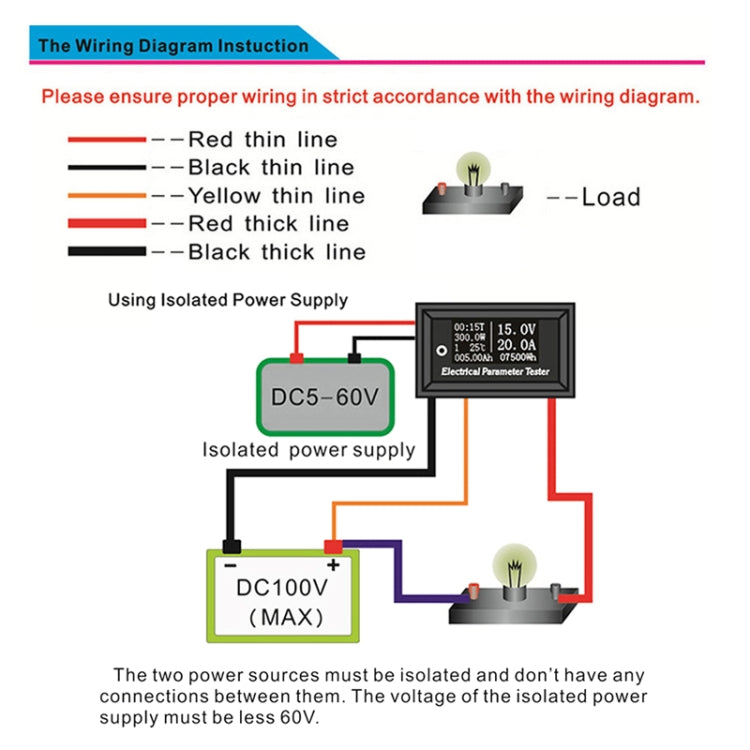

10. Note: the tester must be used with a shunt. the shunt must be connected to change the range and calibrate the zero point
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.10lb
|
| One Package Size |
8cm * 4cm * 3cm / 3.15inch * 1.57inch * 1.18inch
|
| Carton Weight |
15.90kgs / 35.05lb
|
| Carton Size |
42cm * 32cm * 26cm / 16.54inch * 12.6inch * 10.24inch
|
| Loading Container |
20GP: 763 cartons * 360 pcs = 274680 pcs
40HQ: 1771 cartons * 360 pcs = 637560 pcs
|
|
