1. SKYPORT V3 Coaxial Cable must be used with Skyport V3 Adapter, for connecting the adapter and PSDK payload. Developers can integrate it into custom payload based on the pin definition of the coaxial cable.
2. Compatibility: DJI Matrice 400
Tips:
1. If integrating the adapter board into a finished payload, be sure to design a heat sink and metal enclosure.
2. If you notice sparks, smoke, burning smell, or other abnormalities after powering on the adapter board, immediately turn off the power.
3. When using all three XT30 power output ports simultaneously, the total output power must be less than the aircraft’s maximum single-port output. Always develop payloads within the specified output limits.

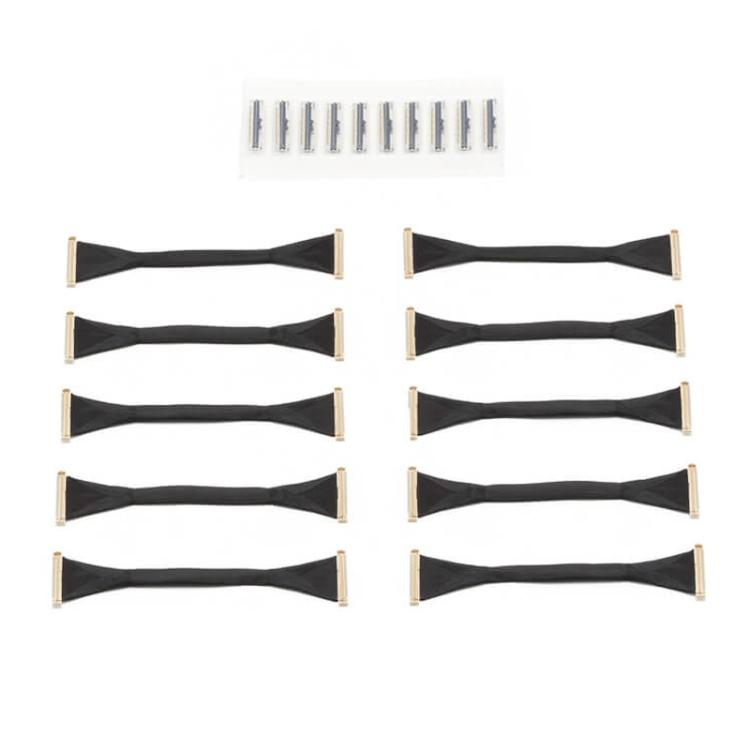

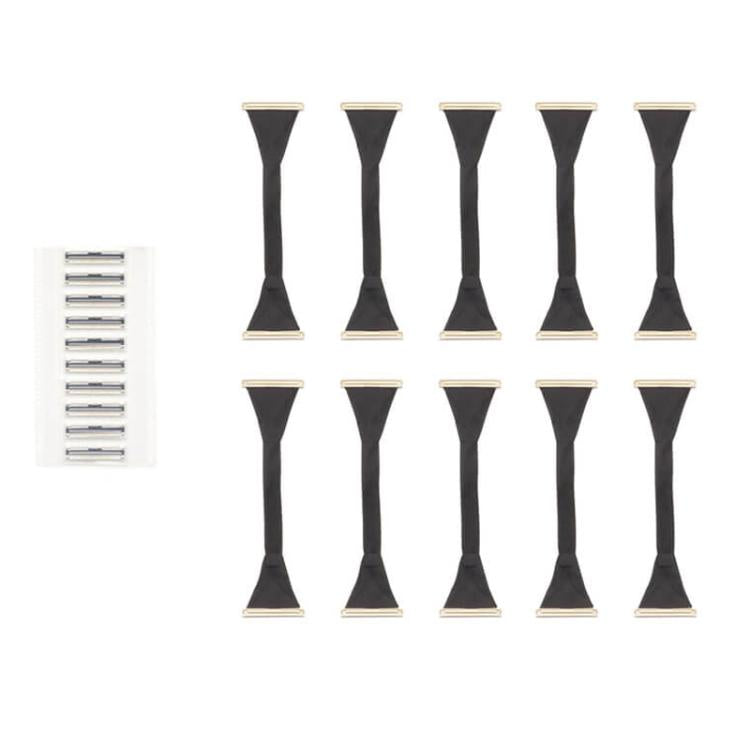

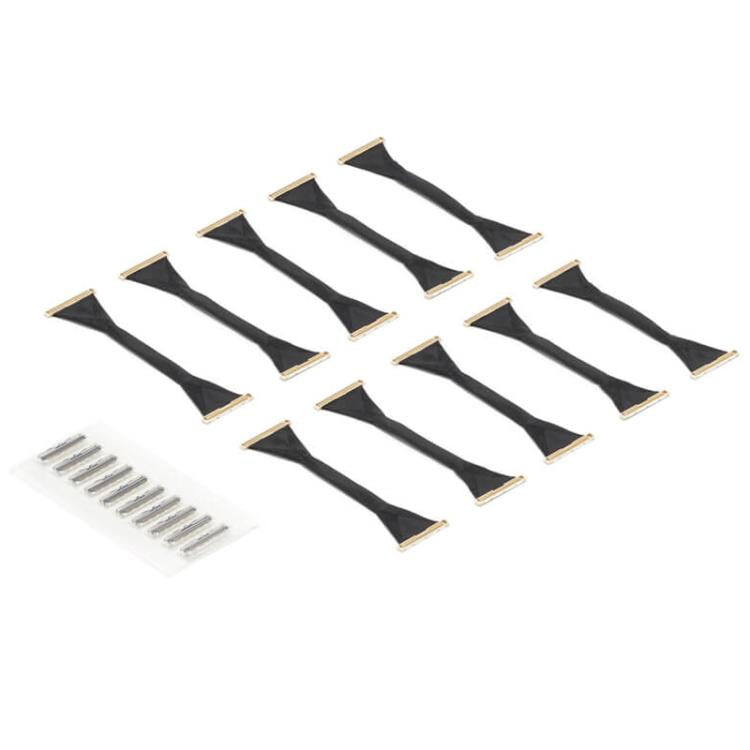

In The Box:
Coaxial Cable × 10
Coaxial Cable Connector Terminal × 10
Specification:
|
Package Weight
|
| One Package Weight |
0.20kgs / 0.45lb
|
| One Package Size |
15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
|
| Carton Weight |
19.00kgs / 41.89lb
|
| Carton Size |
50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 438 cartons * 90 pcs = 39420 pcs
40HQ: 1018 cartons * 90 pcs = 91620 pcs
|
|
