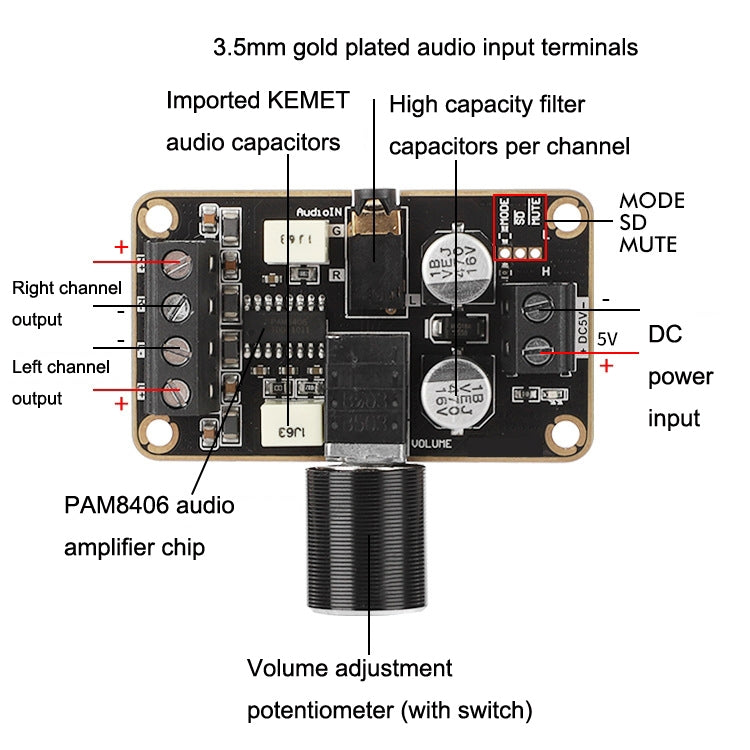

1. Pure black and gold plated circuit board, imported KEMET audio capacitors, high capacity filter capacitors per channel. Special order pure black copper terminals, gold plated audio input terminals
2. Protection: power input reversal protection, short circuit, overheating, over EMI
3. Low quiescent current, noise suppression

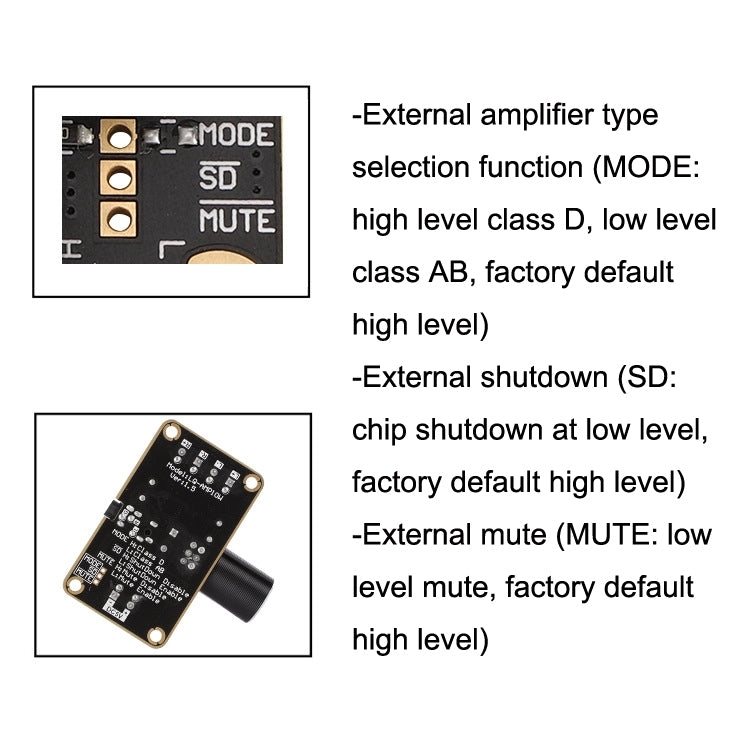

4. External amplifier type selection function (MODE: high level class D, low level class AB, factory default high level)
5. External shutdown (SD: chip shutdown at low level, factory default high level)
6. External mute (MUTE: low level mute, factory default high level)
8. Input method: Single-ended
9. Output power: 5W 2 ohms 5V; 3W 4 ohms 5V; 1.8W 8 ohms 5V

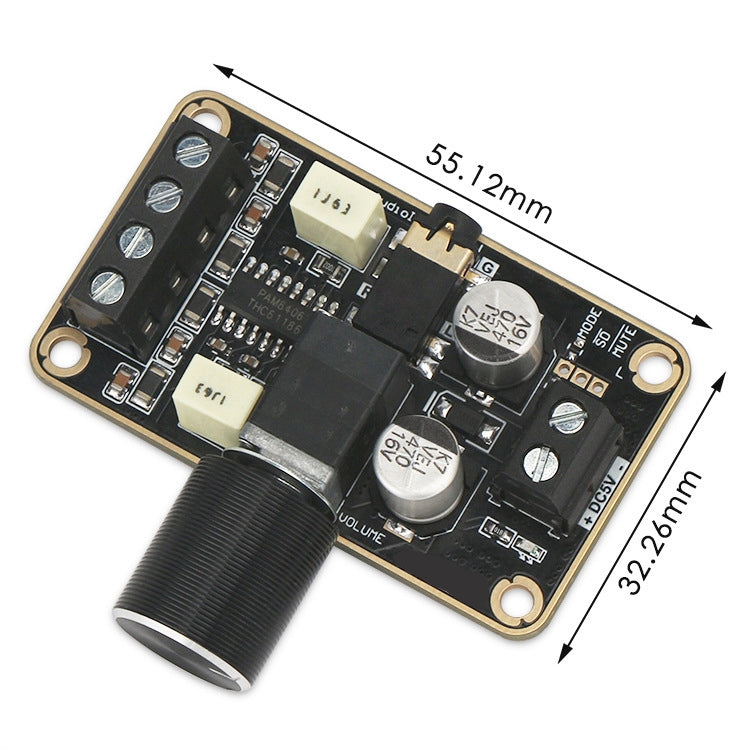

10. Size: 55.12 x 32.26mm
11. Weight: 25g
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| One Package Size |
12cm * 10cm * 6cm / 4.72inch * 3.94inch * 2.36inch
|
| Carton Weight |
27.00kgs / 59.52lb
|
| Carton Size |
50cm * 50cm * 54cm / 19.69inch * 19.69inch * 21.26inch
|
| Loading Container |
20GP: 197 cartons * 500 pcs = 98500 pcs
40HQ: 458 cartons * 500 pcs = 229000 pcs
|
|
