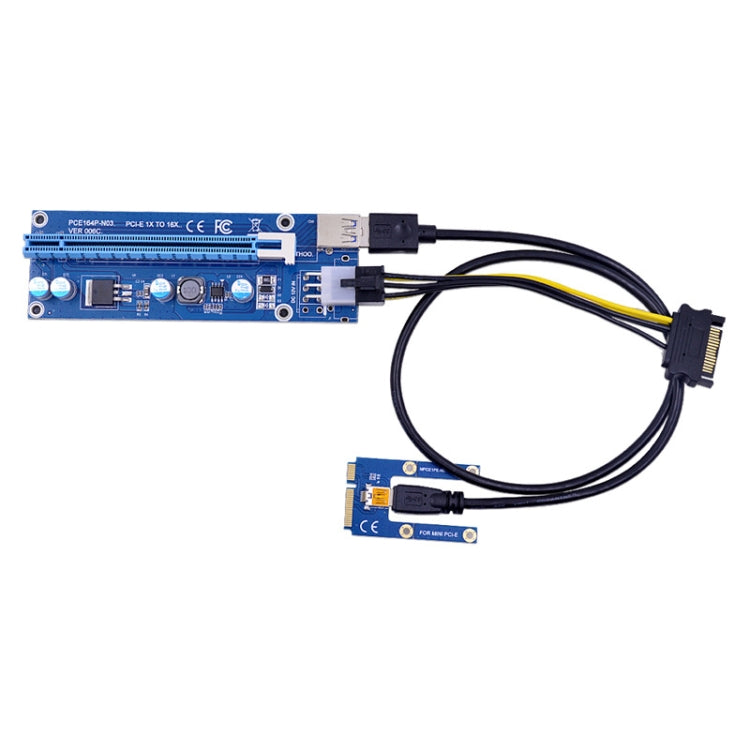

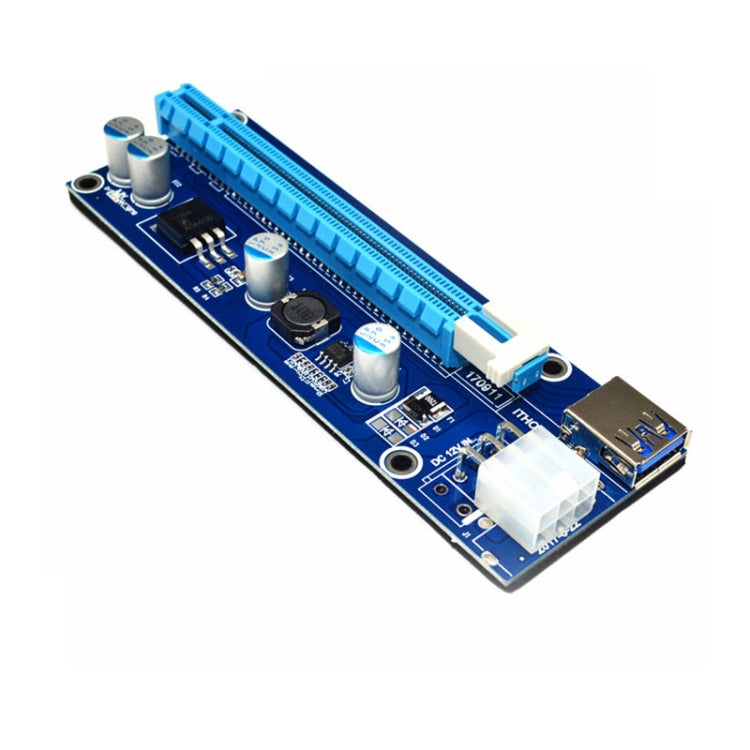

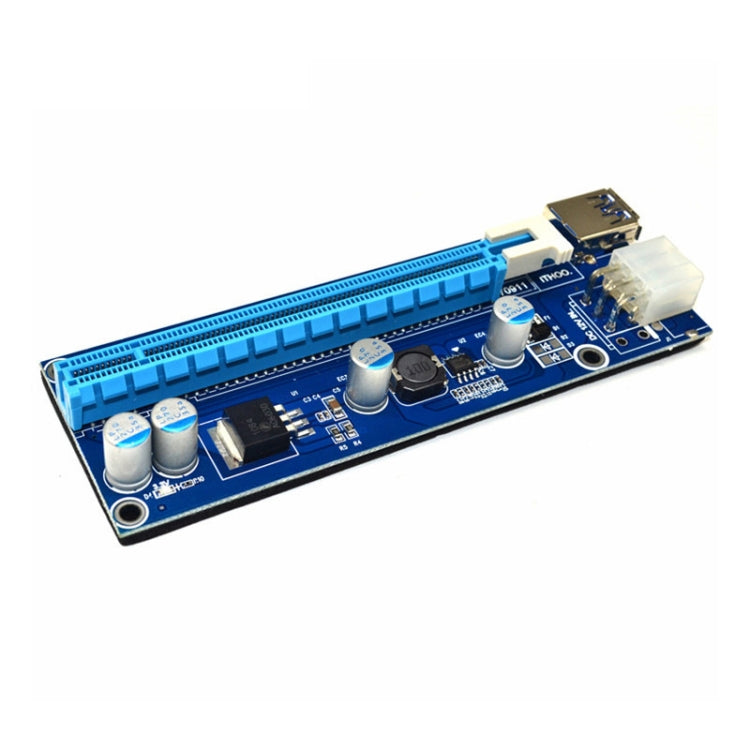

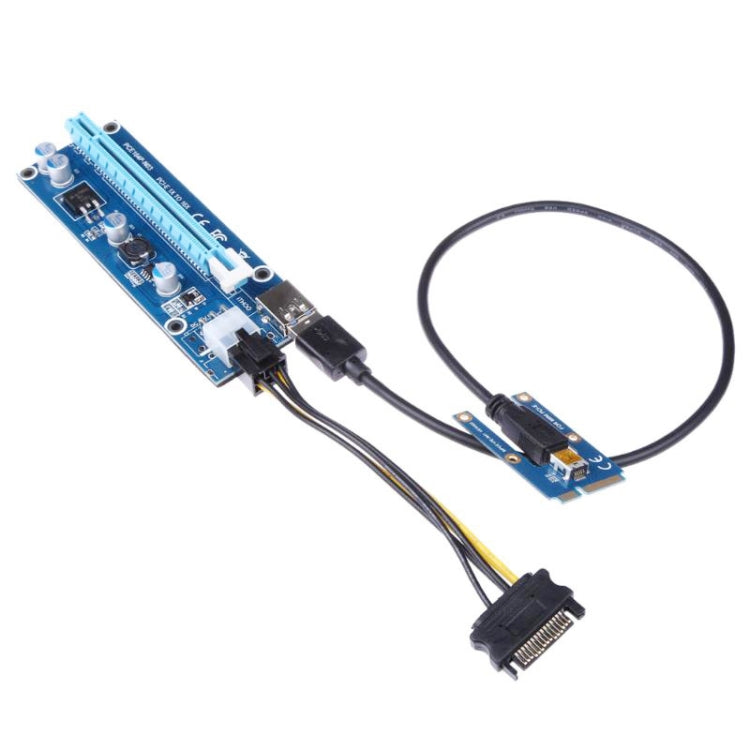

PCE164P-N03 VER006C Mini PCI-E 1X To 16X Riser For Laptop External Image Card, Spec: Blue Board 6pin

1. This product is an adapter device for connecting an external graphics card to a notebook computer. Graphics card and power supply need to be purchased separately. (Internal screen: To use the notebook’s own display, the notebook needs to have its own intel core display (Intel (R) HD Graphics) and an external Nvidia graphics card with GTS450 or above. Otherwise, an external display is required)
2. Due to different production batches, the color of the buttons and capacitors of the graphics card socket may be different, but it will not affect the function

Features:
1. The power supply of the graphics card uses 4 solid capacitors (the big 4PIN is 3 capacitors), which makes the power supply of the graphics card more stable and safe.

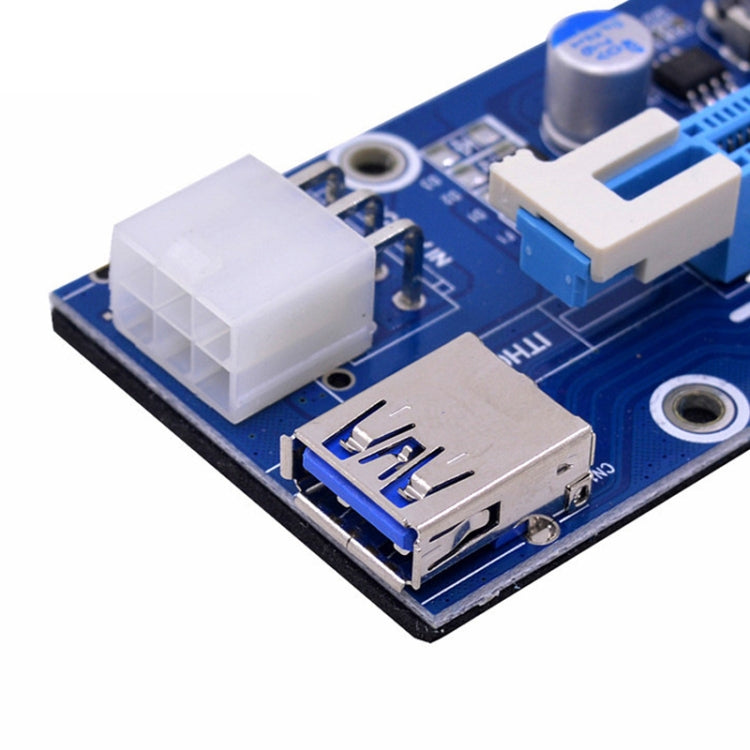

2. The adapter card has a graphics card 6PIN interface or a large 4PIN interface, so that the power supply of the graphics card is independent from the motherboard, thereby reducing the burden on the motherboard when multiple graphics cards are connected.
3. The slot is routed to the right to facilitate the wiring of the 2U chassis. The graphics card slot uses the original imported connector, and the connection between the graphics card and the connector is better.
4. The PCI-E connector adopts multi-layer shielded wire, which can be connected up to 3M without attenuating the signal.
5. The USB cable is soft and stable, easy to route, and the graphics card can be placed at will.
6. The slot is equipped with a fixing buckle, which is more convenient to remove and fix the graphics card, and the graphics card will not fall out of the slot.

Parameter:

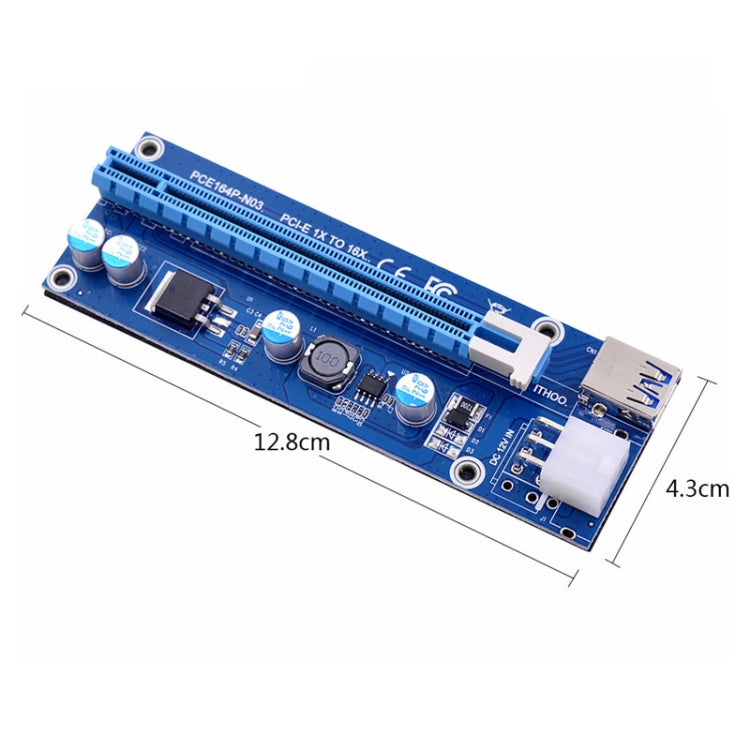

1. Wire length: 60CM
2. Product interface: PCI-E 1X PCI-E 16X
3. Support system: Compatible with all WINDOWS systems, LINUX MAC
4. Product packaging: static bag
