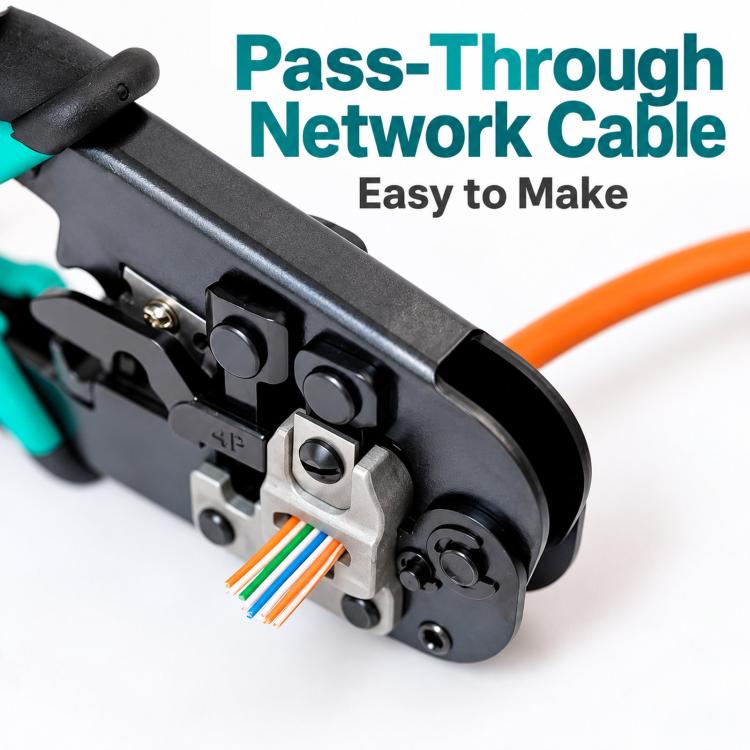

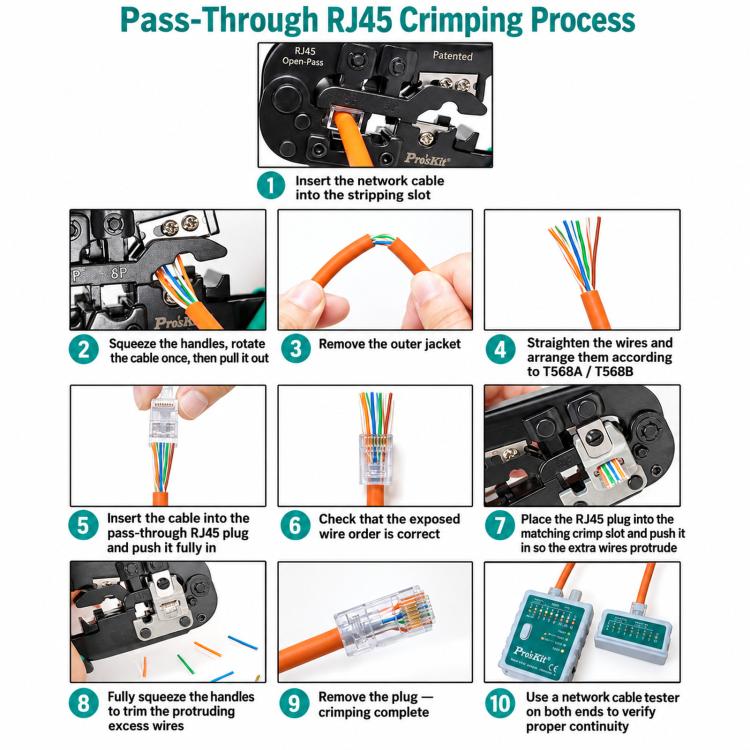

1. The perforated RJ45 design supports the production of through-hole network cables, and can be compatible with both unshielded and shielded connectors. The module has precise connection and flat positioning, and the pressing process is one-time complete. During the pressing, the excess wire cores are also removed

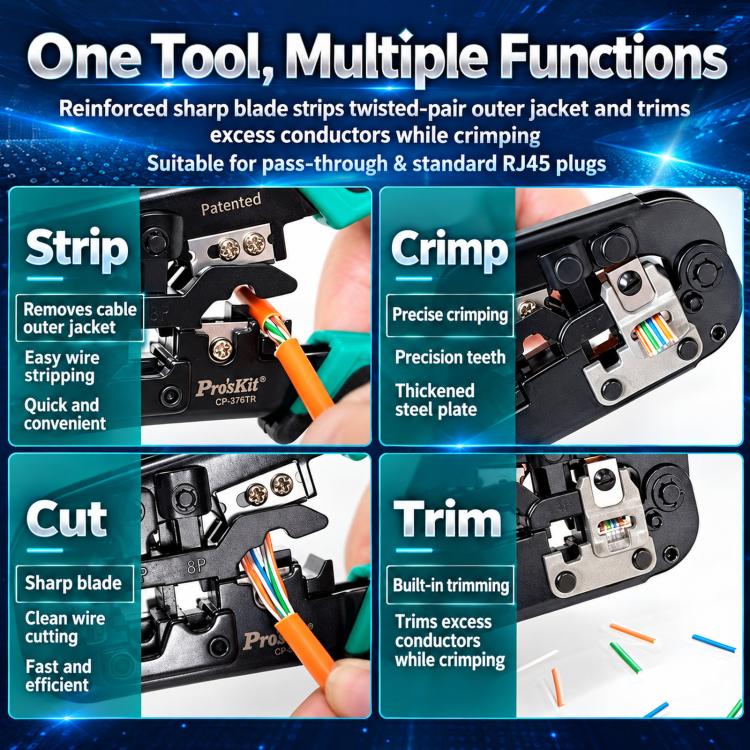

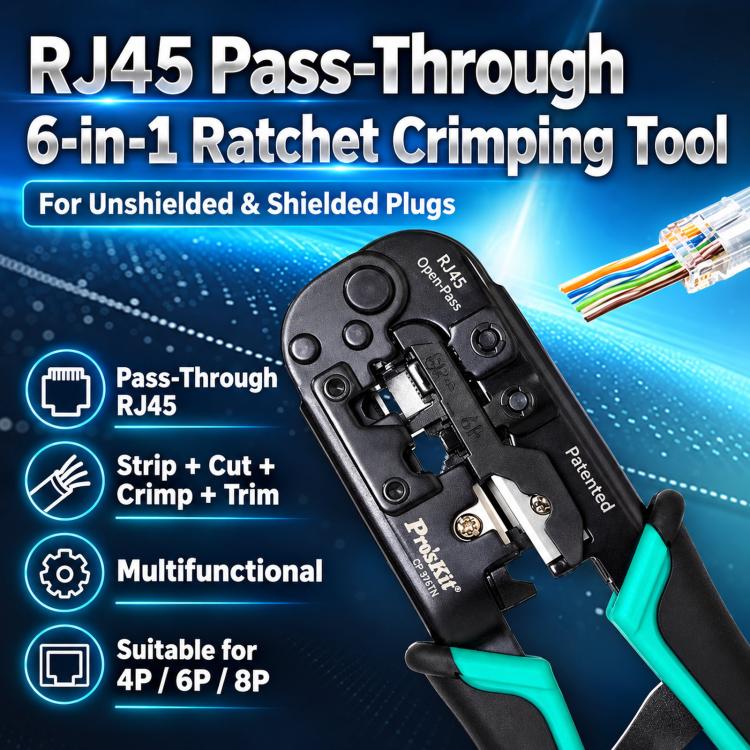

2. It is a multi-functional integrated device that combines the functions of stripping, cutting, pressing, and cutting wires. It is applicable to 4P/6P/8P connectors and is compatible with both perforated and conventional connectors
3. It is equipped with a ratchet force-saving device, making the pressing operation more effortless
4. The clamp head is made of S45C carbon alloy steel, which has been quenched multiple times and has strong toughness
5. The surface is blackened for rust prevention treatment, with good rust resistance
6. The zinc alloy reinforced guide rail ensures stable advancement and a flat cutting surface

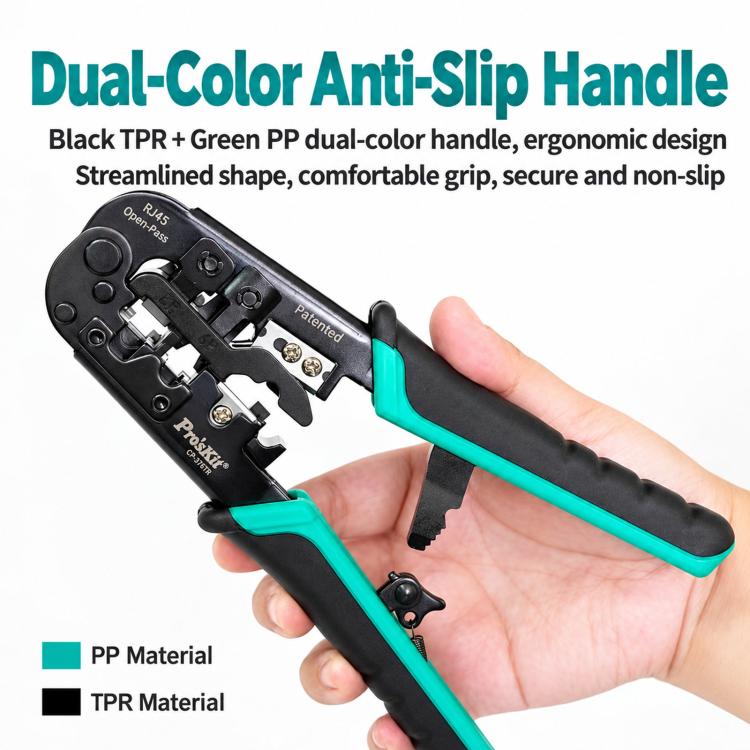

7. The double-color anti-slip handle has an ergonomic streamlined shape, providing comfortable grip and is not prone to slipping
8. The reinforced sharp blade can easily peel off the outer skin of twisted pairs and cut the wires neatly
9. Applications: perforated 8P/RJ45 unshielded and shielded 6P6C/RJ12, 6P4C/RJ11 4P4C & 4P2C
10. Hardness: 45° +/- 5°
11. Materials: body: S45C; handle: PP + TPR

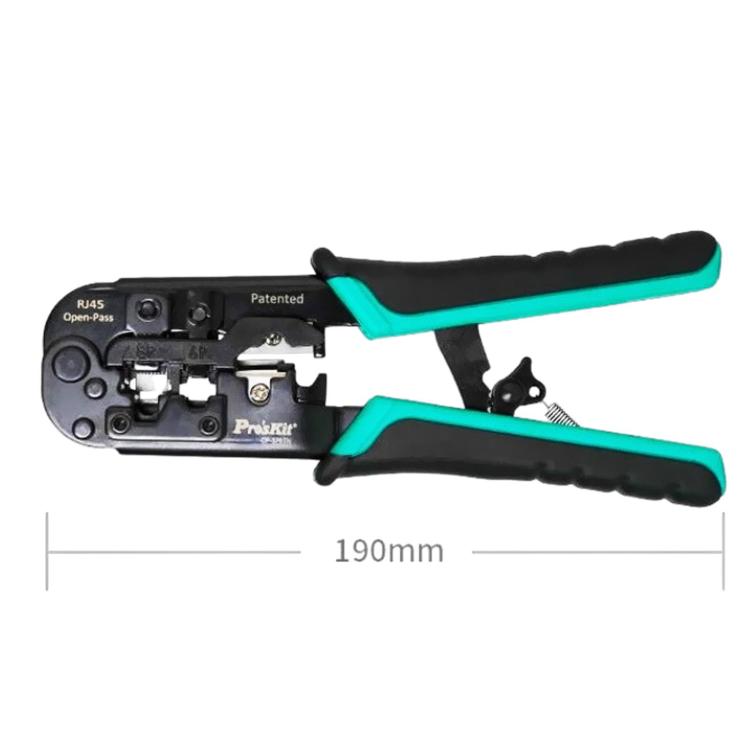

12. Size: about 19cm
Specification:
|
Package Weight
|
| One Package Weight |
0.36kgs / 0.80lb
|
| One Package Size |
24cm * 10cm * 4cm / 9.45inch * 3.94inch * 1.57inch
|
| Carton Weight |
32.00kgs / 70.55lb
|
| Carton Size |
52cm * 37cm * 32cm / 20.47inch * 14.57inch * 12.6inch
|
| Loading Container |
20GP: 433 cartons * 80 pcs = 34640 pcs
40HQ: 1005 cartons * 80 pcs = 80400 pcs
|
|
