1. Cutting angle: less than 1.5 degrees
2. Fixture: 3 in 1 fixture
3. Applicable fiber: 250um/900um diameter single-core bare fiber, 3x2mm skin fiber
4. Cutting length: 5-20mm
5. Blade cutting point: 24 points
6. Blade material: tungsten steel
7. Blade diameter: 20mm
8. Material: aluminum alloy
9. Battery capacity: 3.7V 180mAh
10. Charging interface: USB
11. Application scope: fiber optic CATV engineering / fiber optic communication engineering / fiber optic sensing research / other fiber optic engineering / production and research of optical devices, etc.

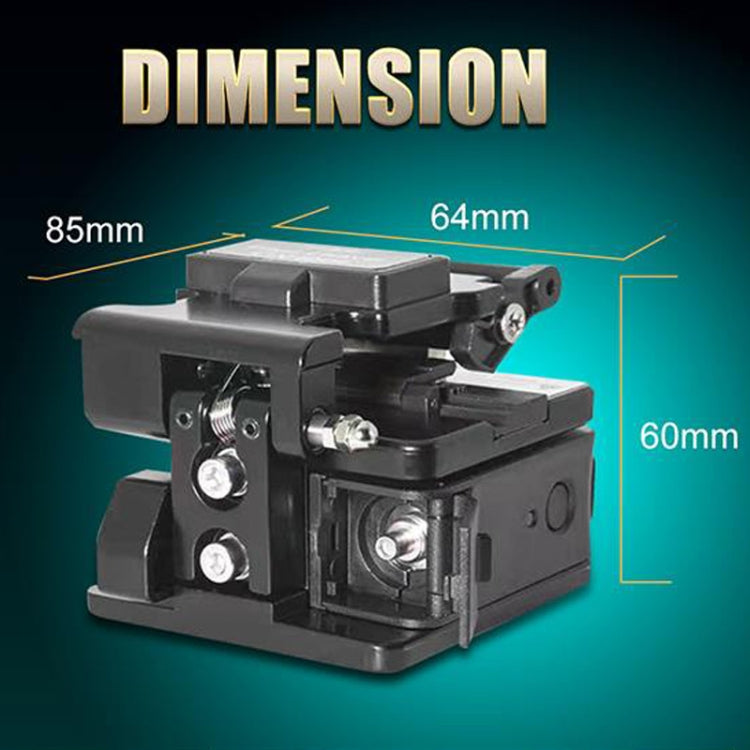

12. Size: about 8.5 x 6.4 x 6cm
13. Weight: about 250g
Features:

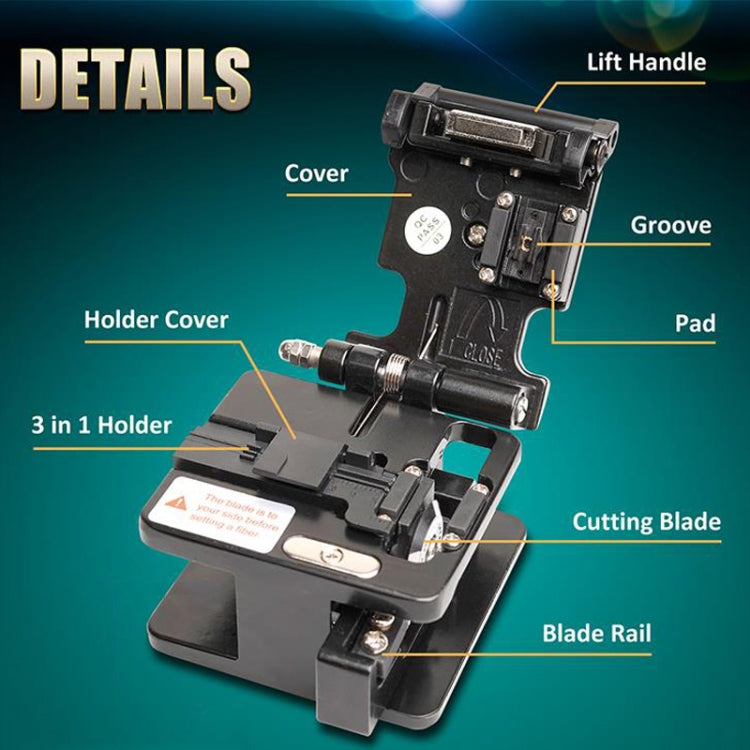

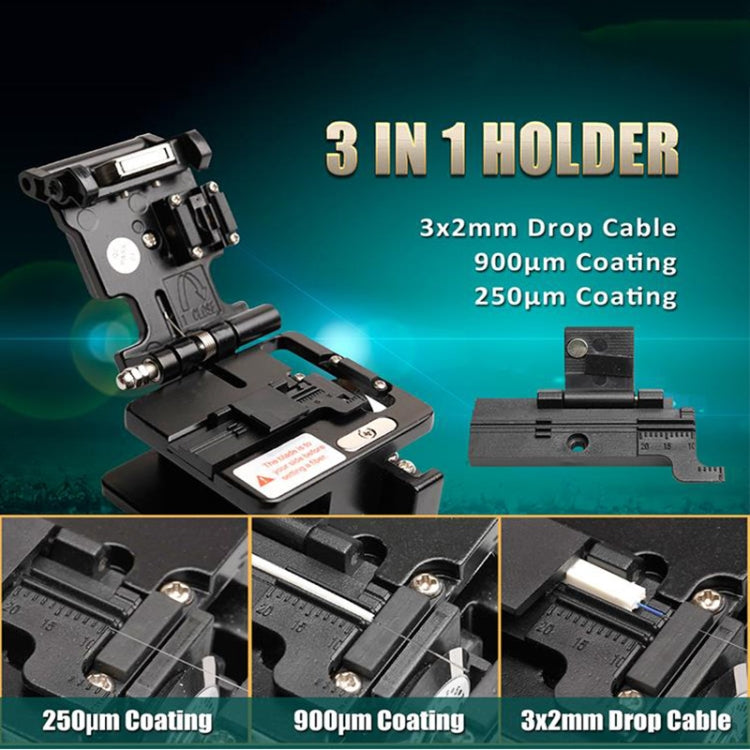

1. 3 in 1 clamps, cutting 3x2mm tare fiber/900μm bare fiber/250μm bare fiber

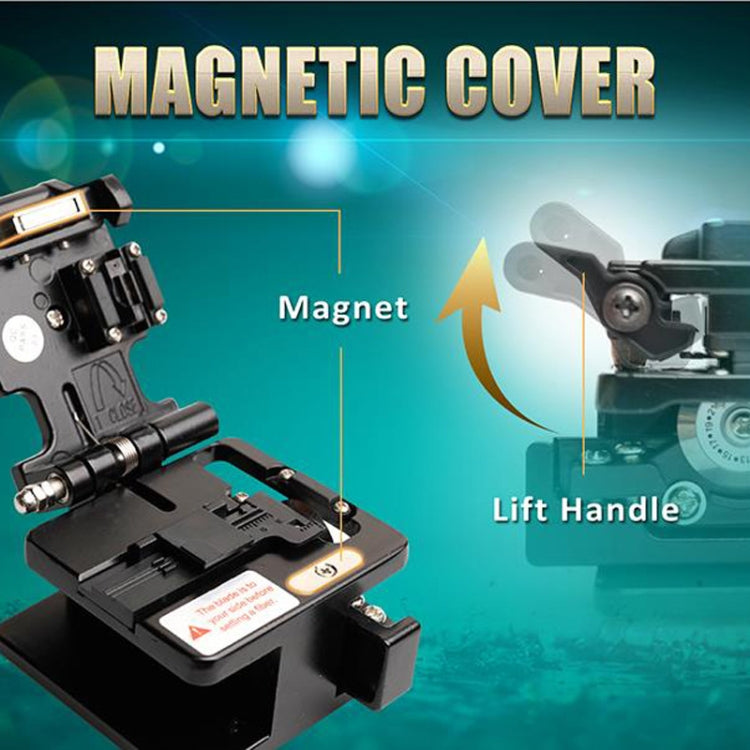

2. Magnetic suction cover to avoid loosening

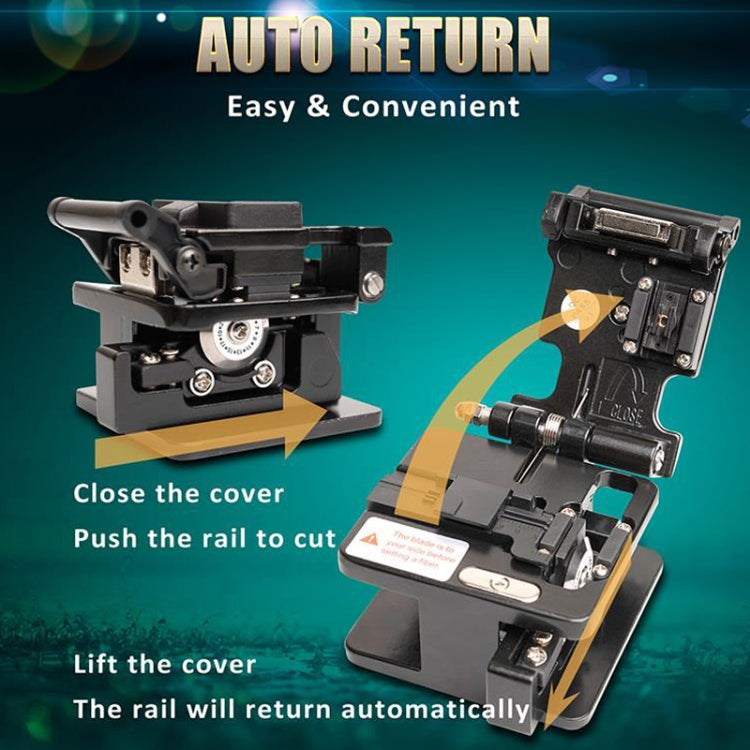

3. Precision slide rail, automatic rebound of blade, convenient operation

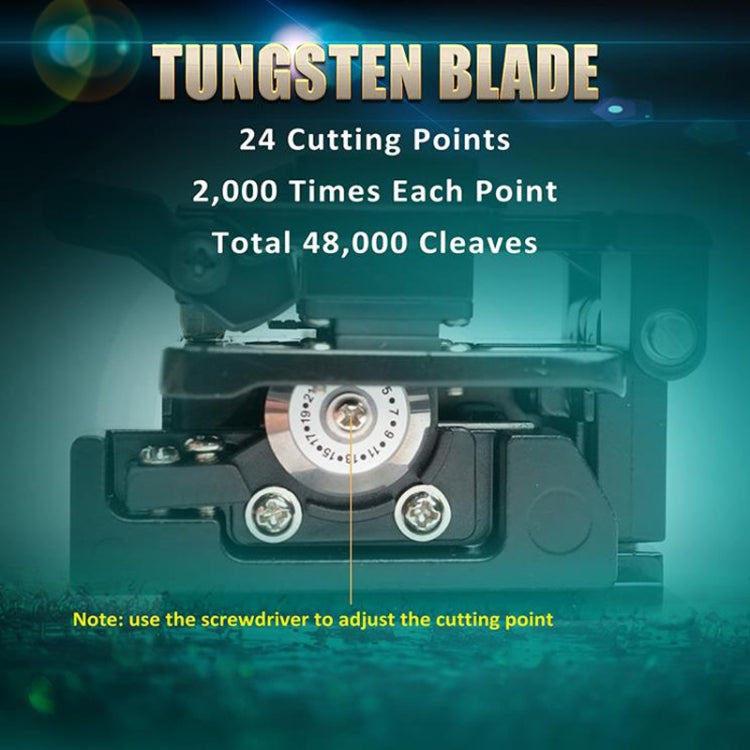

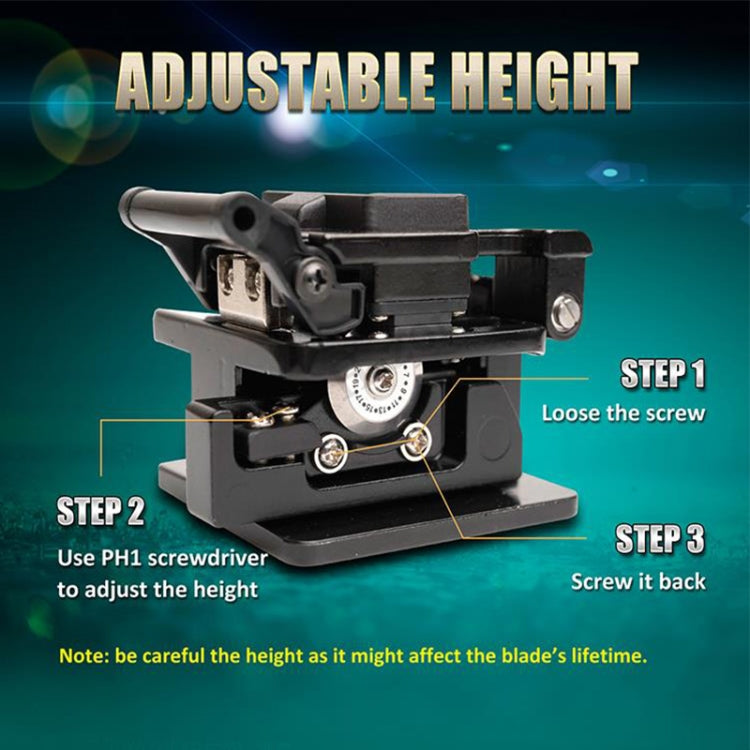

4. Tungsten steel blade, sharp and durable, blade height adjustable

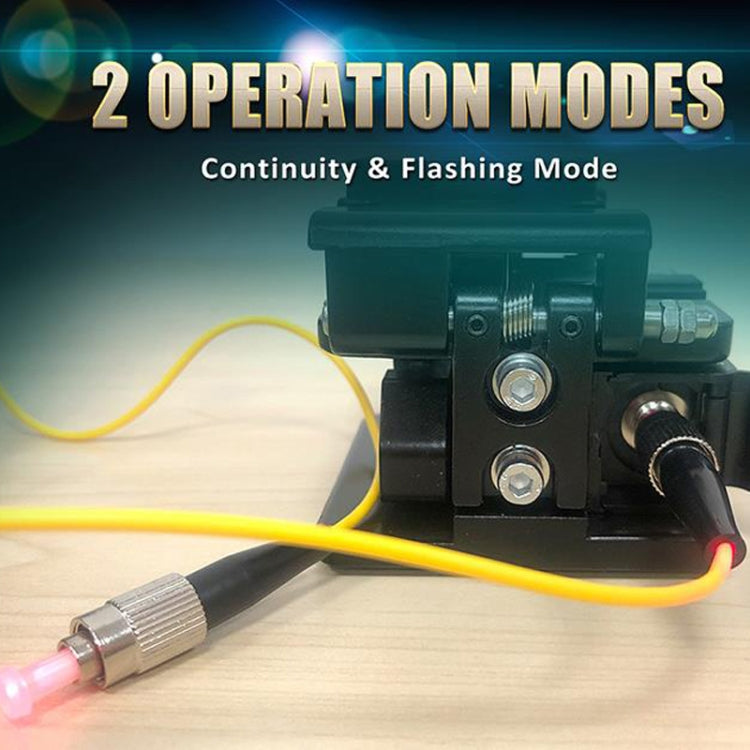

5. Two modes of constant light / flashing, easy to detect the fiber optic patch cord line

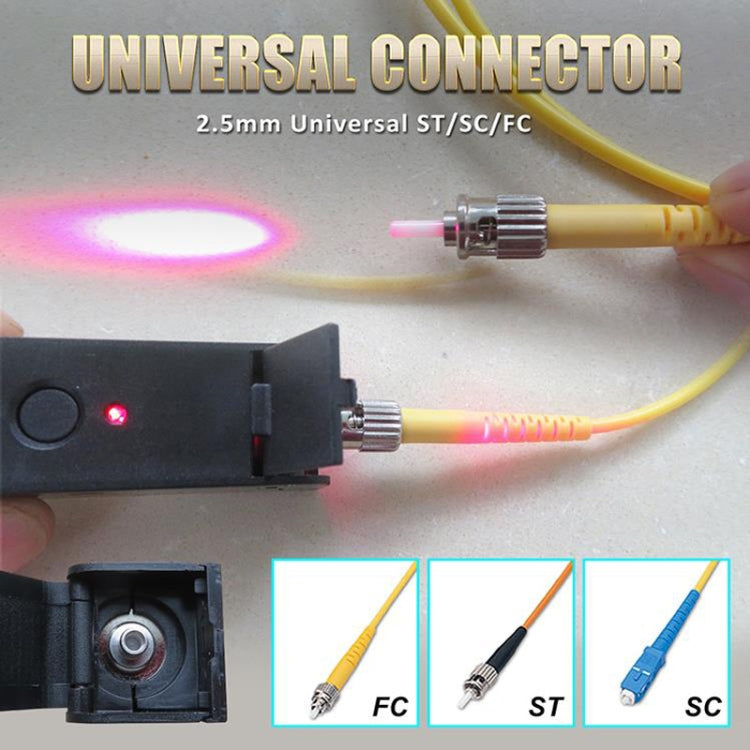

6. Universal connector, no adapter, suitable for a variety of 2.5mm fiber optic connectors, widely used
Specification:
|
Package Weight
|
| One Package Weight |
0.40kgs / 0.89lb
|
| One Package Size |
12cm * 10cm * 8cm / 4.72inch * 3.94inch * 3.15inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 41cm * 33cm / 19.69inch * 16.14inch * 12.99inch
|
| Loading Container |
20GP: 394 cartons * 74 pcs = 29156 pcs
40HQ: 915 cartons * 74 pcs = 67710 pcs
|
|
