Core Hardware:
- CPU: RK3568, Quad-Core, Main Frequency 2GHz

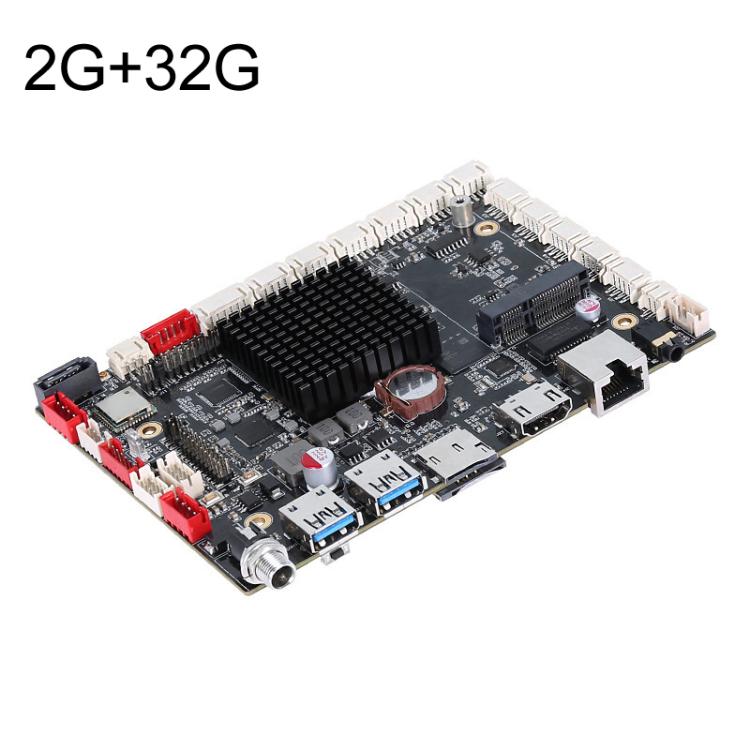

- RAM: 2G DDR4
- Internal Storage: EMMC 32G (Optional: 64GB / 128GB)
- Built-in ROM: 4KB EEPROM
- Operating System: Android 12.0 / Customizable Linux OS
Audio, Video & Display:

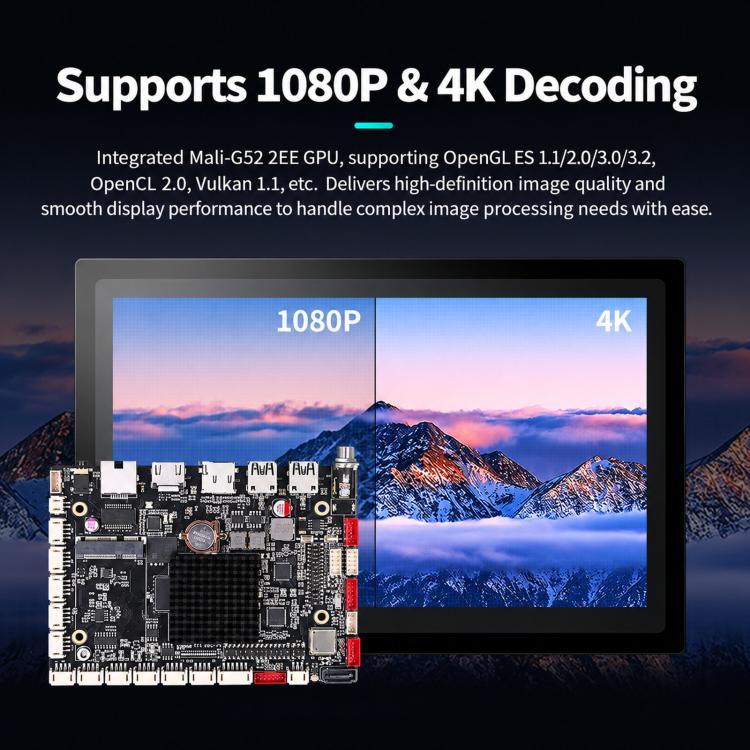

- Decoding Resolution: Max Supports 4K / 60Hz
- Video Formats: WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, etc.
- Image Formats: BMP, JPEG, PNG, GIF
- LVDS Output: 1x Dual-Channel LVDS Interface
- eDP Output: 1x 4-Lane eDP Interface
- HDMI Output: 1x Standard HDMI 2.0 Output Interface
- MIPI Output: 1x 40-Pin FPC Connector MIPI LCD Interface
- Audio Output: Built-in Dual-Channel Amp (4R/10W per channel, 8R/5W)
- Headphone Jack: Built-in 3.5mm 4-Pole Earphone Interface
Network & Expansion:
- Network Support: 4G, Ethernet, WiFi / Bluetooth, Wireless Peripherals

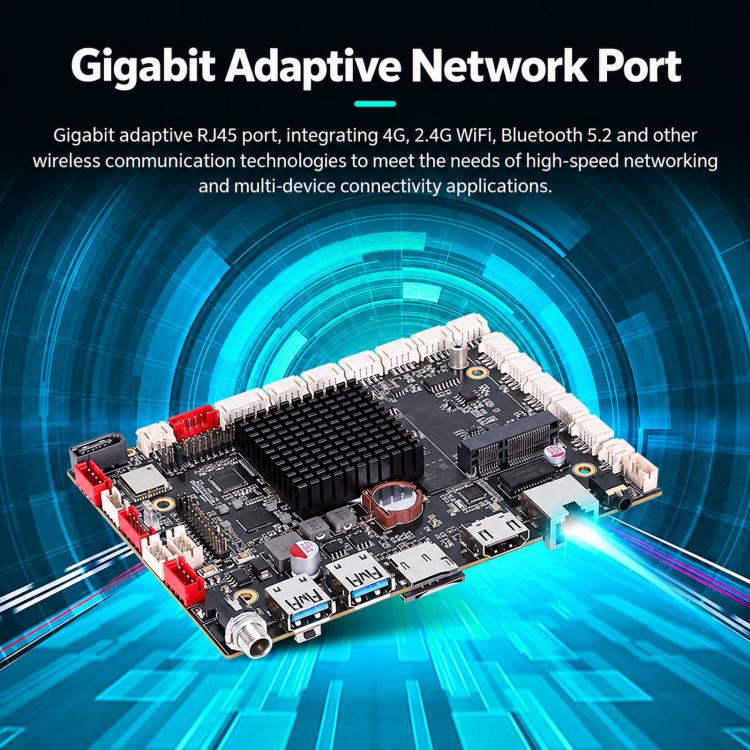

- Ethernet: 1x 1000M Ethernet Interface
- WIFI & BT: Built-in 2.4G WIFI, Bluetooth 5.2
- 4G Module: Built-in MINI PCIE 4G Module Interface
- TF Card: Supports TF Card Expansion

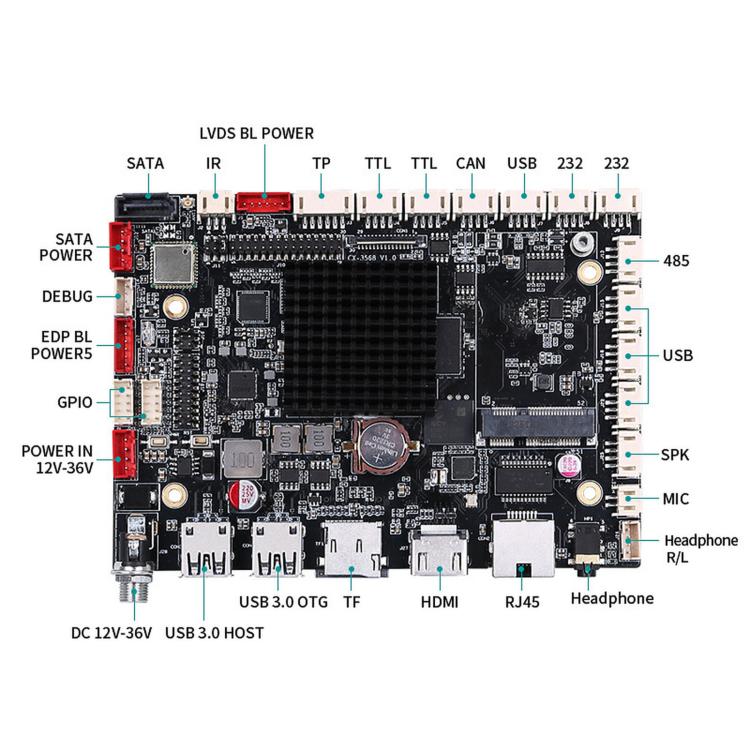

Interfaces & Functions:
- USB Ports:
- 2x USB3.0 Standard Ports (1x USB3.0 HOST, 1x USB3.0 OTG)
- 4x USB2.0 Headers (3x via USB HUB, 1x Direct from CPU)
- Serial Ports: 6x Serial Headers (2x RS232, 1x RS485, 2x TTL, 1x CAN)
- Playback Mode: Supports Loop, Scheduled, Interspersed, and multi-playback modes
- RTC Real-Time Clock: Supported
- Timer Switch: Supported (Reserved RJ45 Remote Power On)
Specification:
|
Package Weight
|
| One Package Weight |
1.00kgs / 2.21lb
|
| One Package Size |
13cm * 17cm * 3cm / 5.12inch * 6.69inch * 1.18inch
|
| Carton Weight |
41.10kgs / 90.61lb
|
| Carton Size |
24cm * 32cm * 32cm / 9.45inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 1085 cartons * 40 pcs = 43400 pcs
40HQ: 2518 cartons * 40 pcs = 100720 pcs
|
|
