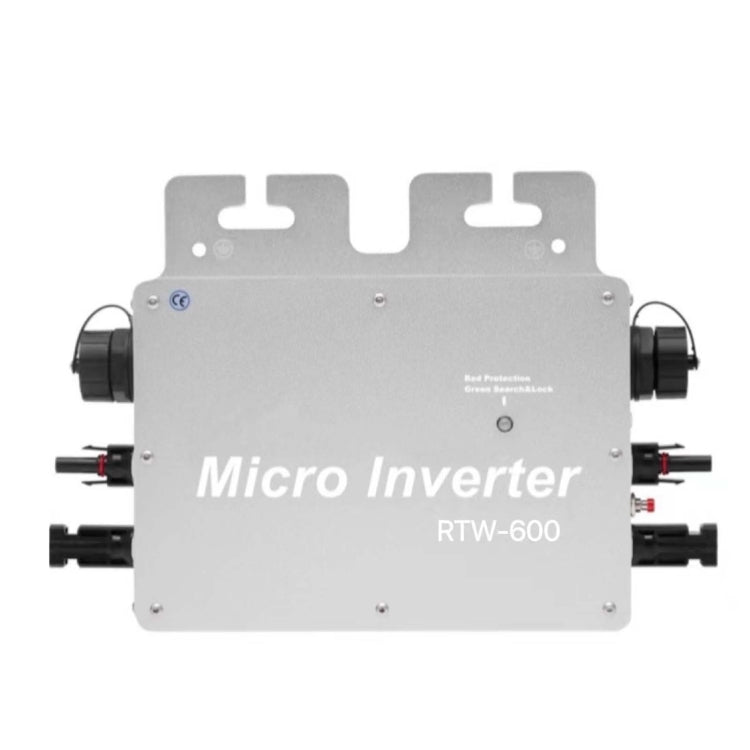

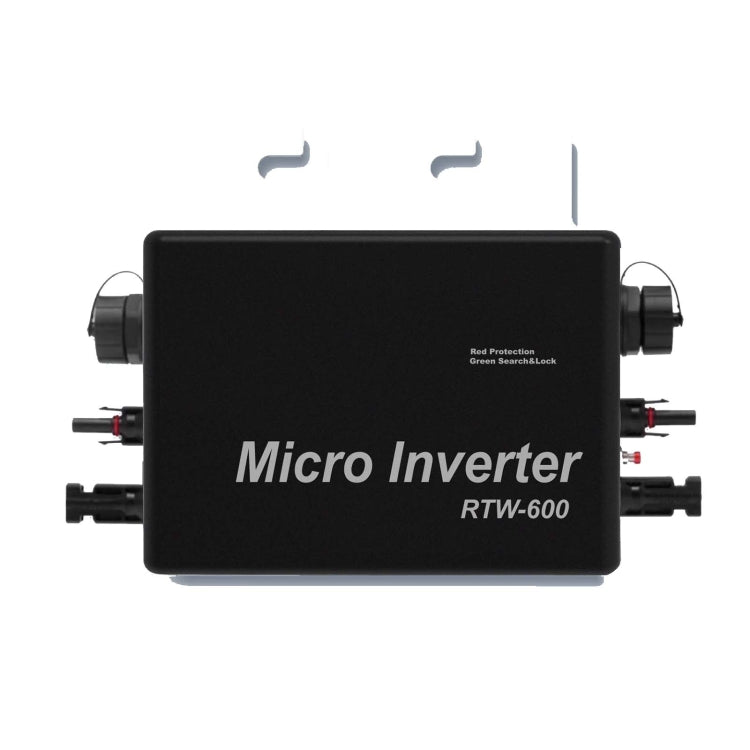

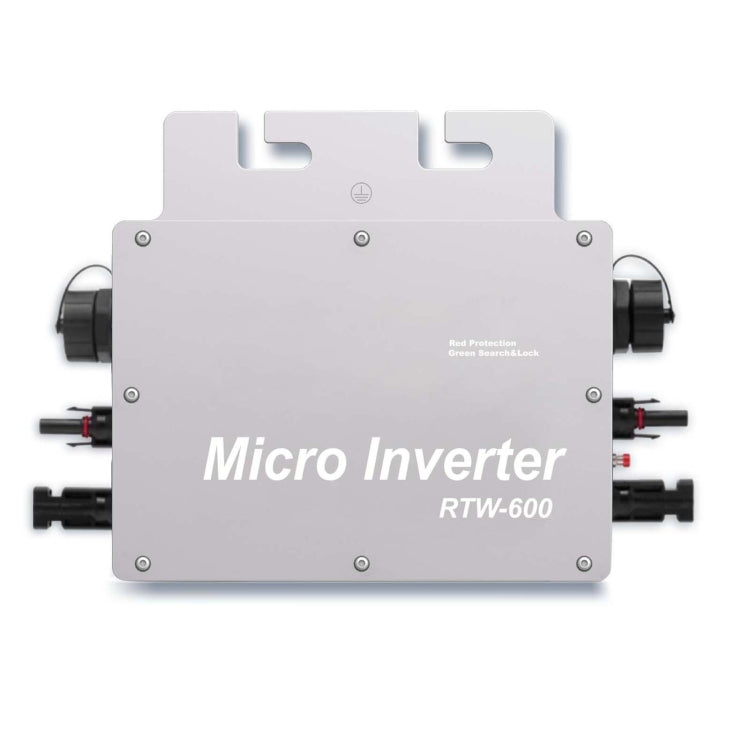

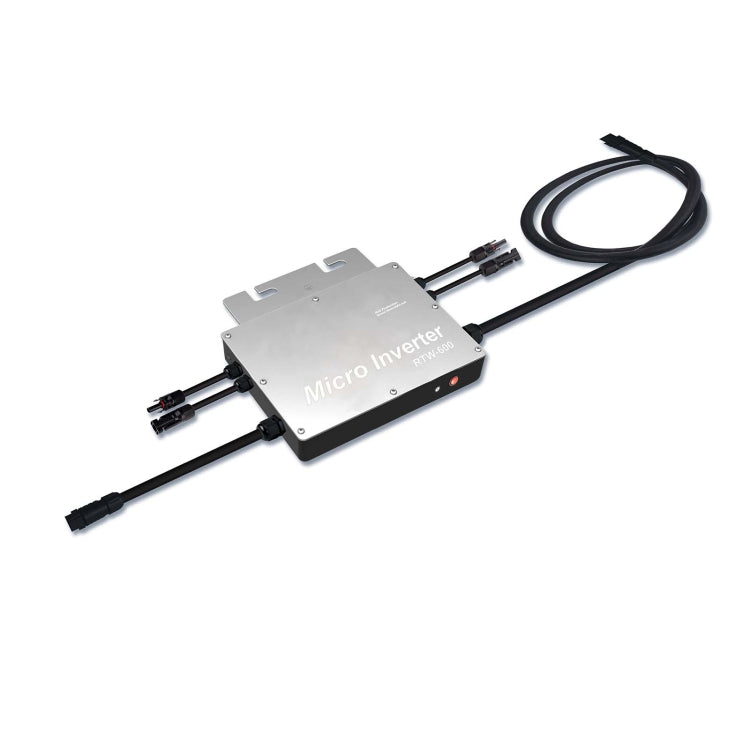

1. Model: RTW-600-EU
2. Commonly used module power (W): 200 to 300W(2Piece)
3. Maximum input voltage (V): 52V
4. MPPT voltage range (V): 20~50V
5. Start-up voltage (V): 18V
6. Maximum input current (A): 2×12A
7. Maximum input short circuit current (A): 2×18.5A
8. Rated output power (VA): 550W
9. Rated output current (A): 2.6A
10. Nominal frequency/range (Hz): 50Hz / 60Hz
11. CEC peak efficiency: 92%
12. Nominal MPPT efficiency: 99.9%
13. Night power consumption (mW): <80mW
14. Enclosure rating: IP65
Specification:
|
Package Weight
|
| One Package Weight |
2.20kgs / 4.86lb
|
| One Package Size |
35cm * 25cm * 11cm / 13.78inch * 9.84inch * 4.33inch
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
57cm * 27cm * 37cm / 22.44inch * 10.63inch * 14.57inch
|
| Loading Container |
20GP: 468 cartons * 5 pcs = 2340 pcs
40HQ: 1087 cartons * 5 pcs = 5435 pcs
|
|
