1. All products have passed the full power aging test to provide safety and stability.
2. The aluminum casing is used to enhance heat dissipation and provide the service life of the product.
3. Input voltage: 110V/220V +/- 1% (100-140V, 180-260V)
4. Output voltage: DC24V 25A
5. Difference range: +/- 1%
6. Power: 600W
9. Output adjustable voltage range: +/- 5%
10. Frequency: 50-60Hz
11. Leakage current: less than 1mA / 230V
12. Temperature coefficient: +/- 0.03%/degree Celsius
13. Start, rise, hold time: 200ms, 50ms, 20ms
14. Vibration resistance: 10-500Hz, 2G 10min/1 cycle, duration 60 minutes, each axis
15. Protection: overload, overvoltage, overcurrent, short circuit
16. Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC
17. Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH
18. Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH

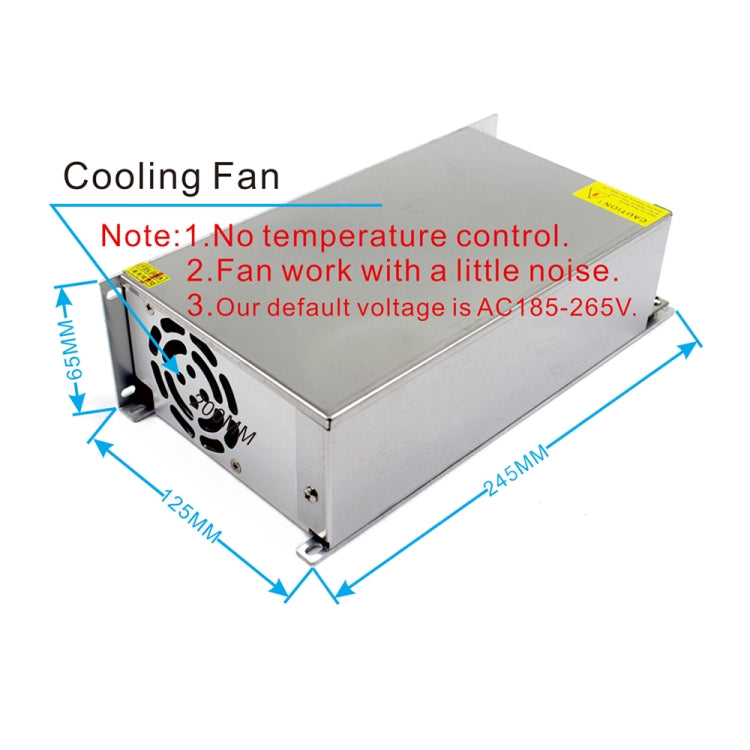

19. Dimensions: 245 x 125 x 65mm
Specification:
|
Package Weight
|
| One Package Weight |
1.26kgs / 2.78lb
|
| One Package Size |
28cm * 16cm * 8cm / 11.02inch * 6.3inch * 3.15inch
|
| Carton Weight |
26.60kgs / 58.64lb
|
| Carton Size |
48cm * 42cm * 38cm / 18.9inch * 16.54inch * 14.96inch
|
| Loading Container |
20GP: 348 cartons * 20 pcs = 6960 pcs
40HQ: 808 cartons * 20 pcs = 16160 pcs
|
|
